3 в 1 многофункциональный волоконно-лазерный аппарат для чистки и резки металла 1000 Вт 1500 2000
- Категория: Laser Welders >>>
- Поставщик: Shandong,Raytu,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 7619.47 $* | 7771.77 $* |
| Jul-20-2025 | 6179.13 $* | 6303.77 $* |
| Jun-20-2025 | 7499.17 $* | 7649.7 $* |
| May-20-2025 | 7439.97 $* | 7588.88 $* |
| Apr-20-2025 | 5939.70 $* | 6058.8 $* |
| Mar-20-2025 | 7319.36 $* | 7465.31 $* |
| Feb-20-2025 | 7259.10 $* | 7404.2 $* |
| Jan-20-2025 | 7199.89 $* | 7343.20 $* |
Характеристики

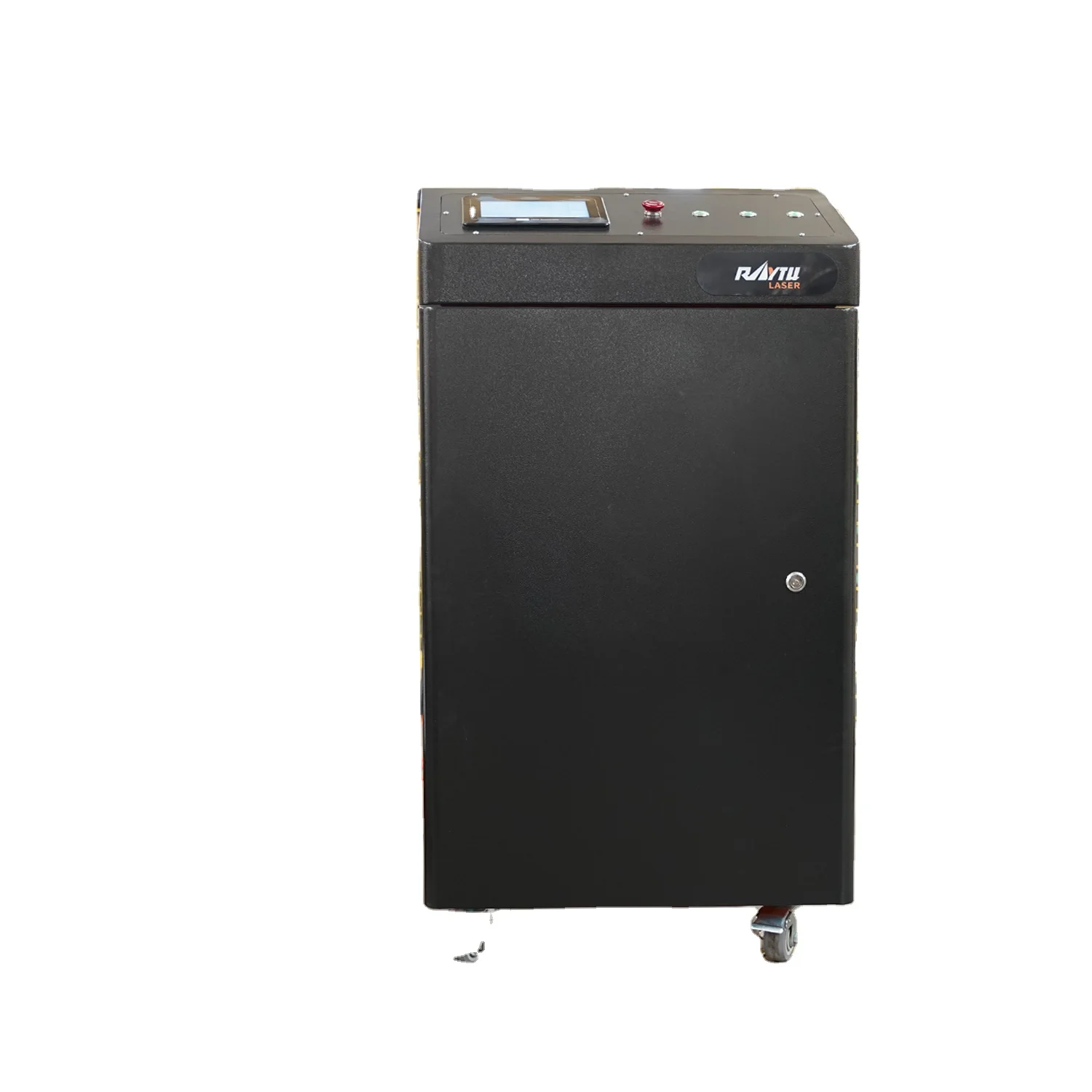

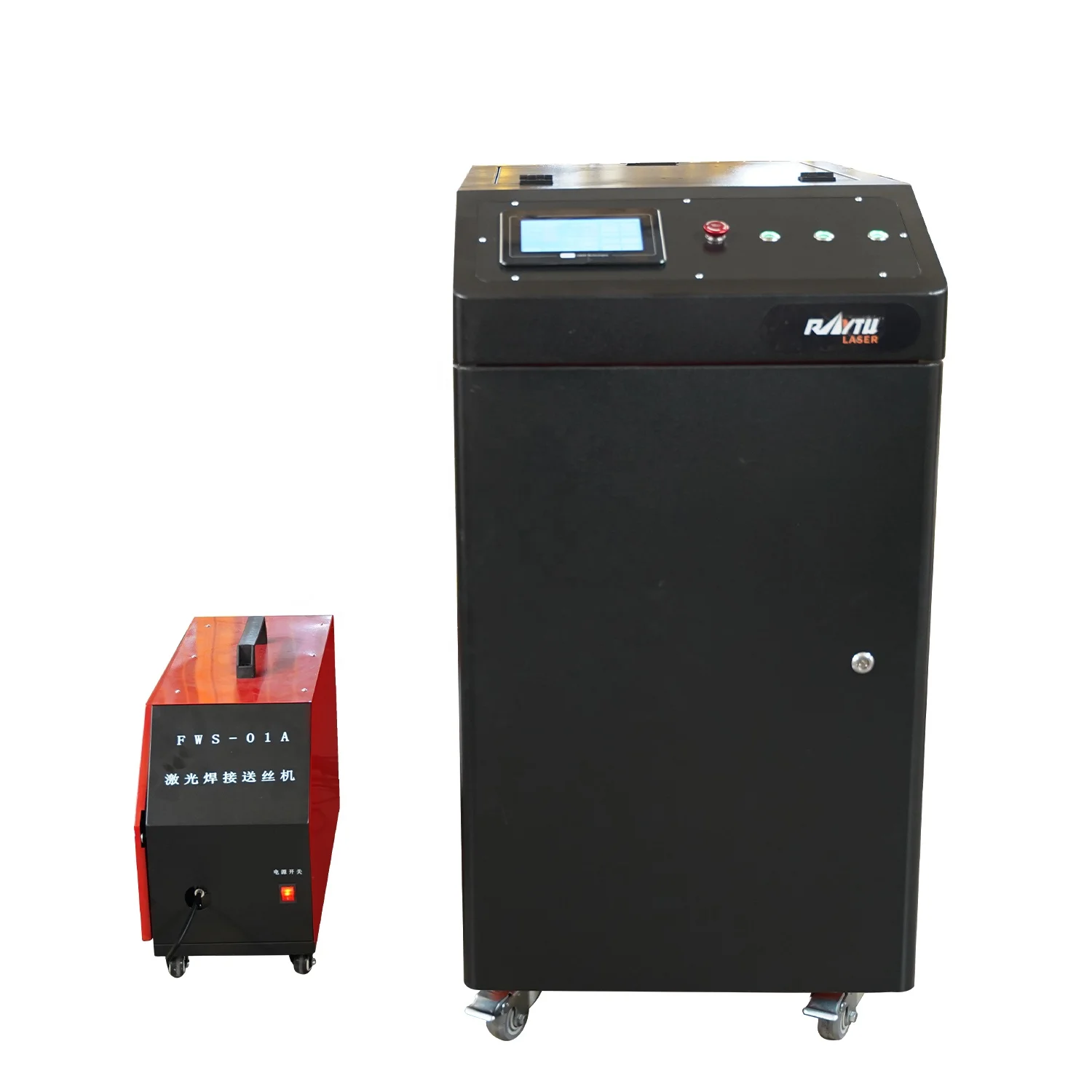

3 in 1 multifunction 1000W 1500W 2000W fiber laser welding cleaning and cutting machine for metal with low price
Products Description
Specification
Machine Parameters | ||||
No. | Items | Parameter | ||
1 | Machine model | RT-HW | ||
2 | Max laser power | 2000W | ||
3 | Cable Length | Standard 10m, the longest 15m | ||
4 | Welding Speed | 0-120mm/s | ||
5 | Welding Thickness | 0.5-4mm | ||
6 | Welding Gap | ≤0.5mm | ||
7 | Positioning Accuracy | ±0.03MM | ||
8 | Working Voltage | 220v | ||
9 | Dimensions | 1100x620x1200mm | ||
10 | Weight | 230kg | ||
Machine Parts
Fiber Laser
2. They are excellent beam quality, high energy density, and reliability, a wide modulation frequency;
3. 100,000 hours of lifetime, free maintenance; Low energy consumption.

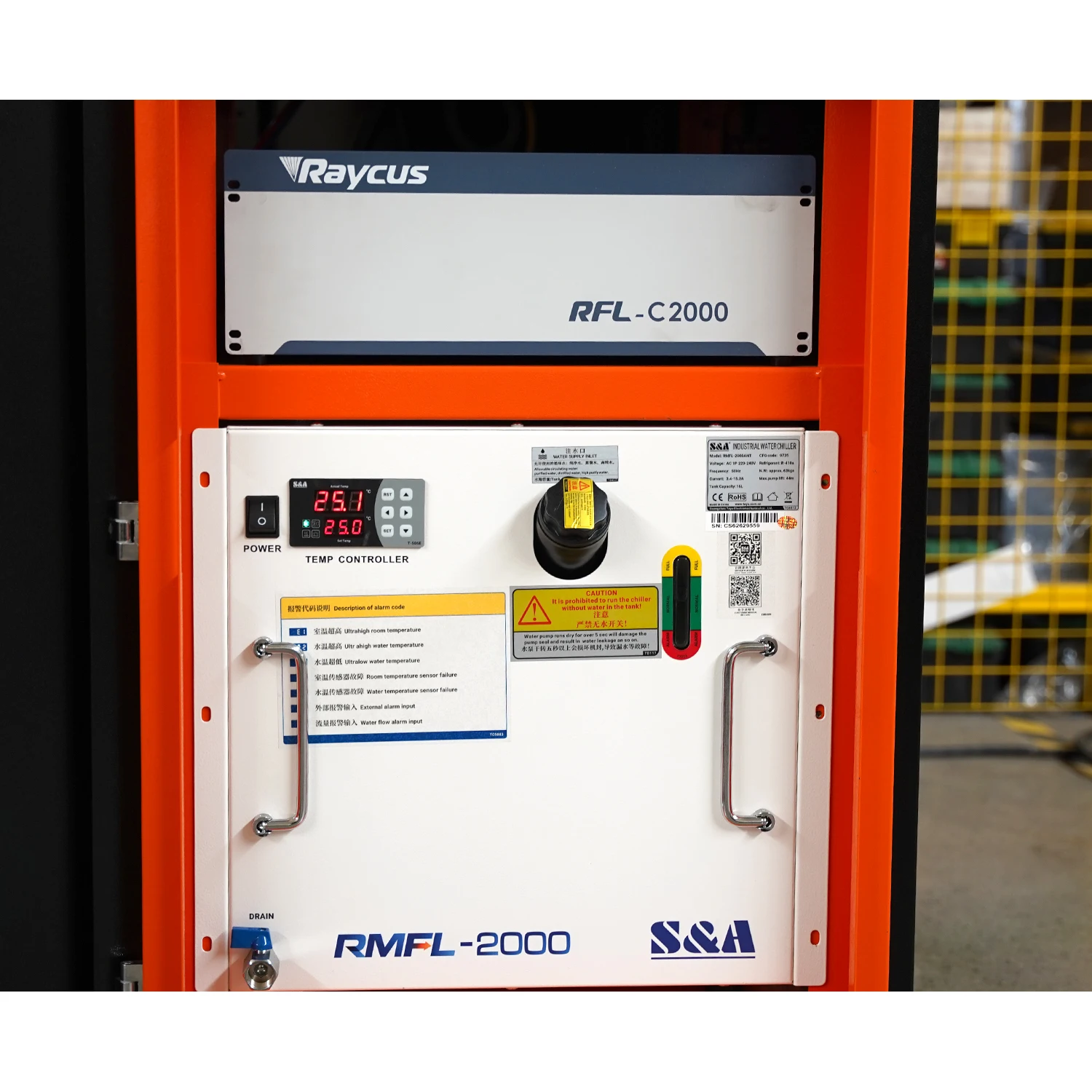

Watter Chiller
1. Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce
the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.
the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.
2. The chiller has functions such as water flow protection and water temperature protection. If the chiller is not opened or the water
flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.
flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.

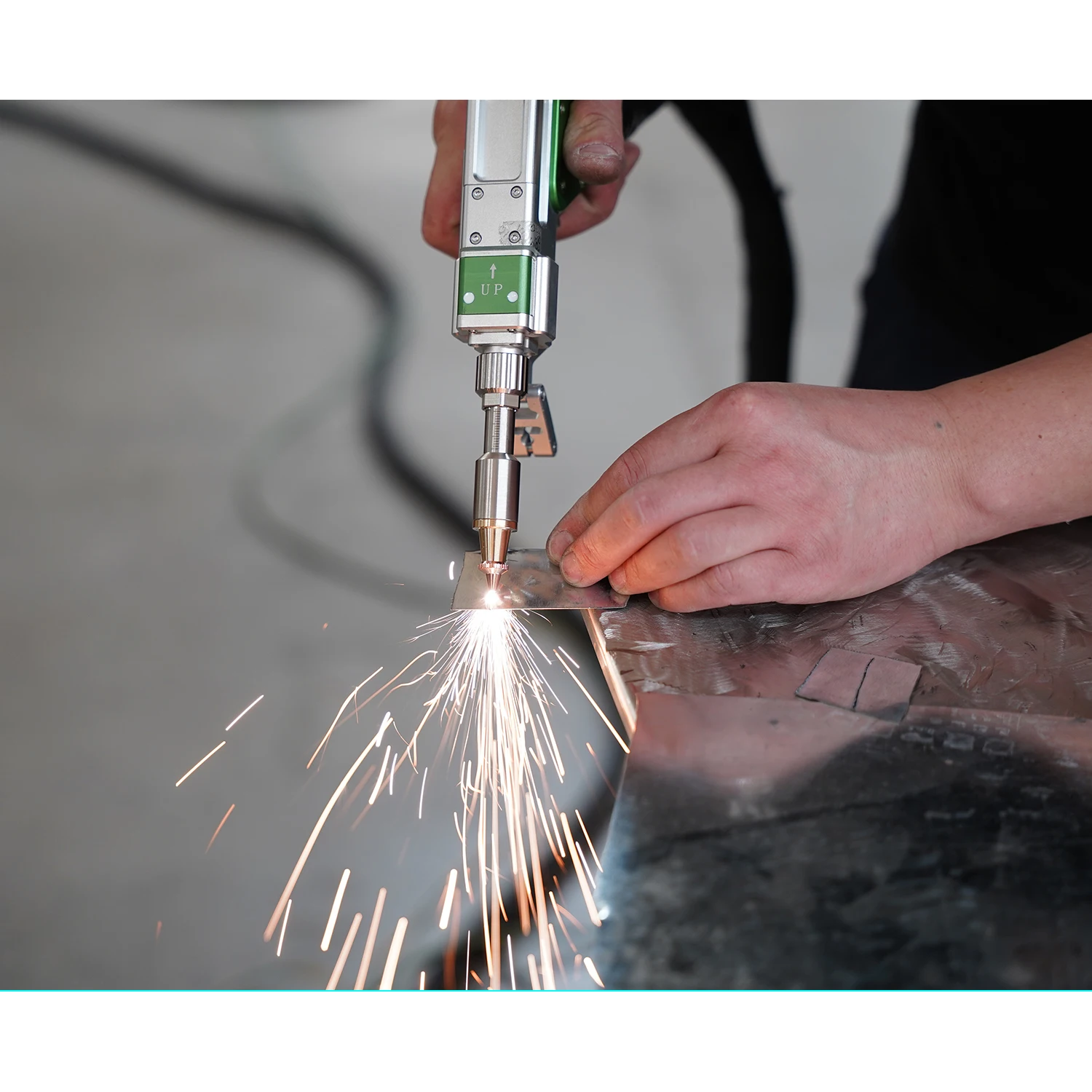

Portable Laser Welding Head
2.Portable and flexable, intergrated gas protection system

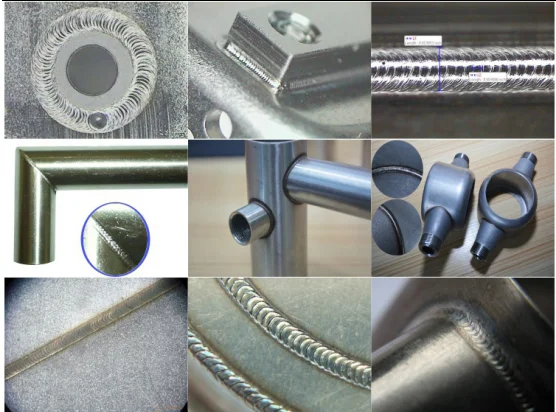

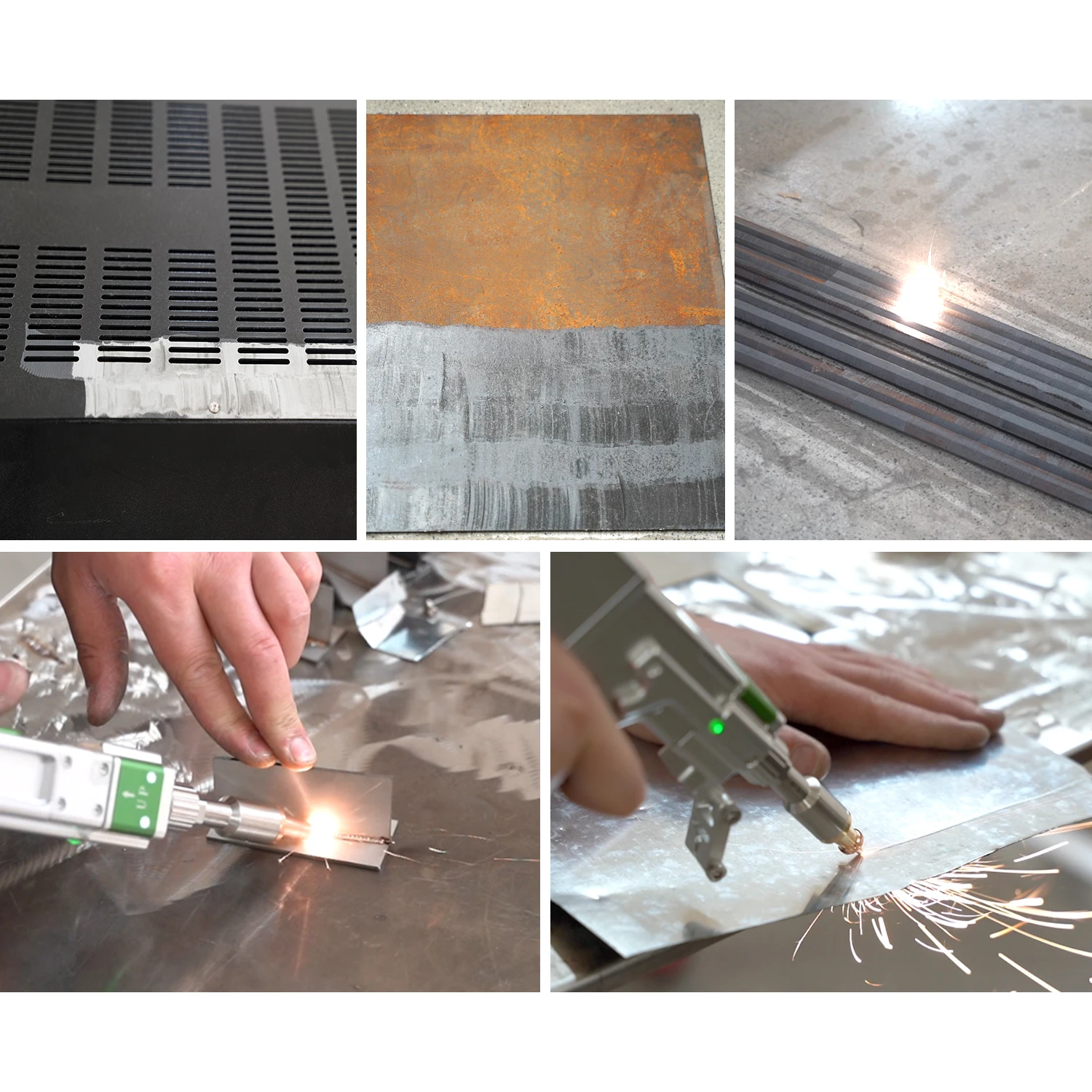

Application
What is the laser welder application?
Laser welding technology and laser welding machine are widely used in manufacturing, powder metallurgy, automotive industry, electronics industry, biomedicine.The laser beam is easy to focus, align and be guided by optical instruments. It can be placed at an appropriate distance from the workpiece, and can be guided between tools or obstacles around the workpiece. Other welding methods cannot be used due to the above-mentioned space limitations. Laser welding is one of the important aspects of the application of laser material processing technology.
Company Profile
Shandong Raytu Laser Technology Co., Ltd. is a professional R&D, production and sales of laser equipment high-tech enterprises.The company has a group of top laser technology talents, established a covering China, radiation of the global sales system.The company has a standardized intelligent equipment base, committed to fiber cutting machine, intelligent robot research and development, manufacturing and sales.The equipment is widely used in advertising industry, arts and crafts gifts, precision instruments, auto parts, jewelry and other industries.To meet the needs of customers in different industries, and rely on excellent design, excellent and stable performance, won the unanimous recognition of customers at home and abroad. The company regards the quality as the life, takes the technology as the foothold this, we will always adhere to "the quality, the customer is supreme, strictly observes the prestige, serves the society" the purpose, the warm welcome from all walks of life friend comes to the company to visit, the investigation, the guidance. Corporate mission: To be a one-stop procurement platform for laser engraving machine industry.Corporate vision: Made in China, leading the world. Corporate values: integrity, innovation, gratitude, cooperation, efficiency.
FAQ
Q: how do I install this machine?
A: the machine has been installed and debugged before leaving the factory, and can be used directly after receiving it.
Q: when is the warranty?
A: this machine is guaranteed for two years.
Q: how do I operate this machine? Is training necessary?
A:The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and pictures, and provide the software manual.Generally speaking, an operator who is not familiar with the fiber laser marking machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or when the customer needs to come to our factory for machine training.
A: the machine has been installed and debugged before leaving the factory, and can be used directly after receiving it.
Q: when is the warranty?
A: this machine is guaranteed for two years.
Q: how do I operate this machine? Is training necessary?
A:The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and pictures, and provide the software manual.Generally speaking, an operator who is not familiar with the fiber laser marking machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or when the customer needs to come to our factory for machine training.
Q: if there is a problem with the machine, what about the after-sales service?
A: we offer a two-year warranty on the machines.Within the two-year warranty period, if there is any problem with the machine, we will deliver the required parts free of charge.But man-made damage is not covered by our warranty.After the warranty period, we still offer a lifetime service
A: we offer a two-year warranty on the machines.Within the two-year warranty period, if there is any problem with the machine, we will deliver the required parts free of charge.But man-made damage is not covered by our warranty.After the warranty period, we still offer a lifetime service
