Керамический фильтр из карбида

Категория: Ceramics >>>
Поставщик: Tianhua,Institute,Of,Chemical,Machinery,And,Automation,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.6 $*	0.77 $*
Aug-16-2025	0.41 $*	0.34 $*
Jul-16-2025	0.95 $*	0.9 $*
Jun-16-2025	0.18 $*	0.83 $*
May-16-2025	0.11 $*	0.0 $*
Apr-16-2025	0.80 $*	0.93 $*
Mar-16-2025	0.7 $*	0.91 $*
Feb-16-2025	0.18 $*	0.39 $*
Jan-16-2025	0.17 $*	0.81 $*

Характеристики

Product advantages

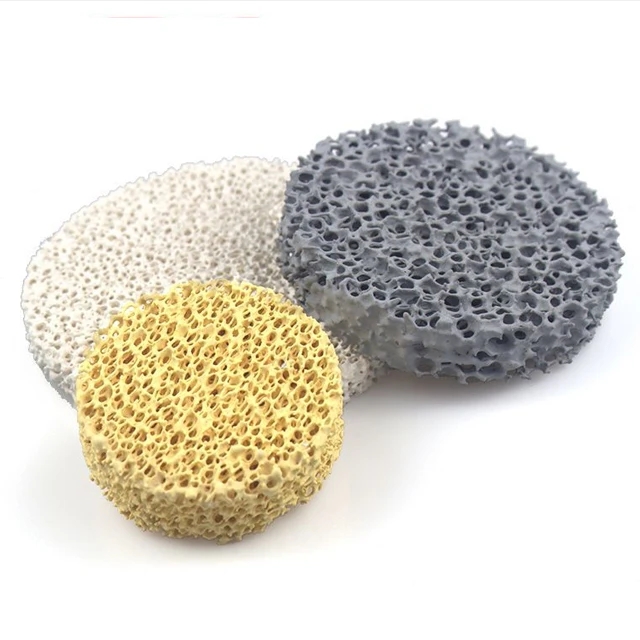

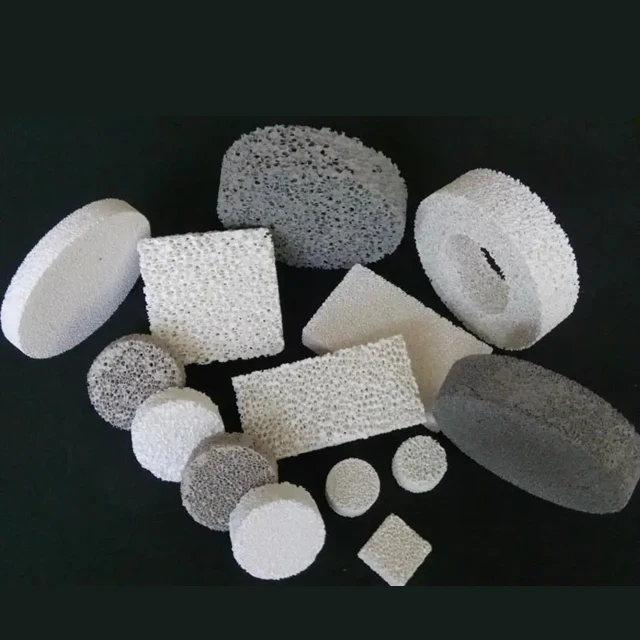

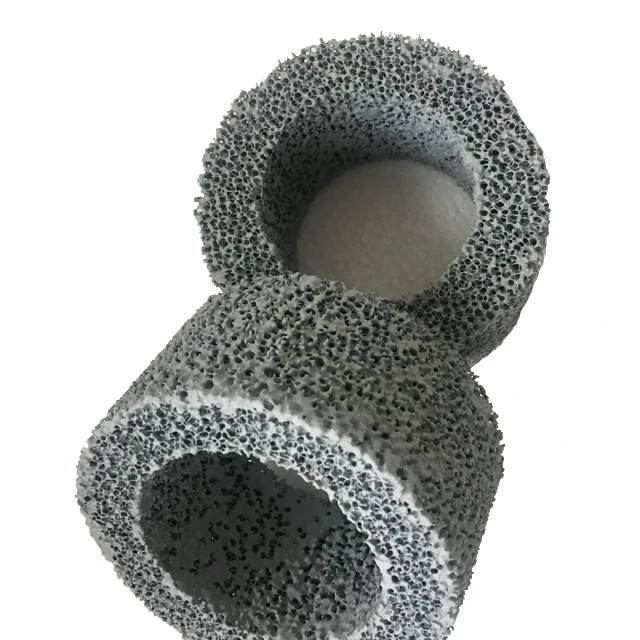

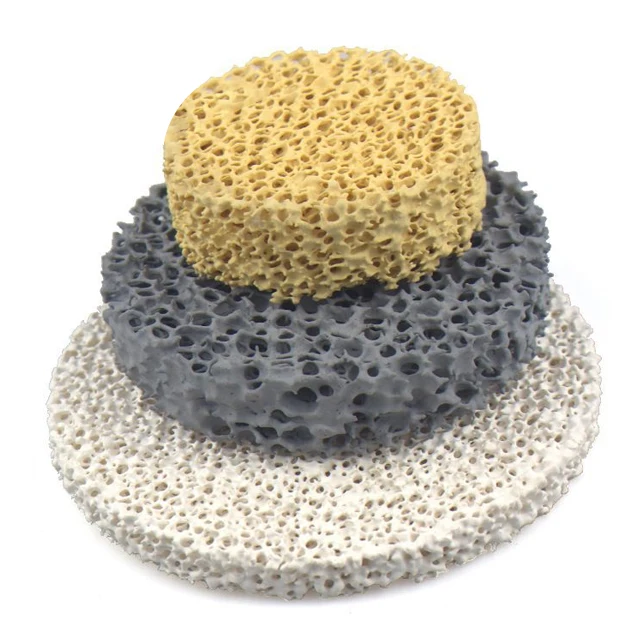

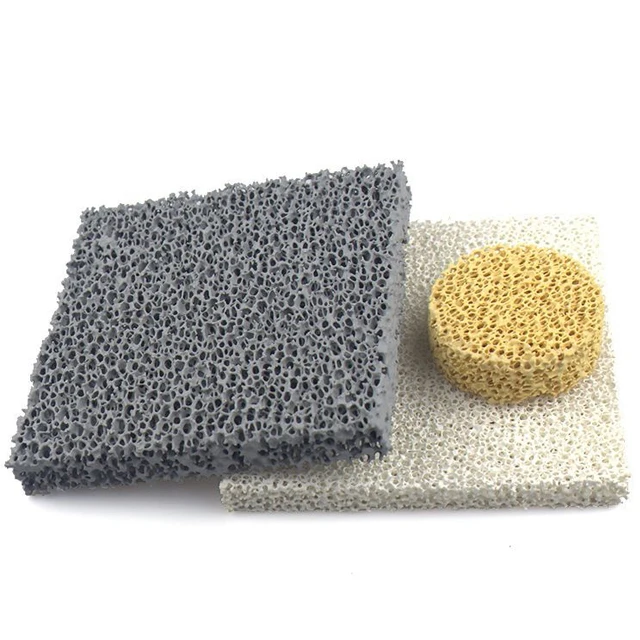

Silicon carbide foam filter slag sheet Grey cast iron casting and copper alloy casting

With its interconnected three-dimensional structure, the foamed ceramic filter can fully reflect the four filtration mechanisms of rectification, mechanical screening, "filter cake" and adsorption when filtering molten metal. At the same time, the filter material has good chemical stability. , does not react with the alloy liquid, so as to effectively remove or reduce the inclusions in the metal liquid to improve the purity of the molten metal, so that the surface of the cast metal casting is smooth, the strength is improved, the scrap rate is reduced, and machining losses are reduced. , thereby reducing energy consumption, increasing labor productivity and reducing costs.

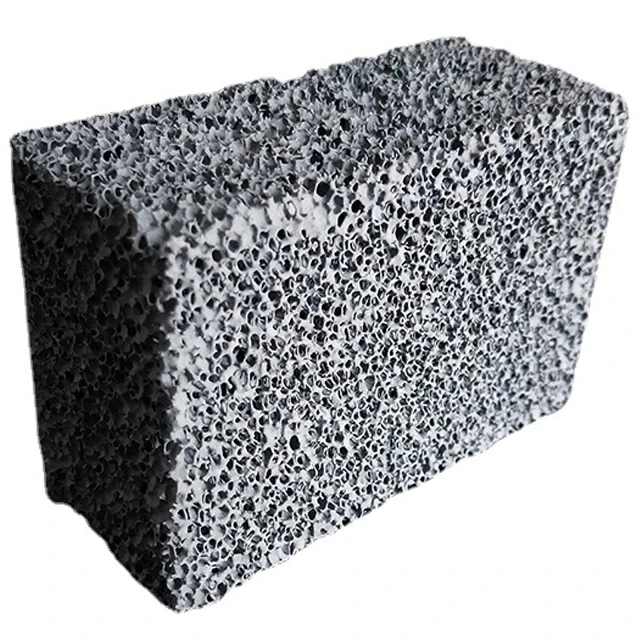

Silicon carbide foam filter
Scope of application: suitable for ductile iron, gray iron casting and copper alloy casting
Product function:
1. Filter slag to reduce damage to castings;
2. Filter out the bubbles in the molten metal;
3. Rectification, so that the flow of molten metal is changed from turbulent to laminar flow state, reducing secondary oxidation and inhalation of molten metal, and improving the performance of castings.
Silicon carbide foam ceramic filter
1. Reduce the rejection rate of inclusion defects: reduce inclusion defects by more than 50%
2. Improve the machining performance of castings: tool life is increased by more than 30%
3. Improve the mechanical properties of castings: the mechanical properties are improved by more than 10
4. Improve the yield of the casting process: the yield of the process is increased by more than 10
Size selection: Generally recommended as follows:
Size 75mm Thickness 20~22mm,
Size 75-120mm Thickness 22~25mm,
Size 120-150mm Thickness 25~30mm,
Size>150mm Thickness 30~40mm

raw material	Alumina	Silicon carbide	zirconium oxide	Magnesium oxide
color	White	dark grey	yellow	dark yellow
Pore density	8-60ppi	8-60ppi	8-60ppi	8-60ppi
Porosity	80-90%	80-90%	80-90%	80-90%
fire resistance	≤1100℃	≤1500℃	≤1700℃	≤1000℃
Flexural strength	>0.6Mpa	>0.8Mpa	>1.0Mpa	>0.6Mpa
Compressive strength	>0.8Mpa	>0.9Mpa	>1.2Mpa	>0.8Mpa
Test weight	0.3-0.45g/cm³	0.35-0.5g/cm³	0.9-1.5g/cm³	0.35-0.5g/cm³
Thermal shock resistance	6times/1100℃	6times/1100℃	6times/1100℃	6times/1100℃
application	Aluminum alloy and others Non-ferrous metal alloys	Ductile Iron malleable cast iron Grey cast iron and other cast iron	High melting point metal alloys such as steel alloy steel stainless steel, etc.	Magnesium and high activity alloys
