12 колес 8x4 sinotruk задняя нагрузка гидравлический Тяговый рычаг грузовики для мусора 16

12 колес 8x4 sinotruk задняя нагрузка гидравлический Тяговый рычаг грузовики для мусора 16

Категория: Garbage Truck >>>
Поставщик: Chengli,Special,Automobile,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.34 $*	0.19 $*
Aug-18-2025	0.14 $*	0.38 $*
Jul-18-2025	0.74 $*	0.75 $*
Jun-18-2025	0.8 $*	0.83 $*
May-18-2025	0.26 $*	0.79 $*
Apr-18-2025	0.55 $*	0.99 $*
Mar-18-2025	0.41 $*	0.66 $*
Feb-18-2025	0.48 $*	0.33 $*
Jan-18-2025	0.33 $*	0.10 $*

Характеристики

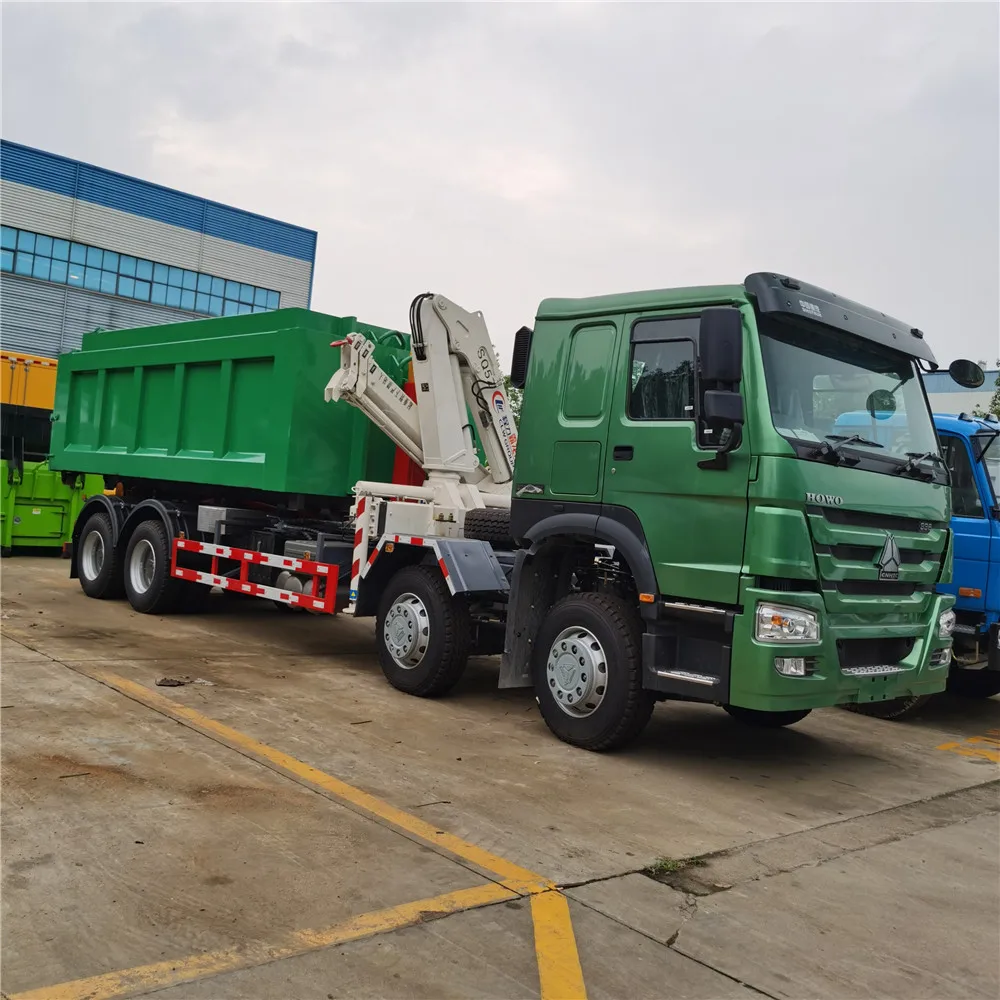

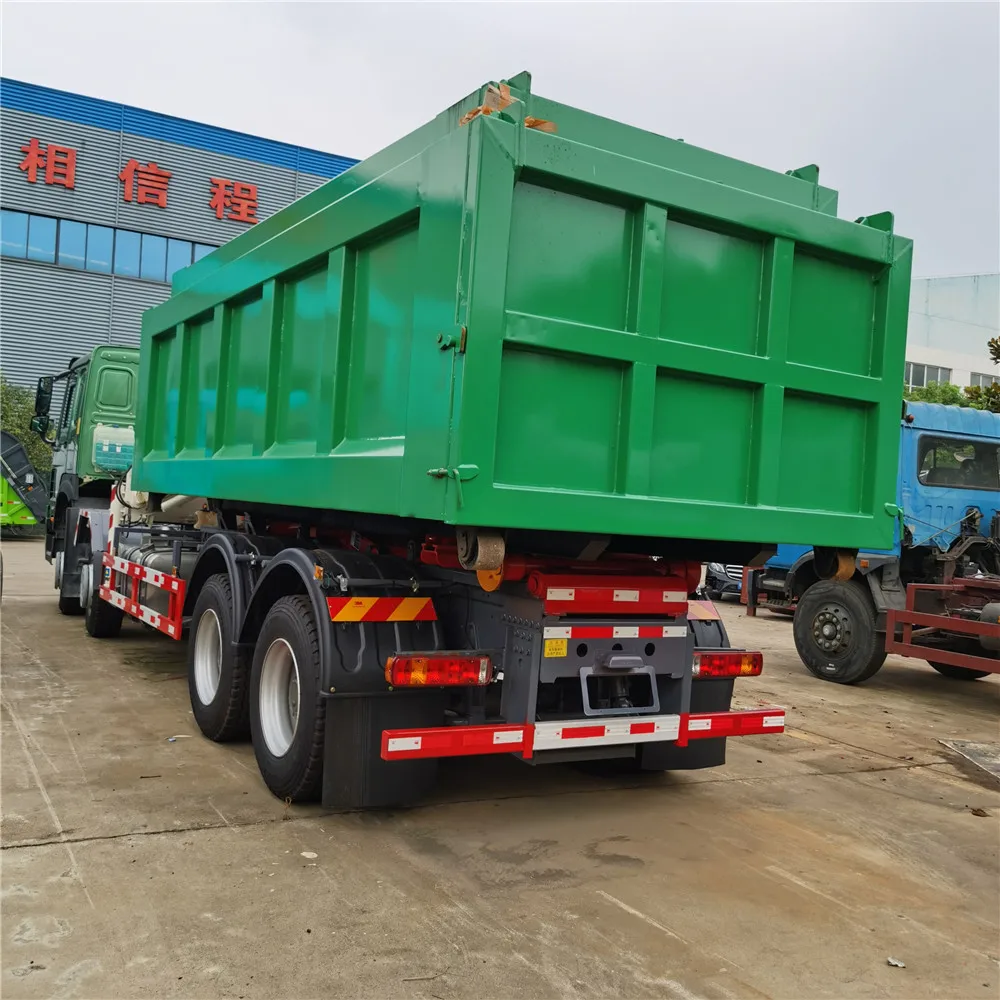

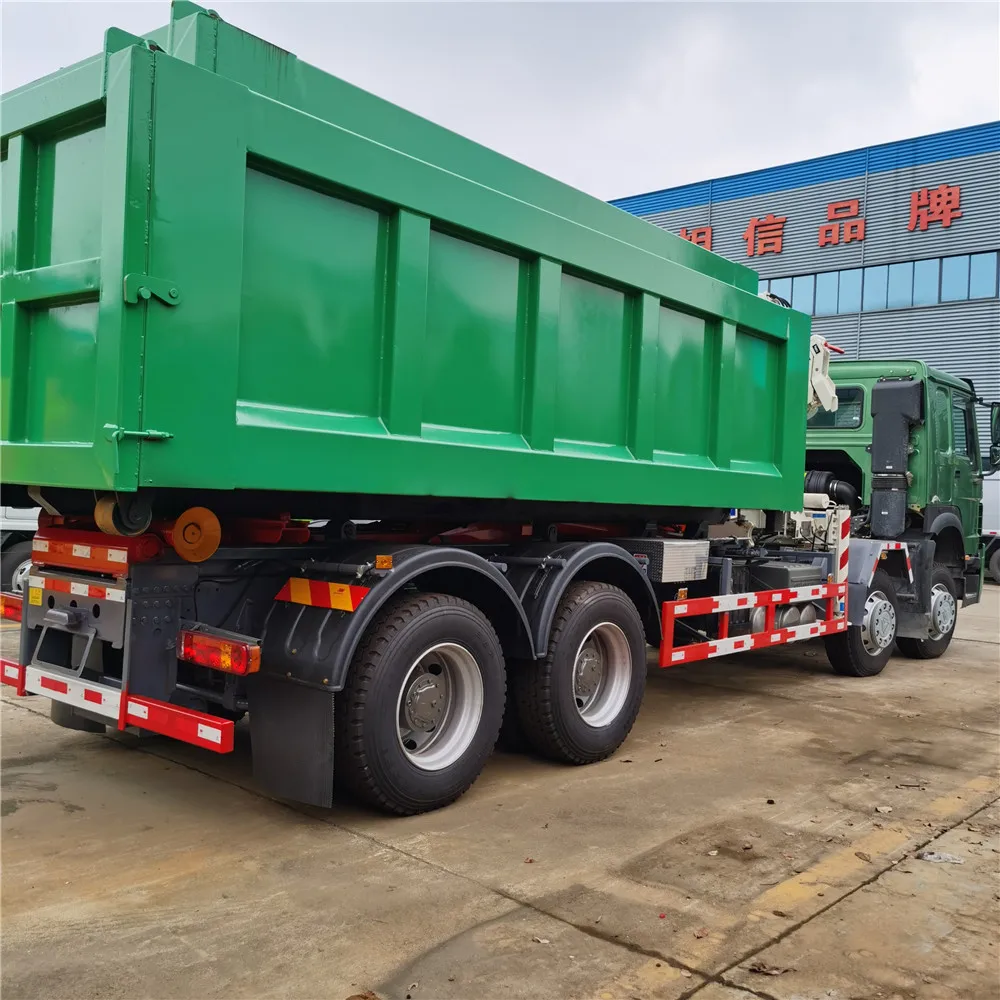

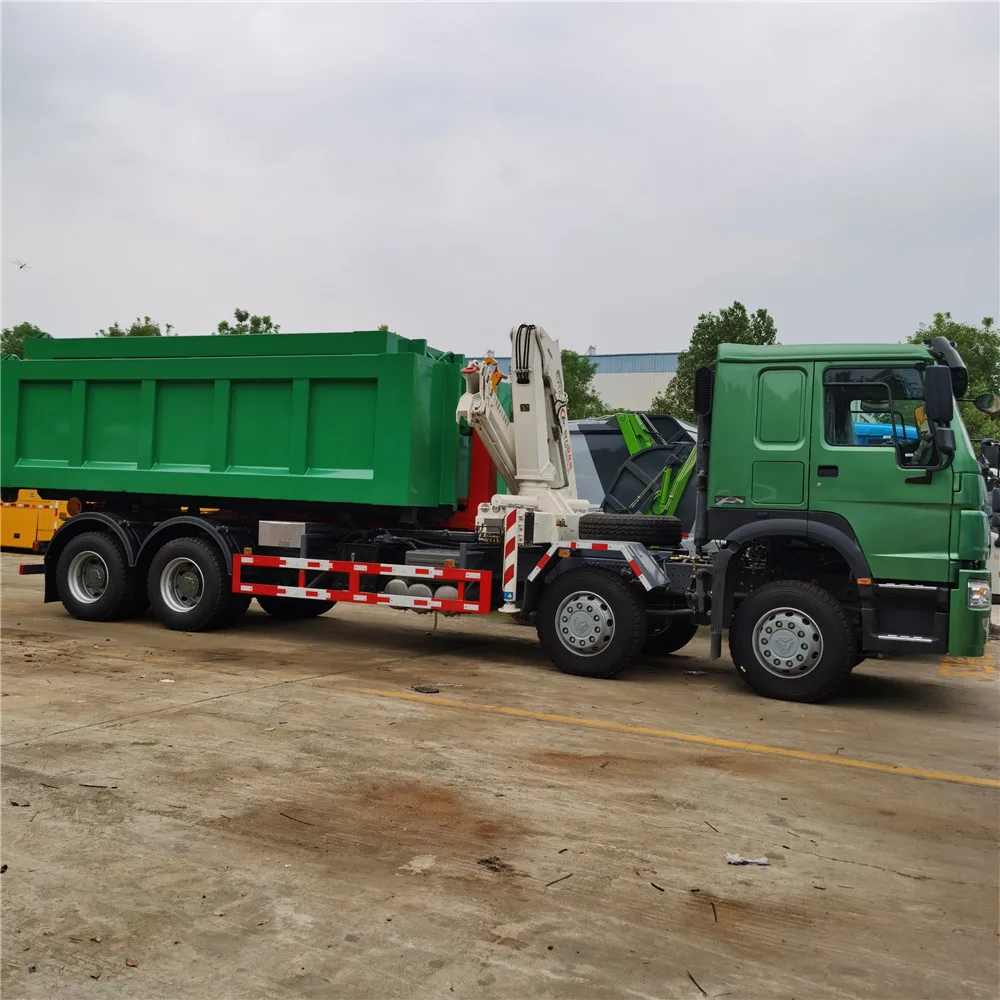

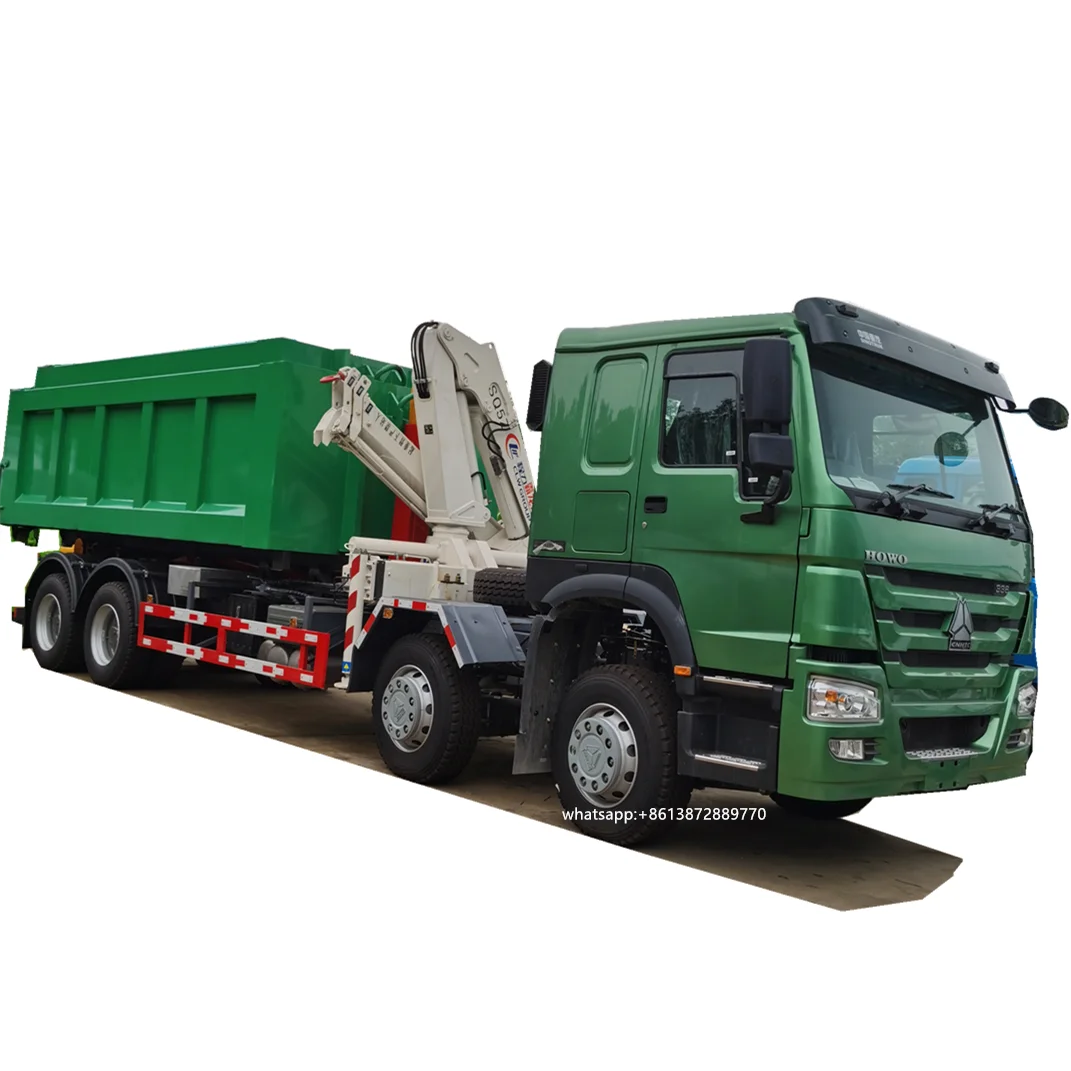

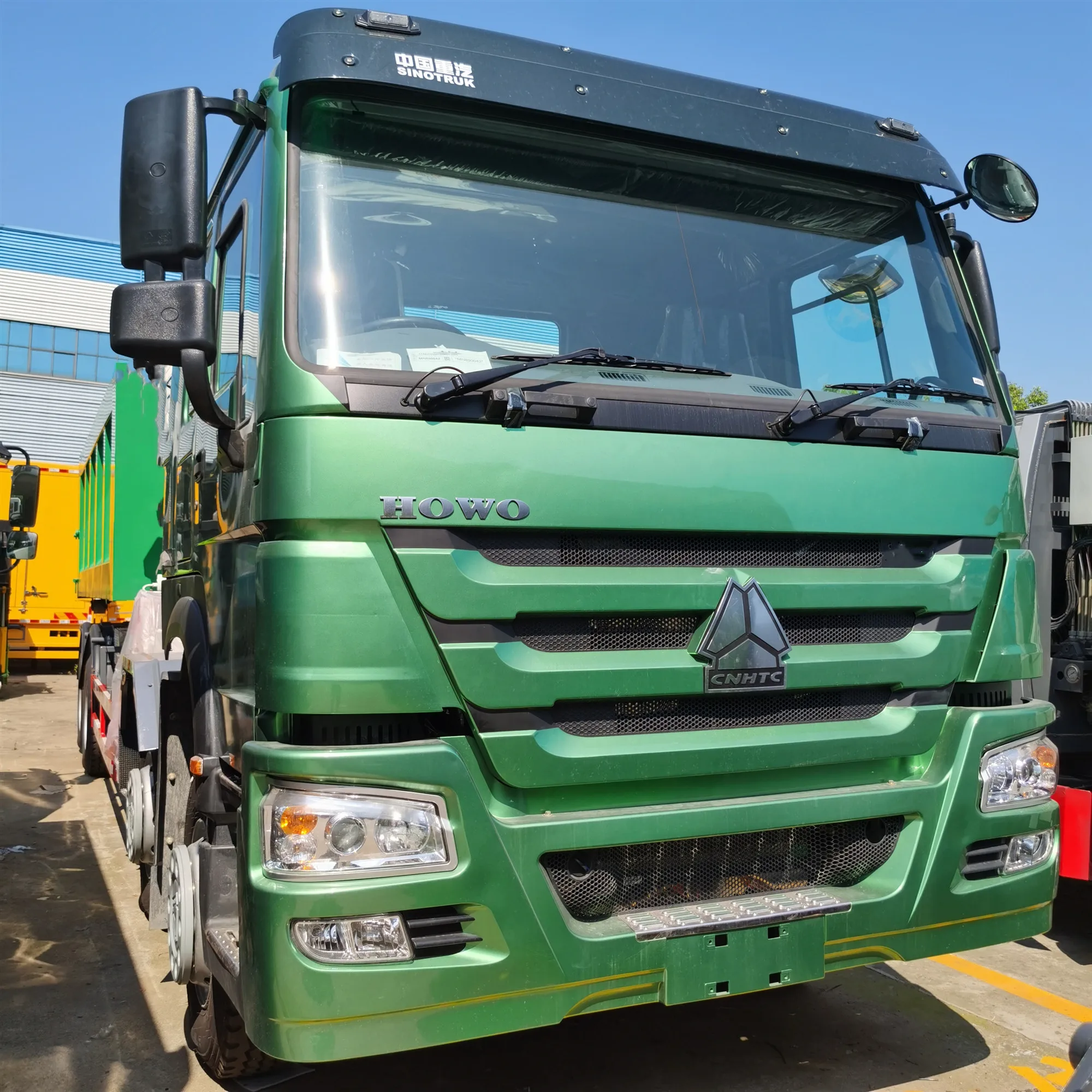

12 wheel 8x4 sinotruk rear load hydraulic pull arm refuse trucks 16 cbm

CLW bin lifter garbage truck , also called hook arm garbage truck ,hook lift garbage truck , roll on roll off garbage truck ,bin lifter garbage truck , hook lift containers for sale, dongfeng hook lift truck, hook arm garbage truck for sale ,hydraulic lift garbage truck, hydraulic lift garbage truck etc

CLW Brand Hook loader waste collection truck advatange :

1 Cargo compartment and vehicle body can be separated.

2 One vehicle can work with more one garbage cargo body, recycling transport

3 Easy operation ,good performance

Product Description

8X4 hook lift refuse truck specifications

No.	Item Name	Spec.
1	Approx. Overall Dimension	6455x1700x1845mm
2	Weight of Hook lift	About 2,500kg
3	Max. capacity	20,000kg
4	Hook Hydraulic Cylinder	2 sets
5	Lock Hydraulic Cylinder	1 set
6	Telescopic Boom Cylinder	1 set
7	Outrigger Cylinder	1 set
8	Hydraulic multi-way Valve	1 set
9	Hydraulic oil tank	1 set
10	High pressure oil pipe	several sets
11	Hydraulic pressure gauge	1 set
12	Other parts	1 set
13	Hook boom material	700 High strength steel, 8mm
14	Dump angle	≥45°
15	Pressure of hydraulic system	25Mpa
16	Control type	Manual

Chassis brand: sinotruk howo , drive type 6x4, engine power: 336hp, steering wheel: LHD or RHD, emission standard: Euro2

Items	Descriptions	Specifications and Types
General	Truck Name	Hook lift garbage truck
	Gross Vehicle Weight(kg)	25000
	Payload Weight (kg)	13000
	Overall Dimensions (mm)	8500×2500×3200
Engine	Engine Brand	SINOTRUK
	Engine Power & Emission Standard	213kw/290HP, Euro2, Diesel
	Displacement(ml)	9726
	Engine Type	6 cylinders in line, inter cooler, supercharged
Chassis	Chassis Brand	HOWO
	Drive Type	6x4
	Cab	Flat roof, one row with single sleeper, with A/C
	Tire No. & Specification	10+1, 295/80R22.5 Tubeless tire
	Wheelbase (mm)	4325+1350
	Steering Wheel	Left hand drive with power-assisted
	Gear Box	HW13710 10 speed forward with 2 reverse, manual
Waste container	Dimensions LWH(mm)	6200x2450x1850
	Body Material	Carbon steel Q345
	Body thickness	Side 3mm, Bottom 4mm
	Body side	Square
	Hook lifting system dimension	Hook height	1580mm
		Rail width	1060mm
	Hook diameter	¢50mm
	Gross Weight	4500kg
	Loading capacity(m3)	20
	Bottom beam height(mm)	106
	Guide pully wheel track(mm)	2180mm
	Tailgate open method	Hydraulic
	Anti-corrosion	Red Oxide primer
Performance	Max lifting capacity(kg)	20000
	Max self-discharging angle	50°
	Loading time(s)	≤60
	Discharging time(s)	≤72
	Discharging cycle time(s)	≤110
	Hydraulic pressure(Mpa)	30
