Тринокулярный стереомикроскоп RF7050TVP для ремонта телефонов 7-50X синхронный зум промышленный микроскоп RF4 с большой
- Категория: Optical Instruments >>>
- Поставщик: Shenzhen,Fengjiahe,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 189.13 $* | 193.66 $* |
| Jul-15-2025 | 153.14 $* | 156.18 $* |
| Jun-15-2025 | 186.95 $* | 190.5 $* |
| May-15-2025 | 185.66 $* | 189.87 $* |
| Apr-15-2025 | 148.39 $* | 151.80 $* |
| Mar-15-2025 | 182.13 $* | 186.43 $* |
| Feb-15-2025 | 180.68 $* | 184.23 $* |
| Jan-15-2025 | 179.15 $* | 183.5 $* |
Характеристики
Product Description

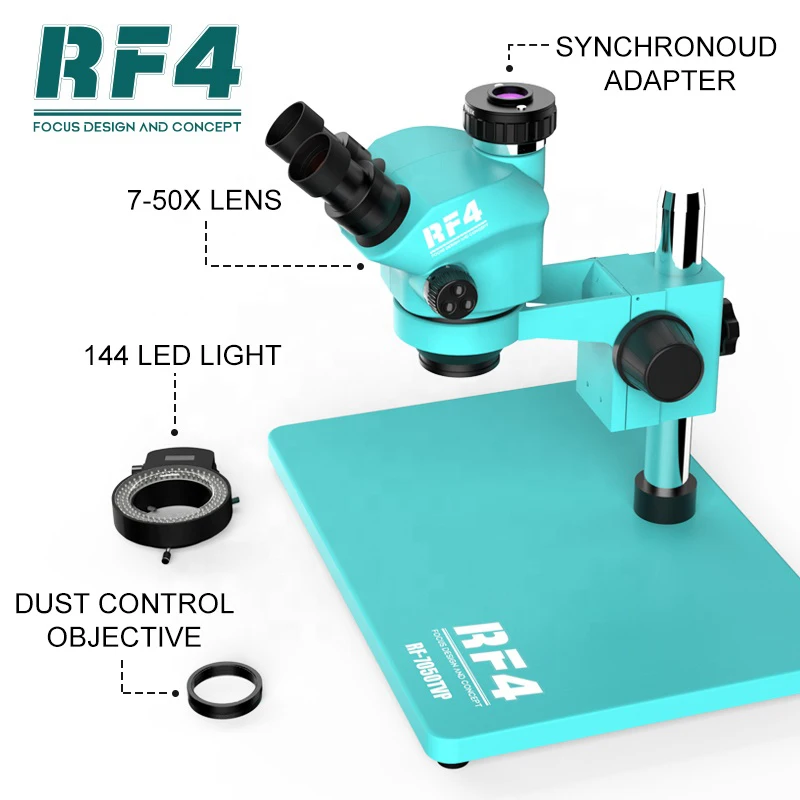

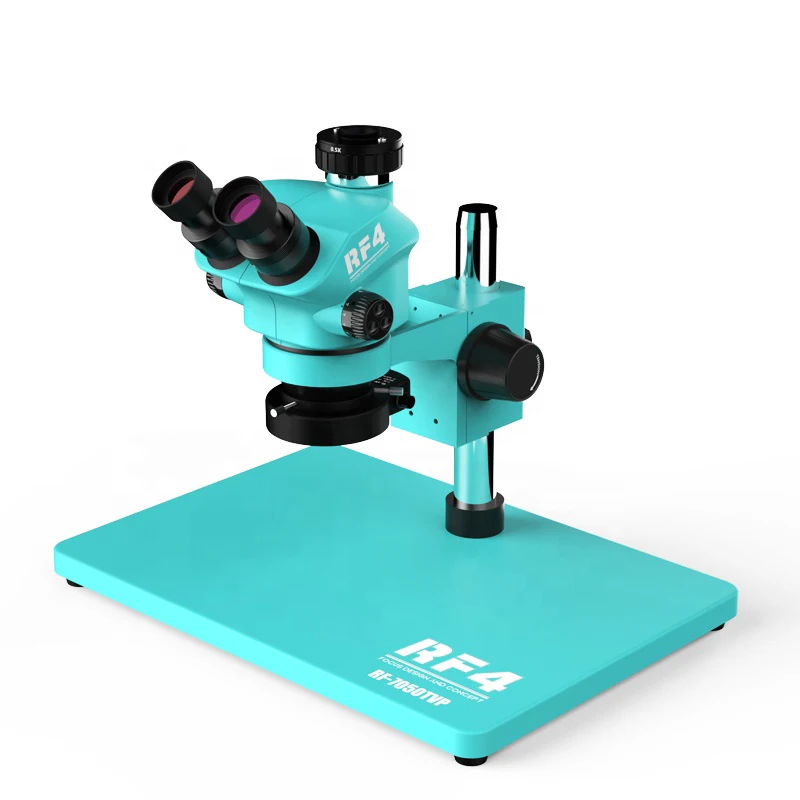

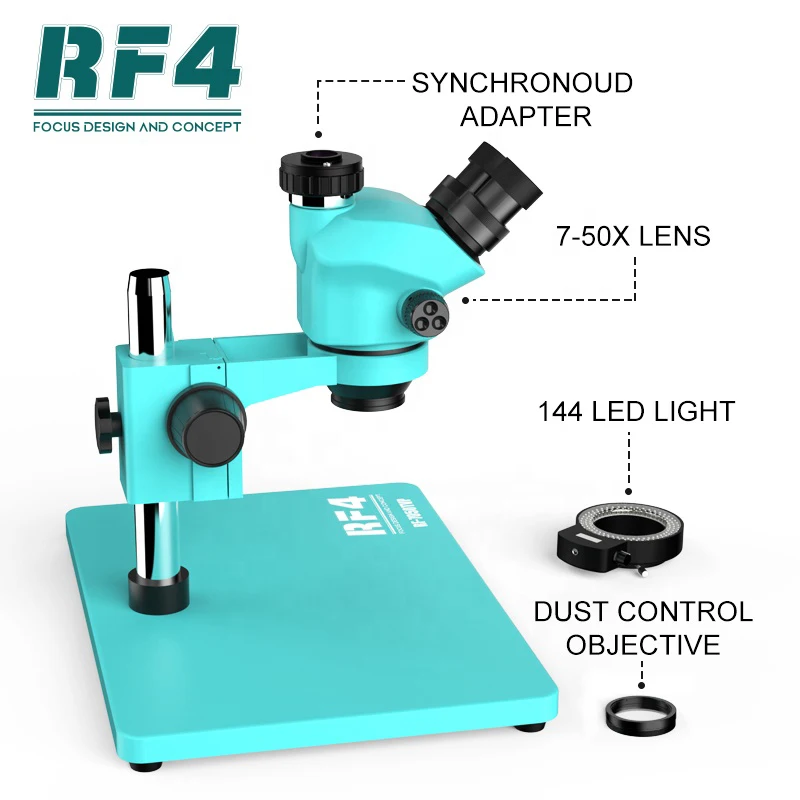

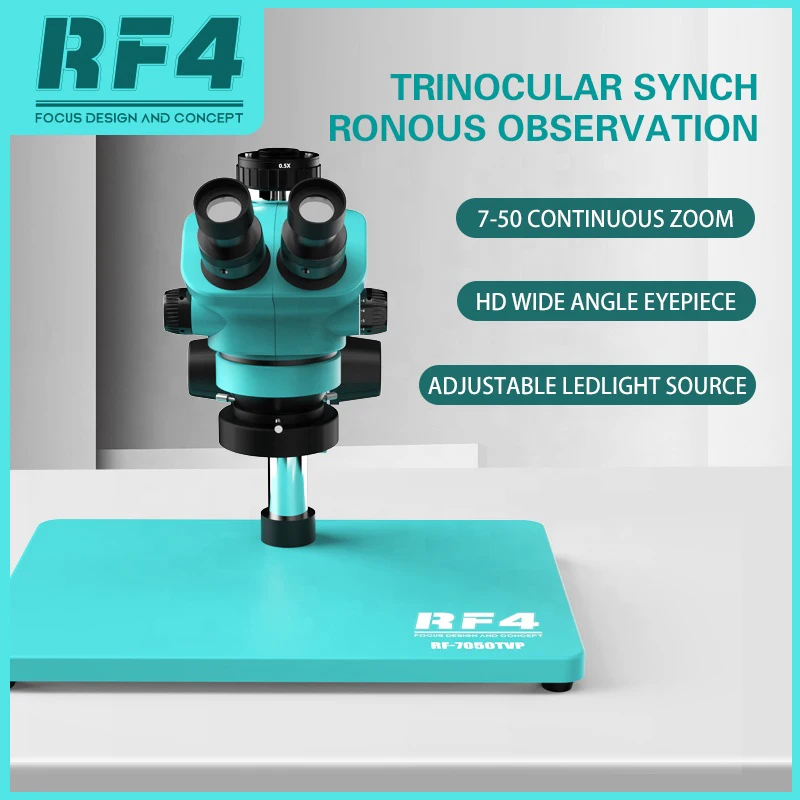

RF7050TVP Trinocular Stereo Microscope Phone Repair 7-50X Synchronous Zoom Industrial RF4 Microscope With Big Base
Magnification:continuous zoom 7X to 50X
Features:
Magnification:continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens:0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom Camera:Different models optional
Boom Stand: 250mm φ32mm pillar, 380mm*260mm base
Accessories: 144 adjustable led light & dust proof Lens
Microscopic structure
1 16MP Wifi 10inch Display 2 Eye shields
3 Eyepieces
4 Zoom Control Knob
5 Objective Lens
6 clip
7 black and white plate
8 Round Column
9 Focusing knob
1 16MP Wifi 10inch Display 2 Eye shields
3 Eyepieces
4 Zoom Control Knob
5 Objective Lens
6 clip
7 black and white plate
8 Round Column
9 Focusing knob
Support parameters
Column aperture: Φ32mm
Lens aperture: Φ76mm
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm
Lifting range: 50mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet. 2The adapter
ring can use LCD to focus, this kind of focus method is manual focus. 3 The adapter has a transparent mirror inside, which can
help the microscope display and the other display to achieve synchronous zooming. 4 Weight: 0.09kg.
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet. 2The adapter
ring can use LCD to focus, this kind of focus method is manual focus. 3 The adapter has a transparent mirror inside, which can
help the microscope display and the other display to achieve synchronous zooming. 4 Weight: 0.09kg.
Microscope Display Parameters
Size : 10 inch
The microscope is equipped with a wireless WiFi connection function, and you can store and process data through the wireless
connection. WiFi output supports Android and IOS systems
Size : 10 inch
The microscope is equipped with a wireless WiFi connection function, and you can store and process data through the wireless
connection. WiFi output supports Android and IOS systems
144 LED Ring Light
Input：AC 100-240V , 50/60Hz
Output：DC 12V , max 700mA
Light color：White
Number of lights：144 LEDs
Inside diameter 60mm
Input：AC 100-240V , 50/60Hz
Output：DC 12V , max 700mA
Light color：White
Number of lights：144 LEDs
Inside diameter 60mm
Different eyepieces match different magnifications of the same objective lens
Company Profile
Shenzhen Fengjiahe Technology Co., Ltd, Is Located in Shenzhen City,Guangdong Province.Near World's Largest electronics market-Huaqiangbei,We are mainly selling LCD Repair Machine, Phone film machine,Motherboard Repair Tools,microscope etc. we have been in this feild for more than 5 years. we have professional export team with good knowledge to help you from purchasing to after sales.Welcome all the friend and customers across the world visit us and let's create a bright future together.
Packing & Delivery
Sample Room
FAQ
Q1. What’s your payment terms? We accept T/T, Pay pal, Western union and L/C etc. Q2.What is your minimum order quantity? The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. For most products, we have stock, the MOQ is very small. If you need further clarification, send me the product link, and we will reply as soon as possible. Q3.Can I customize products? Yes. Let US know the specific customization requirements, and we will get back to you as soon as possible. Q4.Can I customize the logo and packaging? Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us. Q5.Do you support dropshipping? We offer blind dropshipping. In other words, the price or any marketing material related to the supplier will not be included in the package. Q6.Which shipping methods do you use? We offer sea, air, and land freight as well as express delivery. The specific options depend on the quantity of the order. Q7.What kind of packaging do you use? Each product has an independent and complete package of our own brand, such as color box, blister color card or color plastic bag, but we also customize packaging for our OEM customers. Q8.What is the price? For an accurate quote, please provide us with more details like logo or packaging customization requirements, quantity preference, shipping address, etc. Q9.How long will it take to ship to my address? For international shipping, it depends on the product quantity and delivery address. For most products, we have inventory, and the stocking time is generally 3-5 days.For a specific estimate, please provide those details so that I can quote the most cost-effective option. Q10.Do you offer after-sales service? Before shipping, we will carefully check the quality and packaging of each product and send an inspection report to the customer. After the customer receives the goods, if there is a problem with the packaging or quality, please contact our customer service. We will verify the specific reason and give it. provide help. Q11.How can I get accurate quote for different shipping options? Please send us your detailed address so that we can provide you with the shipping options and relevant costs. Q12.Can you provide your certifications? Yes,we can.
