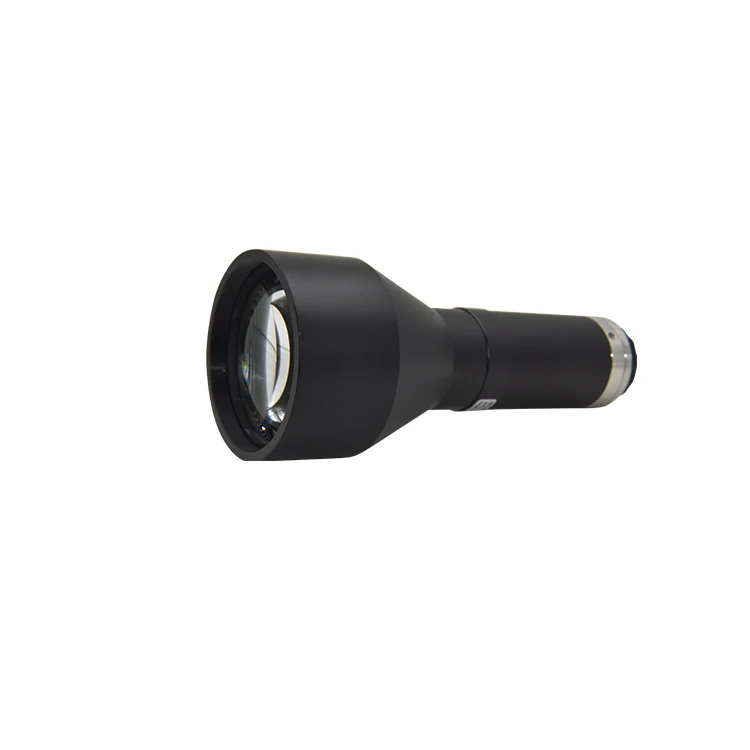

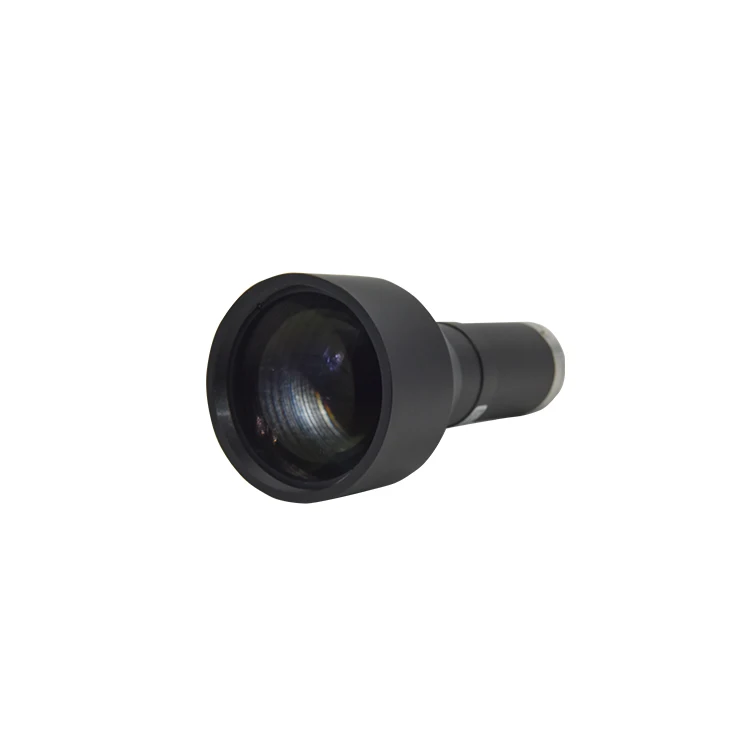

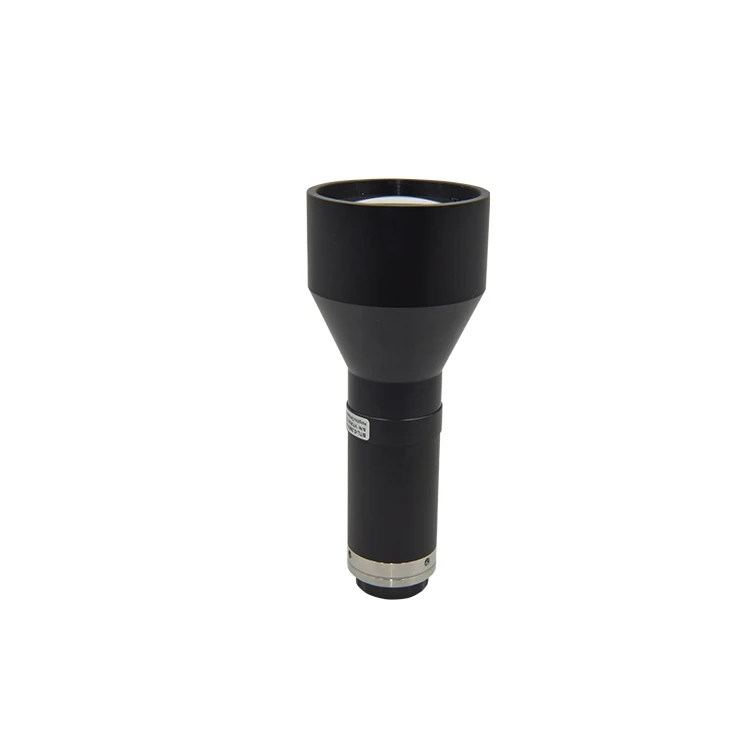

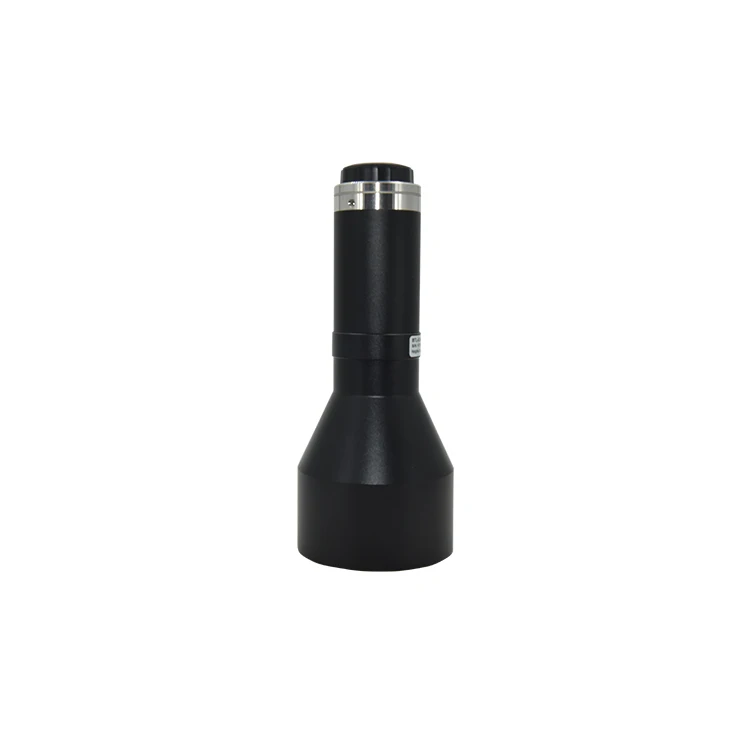

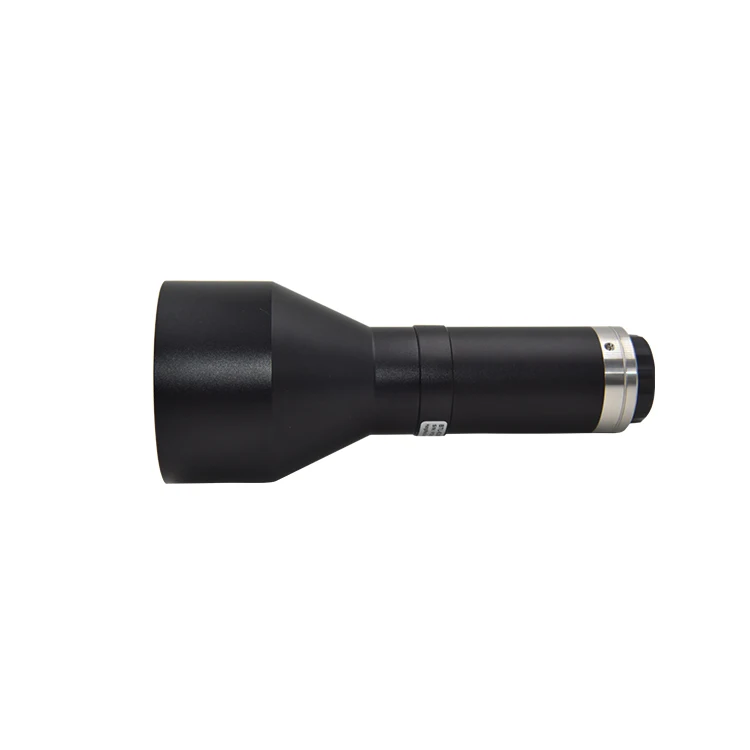

Видение контрольные BTL-0.395X-118-H1 большой FOV 42 1 дюйм 141 9 мм с-образное крепление для объектива камеры объектив с высокой
- Категория: CCTV Lenses >>>
- Поставщик: Hangzhou,Vision,Datum,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 545.70 $* | 556.84 $* |
| Jul-15-2025 | 442.64 $* | 451.25 $* |
| Jun-15-2025 | 536.32 $* | 547.2 $* |
| May-15-2025 | 532.79 $* | 543.41 $* |
| Apr-15-2025 | 425.16 $* | 434.25 $* |
| Mar-15-2025 | 523.42 $* | 533.55 $* |
| Feb-15-2025 | 519.65 $* | 529.1 $* |
| Jan-15-2025 | 515.91 $* | 525.75 $* |
Характеристики
Product Specifications
Model Name | BTL-0.395X-118-H1 |
FOV(Φmm) | 42 |
Mag.(x) | 0.395 |
WD | 118±3 |
Max Sensor Size (Φmm) | 16.6(1") |
F/# | 6.5 |
MTF30(lp/mm) | >130 |
DoF(mm) | ±4.1@F16 |
Distrotion | <0.1 |
Telecentricity (° max) | <0.1 |
I/O (mm) | 278±3 |
Length(mm) | 141.9 |
More Choices
Plesse Click the Specific Pictures to get more types of Telecentric Lenses.
1.Optimized for 1/2.5"~1.1"
C-Mount cameras;
2.Largest FOV from 26mm up
2.Largest FOV from 26mm up
to 300mm;
3.Excellent resolution for high
pixel cameras;
4.Low distortion, fine telecentricity,
4.Low distortion, fine telecentricity,
big aperture and big depth of
field for high end application.
1.Optimized for AOI application;
2.Large FOV, low magnification;
3.Long working distance easy
2.Large FOV, low magnification;
3.Long working distance easy
for illuminations and object
allocation design;
4.High accuracy, low distortion,
4.High accuracy, low distortion,
high telecentricity, support up
to 1.1” 12M class high-speed
industrial camera.
1.Fixed magnification telecentric
lenses, with a wide selection of
working distance & magnification.
2.Compact design with 16mm dia.,
2.Compact design with 16mm dia.,
ideal for limited space;
3.Fit for manufacturing equipment;
4.High cost performance.
3.Fit for manufacturing equipment;
4.High cost performance.
1.Adapting parallel light structure
design is compatible with infinity
corrected microscope objective lenses.
2.Using apochromatic microscope
objective lenses.
3.With coaxial illuminator.
4.The excellent apochromatic design
3.With coaxial illuminator.
4.The excellent apochromatic design
ensures perfect image quality under
ultra-long working distance.
5.Max support to 2/3'' CCD.
5.Max support to 2/3'' CCD.
Brief Introduction
Vision Datum Telecentric Lenses
Vision Datum telecentric lenses contain the following series: the
BTL, CLW2-MP, CLW2-ST and CLW2-MCS. And each series of
lenses has distinct features which meet various applications. Base on
lenses has distinct features which meet various applications. Base on
years of technology accumulation, those lenses with low distortion,
good telecentricity, advanced optical structure & stable consistency.
Product Features
2.Low distortion
3.Good telecentricity
4.Excellent Resolution
4.High performance 5.Reasonable prices
4.High performance 5.Reasonable prices
Product Accessories Recommended
