Характеристики
Products Description

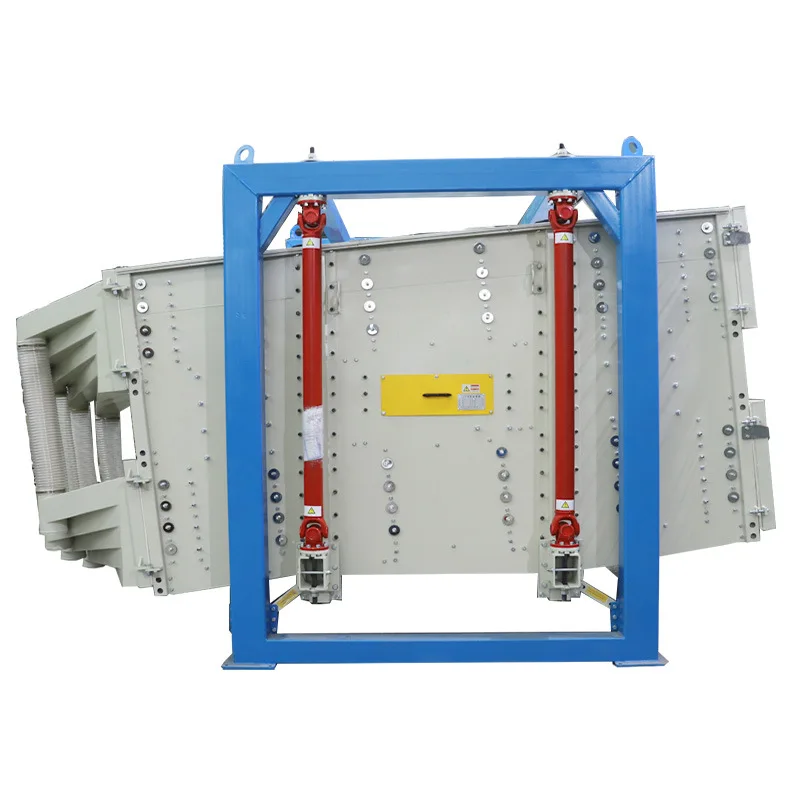

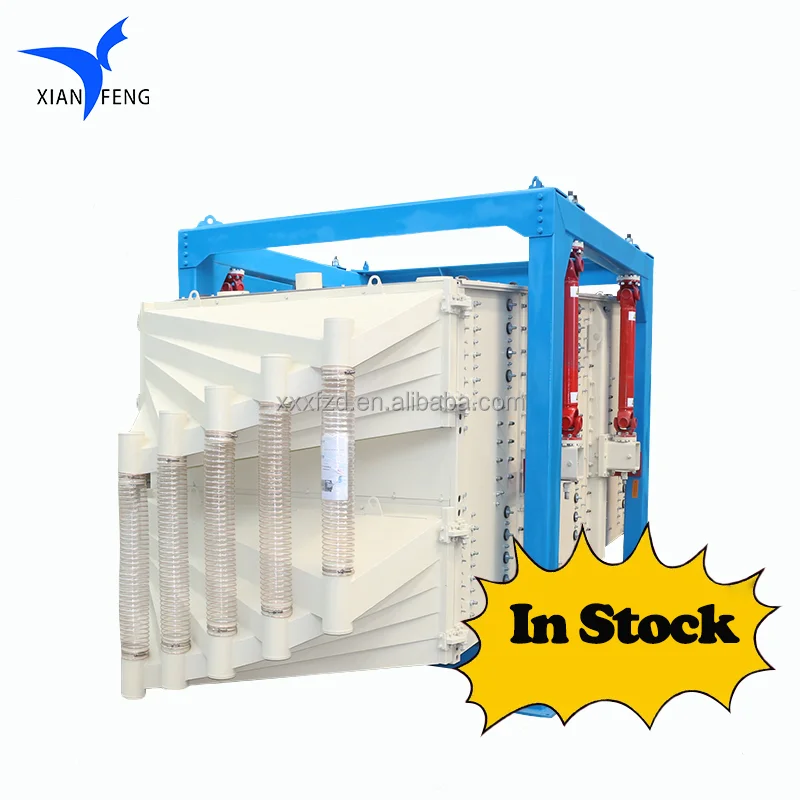

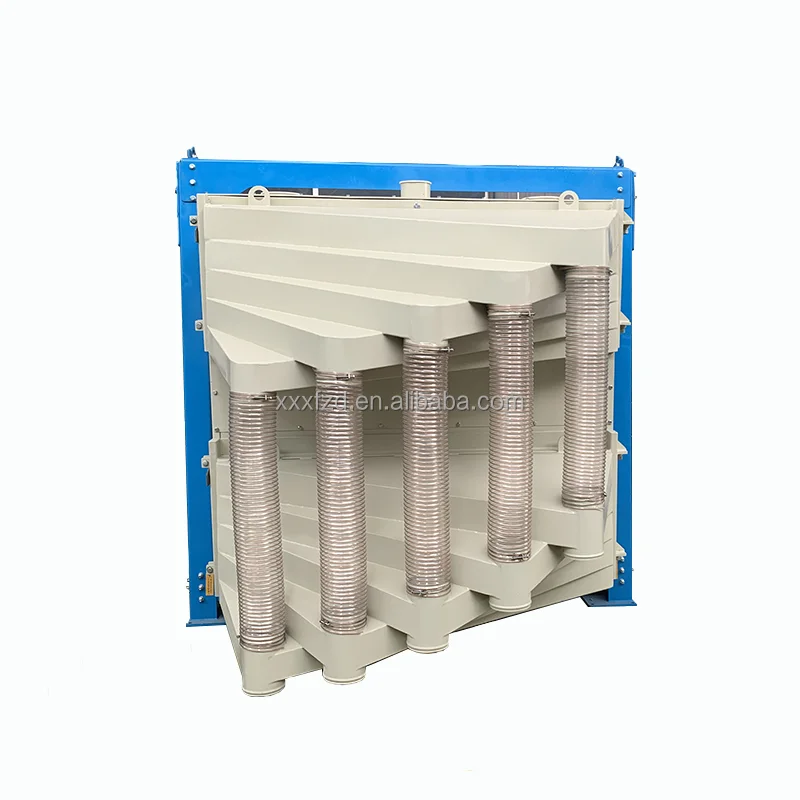

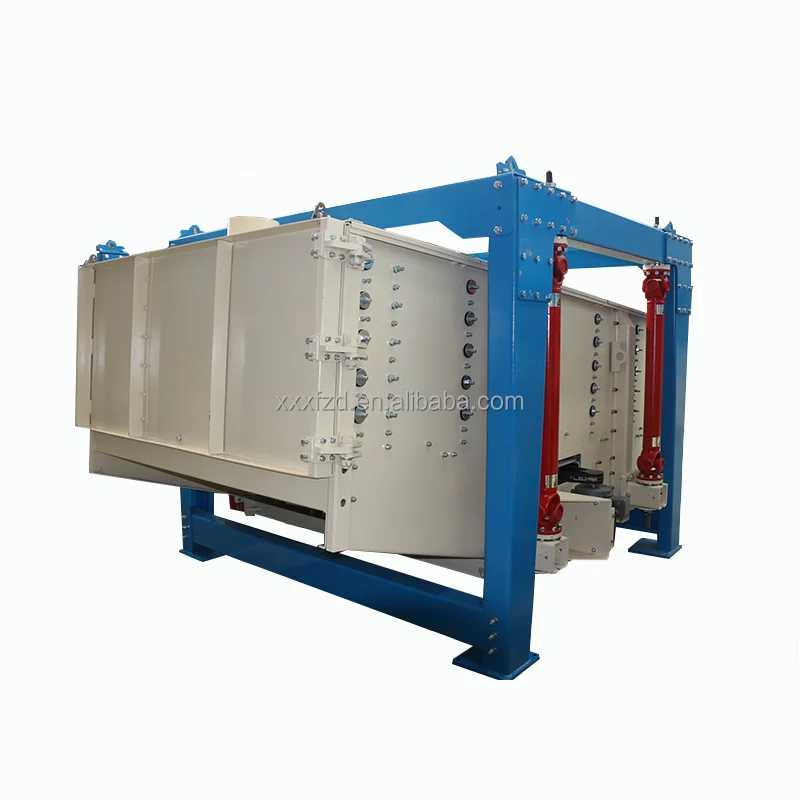

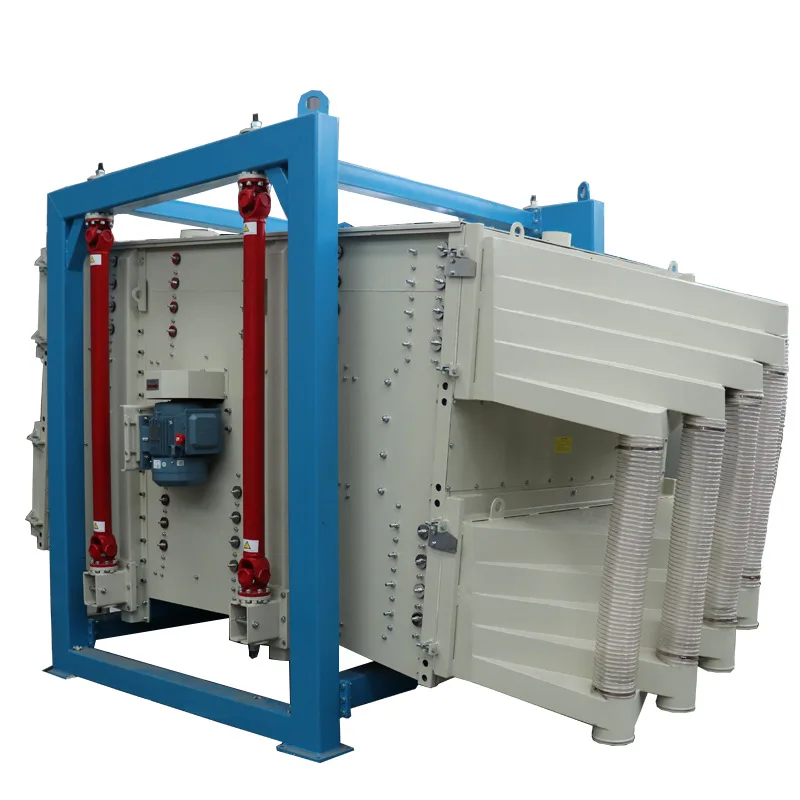

High Sieving Efficiency 20 tons Sand Seive Square Swinging Vibrating Screen
FYBS square swing screen is a new type of screening equipment with high output and high precision. It can sieve the materials into 2-7 kinds while 20 TPH capacity.
FYBS has unique advantages for the products with the particle size range of 0.05mm~2mm and the simultaneous screening of 3~6 specifications of materials. It is suitable for materials such as salt, sugar, fracturing sand, bentonite, and plastic tablets.
Model NO. | Screen Area [㎡] | Screen Decks | Amplitude [mm] | Power [Kw] | Capacity [kg/hour] |
FYBS1036 | 3.6 | 1~5 | 25~60 | 3 | 40# / 5-6t/h |
FYBS1236 | 4.32 | 1~5 | 25~60 | 4 | 40# / 6-7t/h |
FYBS1536 | 5.4 | 1~5 | 25~60 | 5.5 | 40# / 7-9t/h |
FYBS1836 | 6.48 | 1~5 | 25~60 | 7.5 | 40# / 8-10t/h |
FYBS2036 | 7.2 | 1~5 | 25~60 | 7.5 | 40# / 10-12t/h |
SS304/316 Stainless Steel
Food and chemical industry
Scree layer : 1~6
Capacity : 4~10 TPH
Accuracy : 90%~99%
Q235 Carbon Steel
Mine industry
Screen layer : 1~6
Capacity : 4~10 TPH
Accuracy : 90%~99%
SS304/316 Stainless Steel
Dupleax Structure
Food and chemical industry
Screen layer : 1~6
Capacity : 10~20 TPH
Accuracy : 90%~99%
Q235 Carbon Steel
Duplex Structure
Mine industry
Screen Layer : 1~6
Capacity : 10~20 TPH
Accuracy : 90%~99%
Screen Layer : 1~6
Capacity : 10~20 TPH
Accuracy : 90%~99%
Working Principle
The working principle of the square tumbler screen is that after the start of the screen machine, the rocking body of the screen
machine, i.e. the screen box, moves back and forth under the action of inertia force, and the screen box drives the screen surface
to oscillate periodically, so that the material on the screen surface can make a directional jump motion with the screen box.
During this period, the material smaller than the screen aperture falls into the lower layer through the screen hole and becomes
the material under the screen, and the material larger than the screen aperture is rolled continuously.
After the jump movement, it is discharged from the discharge port, and finally the screening work is completed.
The working principle of the square tumbler screen is that after the start of the screen machine, the rocking body of the screen
machine, i.e. the screen box, moves back and forth under the action of inertia force, and the screen box drives the screen surface
to oscillate periodically, so that the material on the screen surface can make a directional jump motion with the screen box.
During this period, the material smaller than the screen aperture falls into the lower layer through the screen hole and becomes
the material under the screen, and the material larger than the screen aperture is rolled continuously.
After the jump movement, it is discharged from the discharge port, and finally the screening work is completed.
During the vibration of the vibrating screen.
The cleaning power of the screen is maximized.
Quickly replace the screen save your labor cost and time.
The square swing screen adopts the side hook-and-pull screen design, the front and rear doors can be opened and closed, and the screen tension can be adjusted.
Only an external hex wrench and an internal hex wrench are needed, and 3 operators can complete the replacement of the screen
within 20 minutes.
The square swing screen adopts the side hook-and-pull screen design, the front and rear doors can be opened and closed, and the screen tension can be adjusted.
Only an external hex wrench and an internal hex wrench are needed, and 3 operators can complete the replacement of the screen
within 20 minutes.
99.9% Purity, let you get high quality production.
Screening accuracy refers to the precision of screening treatment effect. For example, if the user wants materials with 1 to 2 mm granularity, the screening results of 1 to 2 mm materials containing materials less than 1 mm or materials larger than 2 mm. In short, the higher the screening accuracy, the cleaner the screening results
Capacity up to 20 TPH
With the screening accuracy controlled above 99%, the output of a single screen can reach 20 tons per hour.Compared with the traditional linear screen, the space occupation is reduced by 70%, the production line is easier to arrange, the energy consumption is reduced by 73%, the electricity bill is reduced, the length of the conveying equipment used at the discharge port is reduced by 30%, and the production line purchase is reduced. Efficient screening greatly improves the user's return on investment.
XIANFENG is a leading manufacture of customized industrial separation equipment. We manufacture round, rectangular and
pharmaceutical vibrating sieves and product lines of separation products, including conveyor, elevating, feeding, packing and a
wide variety of aftermarket screens and parts.
pharmaceutical vibrating sieves and product lines of separation products, including conveyor, elevating, feeding, packing and a
wide variety of aftermarket screens and parts.
International shipping standard packaging
Q : What details do I need to provide if I want to confirm the precise model?
A : 1. Material 's name to be screened or conveyed.
2. The particle size of material.
3. Whether the material contains water, and what's the water content.
4. Production of required equipment.
5. The voltage and frequency.
Q : What are your payment terms?
A : We accept T/T, L/C, west union and other payment terms.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: What can you buy from us?
A: Vibrating Screen Machine,Conveyor Equipment,Feeding Equipment,Screening Separation Equipment
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: What can you buy from us?
A: Vibrating Screen Machine,Conveyor Equipment,Feeding Equipment,Screening Separation Equipment
