4K60HZ поддержка IR HDMI Loop Out удлинитель волоконно-оптический конвертер
- Категория: Other Audio & Video Accessories >>>
- Поставщик: Shenzhen,Hongshi,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 155.72 $* | 163.4 $* |
| Aug-18-2025 | 153.25 $* | 161.20 $* |
| Jul-18-2025 | 129.77 $* | 135.86 $* |
| Jun-18-2025 | 151.95 $* | 159.87 $* |
| May-18-2025 | 131.36 $* | 138.30 $* |
| Apr-18-2025 | 148.18 $* | 155.75 $* |
| Mar-18-2025 | 147.37 $* | 154.0 $* |
| Feb-18-2025 | 146.74 $* | 153.39 $* |
| Jan-18-2025 | 144.49 $* | 151.93 $* |
Характеристики
Products Description
HDMI Fiber Optic Extender THF131 Selling Points:

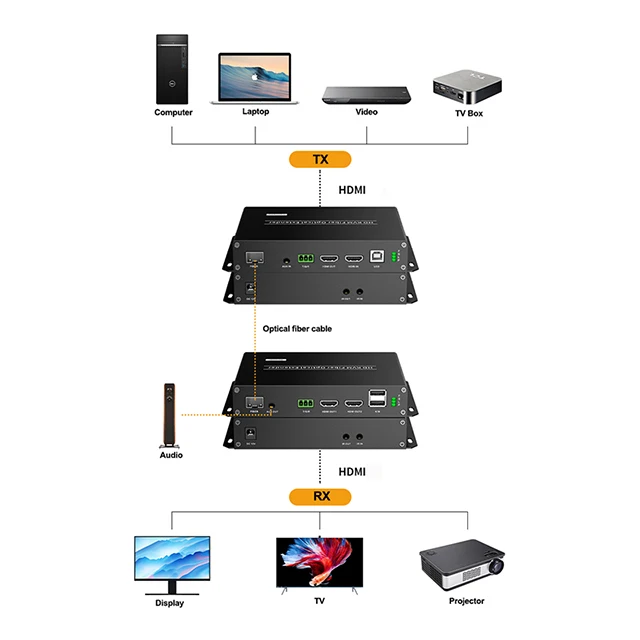

The HDMI Fiber optic extender provides extension of HDMI signals long distances 1-20KM over one fiber optic cable. It supports high resolution up to 3840*2160@60Hz. The extender has be tested for high temperature and force, it can use for a wide range of applications requiring long distance transmission and extreme environment. It can operate between -5℃ to +70℃, with high
resolution and good stability.
The HDMI Fiber optic extender provides extension of HDMI signals long distances 1-20KM over one fiber optic cable. It supports high resolution up to 3840*2160@60Hz. The extender has be tested for high temperature and force, it can use for a wide range of applications requiring long distance transmission and extreme environment. It can operate between -5℃ to +70℃, with high
resolution and good stability.

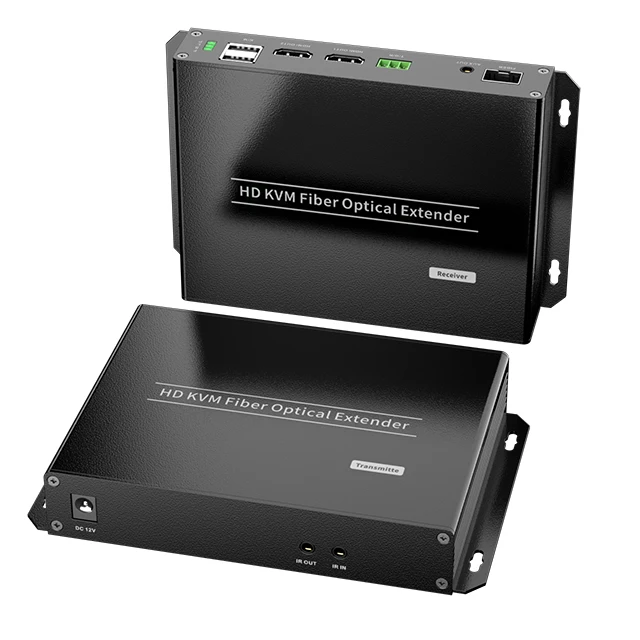

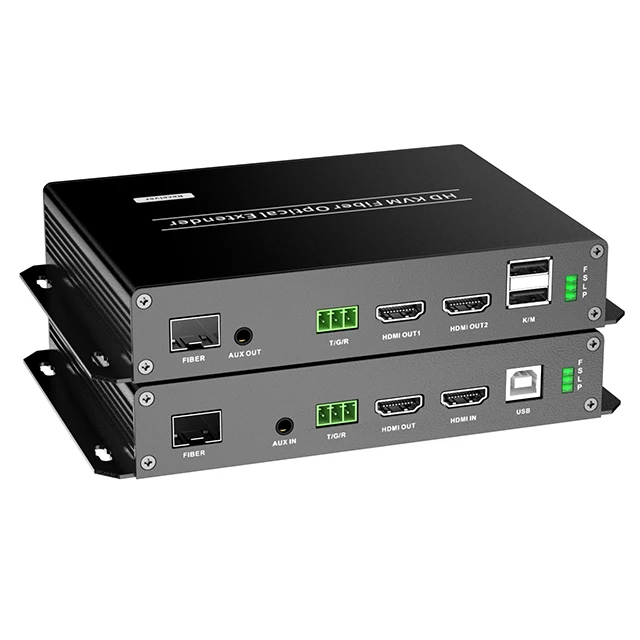

Details Images

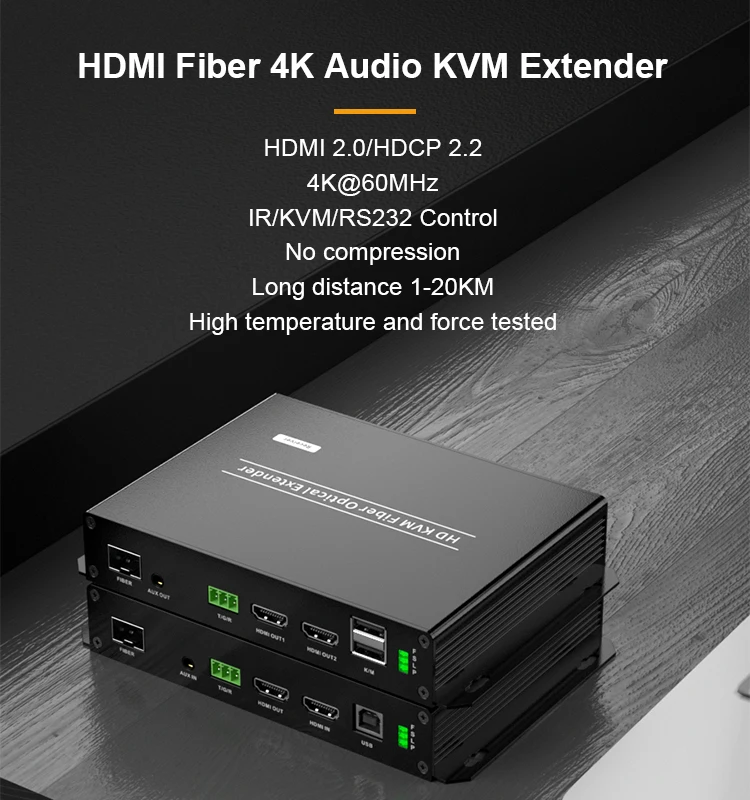

HDMI Fiber Optic Extender THF131 Features：
1.Transmits HDMI video signals up to 1-20km over a pair fiber optic cable;
2.Support video resolution up to 3840*2160@60Hz signal;
3.Supports screen formats YUV444 and RGB444;
4.Compliance with HDMI 2.0 and HDCP 2.2 standard;
5.Supports RS232 two-way transmission;
6.Support USB keyboard and mouse;
3.Supports screen formats YUV444 and RGB444;
4.Compliance with HDMI 2.0 and HDCP 2.2 standard;
5.Supports RS232 two-way transmission;
6.Support USB keyboard and mouse;
7.Support for embedded audio input and output;
8.Supports bidirectional transmission of infrared signals;
9.High compatibility, can auto-match source and display device;
10.Built-in automatic adjustment system, make the image smooth, clear and stable;
10.Built-in automatic adjustment system, make the image smooth, clear and stable;

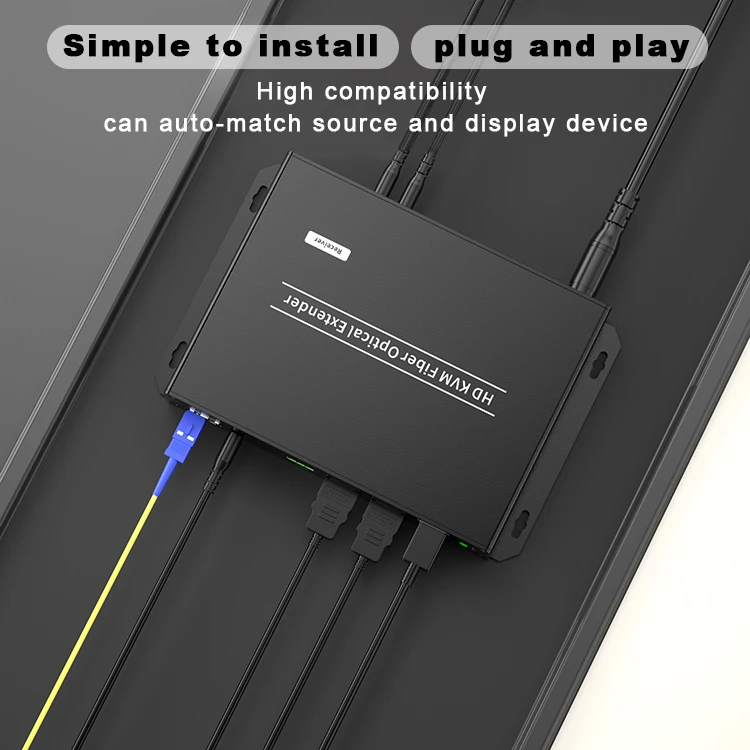

11.Simple to install, plug and play;
Product Paramenters
4K60HZ Support IR HDMI Loop Out HDMI Extender Fiber 10KM 20KM HDMI to Fiber Optic Converter
Parameter | Description | ||
Video | Standards | HDMI 2.0; HDCP 2.2 | |
Maximum pixel clock | 340MHz | ||
Maximum data rate | 18Gbps | ||
Maximum resolution | 3840*2160@60Hz | ||
Connector | HDMI-A | ||
Impedance | 100Ω | ||
Optical fiber | Interface | SFP model – LC connector | |
Fiber type | Single-mode | ||
Wavelength | T-1310nm R-1550nm | ||
Interface bandwidth | 2.5Gbps | ||
IR | Interface | 3.5mm earphone seat | |
IR frequency | 28Khz-61Khz | ||
RS232 | Interface | Industrial Terminal | |
Signal Direction | duplexing | ||
Baud Rate | Self-adaptive Max: 115200bps | ||
Data Bits | 8 | ||
Other | Power supply | The power adapter: DC 12V | |
Power dissipation | MAX 13W | ||
Temperature | Operating: -5℃ ~ +70℃ | ||
Humidity | Operating: 5% ~ 90% | ||
Dimension | 123*82*23mm | ||
The warranty | 1 year free warranty | ||
Certifications
Company Profile
Shenzhen Hongshi Industrial Co., Ltd is a professional manufacturer specializes in HDMI, SDI, DVI, VGA HD AV Extender and Fiber, Wireless HDMI Extender Splitter, converter, and KVM, DVI, DP and VGA switch.
We are located in Shenzhen, China. Our office and factory is covering an area over 3000 square meters. We have received CE, FCC, RoHS, HDMI Adopter. We are aiming at providing "reasonable prices, efficient production time and excellent after-sales service".
We are located in Shenzhen, China. Our office and factory is covering an area over 3000 square meters. We have received CE, FCC, RoHS, HDMI Adopter. We are aiming at providing "reasonable prices, efficient production time and excellent after-sales service".
We are providing services in various video related products just tell us your requirements,we can do more than you can imagine.CONTACT US
Exhibition
Our Advantages
R&D Team
We are located in Shenzhen, with convenient transportation access. We have a professional R & D team. Our engineers have many years of experience in wireless, network, and video products, leading independent core technologies. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Skilled Manufacturing
We are providing ODM and OEM services in various video-related products, whether selecting a current product from our catalog or seeking assistance for your application, you can talk to our customer center about your requirements. Quality reflects the quality of a company, our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
Service Advantage
As a result of our high-quality products and outstanding customer service, we have gained a global sales network reaching Asia,Europe, America, Mid East, and Oceania. Our products are widely used in government, communications, military, subway, exhibition,
security, multimedia teaching, and other fields. In the past ten years, through the continuous provision of quality products andservices to customers, we have been recognized and highly praised by our customers.
security, multimedia teaching, and other fields. In the past ten years, through the continuous provision of quality products andservices to customers, we have been recognized and highly praised by our customers.
FAQ
Q1: Are you trading company or manufacturer?
A: Hongshi is the leading brand of the video conference solution, the professional provider of the conferencing system, we have our own factory of HDMI extender, HDMI IP extender, KVM switch and with rich supply chain in the related conferencing products such as POE switcher, hub and so on.
Q2: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. With the rich experience in HDMI, we support not only OEM your logo, but also, we accept ODM as your ID,including the material, color, style can customize, the basic quantity we will advise after we discuss.
Q3: What’s your MOQ?
A: If we have the products in stock, it will be none MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q4: How long is your delivery time?
A: The general delivery time is 3-7 days after receiving your deposit and depends on your quantity. Batch order usually takes 2 or 3 weeks.If only sample order and we have the goods in stock, it will only take 2-4 days.
Q5: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by fast express. Usually depends on you.
Q6: What’s your quality control?
A:We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.Aging time is over 8 hours when semi-finished articles.
5.All production quality and packing checked on final inspection after finished.
