Product Description

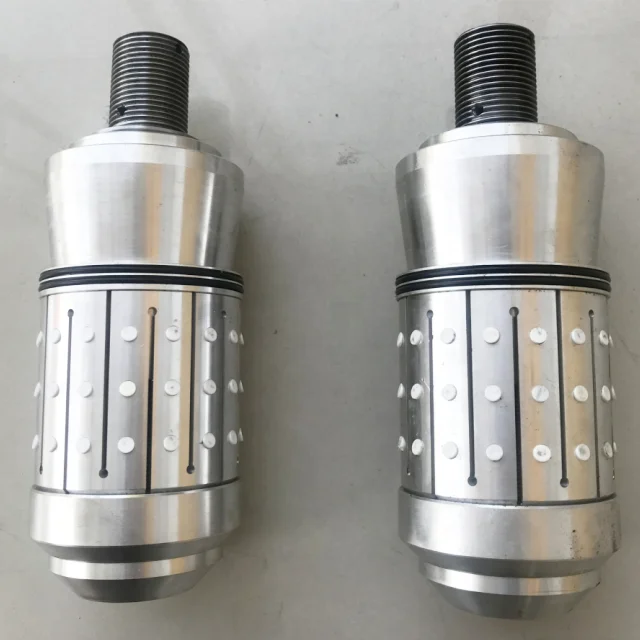

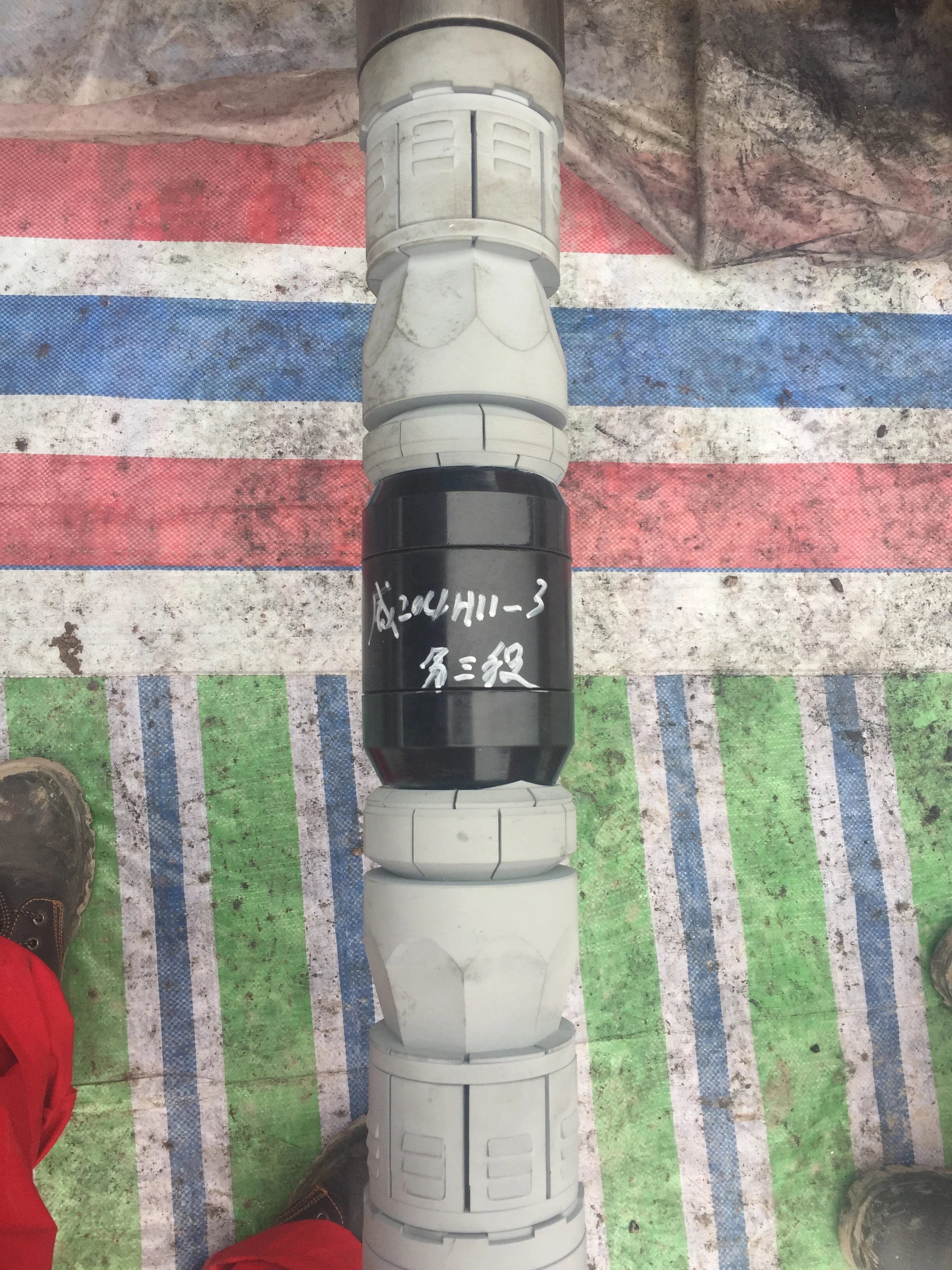

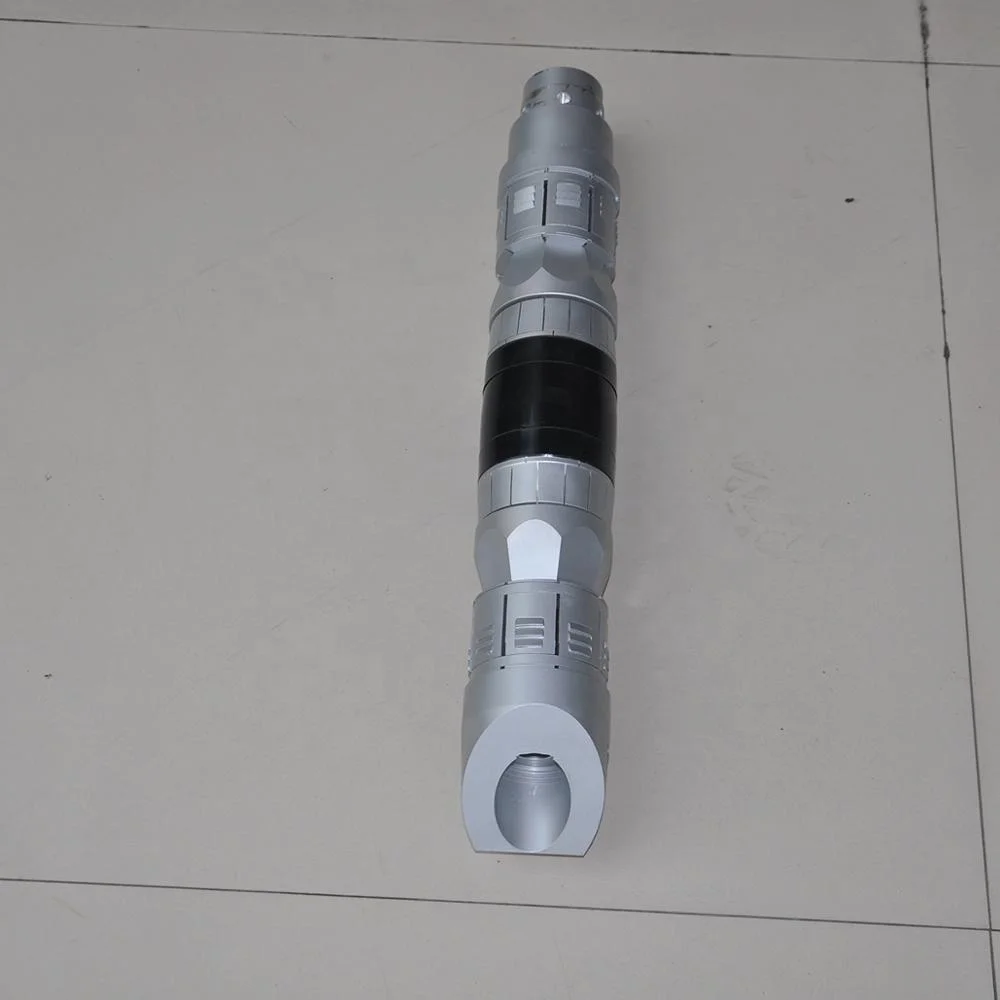

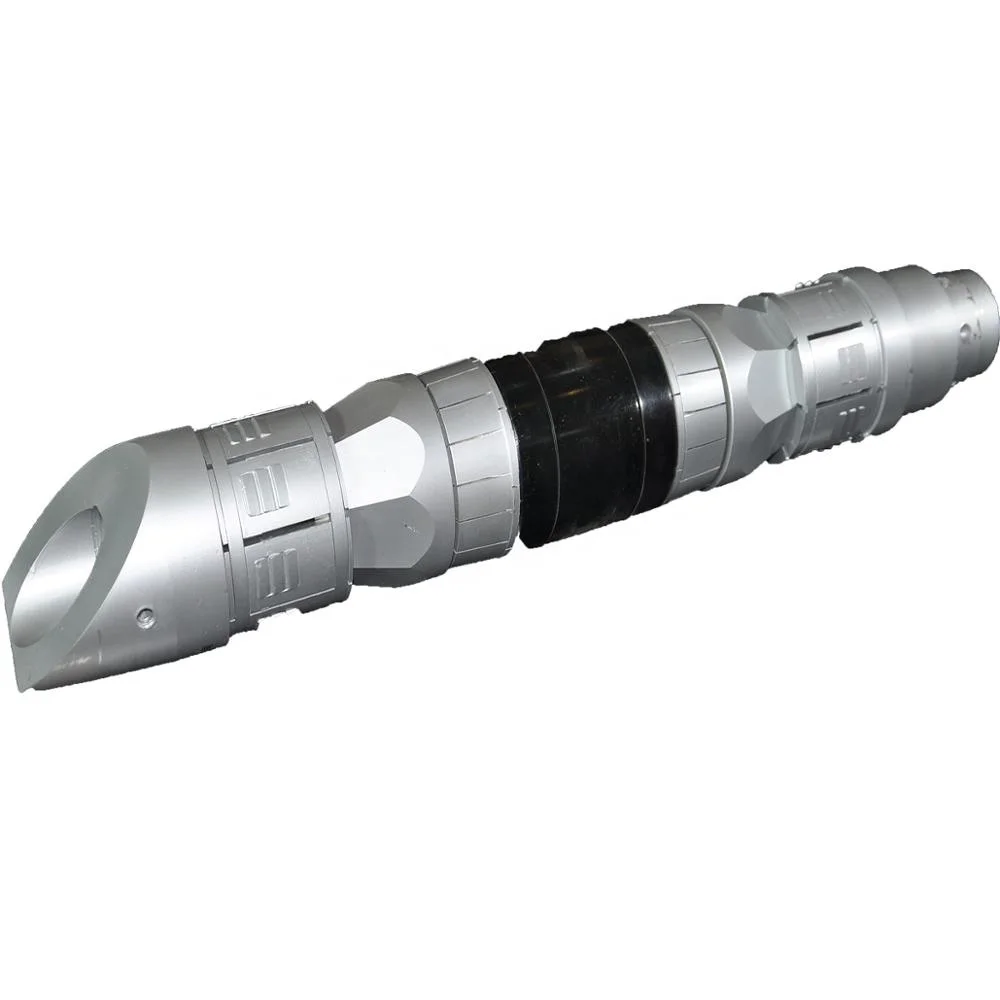

All-Metal Dissolvable Frac Plug

Horizontal well multi-stage efficient fracturing technology
Unconventional oil and gas development tool

1. Purpose and scope of application

(1) Staged fracturing of horizontal wells is the main production stimulation measure for the development of low-permeability and unconventional oil and gas resources. Dissolvable Frac Plugs are the main technology for staged fracturing of horizontal wells. With the continuous development of low-grade resources, the length of the horizontal section and the number of fracturing sections continue to increase, and its importance becomes more and more prominent.
(2) The main body of All-Metal Dissolvable Frac Plug is made of high-strength soluble magnesium alloy, and the seals are made of soluble alloy materials, which are suitable for high temperature or low temperature oil and gas wells. The pressure-bearing performance of the seal exceeds 70MPa, and the dissolution rate after fracturing is adjustable and controllable.

2. Technical characteristics

(1) The full range of All-Metal Dissolvable Frac Plugs φ85, φ88, φ98, φ108 and other specifications can meet the needs of staged fracturing of different well diameters;
(2) All-Metal Dissolvable Frac Plug is suitable for Baker #10/#20 setting tools. The size of the frac plug is small and the setting displacement is short;
(3) Compared with the sealed type dissolvable bridge plug with a rubber sleeve, it has "stronger low temperature resistance and higher high temperature resistance", and it dissolves more thoroughly after fracturing, and truly realizes "fully dissolvable";
(4) Compared with similar foreign products, it has obvious advantages of "small diameter sealing large wellbore".

Specification

Model	Casing Inner Diameter (mm)	Body Length (mm)	Working Pressure (MPa)	Setting Tool	Working Temperature
HHY25R-85-70-M2	φ99.6 φ101.6	240	70	Brico#10	20-180℃
HHY25R-88-70-M2	φ104.8	255	70	Brico#10	20-180℃
HHY25R-98-70-M1	φ114.3	270	70	Brico#20	20-180℃
HHY25R-108-70-M1	φ121.4 φ124.3	310	70	Brico#20	20-180℃
