Input Voltage(V) | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power Factor | Efficience |
110 | 4.7 | 24.28 | 100 | 0.56 | 0.52 |
120 | 4.65 | 24.29 | 100 | 0.63 | 0.52 |
170 | 5 | 24.29 | 100 | 0.563 | 0.49 |
220 | 5.15 | 24.3 | 100 | 0.505 | 0.47 |
240 | 5.3 | 24.3 | 100 | 0.481 | 0.46 |
265 | 5.38 | 24.3 | 100 | 0.456 | 0.45 |
Input Voltage(V) | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power Factor | Efficience |
110 | 46 | 24.28 | 1500 | 0.707 | 0.79 |
120 | 45.8 | 24.3 | 1500 | 0.775 | 0.80 |
170 | 44 | 24.29 | 1500 | 0.731 | 0.83 |
220 | 45.8 | 24.28 | 1500 | 0.7 | 0.80 |
240 | 46.6 | 24.29 | 1500 | 0.691 | 0.78 |
265 | 47.1 | 24.28 | 1500 | 0.677 | 0.77 |
Input Voltage(V) | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power Factor | Efficience |
110 | 76.3 | 24.28 | 2500 | 0.728 | 0.80 |
120 | 75 | 24.29 | 2500 | 0.793 | 0.81 |
170 | 73.6 | 24.3 | 2500 | 0.76 | 0.83 |
220 | 73.2 | 24.3 | 2500 | 0.73 | 0.83 |
240 | 73 | 24.3 | 2500 | 0.718 | 0.83 |
265 | 72 | 24.3 | 2500 | 0.705 | 0.84 |
1.Input paramete | Parameters | Unit | Test description | Minimum | Typical | Maximum | ||||
Input Voltage | V(AC) | Normal | 110 | 220 | 265 | |||||
Input frequency | HZ | Normal | 43 | 50 | 65 | |||||
Power factor | PF | Normal | 0.456 | 0.73 | 0.793 | |||||
Input Inrush Current | A | Cold start under normal conditions | ||||||||
2.Output parameters | Parameters | Unit | Minimum | Typical | Maximum | |||||
Output current | MA | 0 | 2500 | 2500 | ||||||
Output voltage | V | 24 | 24 | 24.3 | ||||||
Output ripple | MV | |||||||||
Constant current accuracy | % | |||||||||

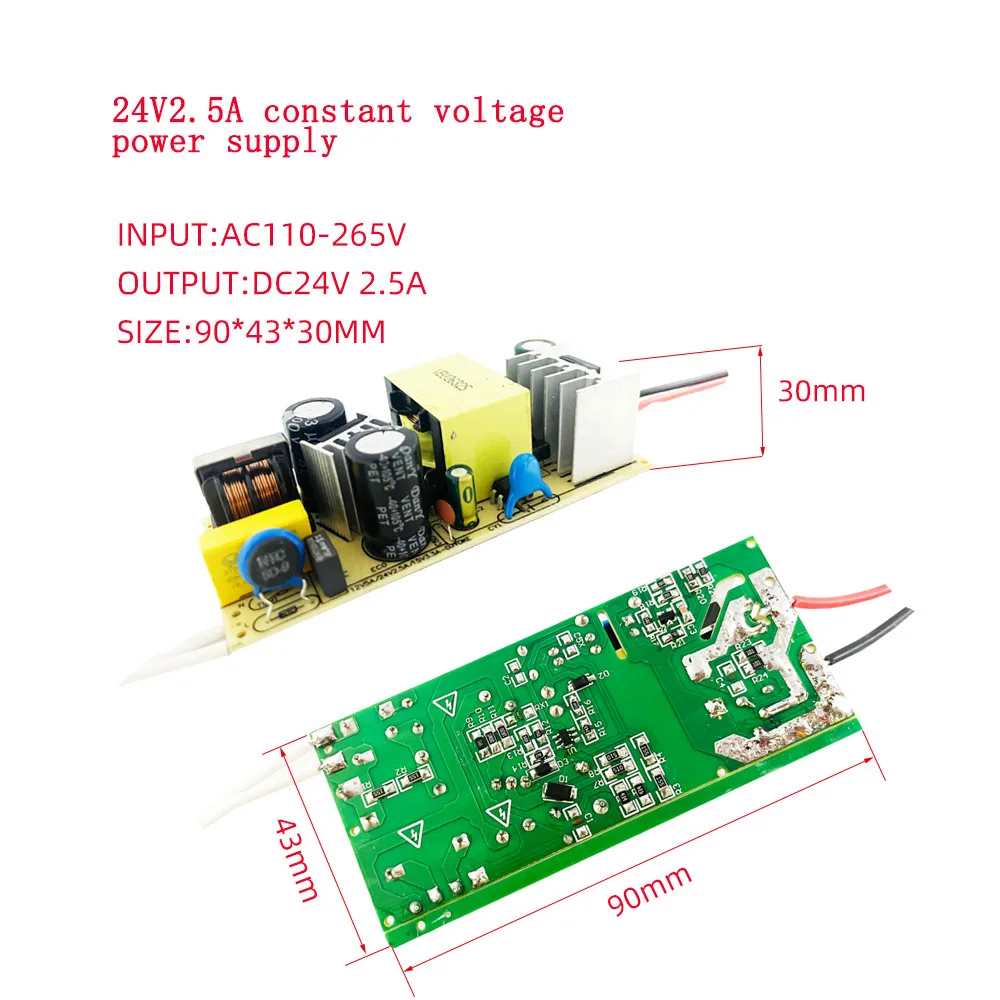

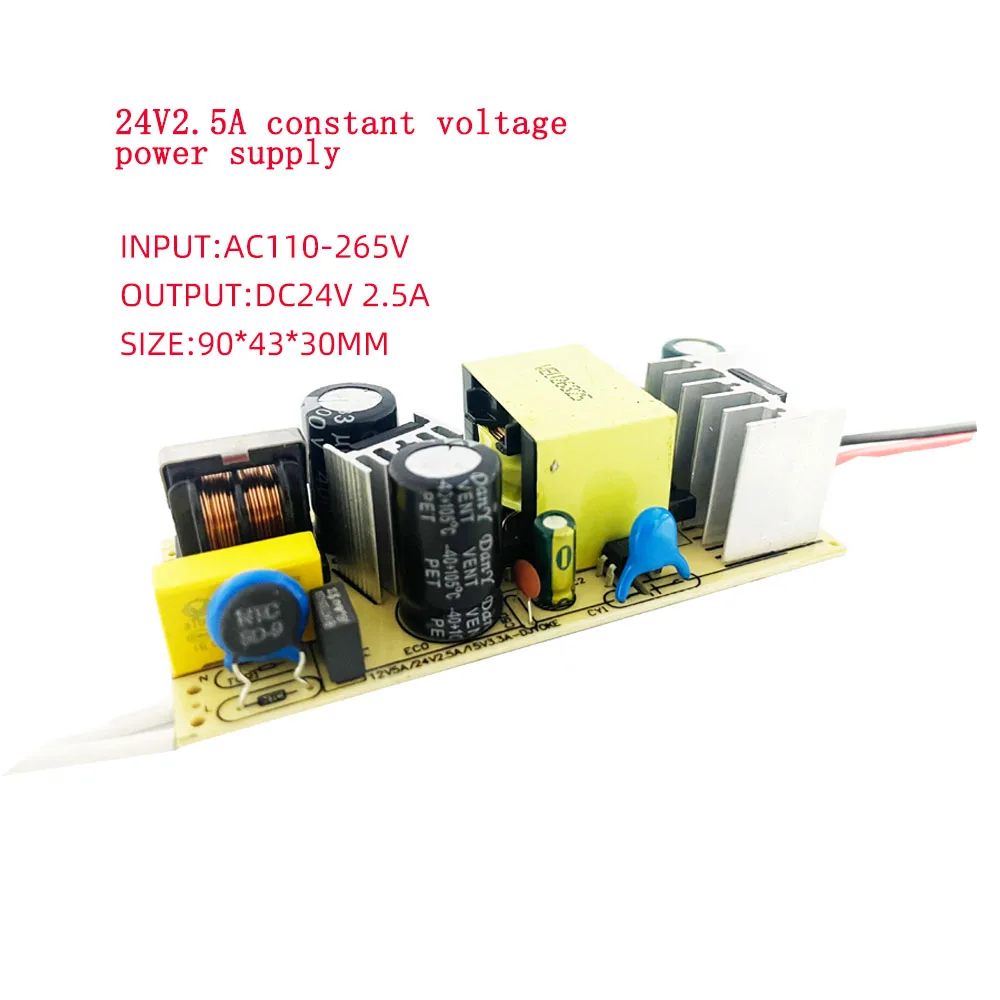

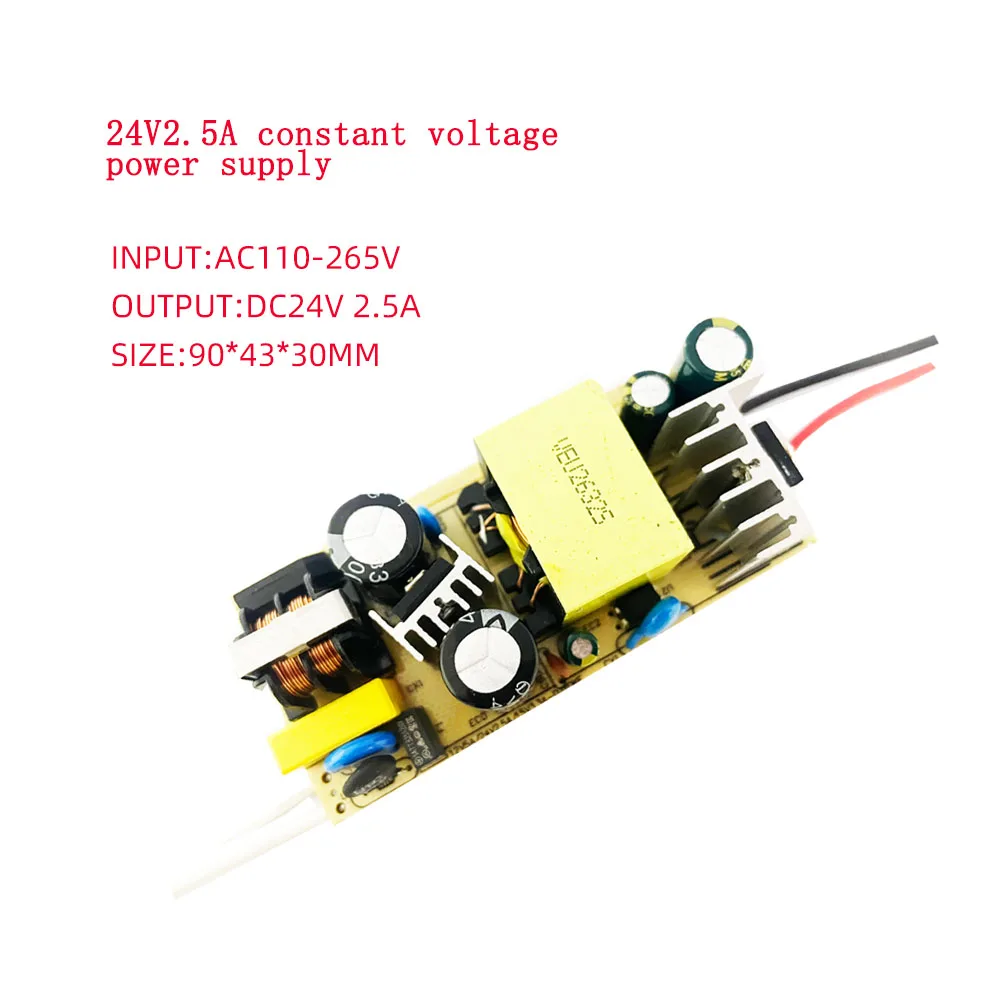

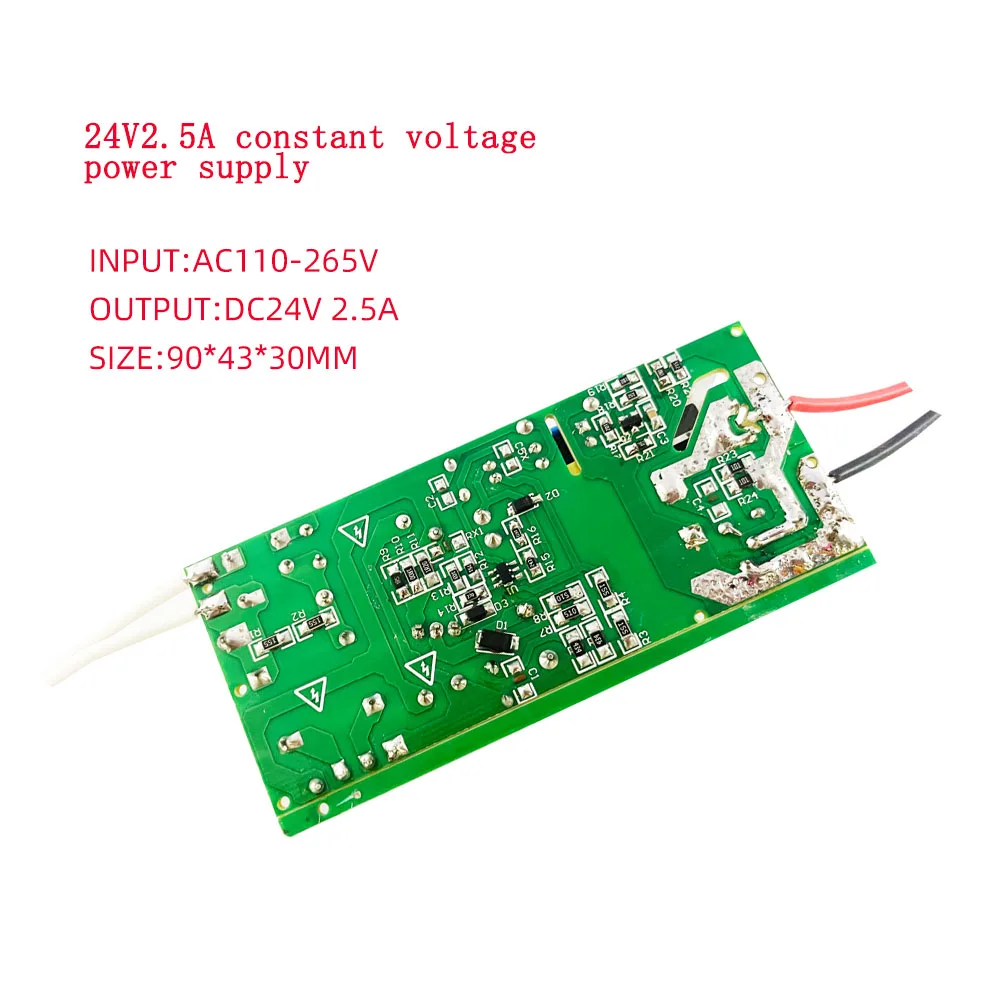

3.Overall performance 24V 2.5A | AC Input | Output | ||||||||
Input Voltage(V) Input Voltage | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power factor | Efficience | |||||
110 | 76.3 | 24.28 | 2500 | 0.728 | 0.80 | |||||
120 | 75 | 24.29 | 2500 | 0.793 | 0.81 | |||||
170 | 73.6 | 24.3 | 2500 | 0.76 | 0.83 | |||||
220 | 73.2 | 24.3 | 2500 | 0.73 | 0.83 | |||||
240 | 73 | 24.3 | 2500 | 0.718 | 0.83 | |||||
265 | 72 | 24.3 | 2500 | 0.705 | 0.84 | |||||
