4U 24 bay Intel Whitley платформа 32 Dimm двойной масштабируемый
- Категория: Servers >>>
- Поставщик: Shenzhen,Guoxin,Hengyun,Information,Security,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2380.27 $* | 2499.80 $* |
| Aug-16-2025 | 2360.56 $* | 2478.25 $* |
| Jul-16-2025 | 1980.32 $* | 2079.77 $* |
| Jun-16-2025 | 2320.9 $* | 2436.79 $* |
| May-16-2025 | 2020.80 $* | 2121.36 $* |
| Apr-16-2025 | 2280.78 $* | 2394.47 $* |
| Mar-16-2025 | 2260.90 $* | 2373.15 $* |
| Feb-16-2025 | 2240.89 $* | 2352.94 $* |
| Jan-16-2025 | 2220.23 $* | 2331.2 $* |
Характеристики
Products Description
▶ High performance: supports 1 or 2 third GEN Intel® Xeon® ICE Lake Scalable processors, TDP up to 270W.
▶ Massive capacity: memory supports 32* 2400/2666/2933/3200 MHz.
▶ Strong expansion: 11* PCIe 4.0 expansion: 6 full height, 4 half height, 1 OCP3.0.
▶ AI: Supports 2 high-power GPUs, and the motherboard has 2 native M.2 ports.
▶ Modularity: holistic modular design, configured flexibly (2U8 can be expanded to 8* hard disks)
▶ Replaceability: the rear PCIe slots can be added with 4* 3.5" and 4* 2.5" hot-swap or 8* 2.5" hard disk bays
▶ Massive capacity: memory supports 32* 2400/2666/2933/3200 MHz.
▶ Strong expansion: 11* PCIe 4.0 expansion: 6 full height, 4 half height, 1 OCP3.0.
▶ AI: Supports 2 high-power GPUs, and the motherboard has 2 native M.2 ports.
▶ Modularity: holistic modular design, configured flexibly (2U8 can be expanded to 8* hard disks)
▶ Replaceability: the rear PCIe slots can be added with 4* 3.5" and 4* 2.5" hot-swap or 8* 2.5" hard disk bays
Ultrahigh Computing Power
Supports Intel® ICE Lake Whitley, Xeon® ICE Lake scalable processors, TDP up to 270W, cores up to 40.
Frequency up to 3.2GHz, 2 high-power GPUs, and the motherboard has 2 native M.2 interfaces. The core, frequency, cache, and interconnection channels have been comprehensively improved. DDR4 memory technology is adopted. It supports 12TB memory expansion capability and can be expanded on demand to meet ultrahigh computing such as digital currency, cloud computing, big data, and virtual computing.
Frequency up to 3.2GHz, 2 high-power GPUs, and the motherboard has 2 native M.2 interfaces. The core, frequency, cache, and interconnection channels have been comprehensively improved. DDR4 memory technology is adopted. It supports 12TB memory expansion capability and can be expanded on demand to meet ultrahigh computing such as digital currency, cloud computing, big data, and virtual computing.
Massive Storage & Excellent Capabilities
Up to 32DIMM memory slots, with 4/8/10/12/24/25/36-bay as options;
Up to 36x 3.5" + rear 4x 3.5" or 4x 2.5" hot-swap hard drives, providing users with massive data storage capacity and excellent expansion capabilities;
11* PCIe4.0 expansion: 6 full height, 4 half height, 1 OCP3.0 network card.
Up to 36x 3.5" + rear 4x 3.5" or 4x 2.5" hot-swap hard drives, providing users with massive data storage capacity and excellent expansion capabilities;
11* PCIe4.0 expansion: 6 full height, 4 half height, 1 OCP3.0 network card.
Safe & Stable
The full modular design of hard disk, power supply, fan and PCIe module reflects the changeable, replaceable, portable, scalable and low-power application of the system.
The maintenance personnel can quickly find the faults of application equipment via BMC web management interface, so as to simplify the maintenance work, speed up the problem-solving and improve the system availability. Ensure the stable operation of the machine and reduce the probability of downtime. The RAID level is determined based on different RAID controllers. RAID technology can ensure that the hard disk can be switched online in case of problems, so as to ensure the integrity of data.
The maintenance personnel can quickly find the faults of application equipment via BMC web management interface, so as to simplify the maintenance work, speed up the problem-solving and improve the system availability. Ensure the stable operation of the machine and reduce the probability of downtime. The RAID level is determined based on different RAID controllers. RAID technology can ensure that the hard disk can be switched online in case of problems, so as to ensure the integrity of data.
AI Remote Management
IPMI remote management, real-time monitoring of the system & operation including power-on and shutdown can be carried out remotely, ensuring that system managers can maintain the system in time;
Realizes a true Redundant architecture, including fans, power supplies and storage.
Realizes a true Redundant architecture, including fans, power supplies and storage.
Specification
Model | SL401-D24RE-G3 |

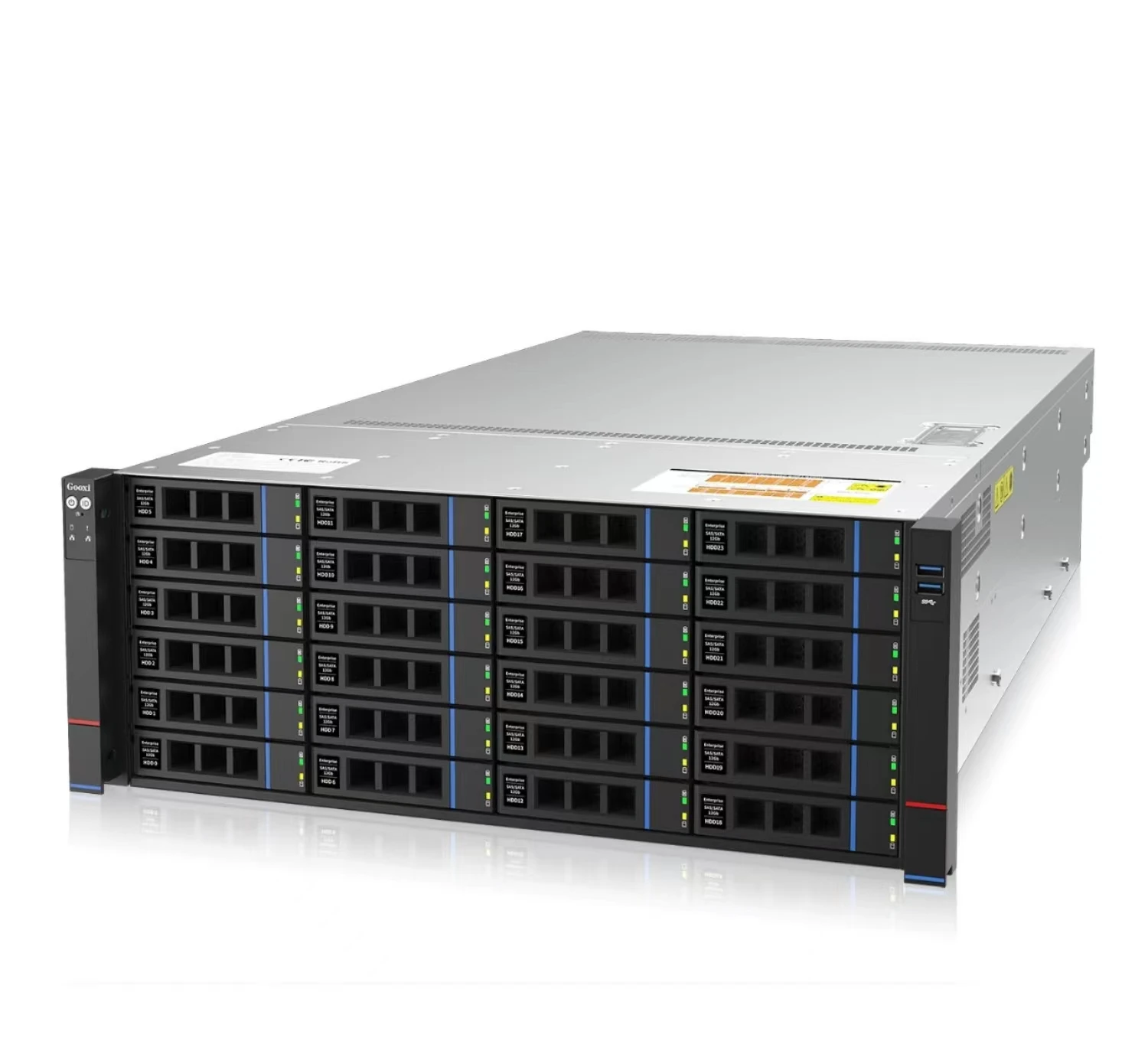

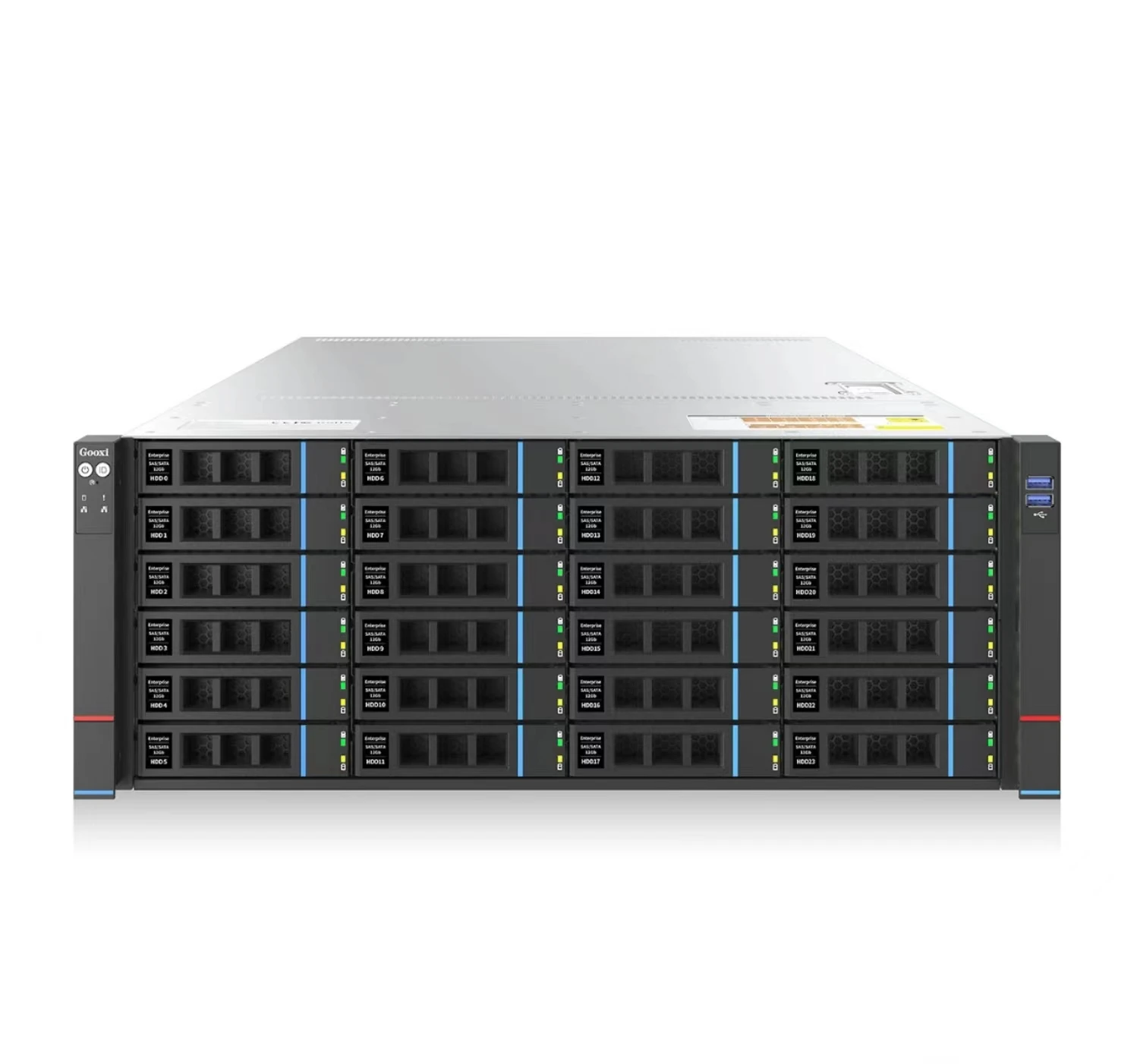

Front HDDs | Up to 24* 3.5″ /2.5″ SAS3.0/SATA3.0 |
Rear HDDs | The rear PCIe can change to 6 hard disk bays and 2* built-in 2.5″ SSD in 2U8 bay |
Dimension | 798*433*176.5mm (LxWxH） |
CPU | 1 or 2 Intel® ICE Lake Whitley processors |
Chipset | Intel® C621A |
Memory | Supports DDR4 ECC RDIMM/LRDIMM, 1866/2133/2400/2666/2933/3200 MHz 32x DDR4 Channels support 12TB, up to 16* Intel® Optane persistent memory200 |
Storage Controller | PCH supports RAID 0\\1\\10 & 5 External HBA( not RAID): 12 Gbps SAS HBA On-board: 2x PCIe 4.0 X4 M.2 slots, 2* 7Pim SATA3.0 ports, 2* Slimline SAS X8 ports |
Driver | 4/8/10/12/24/25/36 hot-swap SAS/SATA(HDD/SSD） |
Power Supply | 550W, 800W, 1200W, 1300W, 1600W, 2000W, 2200W hot-swap Redundant power supplies; Optional 240VAC, -48VDC and 336HVDC power supply |

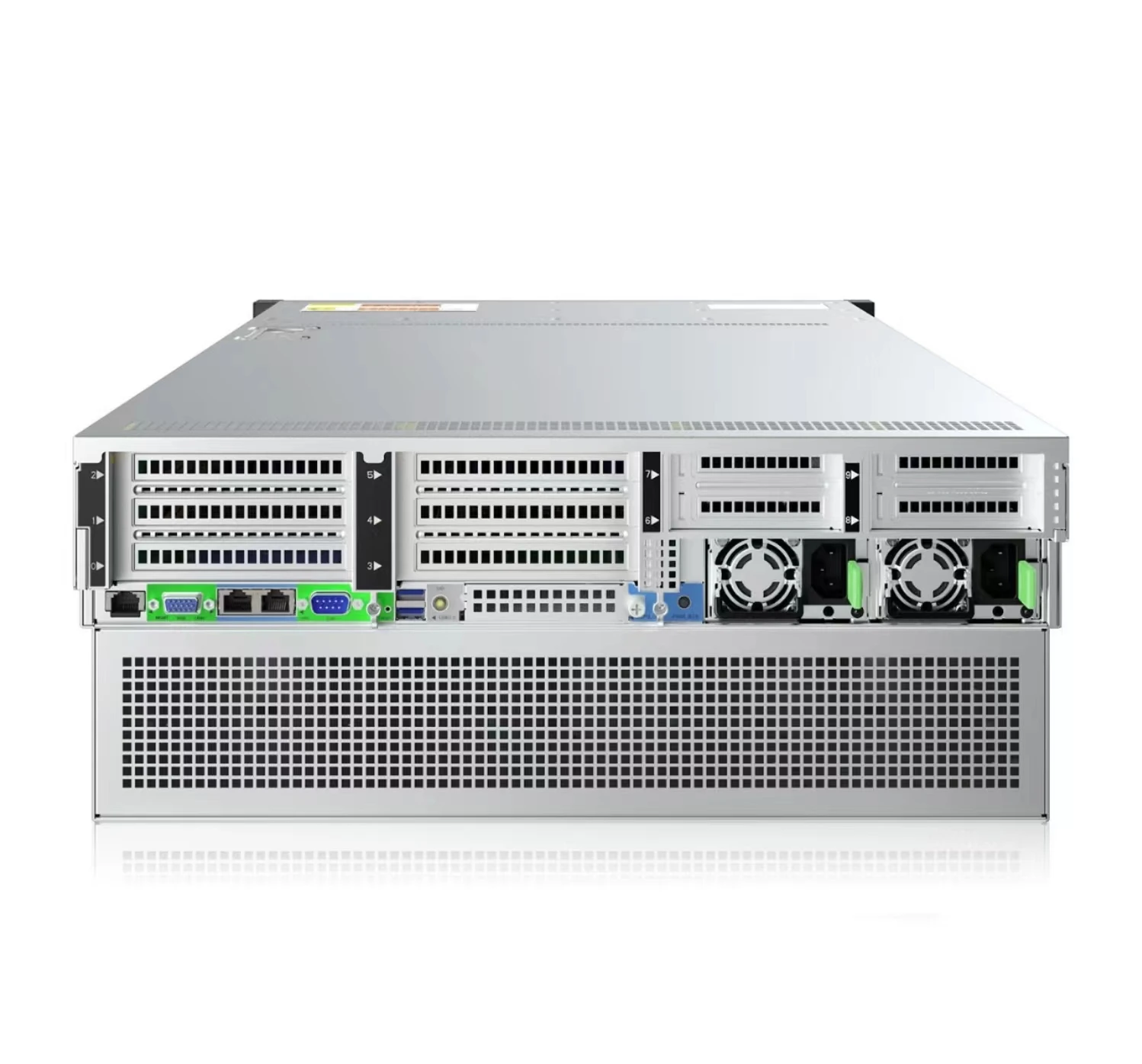

External port & PCIe | Front: 1x VGA (AST2500), 2x USB3.0 Rear: 1x VGA (AST2500), 2x USB3.0, 1x management LAN port, 2x GbE-RJ45, 1x COM PCIe slot: up to 10x PCIe slots, 1U model up to 2 full height PCIe OCP: 1x OCP 3.0 (PCIe X8) |
Fans | 8x8038 N+1 hot-swap fans, optional 8x 8056 N+1 hot-swap fans |
Network | Onboard 2x 10GbE (RJ45) |
Safety | TPM/TCM(optional); chassis cover intrusion detection; chassis cover with lock |
Management | Onboard iBMC management module, supports IPMI, SOL, KVM Over IP, virtual media and other management features |
OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu |
Virtualization | Citrix Xen Server, Vmware ESXi, Linux KVM, Windows Hyper-V |
Temperature | Operating temperature: 10ºC - 35ºC (indoor); Extended working temperature: 5ºC - 40ºC (specific configuration); Transportation and storage temperature: - 40ºC - 70ºC |
Humidity | Working humidity: 30% - 80% (non condensing); Storage humidity: 5% - 95% (non condensing) |
