Небольшая Портативная установка для

Категория: Asphalt Mixers >>>
Поставщик: Hangzhou,Jusheng,Machinery,&,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.87 $*	0.66 $*
Aug-16-2025	0.14 $*	0.38 $*
Jul-16-2025	0.42 $*	0.22 $*
Jun-16-2025	0.37 $*	0.0 $*
May-16-2025	0.2 $*	0.23 $*
Apr-16-2025	0.22 $*	0.40 $*
Mar-16-2025	0.57 $*	0.84 $*
Feb-16-2025	0.13 $*	0.95 $*
Jan-16-2025	0.42 $*	0.82 $*

Характеристики

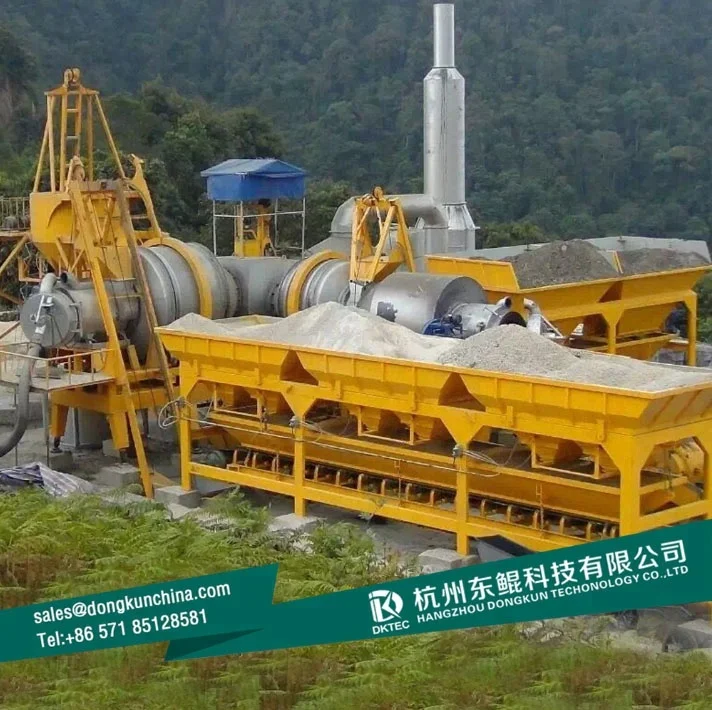

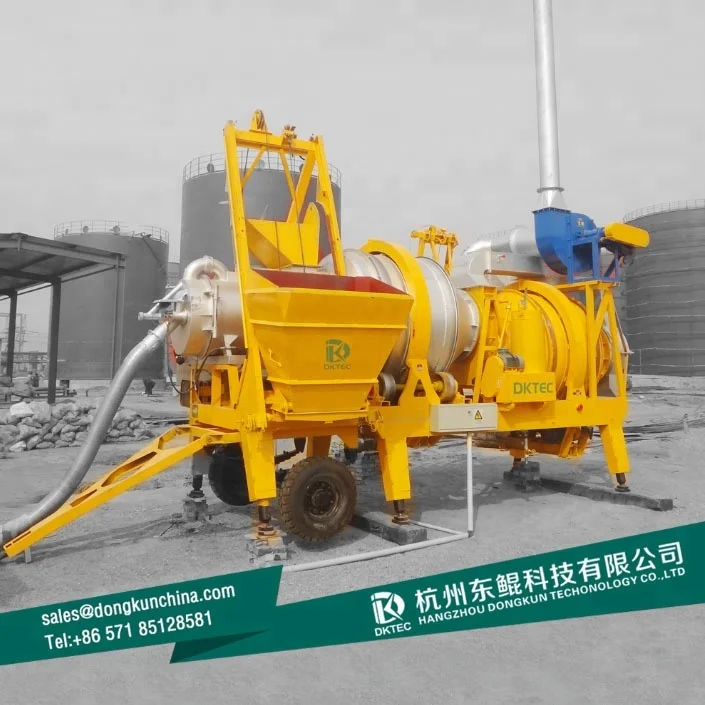

Mobiel sphalt Mixing Plant is an excellent product after more than thirty years development. It combined with advantages of similar products all over the world, and designed according to the needs of most construction site. It has reliable performance, good stability and easy to maintained.

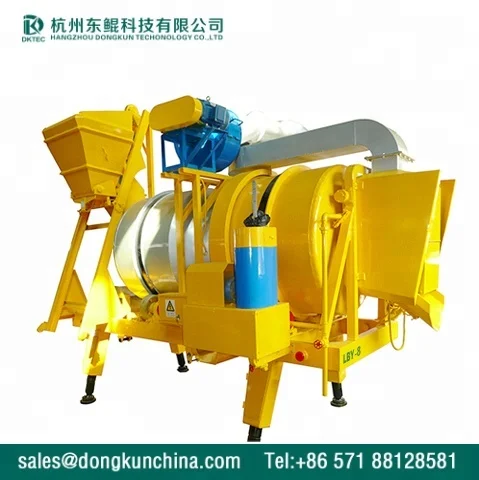

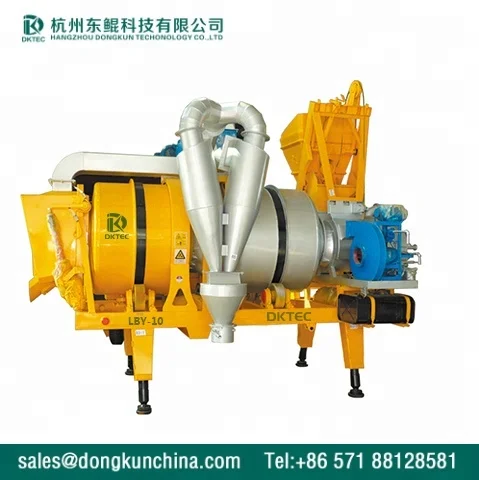

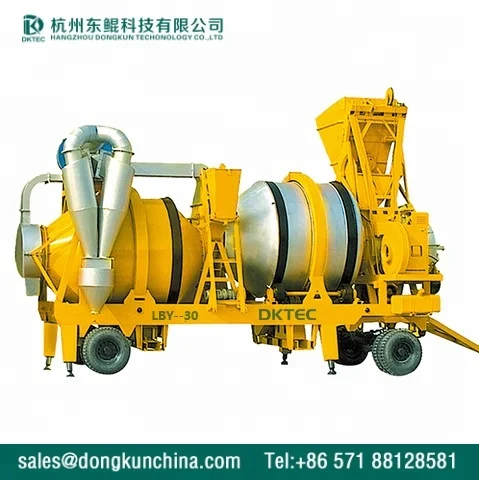

Model No		LBY-8	LBY-10	LBY-15	LBY-20	LBY-30
Capacity		8t/h	10 t/h	15t/h	20t/h	30t/h
Power	Oil burner	24kw	25 kw	36kw	49kw	83kw
Power	Coal burner	40kw	43 kw	56kw	73kw	86kw
Production temperature		120-180° adjustable
Fuel consumption	Oil burner	5-7.5 kg/t
Fuel consumption	Coal burner	13-15 kg/t
Optional		Coal miler ,Water dust filter,Bitumen tank,Control room

Auto Production Line

1, Integrated design of drying and batching drum, reduce initiate cost for customer
2. Aggregate Feeding
3. Aggregate discharged into drying drum
4. Mineral aggregates are continuously lifted in the drying drum, forming "material curtain", and conducting

intensive heat exchange with the flame of the burner And aggregate is conveyed into the its elevator
5. Hot aggregate discharged to mixer drum, LBY series adopts filer elevator making filler get into mixer drum.

Then the more aggregate is lifted and discharged Into arying arum
6. mineral aggregates, filler and bitumen are continuously lifted and uniformly mixed in the mixer drum. The drying

drum and aggregate's elevator continuously cle work
7. Asphalt Discharge: Mixer drum ends mixing after hot mineral aggregates being uniformly bound finished

product material is discharged out
8. If there is the storage silo, finished product material is lifted by its elevator to its storage silo and disc harged into

the storage silo and then stored

Packing & Delivery

♦ Pre-Sales Service ♦ After-Sales Service
* Inquiry and consulting support. * Training how to install / use the machine.
*Technical information provide. * Good and fast arrangement for the shipment
* Price offer with detail configuration. * Engineers available to service machinery overseas.

♦ Strong logistics
Not only take care of your products,but also get fastest shipment to reach lead time;

♦ Wholehearted service
Not only complete order process,but also provide professional consultation

About us

Hangzhou Dongkun Technology Co.,Ltd( DKTEC) supply concrete mixing plant, asphalt mixing plant, crusher plant relevant equipment. We have advantage in providing complete spare parts & accessory solution for all above plant. We have our own brand DKTEC & COMACO.
We aim to be your plant guardian.
