GDTA33 2 ~ 72 ядра дважды обшитый бронированный фотоэлектрический композитный кабель оптического волокна подводной
- Категория: >>>
- Поставщик: Shenzhen,Wirenet,Telecom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.63 $* | 0.15 $* |
| Aug-19-2025 | 0.57 $* | 0.34 $* |
| Jul-19-2025 | 0.84 $* | 0.76 $* |
| Jun-19-2025 | 0.98 $* | 0.63 $* |
| May-19-2025 | 0.4 $* | 0.45 $* |
| Apr-19-2025 | 0.0 $* | 0.17 $* |
| Mar-19-2025 | 0.60 $* | 0.58 $* |
| Feb-19-2025 | 0.38 $* | 0.90 $* |
| Jan-19-2025 | 0.18 $* | 0.96 $* |
Характеристики

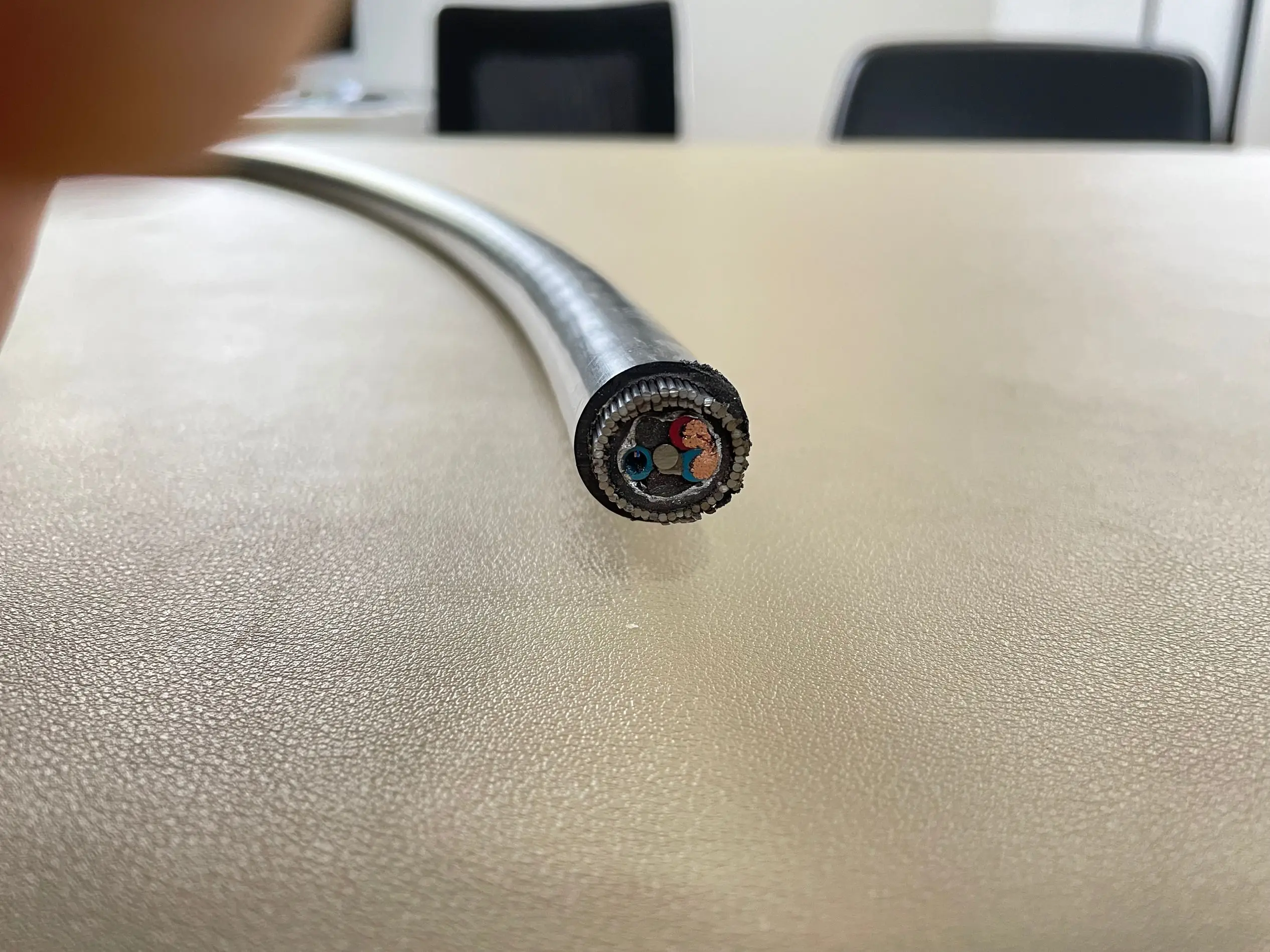

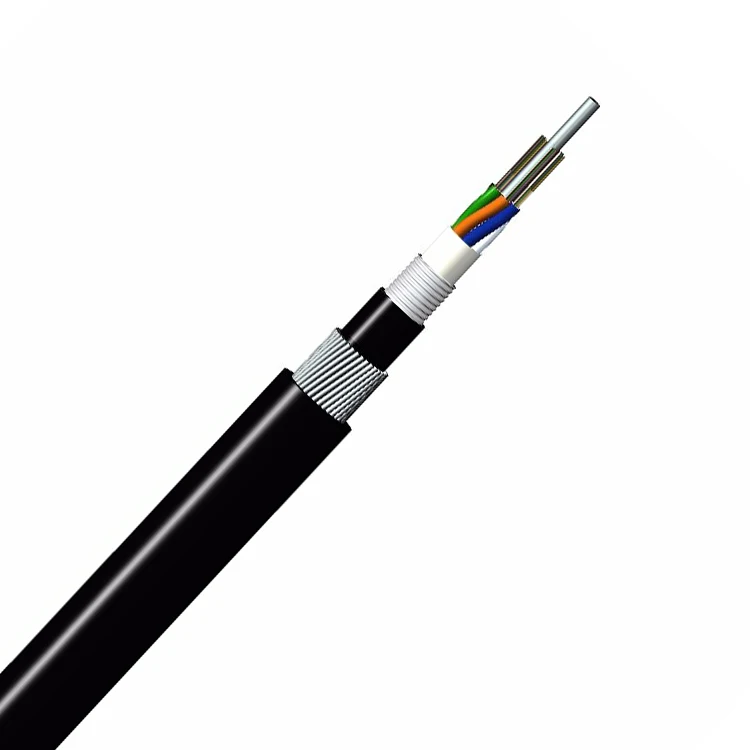

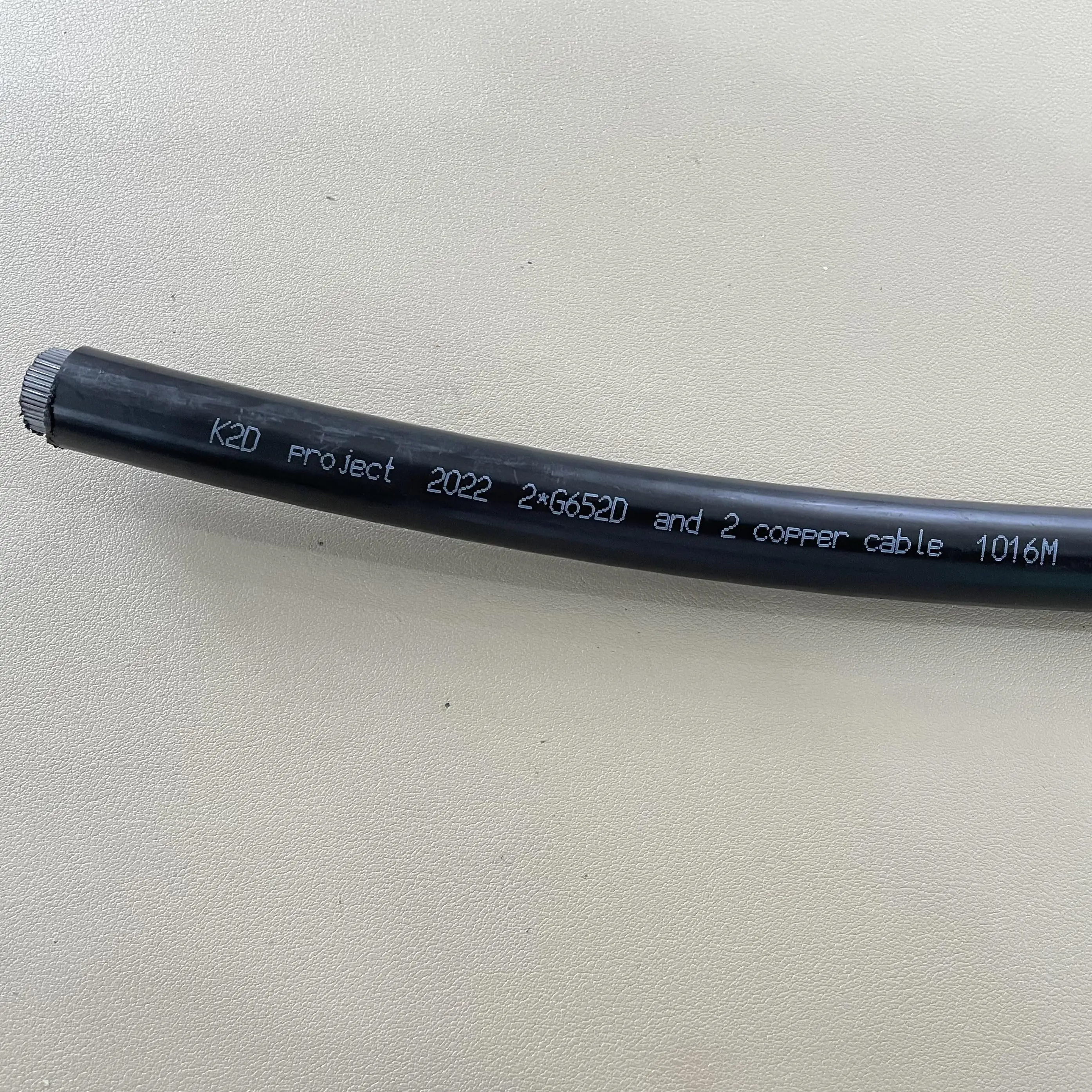

GDTA33 2~72 Cores Double Sheathed armoured Photoelectric composite cable Submarine Fiber Optic Telecommunicate Cable
Optical fiber type and properties
(Item) | Unit | Specification | ||
G.652D | ||||
Mode field diameter | 1310nm | ^m | 9.2 ± 0.4 | |
1550nm | ^m | 10.4 ± 0.8 | ||
Cladding diameter | ^m | 125.0 土 1 | ||
Cladding non-circularity | % | <1.0 | ||
Core/cladding concentricity error | ^m | <0.5 | ||
Coating diameter | ^m | 242 ± 7 | ||
Coating/cladding concentricity error | ^m | <12 | ||
Cable cut-off wavelength | nm | < 1260 | ||
Attenuation Coefficient | 1310nm | dB/km | <0.36 | |
1550nm | dB/km | <0.22 | ||
Proof stress level | kpsi | >100 | ||
Dimensions of cable constructions
fiber count | 2 |
Struct ure | 1+5 |
Fibers pertube | 1 |
Loosetobe diameter (mm) | 3.5±0.3 |
Conductor | 2.0 |
CSMdiameter /pad diameter (mm) | 2.5/2.5 |
NominalThickne ss of Inner jacket (mm) | 0.9 |
NominaThickne ss of outer jacket (mm) | 1.8 |
Cable diameter(mm) | 18.3 + 0.5 |
Cable weigh(kg/k m) | 520 |

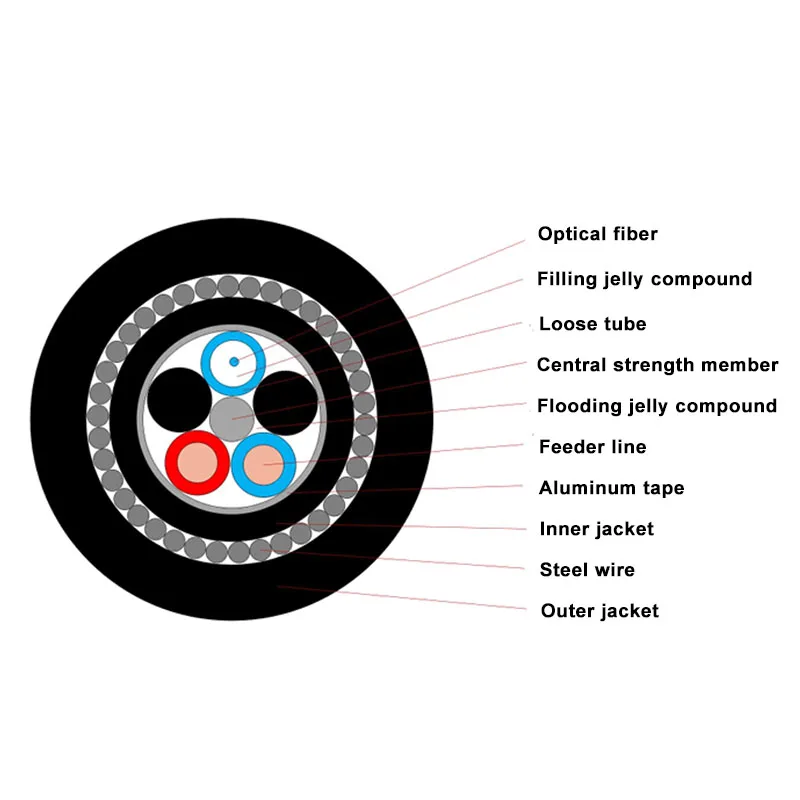

Cable performance
(Item) | (Parameters) | ||
Fiber | Color | Full color spectrum | |
Loose tube | Material | PBT | |
Color | Full color spectrum | ||
Filler | Material | PE | |
Color | Black | ||
Electrical unit | Material of Insulation | PVC | |
Color | Red Blue 2mm*2 | ||
CSM | Material | Phosphating steel wire | |
Armoured | Material | Plastic coated aluminum strip | |
Inner jacket | Material | MDPE | |
Color | Black | ||
Steel wire armoured | Material | 0.9mm*48 Phosphating steel wire | |
Outer jacket | Material | MDPE | |
Color | Black | ||
Min. bending radius | Static | 12.5times cable diameter | |
Dynamic | 25times cable diameter | ||
Tensile performance | Short term | 10000N | |
Crush | Short term | 5000N/100mm | |

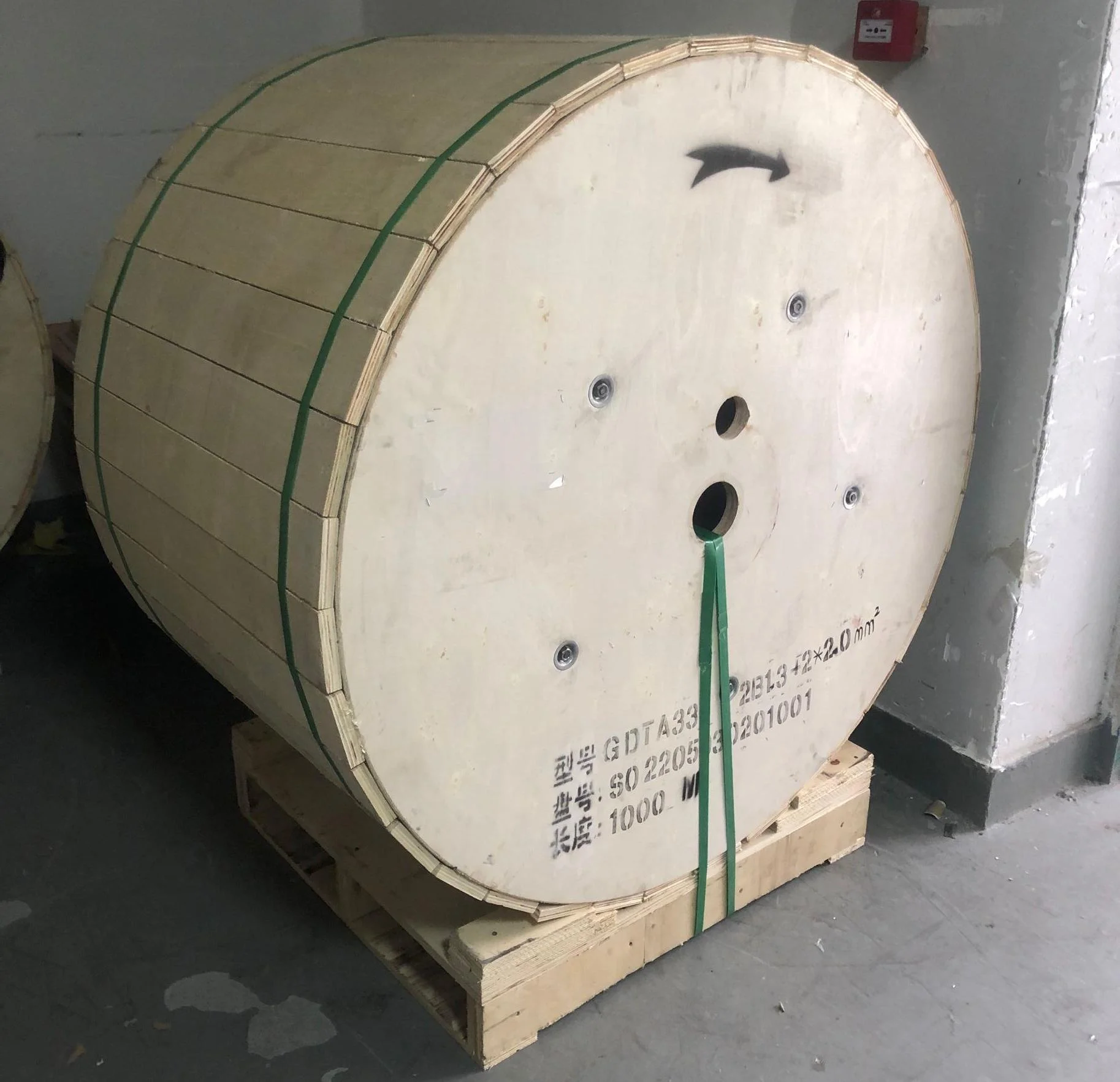

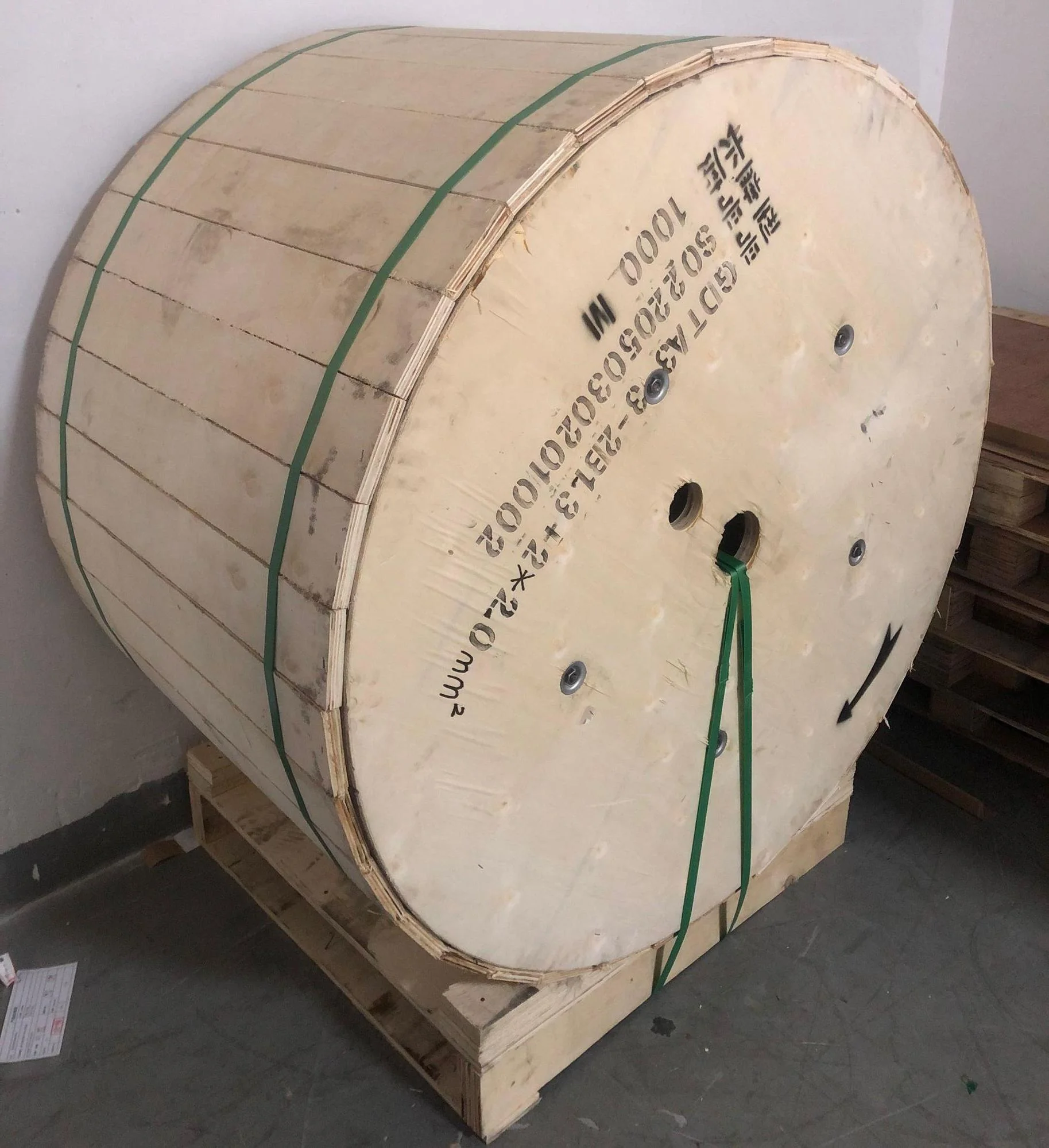

Drum
(Cable type) | (Drum) | ||||||||
Height (mm) | Width (mm) | Inner diameter (mm) | Lengt h(km) | Drum type | |||||
GDTA33 | 1150 | 750 | 600 | 1 | Plywood wood drum | ||||
