Anytone AT-3208 Плюс УКВ или УВЧ для переносного приемо-передатчика с большим радиусом 5 Вт Самый дешевый изготовленный на заказ Портативный 2 Way
- Категория: Walkie Talkie >>>
- Поставщик: Qixiang,Electron,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 36.30 $* | 38.92 $* |
| Aug-16-2025 | 35.20 $* | 37.72 $* |
| Jul-16-2025 | 30.77 $* | 32.76 $* |
| Jun-16-2025 | 35.75 $* | 37.38 $* |
| May-16-2025 | 30.60 $* | 32.60 $* |
| Apr-16-2025 | 34.98 $* | 36.93 $* |
| Mar-16-2025 | 34.24 $* | 36.90 $* |
| Feb-16-2025 | 34.0 $* | 36.79 $* |
| Jan-16-2025 | 33.19 $* | 35.22 $* |
Характеристики
Product Description
MODEL NO.: AT-3208 PLUS
Funtions:
1.Squelch Off
2.Monitor funtion
3.Current Channel Power Enquiry
4.Scan Frequency Reverse
5.Talk Around
6.Battery Capacity Enquiry
7.Power Switch: it can change the current channel power and announces
8.Call 1/Call 2
9.Emergency Alarm Function
2.Monitor funtion
3.Current Channel Power Enquiry
4.Scan Frequency Reverse
5.Talk Around
6.Battery Capacity Enquiry
7.Power Switch: it can change the current channel power and announces
8.Call 1/Call 2
9.Emergency Alarm Function
10. VOX funtion
11.50 CTCSS / 116 DCS Encode and Decode
12.Optional Signaling (DTMF)
13.Signaling Relations Setup
14.Wide / Narrow Band Setup
15.Accession to Scan List
16.Busy Channel Lockout
17.Time-out Timer & Time-Out Timer Pre-Alarm
18.Voice Prompt
19.Battery Save Setup
20.Priority Scan Setup
21.Return to Appointed Channel
22.Expand Frequency
23.Eliminating Tail without signaling
24.Resume Factory Default
**can be programmed by pc cable
11.50 CTCSS / 116 DCS Encode and Decode
12.Optional Signaling (DTMF)
13.Signaling Relations Setup
14.Wide / Narrow Band Setup
15.Accession to Scan List
16.Busy Channel Lockout
17.Time-out Timer & Time-Out Timer Pre-Alarm
18.Voice Prompt
19.Battery Save Setup
20.Priority Scan Setup
21.Return to Appointed Channel
22.Expand Frequency
23.Eliminating Tail without signaling
24.Resume Factory Default
**can be programmed by pc cable
Specification
General | ||||
Frequency Range | VHF:136~174MHz UHF: 400~520MHz | |||
Channel Capacity | 16 channels | |||
Channel Spacing | 25KHz (Wide Band) 12.5KHz (Narrow Band) | |||
Phase-locked Step | 5KHz, 6.25KHz | |||
Operating Voltage | 7.4V DC | |||
Battery Life | More than 12 Hours (1500mAh), by 5-5-90 work cycle | |||
Frequency Stability | ±2.5ppm | |||
Operating Temperature | -20℃~ +55℃ | |||

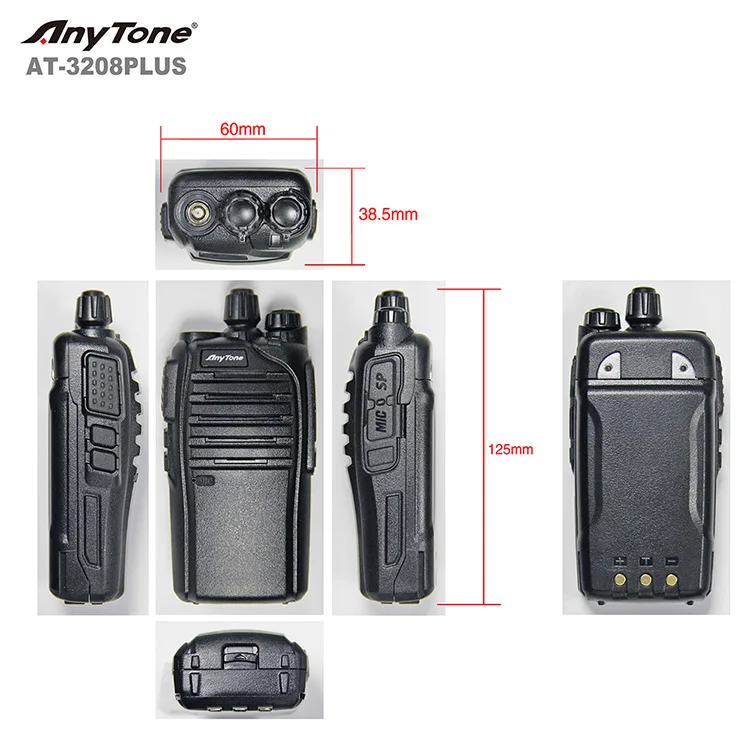

Size | 127×60×35mm (with battery pack) | |||
Weight | 219 g (with battery pack, antenna) | |||
Receiving Part | ||||
Wide band | Narrow band | |||
Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.3μV | ||
Adjacent Channel Selectivity | ≥60dB | ≥60dB | ||
Intermodulation | ≥60dB | ≥60dB | ||
Spurious Rejection | ≥80dB | ≥80dB | ||
Audio Response | 6dB/per interval | 6dB/per interval | ||
Hum & Noise | ≥50dB | ≥45dB | ||
Audio Distortion | ≤5% | |||
Audio Power Output | 500mW/10% | |||
Transmitting Part | ||||
Wide band | Narrow band | |||
Power Output | 5W/1W | |||
Modulation | 16KΦF3E | 11KΦF3E | ||
Adjacent Channel Power | ≥60dB | ≥60dB | ||
Hum & Noise | ≥45dB | ≥40dB | ||
Spurious Emission | ≤-36dB | ≤-36dB | ||
Audio Response | 6dB/per interval | 6dB/per interval | ||
Audio Distortion | ≤5% | |||
Details Images
Packing & Delivery

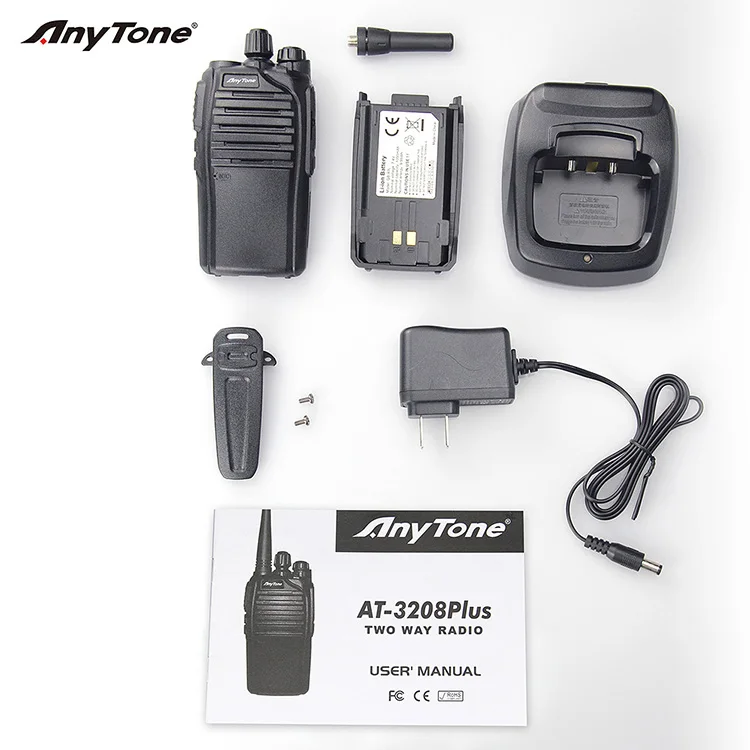

Package Includes:
1.Single-band VHF or UHF Radio
2.1500 mAh lithium ion battery
3.Desk charger w/ AC adapter
4.Single-band antenna
5.Belt clip
6.software
7.User manual
Company Profile
Below is our factory introduction, for more detail informations, plz contact sale16833@qxdz.cn
FAQ
1.Who are we?
We are based in Fujian, China, start from 1993,sell to mainly Western Europe & North America, also
Eastern Asia, Oceania,Southeast Asia, Eastern Europe, South America. There are total about 300+
people in our factory.We have our own brand "ANYTONE"
2.How to place order?
Inquiry => We quote => Price confirmed => We send you Invoice => Payment => Shipping => You receive it
3.How can we guarantee quality?
Always a pre-production sample before mass production;
Always materials inspection from the start and final Inspection before shipment
4.Warranty
18 months warranty for radio and 6 months for accessories.
If you find any defective,please contact us within 3 days after you receive,thanks.
5.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Fujian, China, start from 1993,sell to mainly Western Europe & North America, also
Eastern Asia, Oceania,Southeast Asia, Eastern Europe, South America. There are total about 300+
people in our factory.We have our own brand "ANYTONE"
2.How to place order?
Inquiry => We quote => Price confirmed => We send you Invoice => Payment => Shipping => You receive it
3.How can we guarantee quality?
Always a pre-production sample before mass production;
Always materials inspection from the start and final Inspection before shipment
4.Warranty
18 months warranty for radio and 6 months for accessories.
If you find any defective,please contact us within 3 days after you receive,thanks.
5.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
