Характеристики
Product Description
Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:

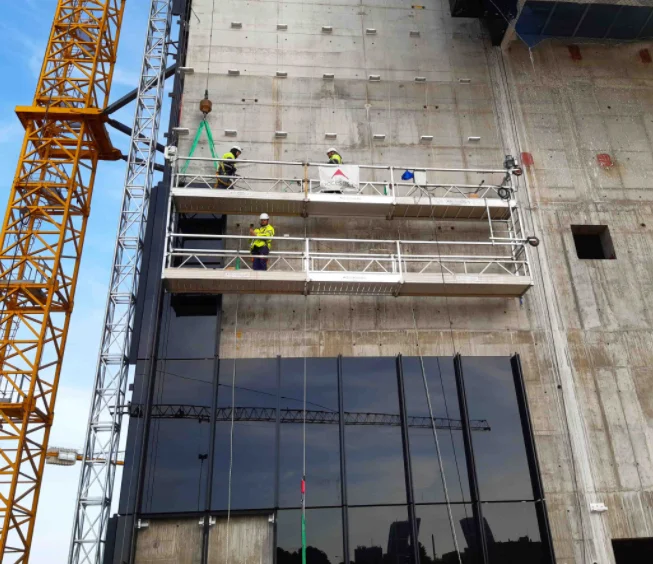

ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also beused for large tanks, bridges, dams and other construction operations.
Above all. Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also beused for large tanks, bridges, dams and other construction operations.
Above all. Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
ZLP630 Parameters
1. Working Platform: Steel Q235 + Painting; Q235 + Galvanised; Aluminum Alloy + Painting;
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting; Q235 + Galvanised;

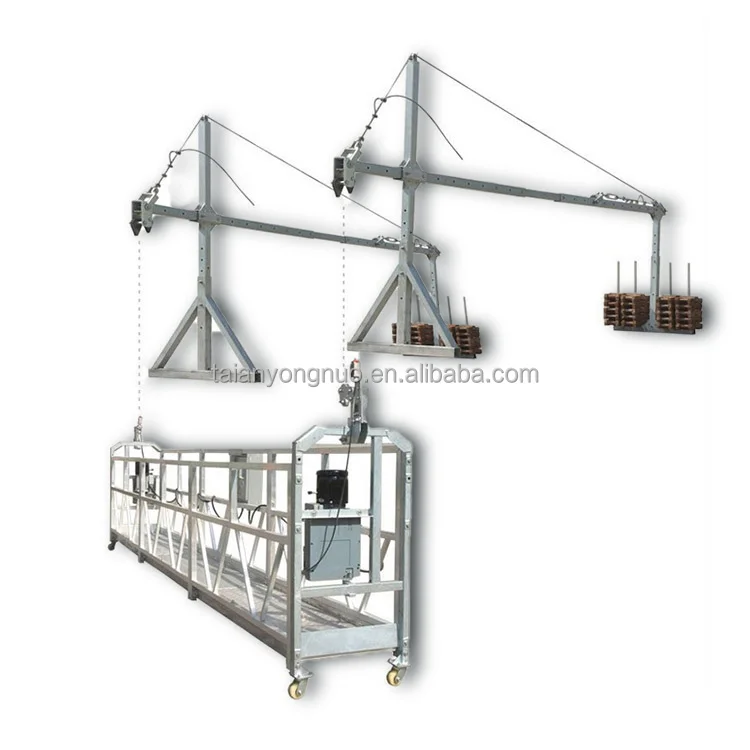

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

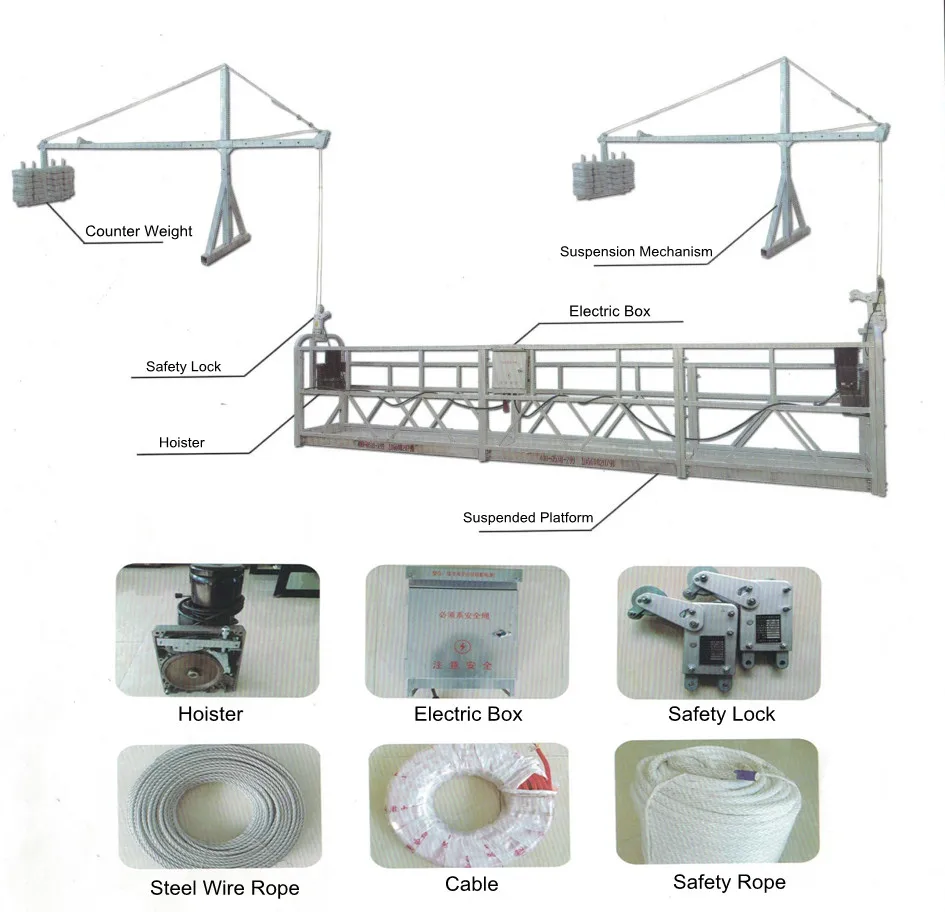

3. Components:
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD20 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting; Q235 + Galvanised;
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD20 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
Certifications
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer with our own factory. We have more than 15 year's experiences in producing suspended platforms H frame
scaffolding,Ringlock scaffolding and self-climbing scaffolding.
Q: How long is your delivery time?
A: Generally, within 3-7 days after receiving payment or depends on the quantity of your order.
Q: Does the platform size can be customized?
A: Yes, OEM service is available here. We can adjust it according to your requirement.
Q: What materials do you use when producing suspended platforms?
A: The materials we use are aluminum alloy; hot-dip galvanized steel and painted steel.
Q: Do you have relevant certificate?
A: We have CE, ISO9001 certificate, and we can assist you with any certificate application you need.
Q: Do you have inspection procedures for the manufacture line?
A: We have 100% self-inspection quality management system during production and before packing.
Q: Can I have a visit to your factory before the order?
A: Why not? Welcome to my factory. You may contact us before you visit, our sales personnel will provide you a full assistance.
A: We are a manufacturer with our own factory. We have more than 15 year's experiences in producing suspended platforms H frame
scaffolding,Ringlock scaffolding and self-climbing scaffolding.
Q: How long is your delivery time?
A: Generally, within 3-7 days after receiving payment or depends on the quantity of your order.
Q: Does the platform size can be customized?
A: Yes, OEM service is available here. We can adjust it according to your requirement.
Q: What materials do you use when producing suspended platforms?
A: The materials we use are aluminum alloy; hot-dip galvanized steel and painted steel.
Q: Do you have relevant certificate?
A: We have CE, ISO9001 certificate, and we can assist you with any certificate application you need.
Q: Do you have inspection procedures for the manufacture line?
A: We have 100% self-inspection quality management system during production and before packing.
Q: Can I have a visit to your factory before the order?
A: Why not? Welcome to my factory. You may contact us before you visit, our sales personnel will provide you a full assistance.
