Бассейн smart bms lifepo4 для системы литиевых
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,Basen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 93.27 $* | 98.36 $* |
| Aug-15-2025 | 92.72 $* | 97.0 $* |
| Jul-15-2025 | 77.99 $* | 81.59 $* |
| Jun-15-2025 | 90.92 $* | 95.4 $* |
| May-15-2025 | 79.19 $* | 83.54 $* |
| Apr-15-2025 | 89.63 $* | 93.1 $* |
| Mar-15-2025 | 88.20 $* | 92.43 $* |
| Feb-15-2025 | 87.53 $* | 91.74 $* |
| Jan-15-2025 | 87.59 $* | 91.44 $* |
Характеристики
Product catalogues
Technical indicators | BD6A20S10P | BD6A24S10P | B1A20S15P | B1A24S15P | B2A24S15P | B2A24S20P | |||||
triples | 7～20 | 7～24 | 7～20 | 7～24 | 7～24 | 7～24 | |||||
Number of Lithium Iron Strings | 8～20 | 8～24 | 8～20 | 8～24 | 8～24 | 8～24 | |||||
Number of titanate strings | 14 | 14～20 | 14～20 | 14～24 | 14～24 | 14～24 | |||||
Balanced way | Active equalization | ||||||||||
Balance current | 0.6A | 1A | 2A | ||||||||
main circuit resistance | 1 mΩ | 0.65 mΩ | 0.47 mΩ | ||||||||
Continuous discharge current | 100A | 150A | 200A | ||||||||
Maximum discharge current | 200A | 300A | 350A | ||||||||
Overcurrent protection (adjustable) | 10～100A | 10～150A | 10～200A | ||||||||

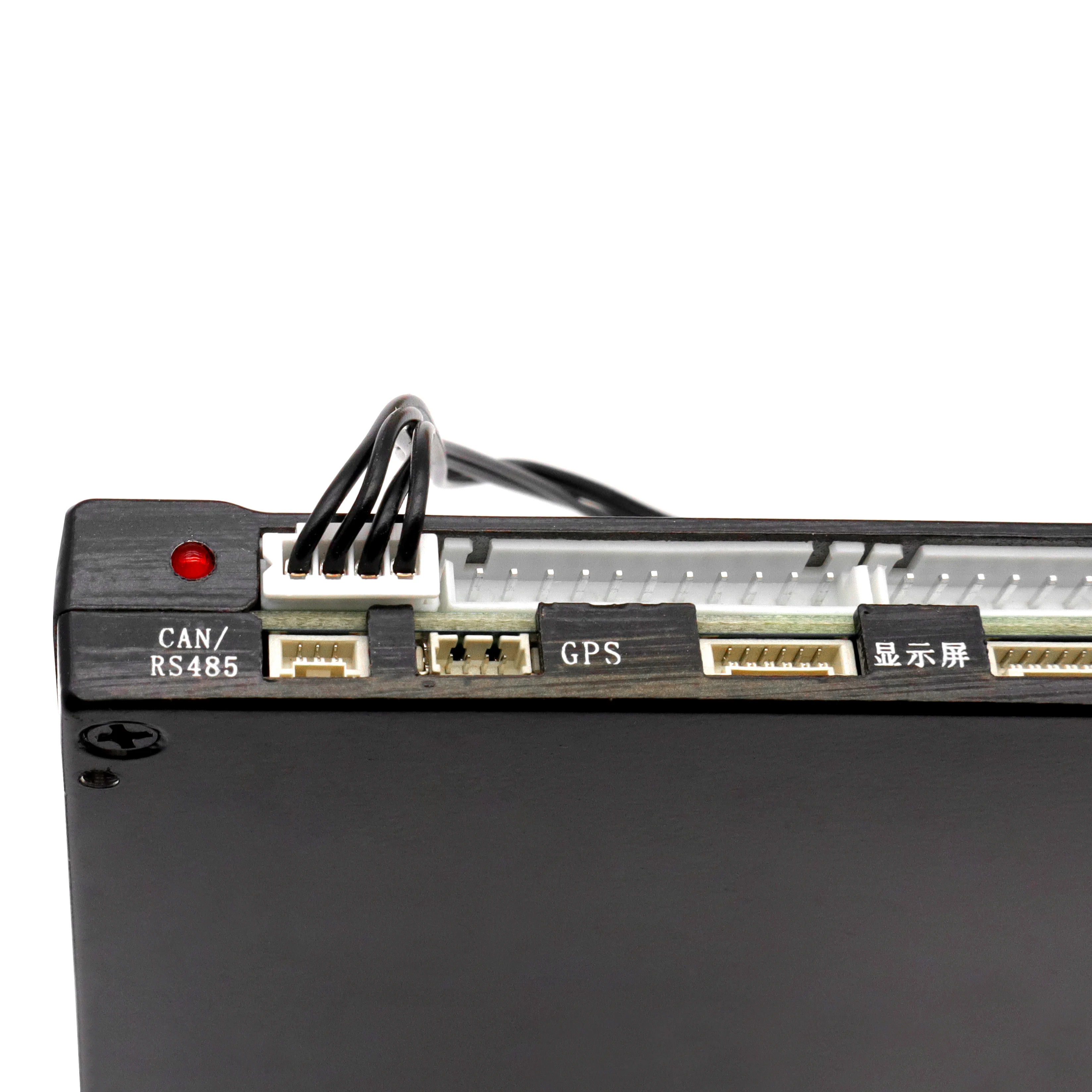

Communication interface (customized) | RS485/CAN | ||||||||||
Display interface | yes | ||||||||||
Way out | same mouth | ||||||||||
Cell voltage range | 1~5V | ||||||||||
Voltage acquisition accuracy | ±3mV | ||||||||||
Overcharge protection voltage | 1.2～4.35V adjustable | ||||||||||
Overcharge release voltage | 1.2～4.35V adjustable | ||||||||||
Overcurrent release time | 2～120S adjustable | ||||||||||
Over discharge protection voltage | 1.2～4.35V adjustable | ||||||||||
Over discharge recovery voltage | 1.2～4.35V adjustable | ||||||||||
Number of temperature detections | 3 | ||||||||||
temperature protection | yes | ||||||||||
Short circuit protection | yes | ||||||||||
Coulomb counter | yes | ||||||||||
Bluetooth function | support | ||||||||||
GPS (optional) | support（RS485 和GPS pick one of two） | ||||||||||
Feedbacks
FAQ
Q: What's the delivery time?
Re: Generally within 7-15 days, we well arrange it for you as soon as possible.
Q: What is your term of payment?
Re: We adopt Alibaba trade assurance, T/T, Paypal, Wester union and so on.
Q:Which product is hot sale in your company?
Re: Lifepo4 battery 310ah， 304ah， 280ah, 230ah, 202ah, 176ah, 173ah,50ah and so on.
Q: Does your product come with a product warranty?
Re: Yes. Our battery and charger all cover with warranty
For LIFEPO4 battery: 3-5 years warranty.
For charger: 12 months product warranty.
Q:Which shipping method you usually take?
Re: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q: How do I know whether you've shipped my order or not?
Re: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
Re: Generally within 7-15 days, we well arrange it for you as soon as possible.
Q: What is your term of payment?
Re: We adopt Alibaba trade assurance, T/T, Paypal, Wester union and so on.
Q:Which product is hot sale in your company?
Re: Lifepo4 battery 310ah， 304ah， 280ah, 230ah, 202ah, 176ah, 173ah,50ah and so on.
Q: Does your product come with a product warranty?
Re: Yes. Our battery and charger all cover with warranty
For LIFEPO4 battery: 3-5 years warranty.
For charger: 12 months product warranty.
Q:Which shipping method you usually take?
Re: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q: How do I know whether you've shipped my order or not?
Re: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
