Specification:

Shell Material: Plastic

Power: 3W

TV System: NTSC

Video Signal: CVBS

Effective Pixels: 720P

White Balance: Automatic

Power Supply: DC 12V

Video Cable Length: 6M

Power Cord Length: 1.5M

Viewing Angle: 170°

Waterproof: IP68

Low Illumination: 0.01Lux

Working Temperature: -45℃~70℃



Package Including:

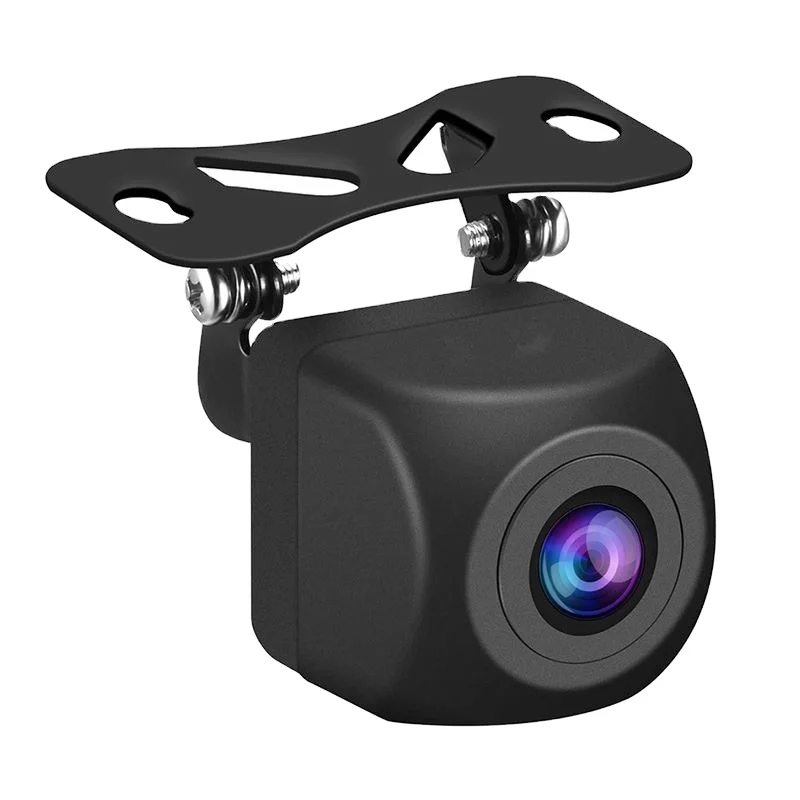

1 x Rear Camera

1 x 6M Video Cable

1 x Power Cable

1 x Package Box

1 x Manual



Control Line Function:

Green Line: Control front and rear vision.

White Line: Control parking line.



Instructions:

• If you need a backup camera without distance scale line, do no cut any wires.

• If you need a backup camera with distance scale line, please cut the green wire.

• If you need a front camera with distance scale line, please cut the white wire.

• If you need a front camera without distance scale line, please cut both the green and white wires.

Note:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.

2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

3. The screen resolution of the recorder is low, so the display effect on the recorder screen is not perfect.
