Полуавтоматический алмазный пильный диск сегментный высокочастотный индукционный сварочный стеллаж подставка для пайки рамка камневого
- Категория: >>>
- Поставщик: Fujian,Province,Hualong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.20 $* | 0.21 $* |
| Aug-15-2025 | 0.57 $* | 0.30 $* |
| Jul-15-2025 | 0.21 $* | 0.79 $* |
| Jun-15-2025 | 0.94 $* | 0.93 $* |
| May-15-2025 | 0.82 $* | 0.45 $* |
| Apr-15-2025 | 0.63 $* | 0.8 $* |
| Mar-15-2025 | 0.99 $* | 0.71 $* |
| Feb-15-2025 | 0.7 $* | 0.70 $* |
| Jan-15-2025 | 0.6 $* | 0.76 $* |
Характеристики

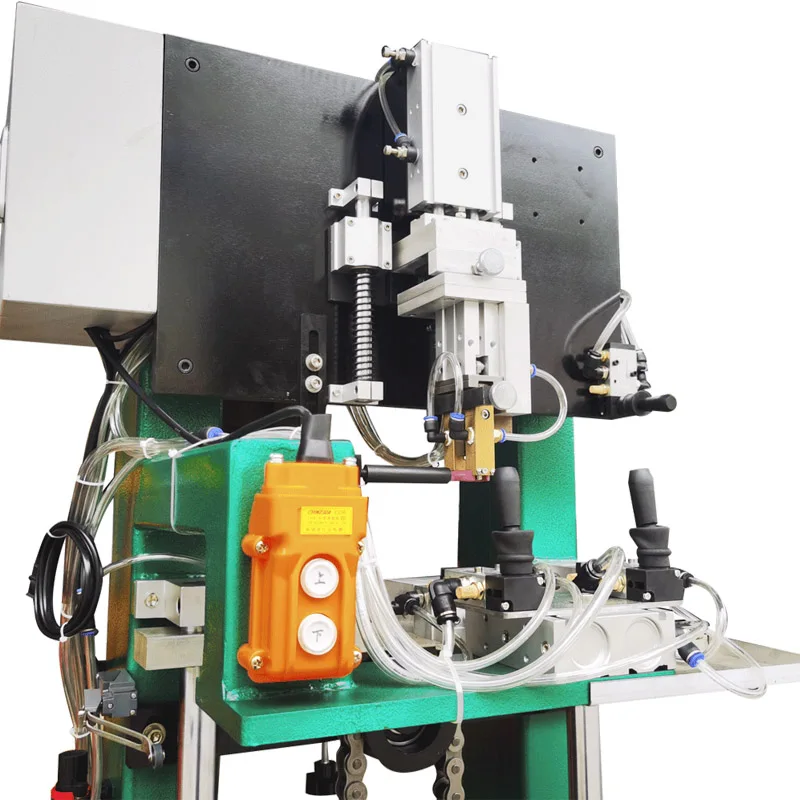

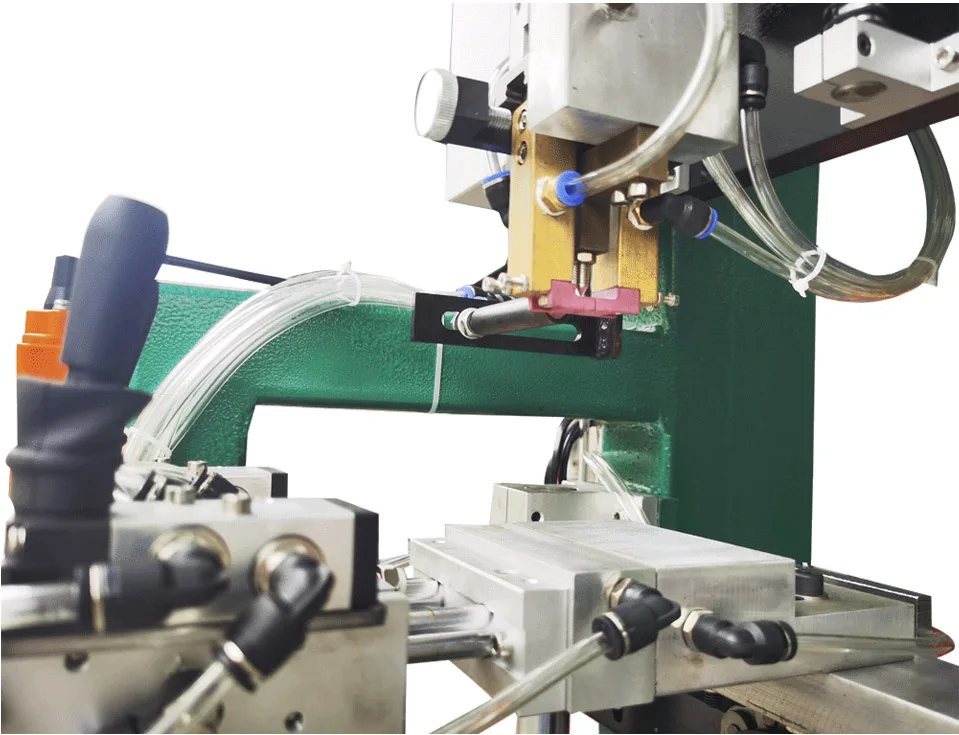

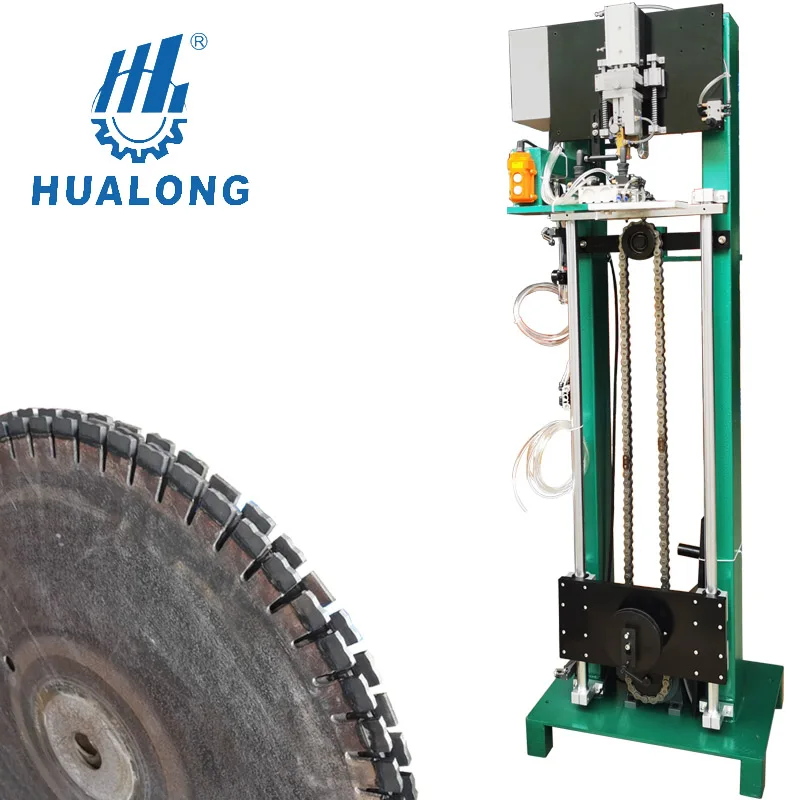

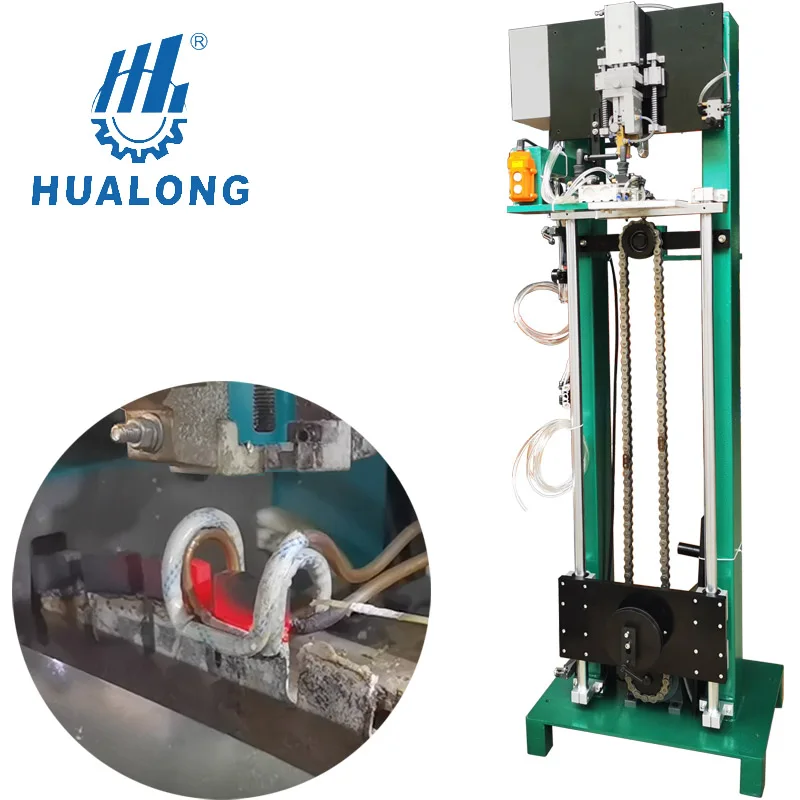

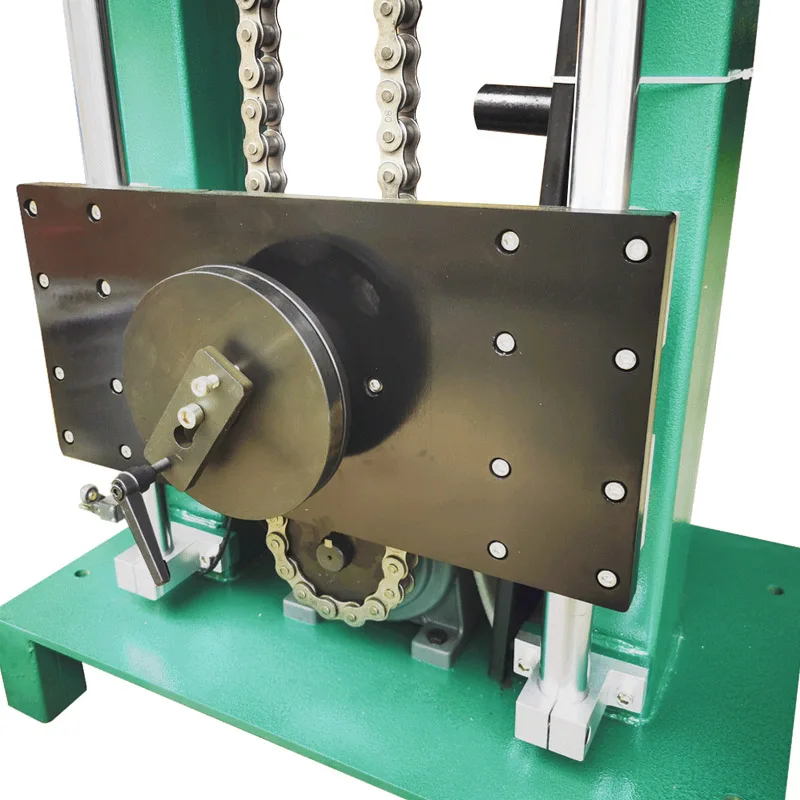

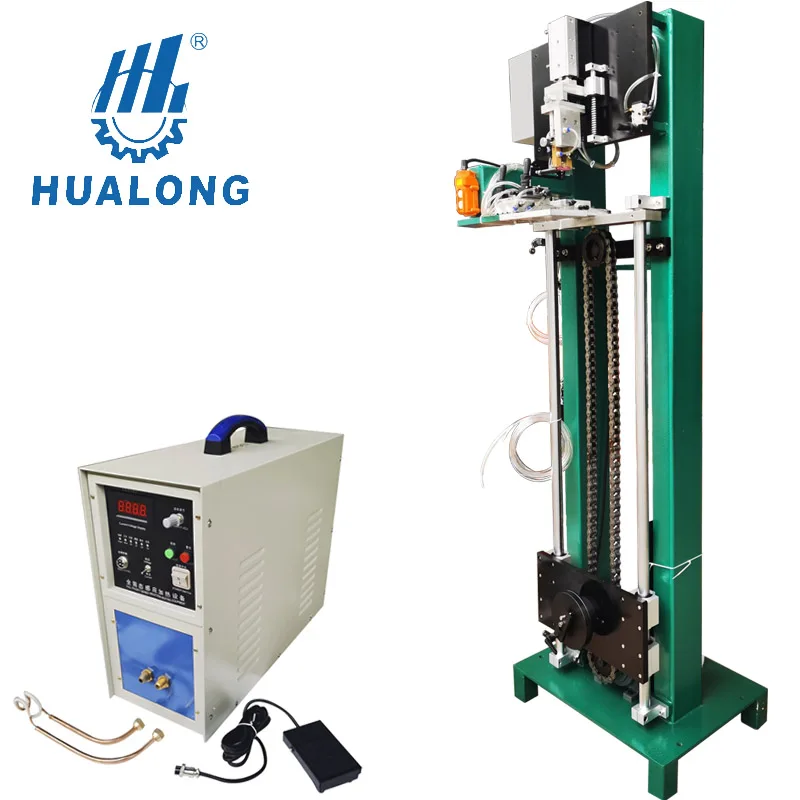

Semi Automatic Saw Blade Segment Brazing Frame
This brazing frame is a semi-automatic welding machine with PLC control system. It's used for welding diamond circular saw blade from ø300mm to ø2500mm. Segments, silver welding solder and soldering flux need to be sent manually, With human assisted segments positioning system, other welding process will be finished automatically.
It is a popular diamond saw blade welding auxiliary equipment for its positioning accuracy, stability, and long service life.
Features at A Glance：
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
Systems Intergrated:
1, Segment automatic Fixing System
2, Segment manually centering system
3, Manual segment separating system
4, One button control system
5, Blade lock protraction system
2, Segment manually centering system
3, Manual segment separating system
4, One button control system
5, Blade lock protraction system
Technical Paramter | ||
Welding Saw Blade Diameter | 300 - 2500 mm | |
Wedding Segments Thickness | 1 - 15 mm | |
Welding Accuracy | +/- 0.02 mm | |
No-load speed | 13,000 rpm | |
Voltage | 380 V / 50 Hz | |
Soldering Strips
Soldering Pipes
Silver Weldding Powder
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
