Модная машина для производства пластиковых трубок


Поделиться:


Цена:15 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 17850.64 $* 18743.65 $*
Aug-16-2025 17700.18 $* 18585.80 $*
Jul-16-2025 14850.58 $* 15593.12 $*
Jun-16-2025 17400.24 $* 18270.15 $*
May-16-2025 15150.25 $* 15908.1 $*
Apr-16-2025 17100.50 $* 17955.75 $*
Mar-16-2025 16950.85 $* 17798.48 $*
Feb-16-2025 16800.10 $* 17640.81 $*
Jan-16-2025 16650.48 $* 17483.23 $*

Характеристики



Product Description

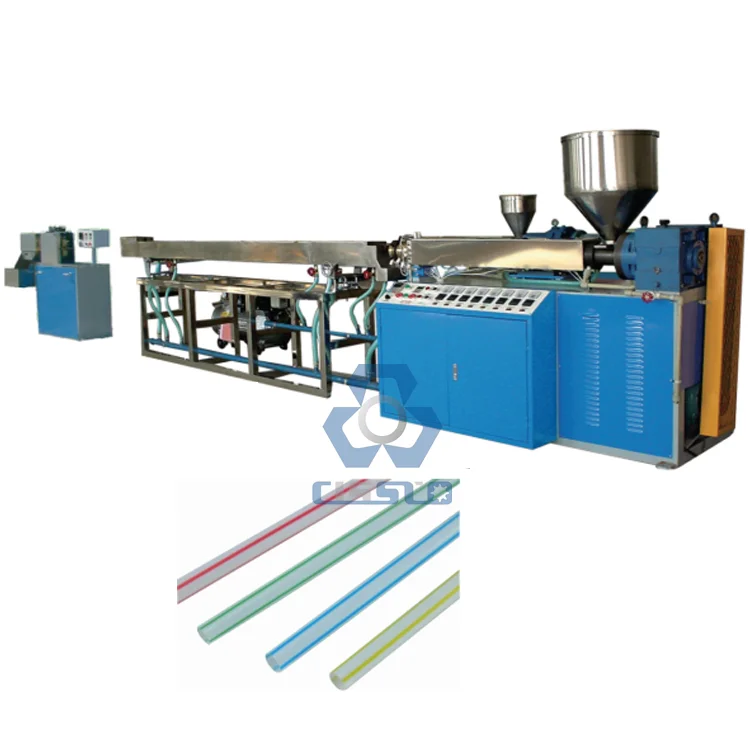

CS-S series drinking straw extrusion line is a set of drinking straw production line, using polypropylene (PP) as raw materials, with the use of masterbatch, after melting, extrusion, shaping, cooling, pulling, cutting, then produce colorless, color, two-color, drink straw. With the mold, or other auxiliary equipment, CS-S series is also suitable for extruding a variety of tube similar to the drinking straw, and such of sheet in small size, can be used with wide range of applications, for example: Drinking straws, Lollipop sticks, Coffee stirring stick, ball-pen refill, Cotton swab sticks, brake pipe and some pipe use for the industry.
This production line is composed of extruder,cooling device, traction and cutting device, electric control part, and so on.With more than ten years constantly updated through our practice experience and development, CS-S series drinking straw extrusion line is the advanced drinking straw production line in the world now.
Characteristics
* Simple structure, high automation, easy and stable operation, and high efficiency.
* The screw and barrel of extruder are made of 38CrMoLu high-quality alloy and have had a nitrogen treatment for a long service
life.
* For the reasons of drinking straws safty and having a nice appearance, Water tank, hopper, etc. are made of 1Cr18Ni9Ti
stainless steel.
* Using inverter from Delta products a well-known brand, using contactor from Delixi, having smart temperature control units.
* With output counting function, that can catch batch products alarm.

Technical Specification



Item
Model
CS-S-250
CS-S-255
1
Screw dia.
50mm
50mm
2
Screw L/D
28
28
3
Material
PP/PE
PP/PE
4
Color
1color straw and 1colors line
1color straw and 1colors line
5
Production dia.
Φ1mm-Φ14mm
Φ1mm-Φ14mm
6
Production length
3mm-1000mm
3mm-1000mm
7
Product capacity
Max.>35Kg/h
Max.>45Kg/h
8
Line speed
Max.>250Meter/min
Max.>250Meter/min
9
Main motor
VS7.5Kw by inverter control
VS11Kw by inverter control
10
Assistant motor
1*VS0.75Kw by inverter control
1*VS0.75Kw by inverter control
11
Heater capacity
11Kw
12Kw
12
Temperature control
8set
8set
13
Figuration & water-cool Unit
3.5m(can choice 5m)
3.5m(can choice 5m)
14
Traction &Cutting Unit
2*VS0.75Kw by inverter control
2*VS0.75Kw by inverter control
15
Total power
22Kw
28Kw
16
Total power used
13kmh/h
18kmh/h
17
Weight
1000KG
1200KG
18
Dimension
10(L)*2(W)m
10(L)*2(W)m




Specification


item
value
Place of Origin
Shanghai ,China
Brand Name
Plastic Straw Machine
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2019
Warranty of core components
1 Year
Core Components
PLC, Motor
Voltage
380V
Power
28KW
Dimension(L*W*H)
10*2m*1.5
Weight
1200
Warranty
1 Year
Applicable Industries
Manufacturing Plant
Showroom Location
None
Raw Material
PP


Packing & Delivery




Company Profile




CissCo Machinery Co., Ltd. is a fast forward professional supplier of complete plastic TURN-KEY equipment and systems for the production of pipes, profiles, sheets and films. The main products including PLASTIC STRAW MACHINE ,PLASTIC CUP MACHINE,PP PET STRAPPING BAND MAKING MACHNE, TAPE COATING MACHINE, PET PP FIBER MAKING MACHINE, DRIP IRRIGATION PIPE MAKING MACHINE, and series of plastic pipes, sheets, profiles and films production lines, strapping machines, extruder screw and barrel and etc.

We have our combined factory located in Jiangsu and Shandong. At CissCo Machinery Co., Ltd., we design, engineer and manufacture customized extrusion lines. There is a proven CissCo Technology for virtually every extrusion line application. Our extensive knowledge of the industry - raw materials, processes and finished products, provides reliability, cost optimization and on-time delivery which are the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.

To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals.

CissCo always puts the customer's benefit in the first priority, because we believe that customer's success is our success. Commitment to excellence and create for quality machinery is our company's pursuit. Our machinery have been well accepted by the customers all over the world and we have exported our machinery to USA, Australia, Mexico, Russia, Urkaine, South Africa, Egypt, Turkey, New Zealand, India, Kuwait, Maylasia and other countries.


FAQ


1. What is size of straw ?Length ,diameter,angle .
2. Do you need straw bending machine?
3.Which type of packing do you need ?Single packing or others ?
4. Can you make multicolor of straw?Yes.
