Product Description
![11]()

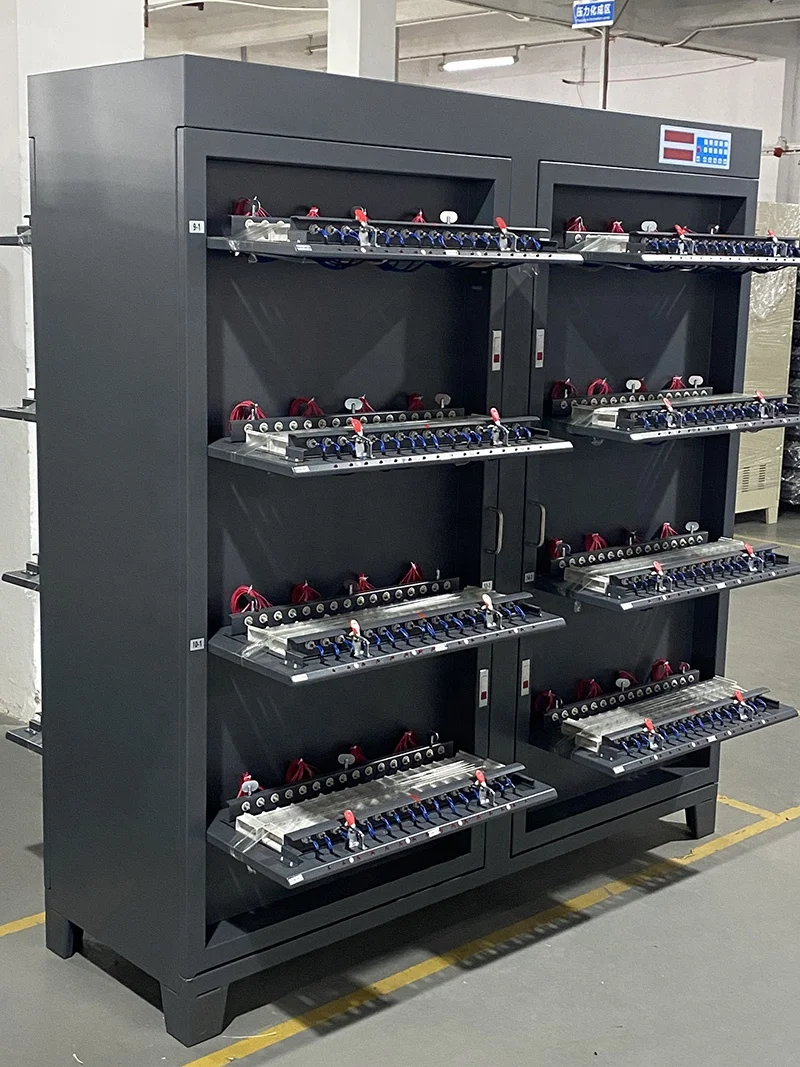

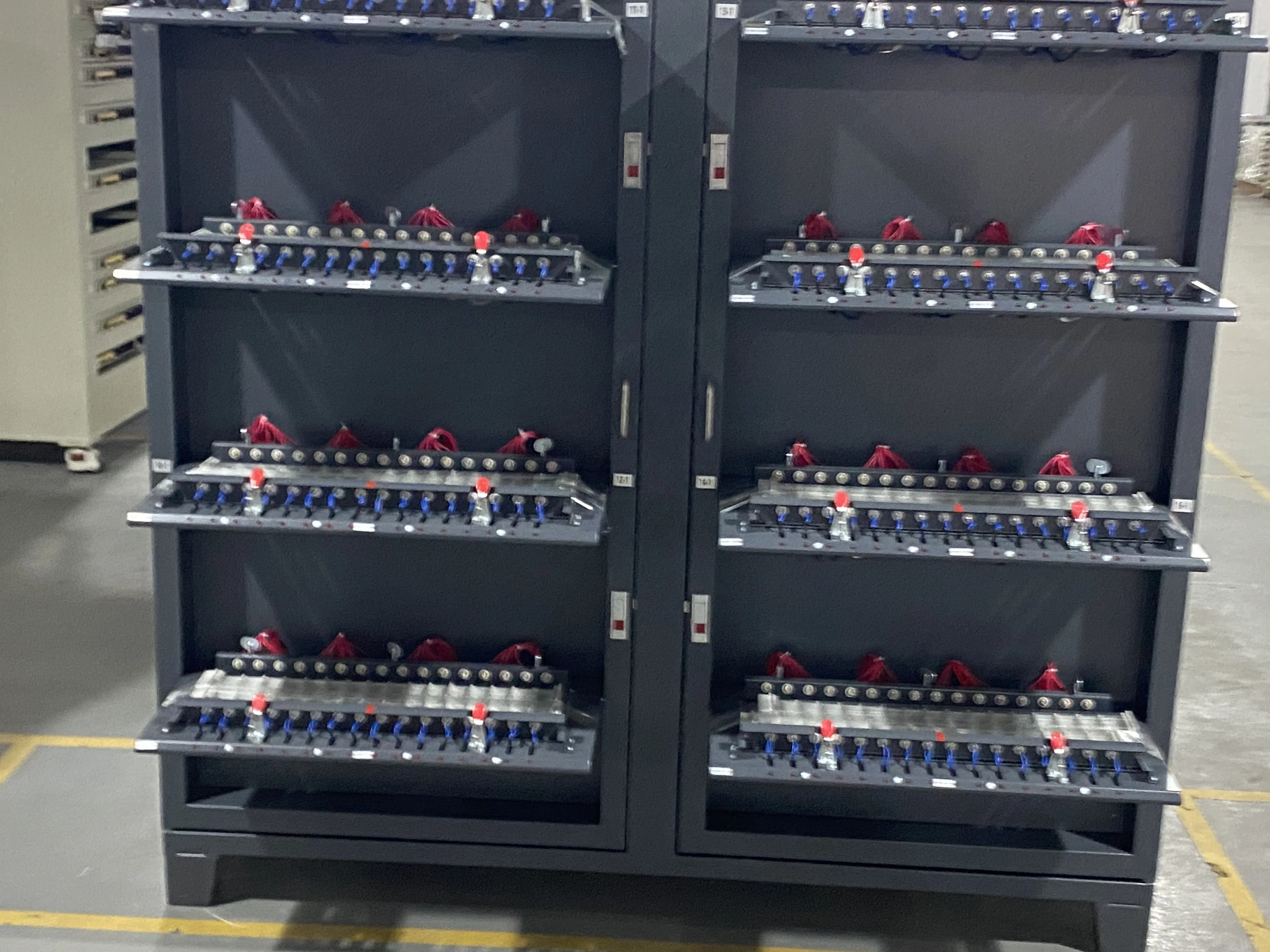

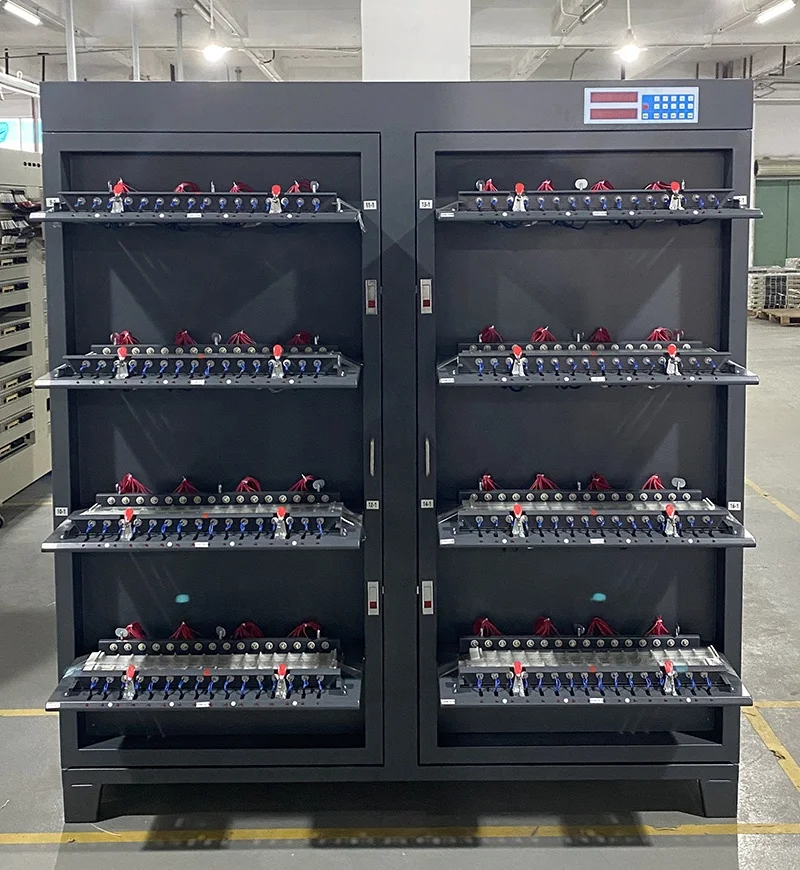

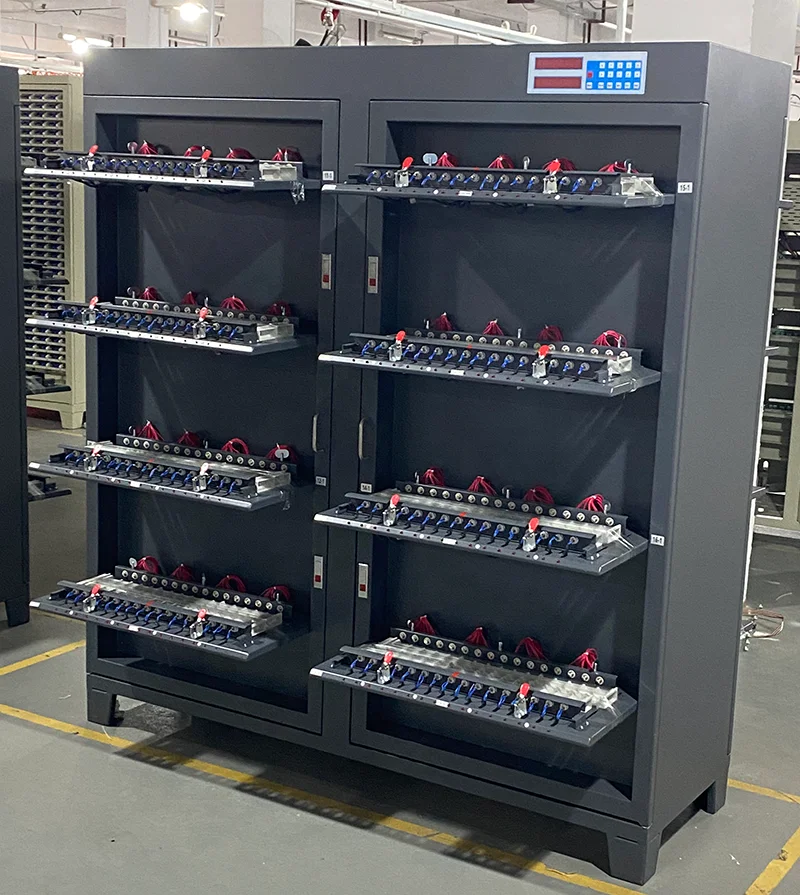

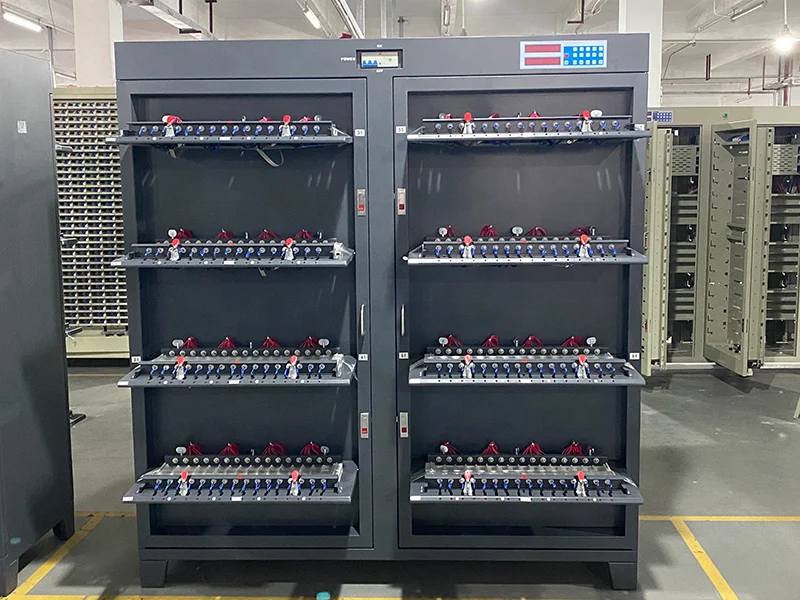

Customized 256 channels 5V 10A 20A Lithium 32140 33140 Battery Charging Discharging Cell Capacity Grading Machine
![SPECIFICATION]()
Battery cell tester machine is used when
the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capacity testing.Features:
1.Scope of application: Capacity and detection of chemical components of lithium polymer, lithium ion, ni-MH and ni-Cd batteries.
2.Vertical tester are more economical, horizontal tester are more efficient.
3.Current Range: 2A/3A/5A/6A/10A/20A for options
4.Channels:128/256/512 channels for options
Product Name
|
Battery cell tester
|
Number of device channels
|
|
Size (width * depth * height) cm
|
143*50*184/160*55*184cm
|
Frame color
|
Customized
|
Clamp form
|
Cylindrical four-wire fixture
|
Fixture center distance
|
35MM
|
working power
|
Three-phase five-wire system AC380V±10%, 50HZ
|
Working power dissipation
|
9KW
|
Work environment
|
Temperature 0-40 degrees, relative humidity 80%
|
|
Control mode
|
Computer connection equipment work, FCL control
|
Communication mode
|
RS485 baud rate 57,600
|
Process set
|
A maximum of 32 work steps and 256 cycles
|
Charging mode
|
Constant current, constant pressure
|
Discharge cut-off condition
|
Voltage, time, capacity
|
Charging cutoff condition
|
Voltage, current, time, capacity
|
Discharge
|
Constant current
|
Defensive function
|
Over voltage, under voltage, over current, undercurrent, overcapacity, etc
|
Time range
|
Set it anywhere from 0 to 30,000 minutes
|
Battery sorting
|
By capacity, time, discharge platform, etc
|
Data processing
|
Data, graphs, and loop diagrams
|
