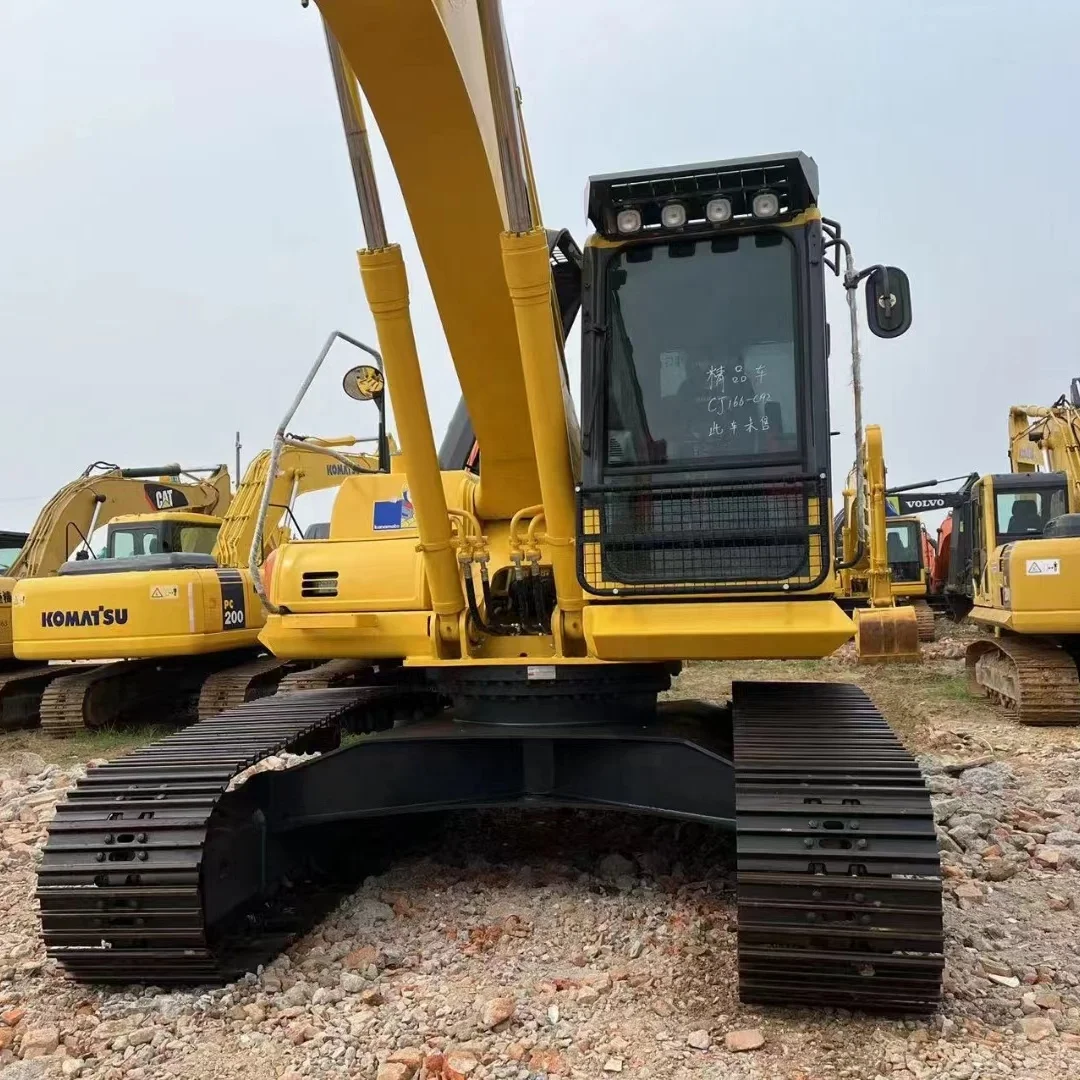

Б/у komatsu экскаватор ПК 220-8 экскаватора оригинальный Komatsu PC220-8

Цена:8 000,00 $ - 8 500,00 $*

Количество:

Products Description

Used Competitive Quality Loader Excavator

Product Paramenters

Range of operation
Boom length	3475mm
Arm length	1850mm
Maximum Digging Reach	6000mm
Maximum Digging Depth	3690mm
Maximum Digging Force	45KN
Maximum Digging Height	5120mm
Maximum Dumoing Height	3720mm
Back-end radius of gyration	1750mm
(Lengthwidthheight)travel position	520021002650mm
Distance From The arm Tl Rotate Machie	3600mm
Machine Height	2550mm
Wheel base	2060mm
Track Gauge	1570mm
Width Of Crawler	400mm
Width Of Platform	2000mm
Ground clearance of counterweight	780mm
Min ground clearance	280mm
Tech performance and specification
Angle of rotation	360°
Machine weight	6000kg
Engine model	YN36GB2
Rated Power	50KW
Rated Speed	2200r/min
Hydraulic system working pressure	22Mpa
Hydranlic system flow	120L/min
Variable piston pump	2*28ml/r
Walking speed(High speed/low speed)	4.5/2.5km/h
Grade Climbing ability	70%/35°
Volume Of Bucket	0.25m3
Revolution Overdrive Pressure	16Mpa
Full circle swinging time	5.5s
Fqt Fuel Quantity	≥4L/h
Capacity Of The Fuel Tank	130L
Hydraulic Tank Capacity	110L
