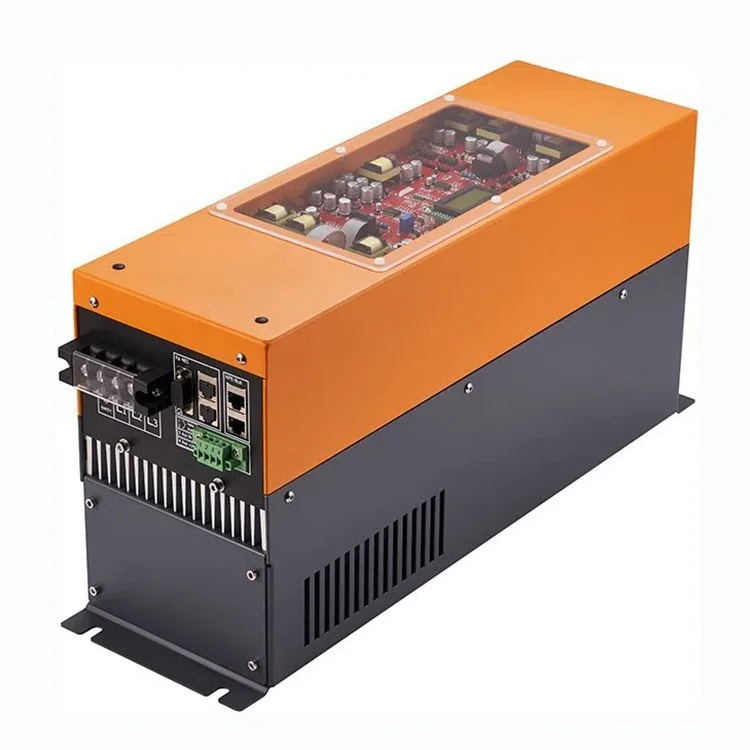

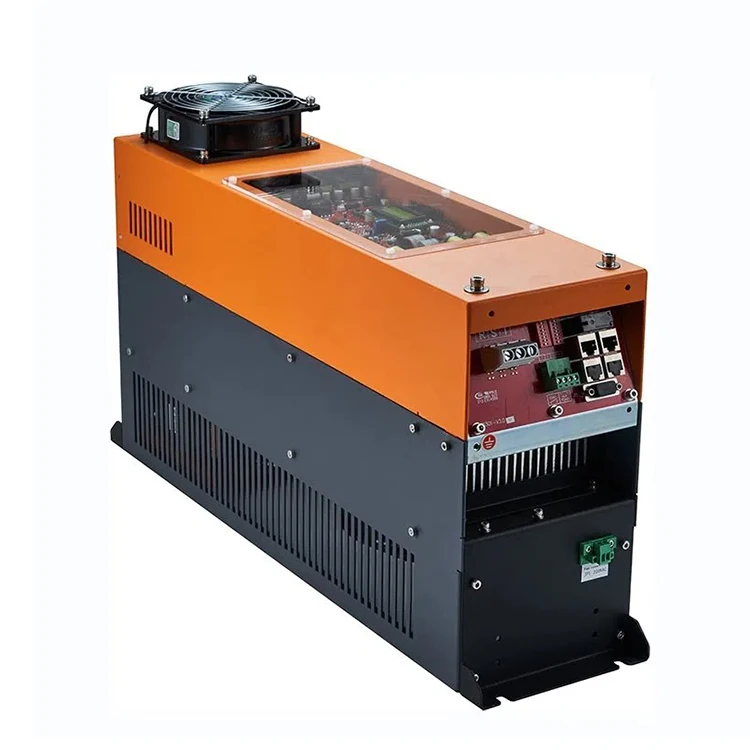

УФ трансформатор электронный балласт флуоресцентная лампа для УФ-лампы
- Категория: Other Power Supplies >>>
- Поставщик: Xiamen,Powertron,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.40 $* |
| Aug-16-2025 | 0.3 $* | 0.31 $* |
| Jul-16-2025 | 0.24 $* | 0.41 $* |
| Jun-16-2025 | 0.67 $* | 0.15 $* |
| May-16-2025 | 0.33 $* | 0.63 $* |
| Apr-16-2025 | 0.28 $* | 0.82 $* |
| Mar-16-2025 | 0.49 $* | 0.24 $* |
| Feb-16-2025 | 0.48 $* | 0.24 $* |
| Jan-16-2025 | 0.36 $* | 0.74 $* |
Характеристики
Products Description
Input Section | ||
Main Input Voltage | 360~440Vac | |
Frequency | >47Hz | |
COS∅ | 1 | |
Power Factor | 0.96 | |
THD | 30% | |
Efficiency | Typ.>94% | |
Output Section | ||
Working Frequency | Variable from 6Khz to 16Khz | |
Ignition Voltage | >4000Vpp | |
Ignition Frequency | 270Khz | |
Max. Output Power | 14Kw(40℃ ambient Temp) | |
Output Voltage | Up to 1800Vac | |
Output Current | Up to 25A | |
Control Port | MODBUS/Analog and Digital I/O | |
Lamp Monitoring | Voltage/current/power/status code/error code | |
Protections | Input under/over Voltage； Phase Loss Output Open/Short Output Over voltage Over Temperature Ground & Leakage Fault | |
Auxiliary Section | ||
Voltage | 21Vdc-30Vdc | |
Current | 3.0Adc | |
Working Environment | ||
Max. ambient Temperature | 40℃(up to 1000meters Sea Level) | |
Max. Humidity | <80% | |
Protection Class | IP20 | |
Cooling | Forced Air Cooling | |
Dimension (LWH)mm | 530*160*252 | |
Weight | 20Kg | |
