11 дюймов внедорожный электрический самокат мотора lkz 48V1000W1500W двигателя мотоцикла двигатель 60 км/ч
- Категория: Electric Bicycle Part >>>
- Поставщик: Changzhou,Lunyee,Electromechanical,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 212.37 $* | 216.31 $* |
| Jul-16-2025 | 172.94 $* | 175.99 $* |
| Jun-16-2025 | 209.58 $* | 213.37 $* |
| May-16-2025 | 207.64 $* | 211.91 $* |
| Apr-16-2025 | 165.22 $* | 168.44 $* |
| Mar-16-2025 | 204.91 $* | 208.3 $* |
| Feb-16-2025 | 202.68 $* | 206.80 $* |
| Jan-16-2025 | 200.64 $* | 204.81 $* |
Характеристики
Note
All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly.
Product parameter
Motor model: TX-10
Rated Current: 36V/48V
Power: 350W,500W,600W,800W,1000W
Pole: 15
Magnet height：38H
Speed: 30-65KM/H
Shaft length: 160MM
Applicable models: 10-inch scooter
Open Size: 110MM
Outer diameter:168MM
Width: 40MM
Weight: 3.2kg
Color: Black
Rated Current: 36V/48V
Power: 350W,500W,600W,800W,1000W
Pole: 15
Magnet height：38H
Speed: 30-65KM/H
Shaft length: 160MM
Applicable models: 10-inch scooter
Open Size: 110MM
Outer diameter:168MM
Width: 40MM
Weight: 3.2kg
Color: Black

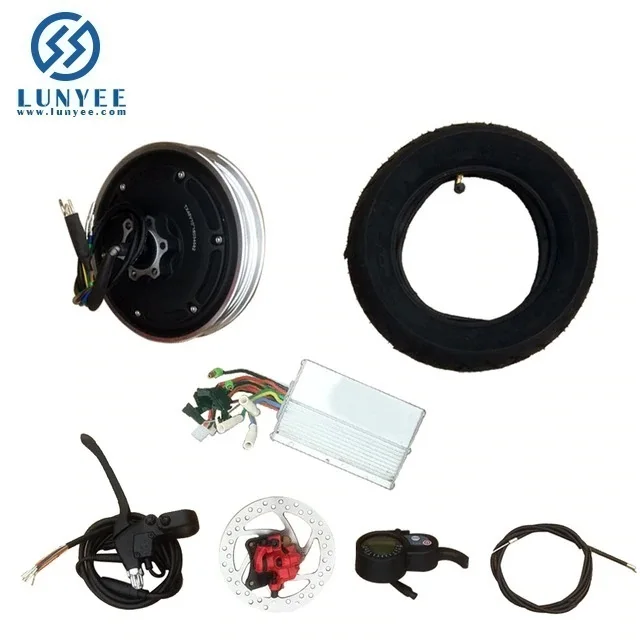

Packing List
1* 10 inch Hub motor
1* Front wheel
2 Set Tire( include the inner tube)
1* Controller
1* Accelerate instrument
1 Pair Brake lever
2* Disc brake set
2* Brake line
1* Front wheel
2 Set Tire( include the inner tube)
1* Controller
1* Accelerate instrument
1 Pair Brake lever
2* Disc brake set
2* Brake line
More Details

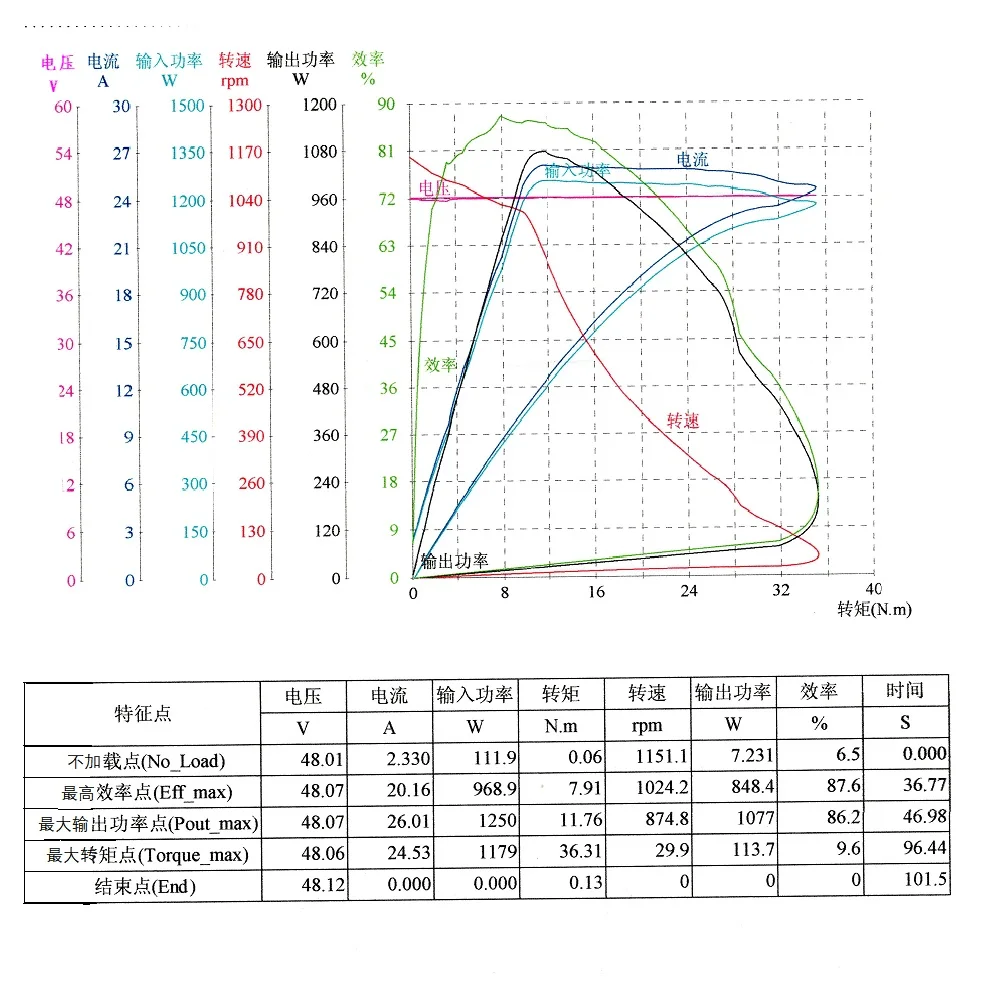

Test Report:

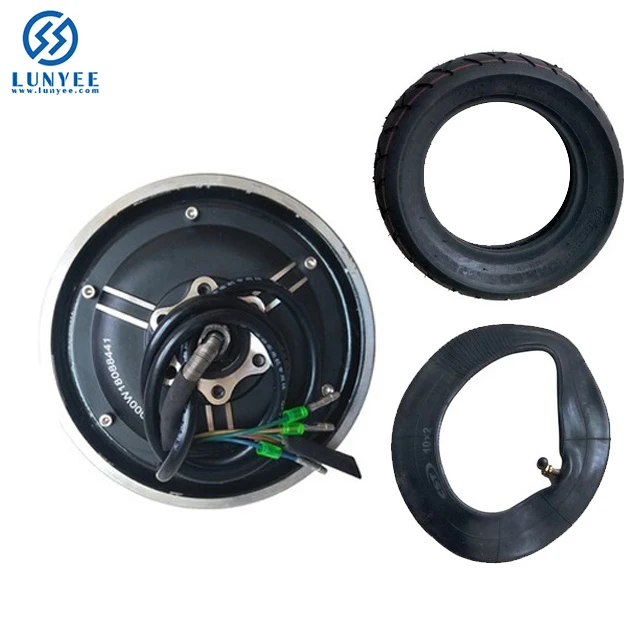

The hub motor:(Size/mm)

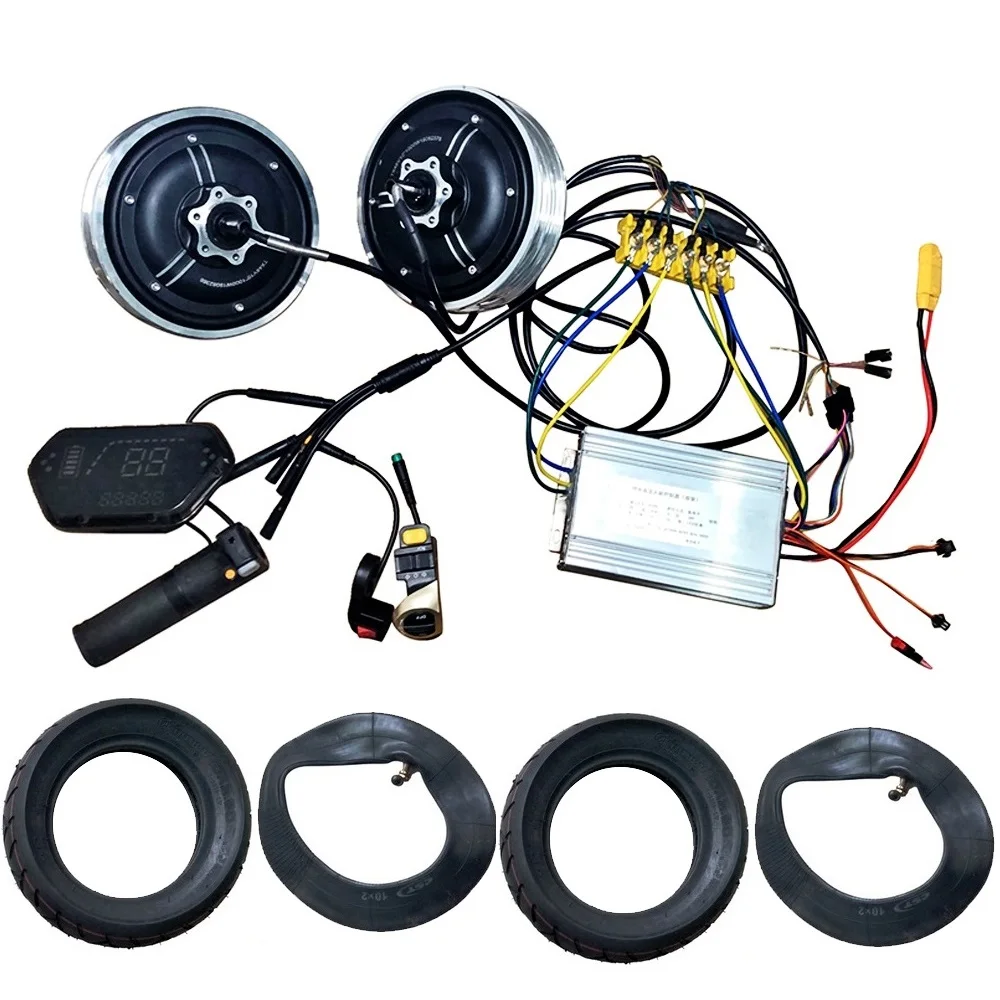

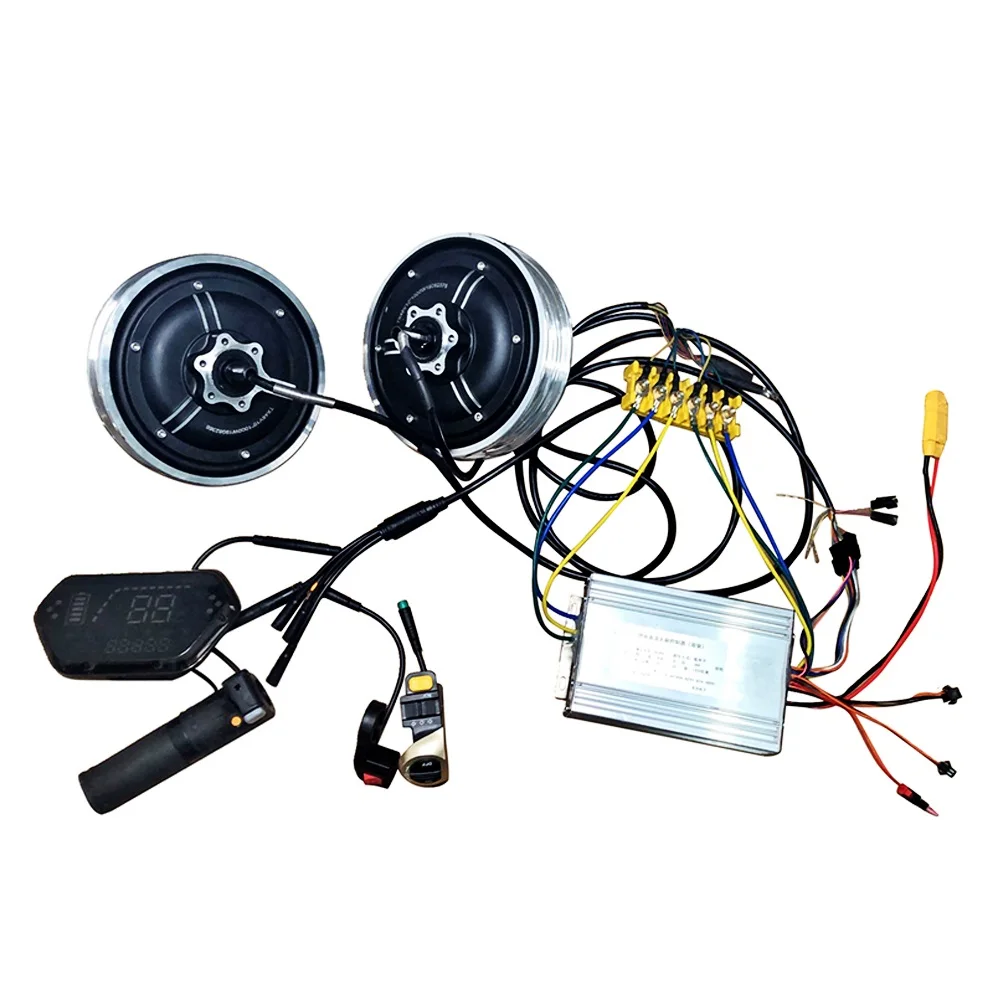

The controller lines:

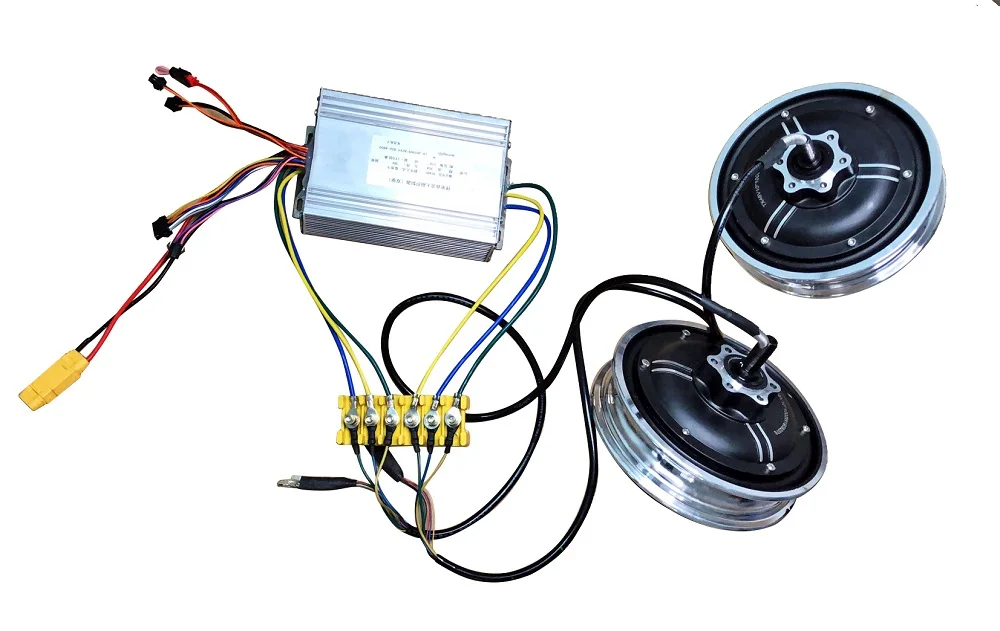

How to connect the controller lines?
LCD display wiring:
1. Red wire (D+): power supply positive input
2. Black wire (GND): negative pole of power supply
3. Blue line (DS): Controller electric door lock
4. Green wire (RX): communication reception
5. White line (TX): communication transmission
Display function:
Speed display, battery indicator, fault indicator, headlight indicator, cruise indicator, gear indicator, total mileage, single
mileage
Real-time voltage, running current, running time, start mode
Parameter setting and definition:
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: Mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, default 36V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;
P05: Power-assisted drive gear setting
P06: Wheel diameter: unit, inch; precision: 0.1;
P07: Number of speed magnets: range: 1-100;
P08: Speed limit, the maximum operating speed of the motor
P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start;
P10: Drive mode setting 0 Power-assisted drive 1 Electric drive 2 Power-assisted drive Electric drive coexistence
P11: Assist sensitivity setting 1-24
P12: Starting torque: range: 0-5, 0 is the weakest, 5 is the strongest;
P13: Magnet type setting of booster plate 5 8 12
P14: Controller current limit value setting Default 12A range: 1-20A; (requires controller software support)
P15: Motor drive signal percentage setting (to achieve the speed limit function of PO8) full speed is set to 100
P16: Instrument real-time cruise function 1 With this function 0 Without this function
P17: Headlight synchronization function 1 Headlights and backlight do not light up after turning on 0 Headlights and backlight
light up after turning on
P18: Power-on password selection function 1 With this function 0 Without this function
P99: One-key recovery function (in the P99 parameter setting interface, press and hold the MODE key for 5-6 seconds, and all
parameters will be restored to the first
Initial settings for the second boot)
ODO: ODO clear (in the ODO parameter setting interface, first short press the MODE button and then long press for 5M-6 seconds until the number is zero, release
The specific status of the fault content is as follows
ERRO 1: Motor failure
ERRO 2: Handlebar malfunction
ERRO 3: Controller failure
ERRO 4: Power-off brake lever
ERRO 5: Undervoltage protection
ERRO 6: Communication failure, the meter cannot receive the output of the controller
ERRO 7: Communication failure, the controller cannot receive the output of the instrument
1. Red wire (D+): power supply positive input
2. Black wire (GND): negative pole of power supply
3. Blue line (DS): Controller electric door lock
4. Green wire (RX): communication reception
5. White line (TX): communication transmission
Display function:
Speed display, battery indicator, fault indicator, headlight indicator, cruise indicator, gear indicator, total mileage, single
mileage
Real-time voltage, running current, running time, start mode
Parameter setting and definition:
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: Mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, default 36V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;
P05: Power-assisted drive gear setting
P06: Wheel diameter: unit, inch; precision: 0.1;
P07: Number of speed magnets: range: 1-100;
P08: Speed limit, the maximum operating speed of the motor
P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start;
P10: Drive mode setting 0 Power-assisted drive 1 Electric drive 2 Power-assisted drive Electric drive coexistence
P11: Assist sensitivity setting 1-24
P12: Starting torque: range: 0-5, 0 is the weakest, 5 is the strongest;
P13: Magnet type setting of booster plate 5 8 12
P14: Controller current limit value setting Default 12A range: 1-20A; (requires controller software support)
P15: Motor drive signal percentage setting (to achieve the speed limit function of PO8) full speed is set to 100
P16: Instrument real-time cruise function 1 With this function 0 Without this function
P17: Headlight synchronization function 1 Headlights and backlight do not light up after turning on 0 Headlights and backlight
light up after turning on
P18: Power-on password selection function 1 With this function 0 Without this function
P99: One-key recovery function (in the P99 parameter setting interface, press and hold the MODE key for 5-6 seconds, and all
parameters will be restored to the first
Initial settings for the second boot)
ODO: ODO clear (in the ODO parameter setting interface, first short press the MODE button and then long press for 5M-6 seconds until the number is zero, release
The specific status of the fault content is as follows
ERRO 1: Motor failure
ERRO 2: Handlebar malfunction
ERRO 3: Controller failure
ERRO 4: Power-off brake lever
ERRO 5: Undervoltage protection
ERRO 6: Communication failure, the meter cannot receive the output of the controller
ERRO 7: Communication failure, the controller cannot receive the output of the instrument
