truck tire crusher/Used tire recycling machine/rubber shredder



Main structure and characteristic

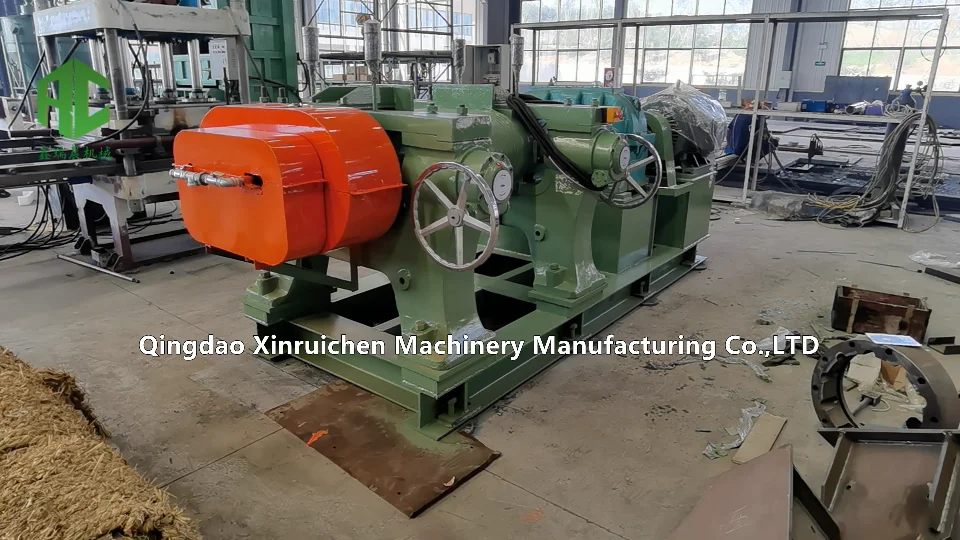

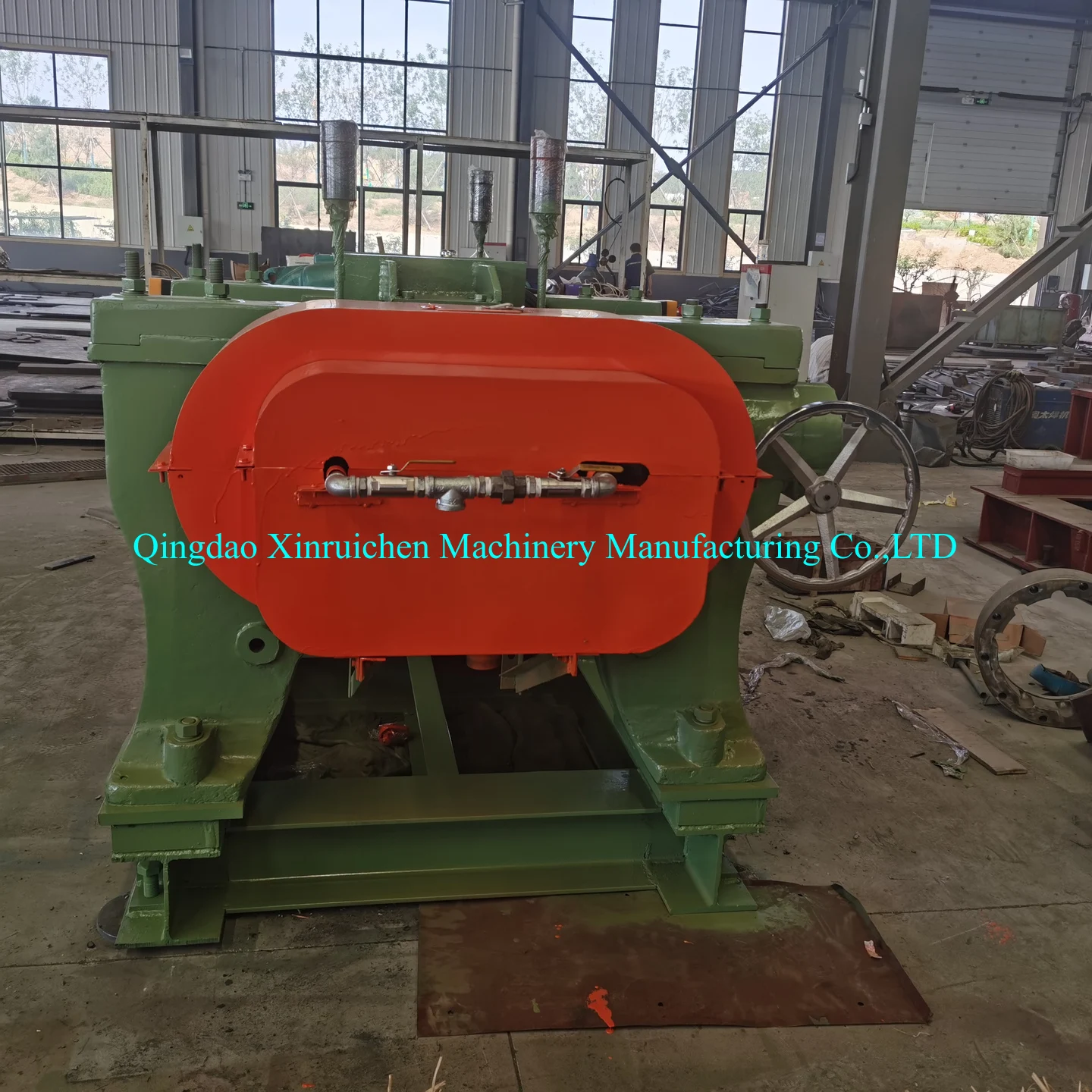

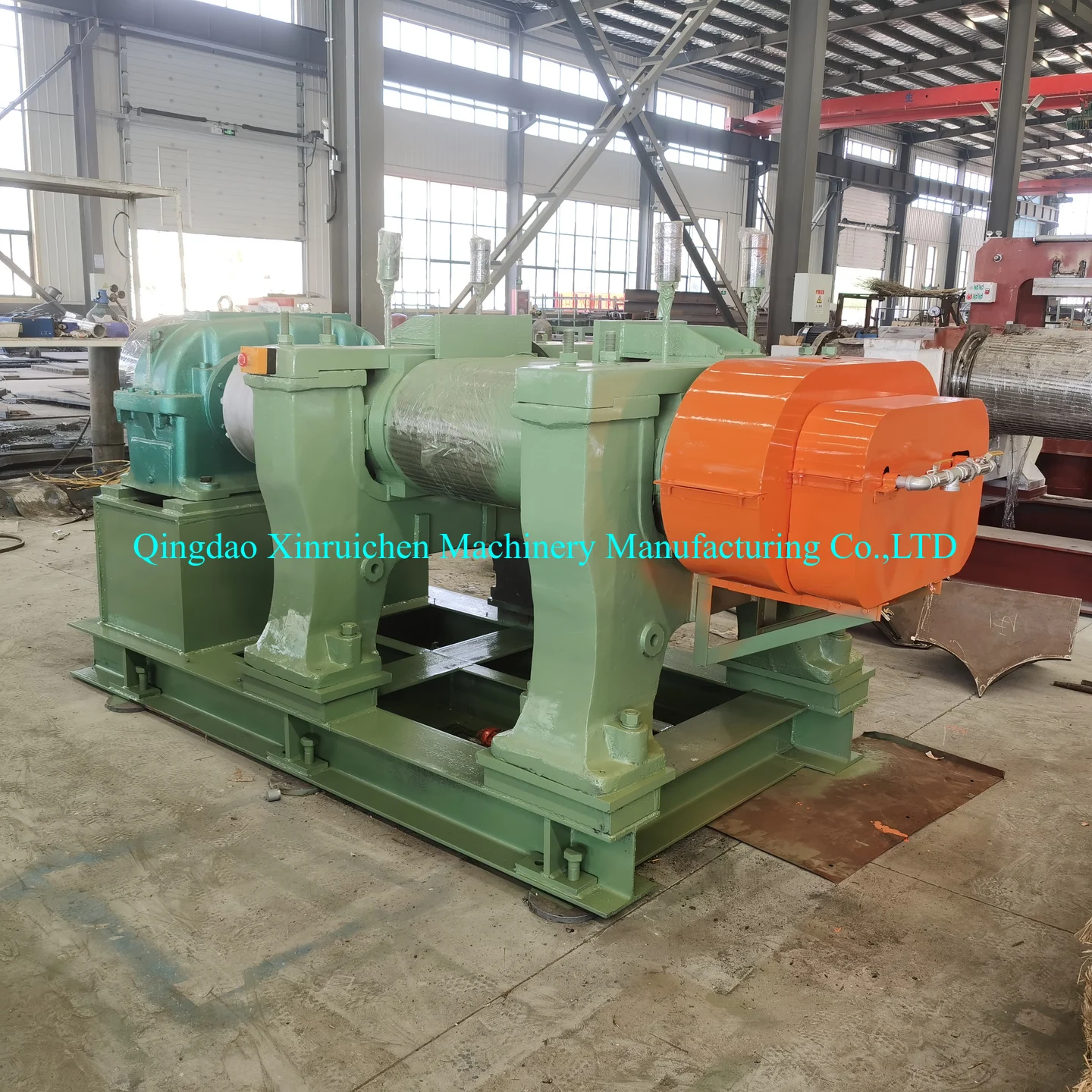

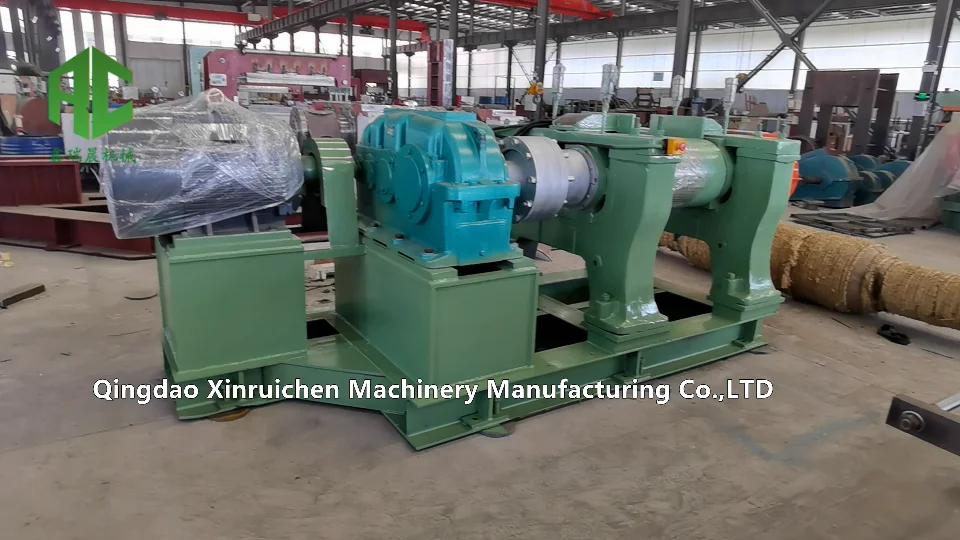

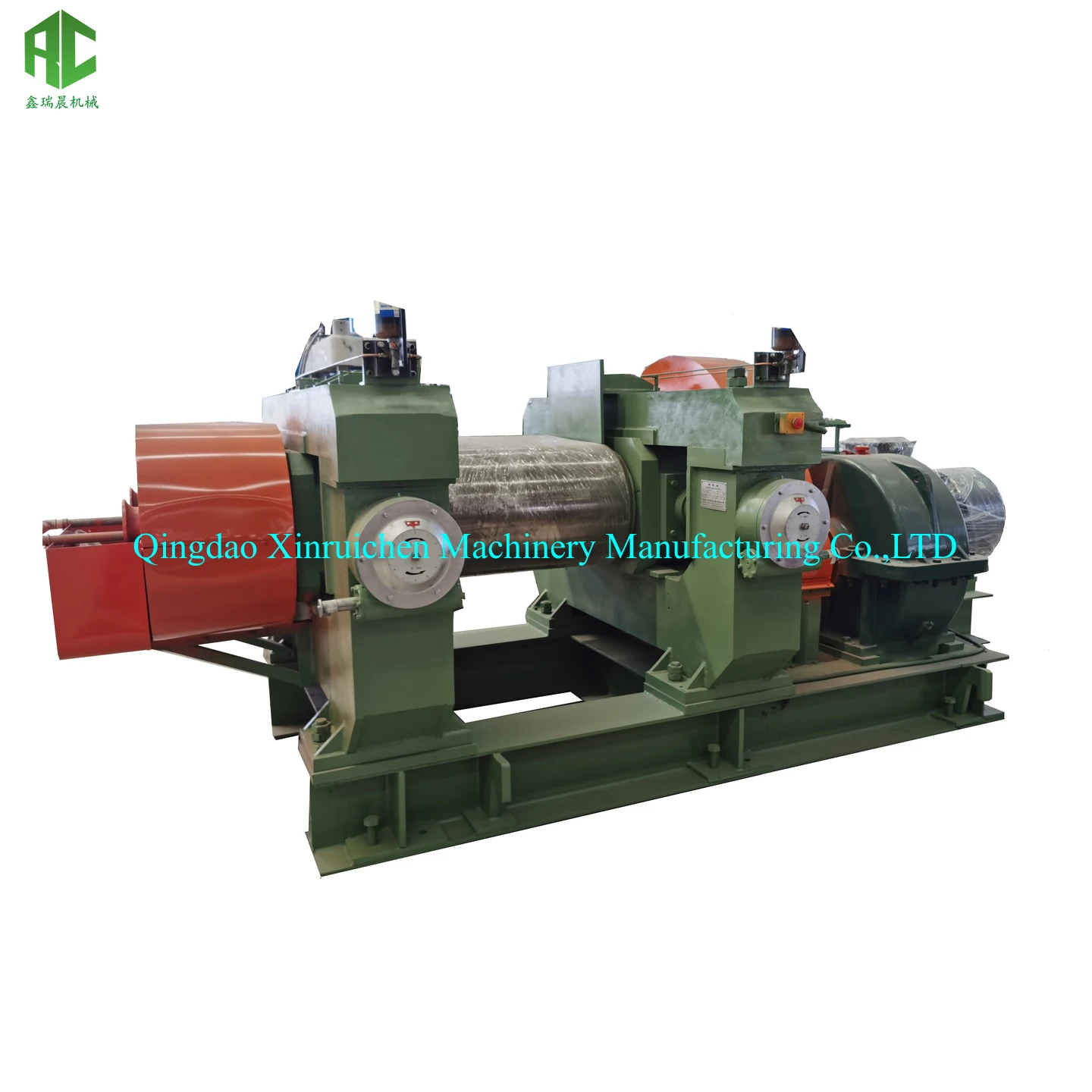

This is a double roll rubber-mixing machine. It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.

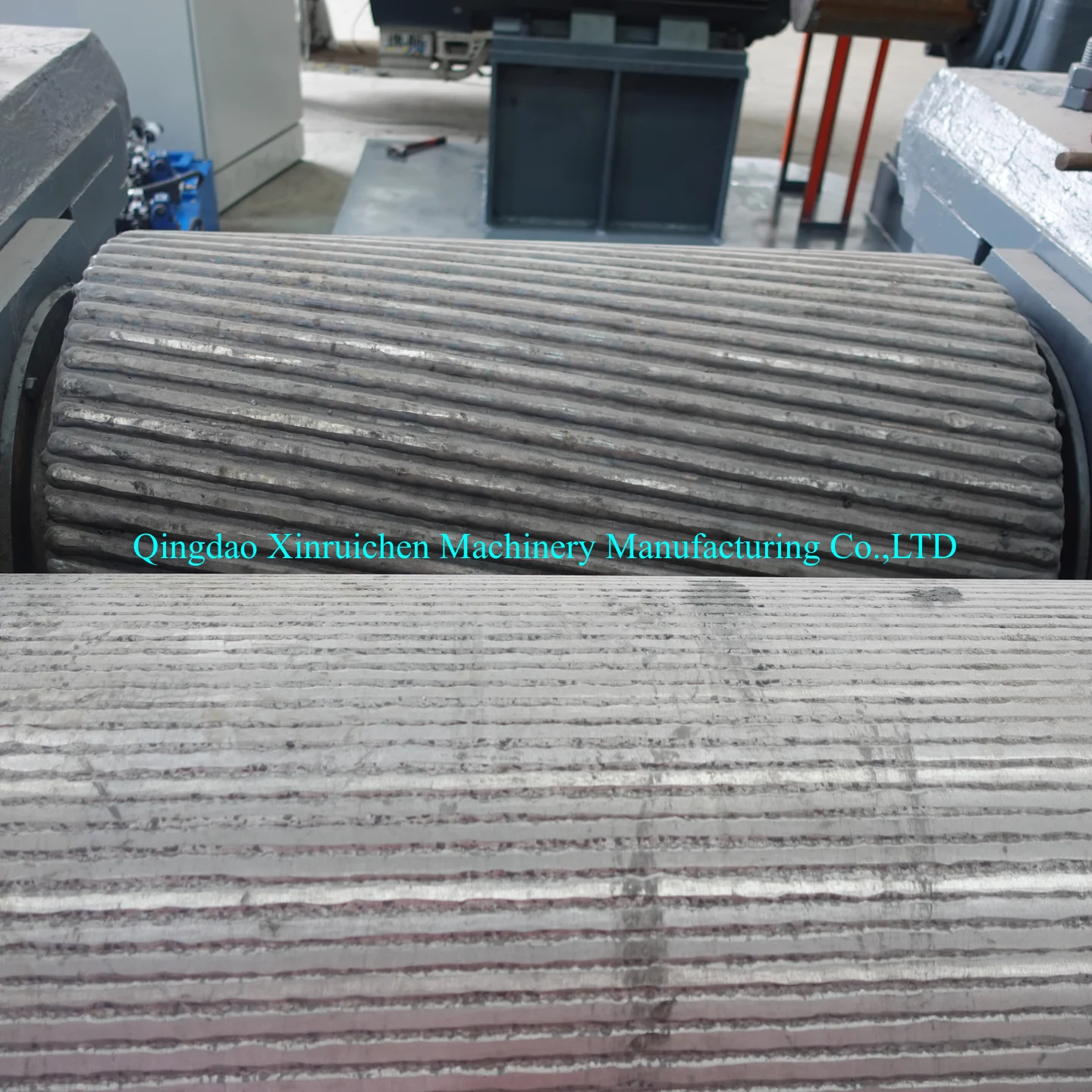

Front and back rolls are parallel mounted in the bearing of frame. By means of reducer, driving gears, speed ratio gears, the motor drives the front and back rolls rotate toward each other so that rubber-cracking is begun. The rolls are made from chilled cast alloy iron; the inner of it is hollow. Steam and cooling water can pass through them so that the surface temperature can be adjusted. Its surface possesses higher hardness and fineness.

Roller bearing, copper bushing is fixed in the bearing base of frame. Back roll bearing bases are fixed up on frame, and the front roll-bearing base can slide in the guide-rail of frame.

Roll spacing adjusting is carried out by means of the reverse of hand wheel makes the thread rod drive front bearing base movement. The roll pin reduces when the hand wheel rotates clockwise, otherwise it will increase.

The emergency stopping device is mounted in the frame. In abnormal situation, pulling the rod, via dynamic, the machine is stopped immediately.

Adjusting temperature device is two spray pipes with numeral rows of holes, extend the two pipes into the hollow roll, the holes are in the position of working section of the roll. The position of holes slants to 30 degree inner direction so that the spraying water and steam is directed at contacting angle of sizing material, this can control the surface temperature of roll.

 Features

1. Heavy-duty bearings, large inertial wheel and strong crushing ability;

2. Easy-disassembly design, simple and easy to clean and maintain;

3. Two-layer sound-insulated hopper to insulate noise;

4. High-speed quality cutter, sharp edge, durable in operation;

5. Interlock power protection to ensure operational safety.
6. To granulate radial tires into fine rubber crumb of different size with steel and fiber completely recycled at ambient temperature.
7. Tight construction, small space and simple technique flow.
8. Low energy-consuming and good performance-cost ratio.

9. High autoimmunization, fewer labors required.

10.The input is whole tires, after the processing, steel is completely separated and fiber can be separated up to 99% or above. The

finish product is high and competitive in the market.

11.Unique design, high output and long lifetime blade characterize secondary shredder and fine rubber shredder, which can improve

the working efficiency and lower equipment maintenance cost.

12.Double-grinding pan rubber grinder is featured for low energy consuming and high output

13.Intelligence property right of the whole product ling and core technology.

14.Reasonable construction, easy operation and low rate of breakdown.

15.Environmental-protection, no pollution(no waste gas, no waste residue, no polluted water), meeting the environmental requirement of the government.

Technical parameter:

pictures





packaging&shippting

For FCL goods, we usually pack machines with stretched film and then load them to the container. to ensure safety, we will fix machine with steel .

For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .





our services

1.Guarantee : 2 years ,manufacturer sell,    We offer lifetime technical support

2.After sales:

(1)once problems appear, we will reply in 24 hours. And give solutions

(2)provide facory layout drawing . Enginee

rs available to service machinery overseas; Send the engineers to debug the machines



our company



Qingdao Xinruichen Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…

















FAQ

1. Q:  Are you a manufacturer  or training company?

     A:  We are the manufacturer. We have our own plant,worker and techniques research developing department.



2 .Q:  Where is your factory located? How can I visit there?

     A:  Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.

Nearest airport is Qingdao liuting international airport

Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.



3. Q:  What are your hot sale machine?

     A:  Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.



4. Q:  How does your factory do regarding quality control?

     A:  Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.



5 .Q:  Are the techncal parameter is fixed?

     A:  Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
