BaoFeng UV-5RE плюс иди и болтай Walkie Talkie “иди 5 Вт портативная рация радиолюбителей UHF VHF

Описание и отзывы

Трекер стоимости

Характеристики

Baofeng UV-5RE PLUS  Handheld Radio Communication VHF 136-174MHz UHF 400-520MHz Handheld Walkie Talkie hf Transceiver in Moscow

Frequency range                                            65-108Mhz(only for FM)

VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)

Memory channels                                           Up to 128 channels

Frequency stability                                          2.5ppm

Frequency step                                               2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz

Antenna impedance                                        50Ω

Operating temperature                                   -4οF to +140οF

Supply voltage                                                  Rechargeable Lithium-Ion mAh7.4V/1800

Consumption in standby                                ≤75mA

Consumption in reception                              380mA

Consumption in transmission                       ≤1.4A

Mode of operation                                             Simplex or semi-duplex

Duty cycle                                                            03/03/54 min.(Rx/Tx/Standby)

Dimensions                                                       58mm*110mm*32mm

Weight                                                                 130g(approximate)

TRANSMITTER

RF power                                                            4W/1W

Type of modulation                                            FM

Emission class                                                 16KΦF3E/11KΦF3E(W/N)

Maximum deviation                                            ≤±5kHz/≤±2.5kHz(W/N)

Spurious emissions                                          <-60dB

RECEIVER

Receiver sensitivity                                              0.2μV(at 12dB SINAD)

Intermodulation                                                    60dB

Audio output                                                         1000mW

Adjacent channel selectivity                               65/60dB

Specification

Dual-band handheld transceiver with display function menu on the display “LED”

Commercial FM radio receiver (65MHz-108MHz)

Built-in LED flashlight

DTMF encoded

Built-in RX CTCSS/DCS scan

Function VOX

Alarm function

Broadband/narrowband selectable

Function beep on the keyboard

Dual Watch/dual Reception

Crossband reception/transmission

Function OFFSET

Tone end of transmission

Battery saving function SAVE

Programmable by PC

Built-in key lock

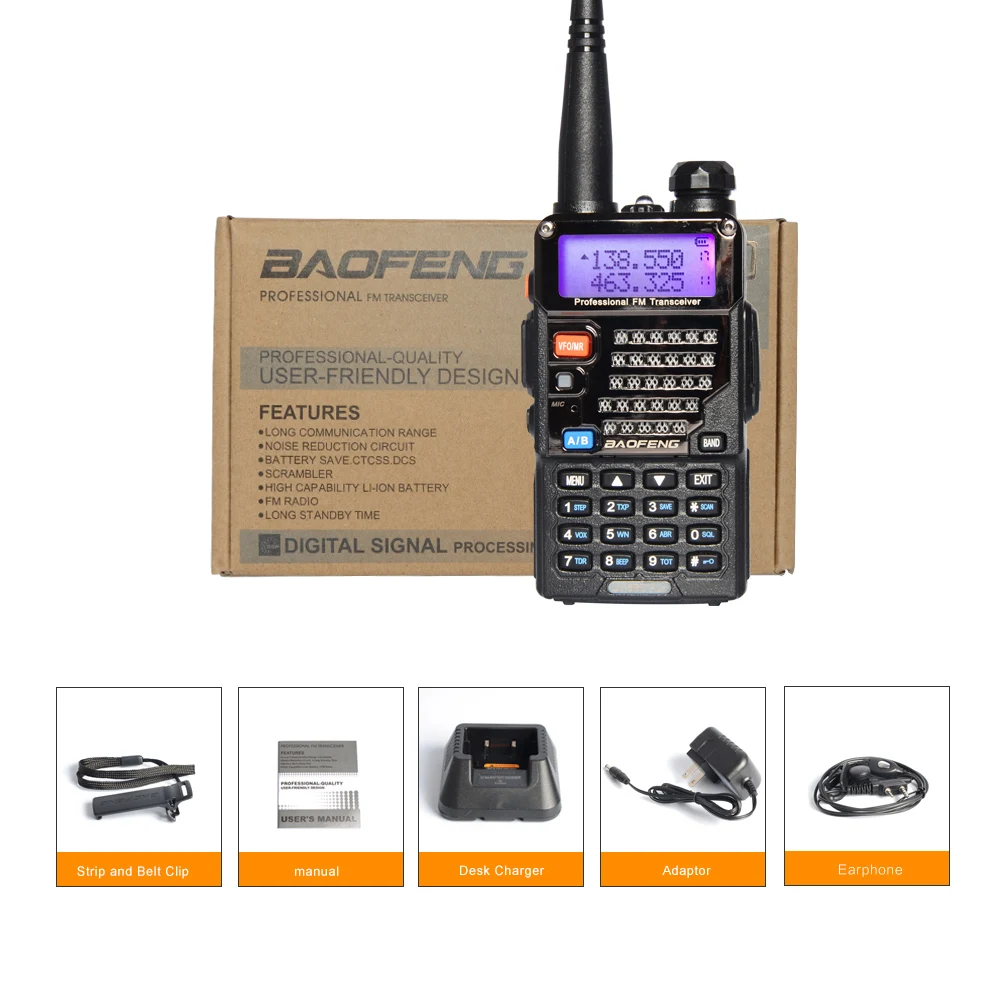

Package Units

1 x UV-5R (VHF136-174 & UHF 400-520Mhz)

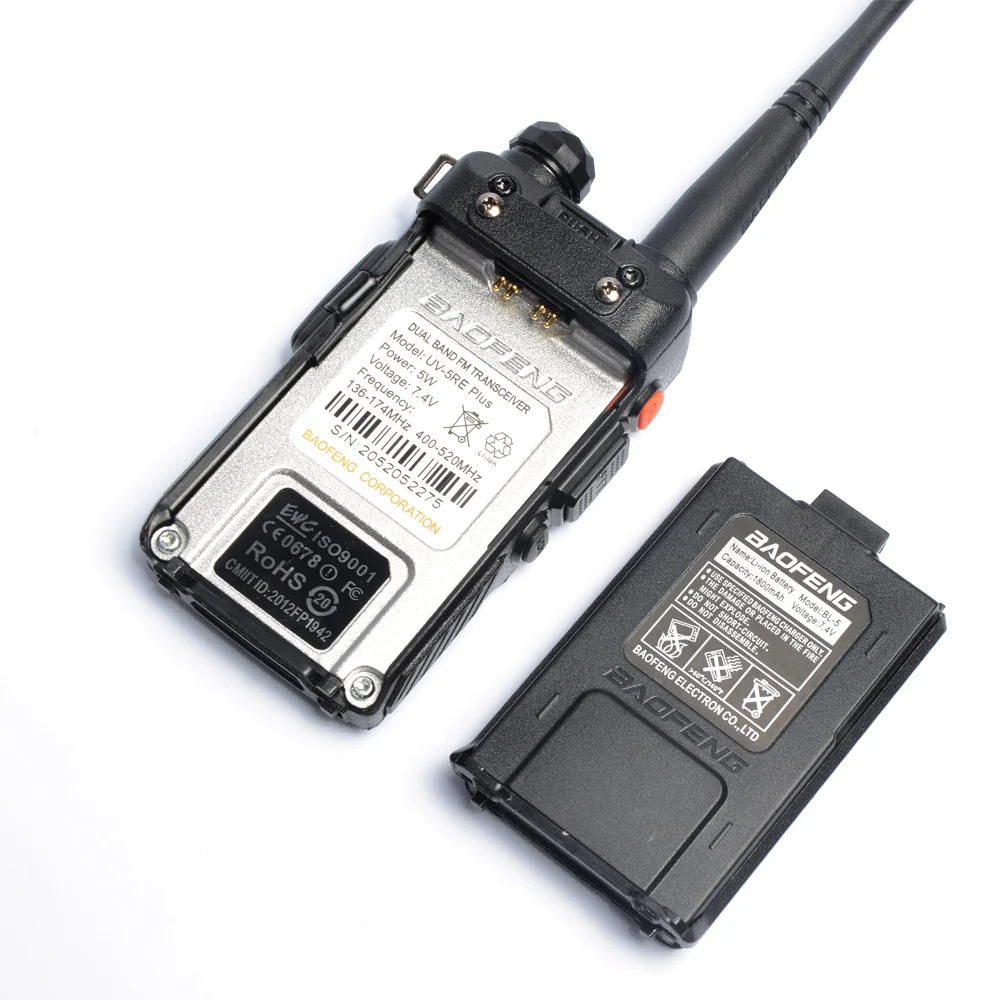

1 x 7.4V 1800mah Li-ion Battery Pack
1 x dual band Antenna
1X ear hook earphone
1 x English and Russsian Manual
1 x Desktop Charger ( 100V ~ 240V  US/EU/UK/AU plug )


PS. Car charger, Air tube headset, Na771 antenna and Programming cable is optional
