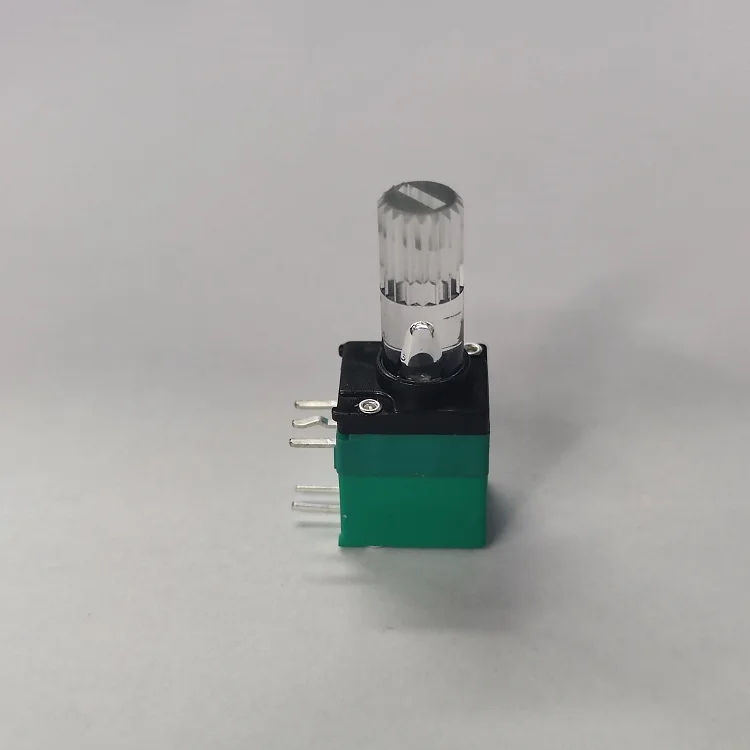

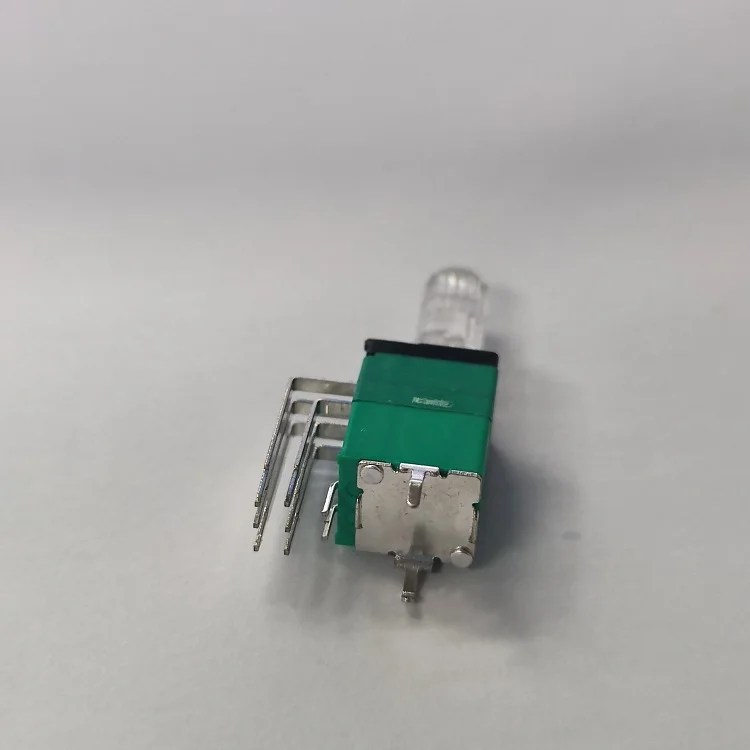

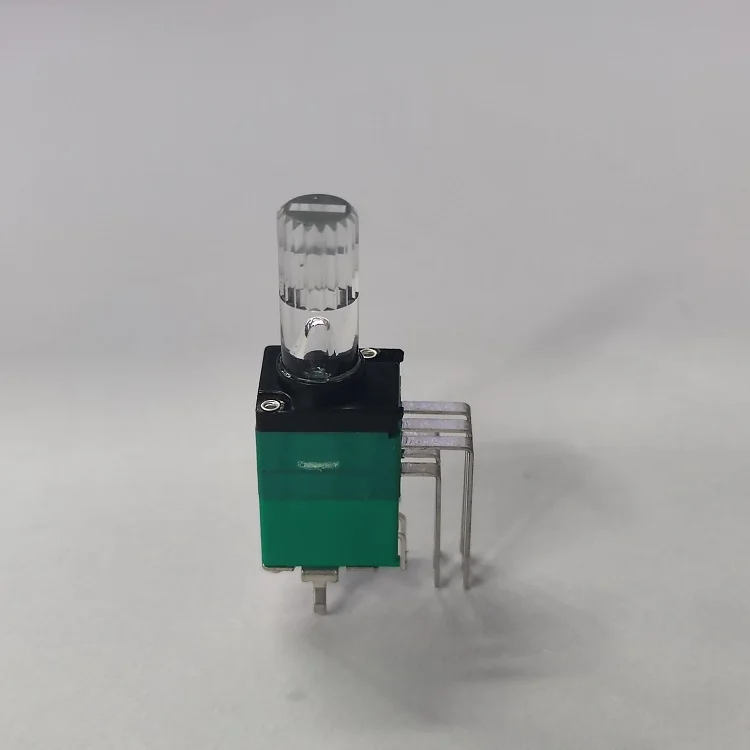

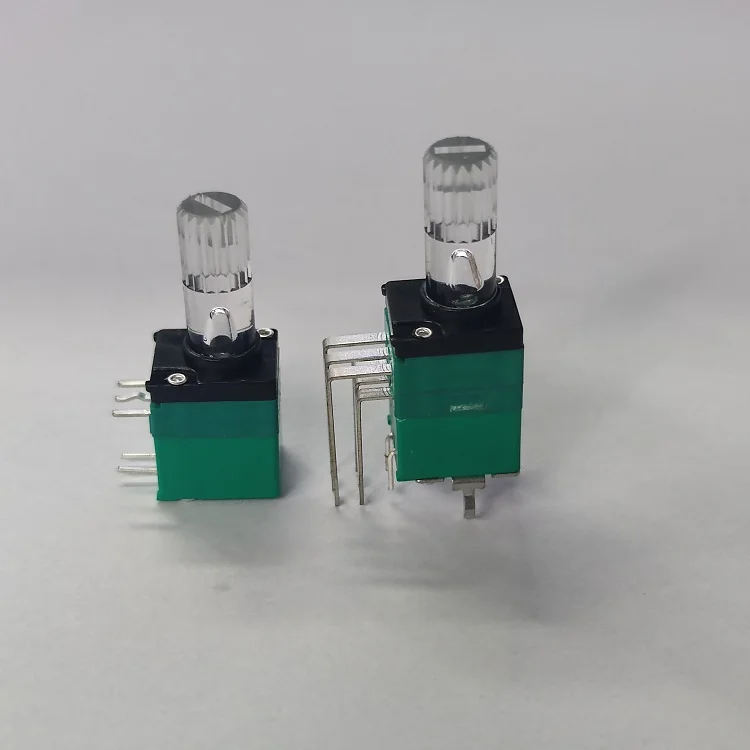

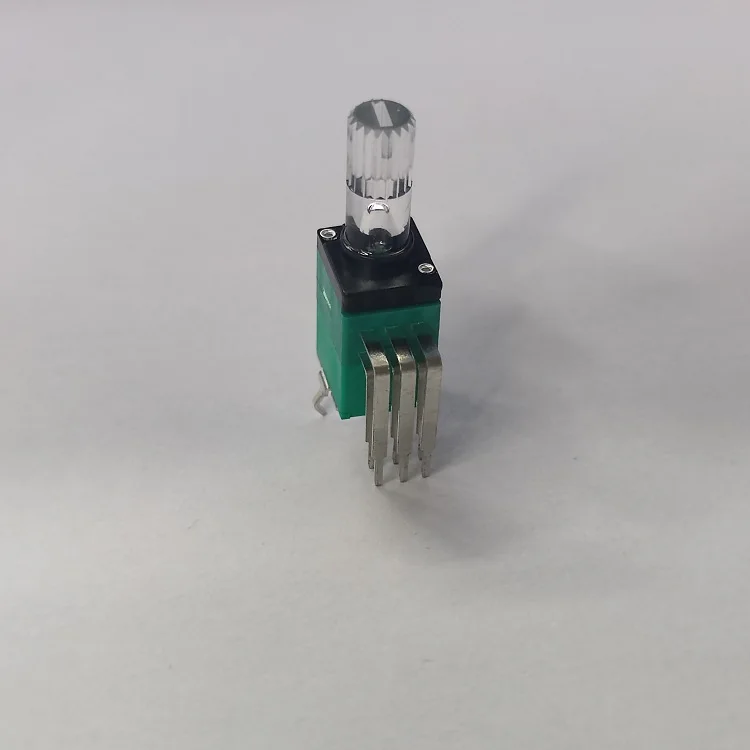

Прозрачный вал со встроенным уплотнением лампы B10K B5K B100K вертикальные 9 мм
- Категория: Potentiometers old >>>
- Поставщик: Huizhou,Huiyuansheng,Technology,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.93 $* | 0.8 $* |
| Aug-19-2025 | 0.59 $* | 0.65 $* |
| Jul-19-2025 | 0.6 $* | 0.46 $* |
| Jun-19-2025 | 0.94 $* | 0.37 $* |
| May-19-2025 | 0.15 $* | 0.69 $* |
| Apr-19-2025 | 0.18 $* | 0.83 $* |
| Mar-19-2025 | 0.2 $* | 0.61 $* |
| Feb-19-2025 | 0.62 $* | 0.97 $* |
| Jan-19-2025 | 0.44 $* | 0.34 $* |
Характеристики
Product Description
Specification
Electrical characteristics | ||
Total Resistance Range | 500Ω≤TR≤1MΩ | |
Resistance Tolerance | ±20% | |
Resistance Taper | A,B,C taper. | |
Rating Power | B taper: 0.05W ; Other taper: 0.02W | |
Slide Noise | Less than 100mV | |
Residual Resistance Value | Less than 20Ω | |
Dielectric Voltage | For 1 minute or more AC 250V | |
Insulation resistance | More than 100MΩ at DC 250 | |
Tracking Error | -40~0dB ≤ ±3dB | |
Switch Contact Resistance | 200mΩ Max | |
Mechanical characteristics | 280°±10° | |
Total Rotational Angle | 300°±10° | |
Rotational Torque | 20gf.cm〜250 gf.cm | |
Number of click | 1CC,11CC,21CC,41CC | |
Click Torque | 100gf.cm~300 gf.cm | |
Stop Strength | 4kgf.cm | |
Shaft Push & Pull Strength | 10kgf.cm | |
Switch Rotation Angle | 50。±10。 | |
Switch Action | 100~450gf.cm | |
