Product Overview

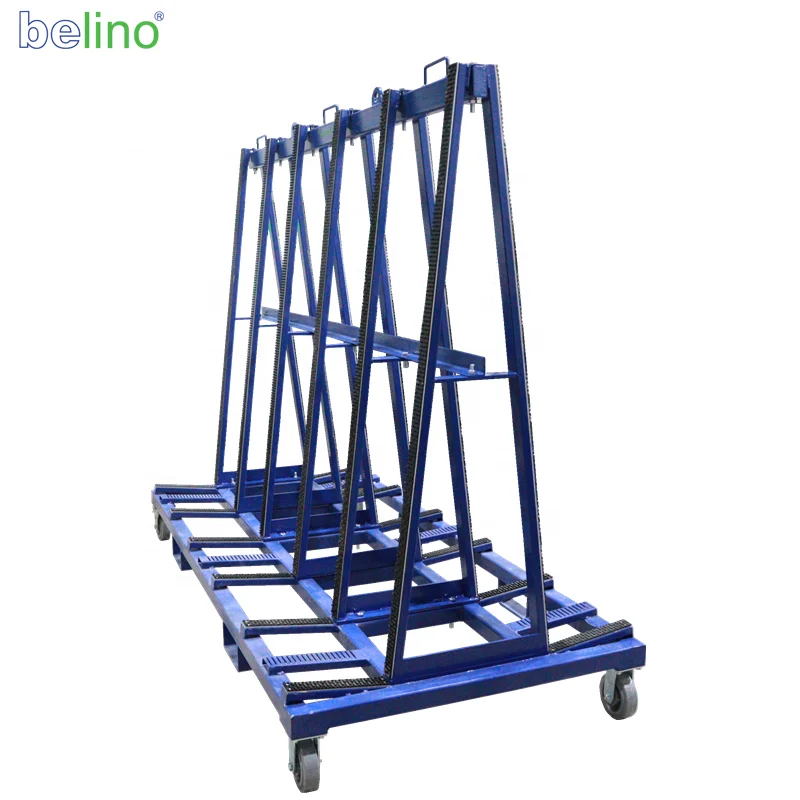

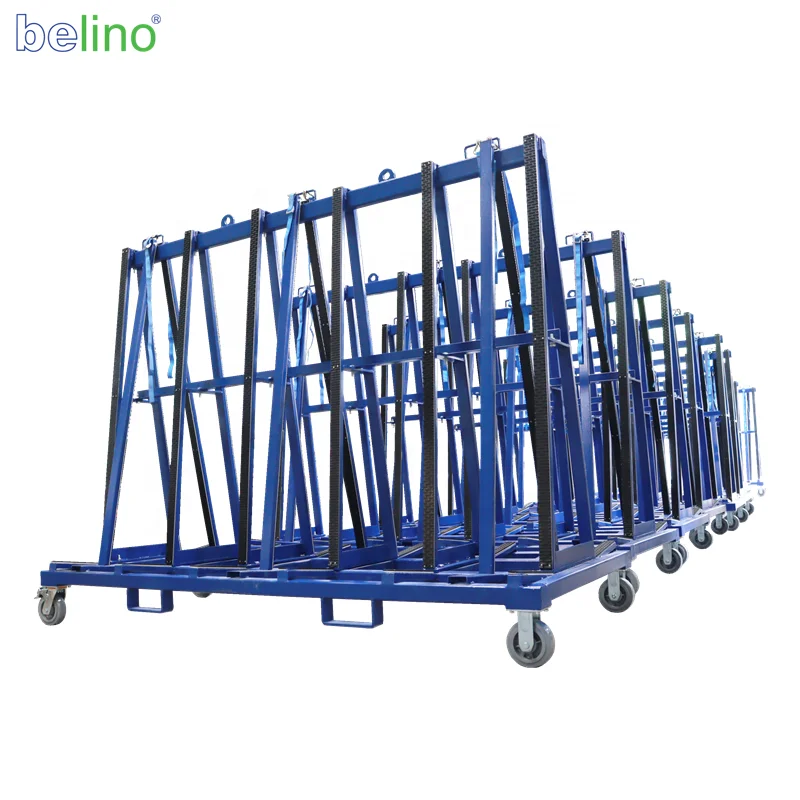

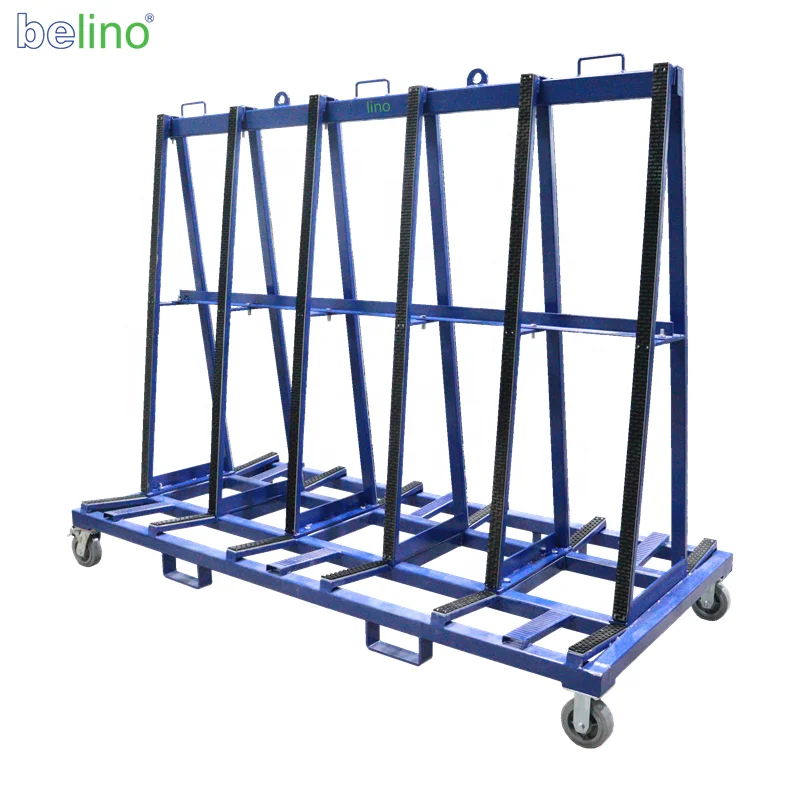

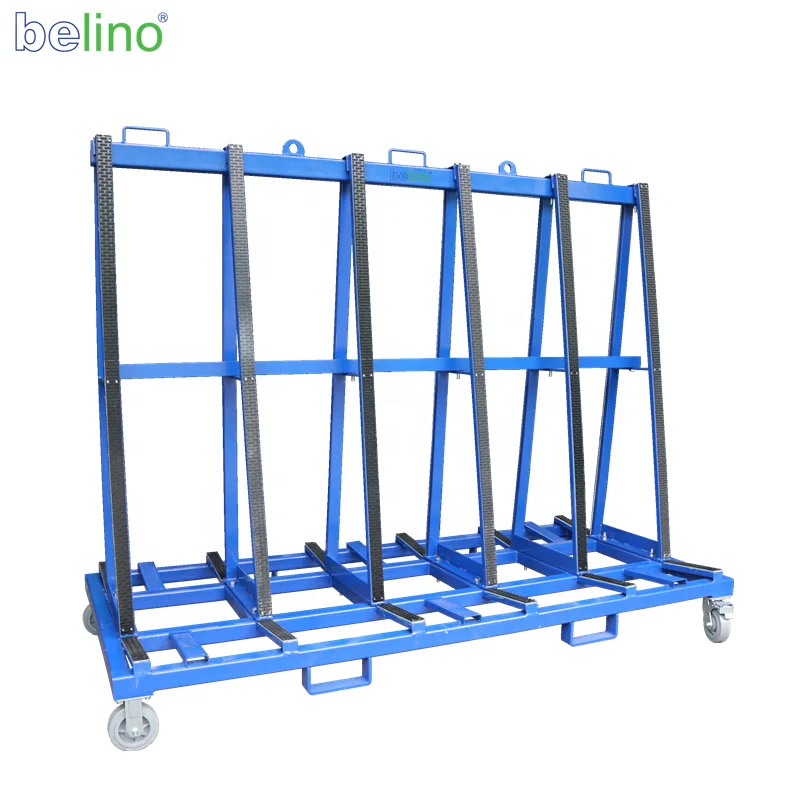

belino A Frame Rack AF2440QP
belino A Frame Rack is used for the transportation and storage of the plate inside and outside the factory area. The surface of the bracket is covered with a rubber layer to protect the plate from scratch.
FEATURES AT A GLANCE
(1) Sturdy and safe structure, designed to eliminate any risk of the slab tipping over
(2) Covered with a special rubber layer to prevent scratches

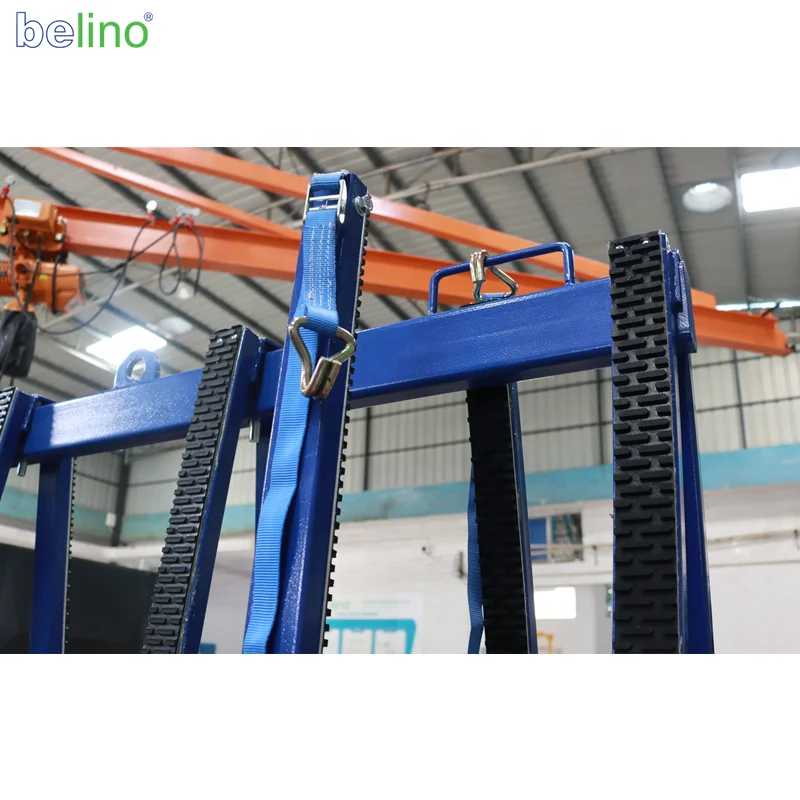

(3) Two hooking points to connect to an overhead crane
(4) Handle bars to increase the ability to transport

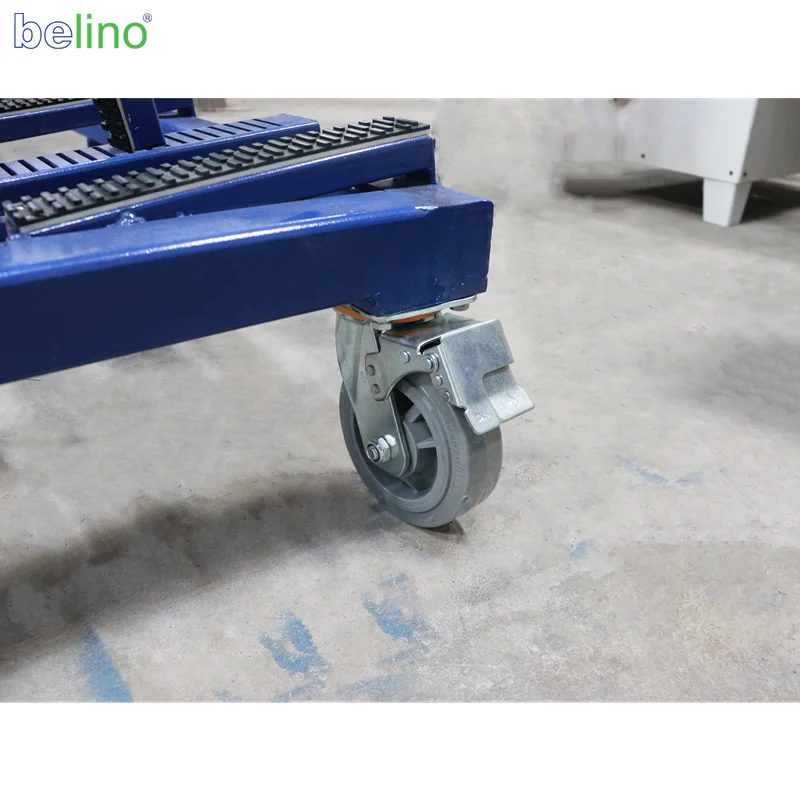

(5) Wheels with brake pins to ensure safety in operation
(6) Four locking bars per frame mounted in slotted holes on the bottom
(7) Powder-coated finish ensures an aesthetic feature as well as durability of the product
Front elevation
Left elevation
45° elevation
PRODUCT SPECIFICATIONS
Code NO. | AF2440QP |
Width of Each Side | 323mm |
Working Load Limit (Stationary) | 4000kgs |
Working Load Limit (Eyelets) | 3000kgs |
Net Weight | 236kgs |
Gross Weight | 240kgs |
Product Dimensions | L2440×W1120×H1980mm |
Package Dimensions | L2450×W1240×H320mm |
PRODUCT CONFIGURATION
ON-OFF Slide Block
Tiltable Valve
Electric Control Box
