Лента из 99.9% чистой меди C1100 C1200 C1020 C5191 Фосфорная бронза декоративная заземляющая медная катушка проволочная фольга

Product name

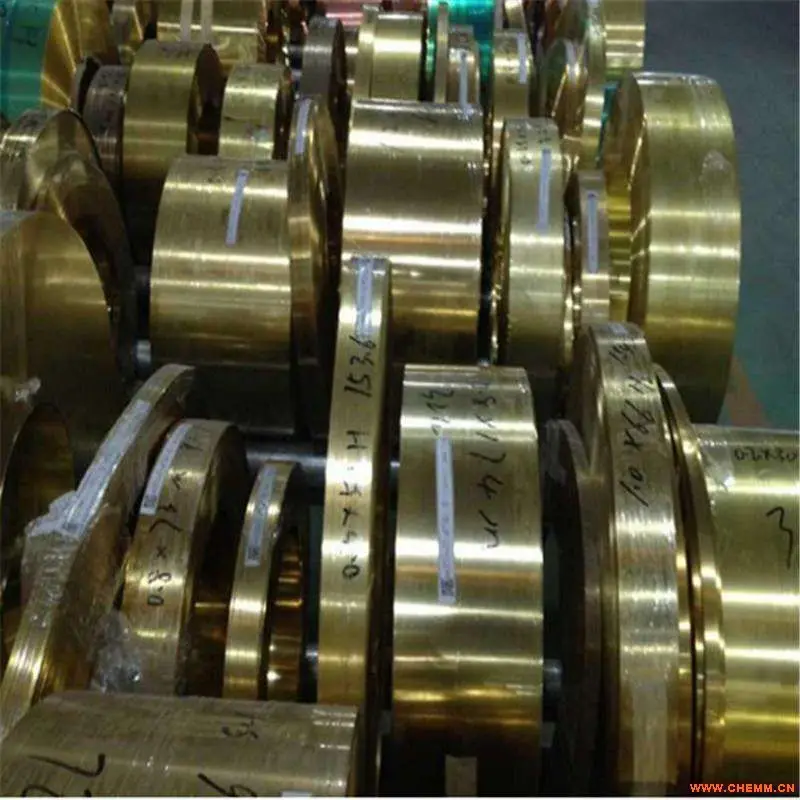

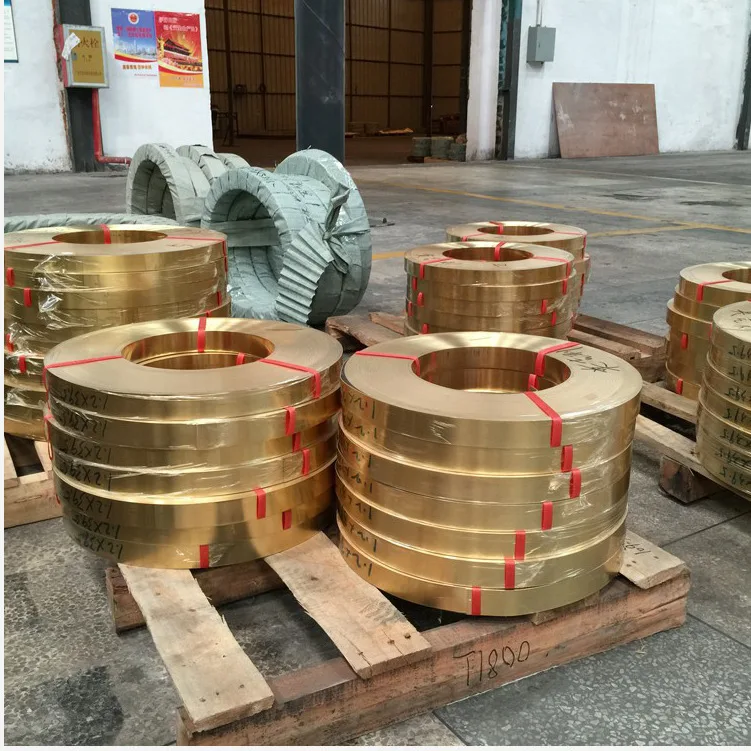

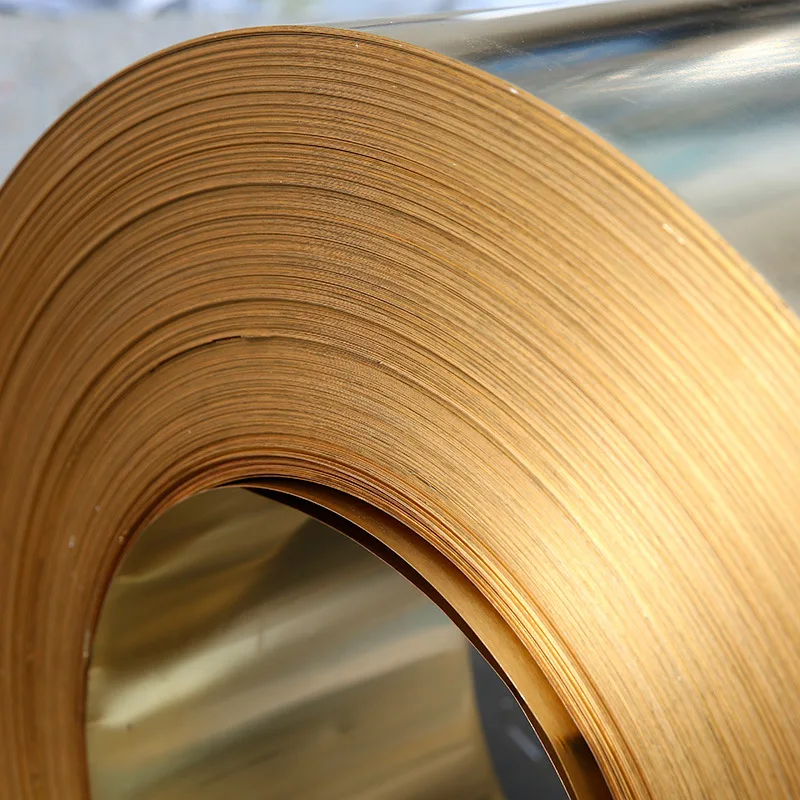

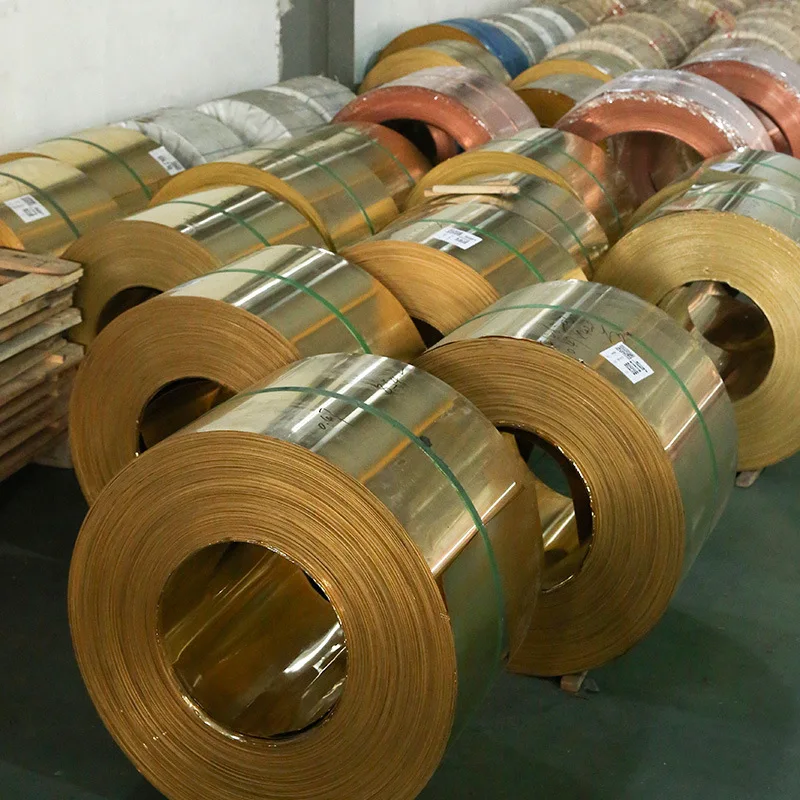

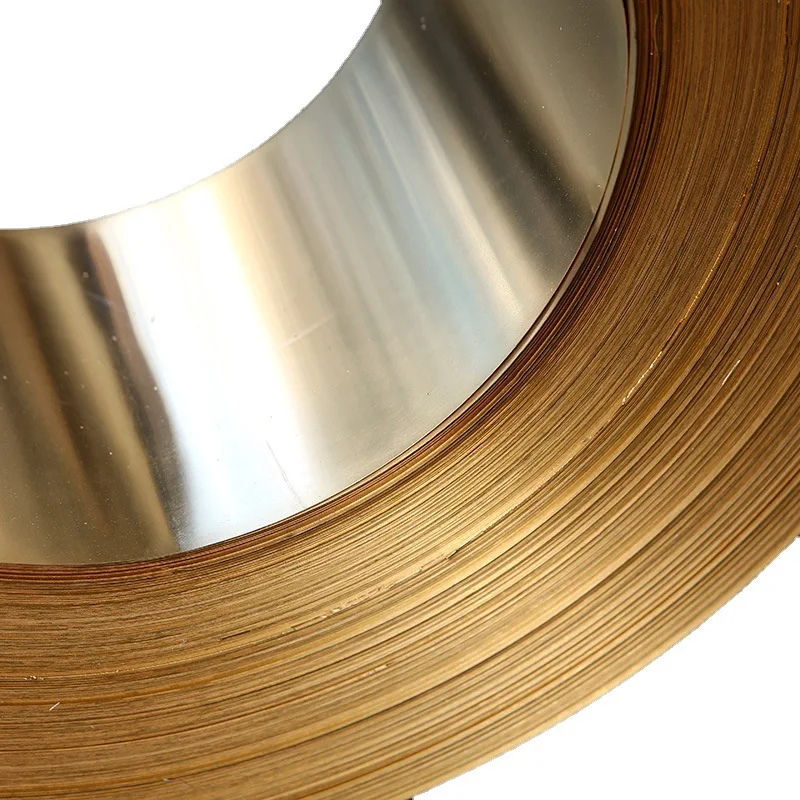

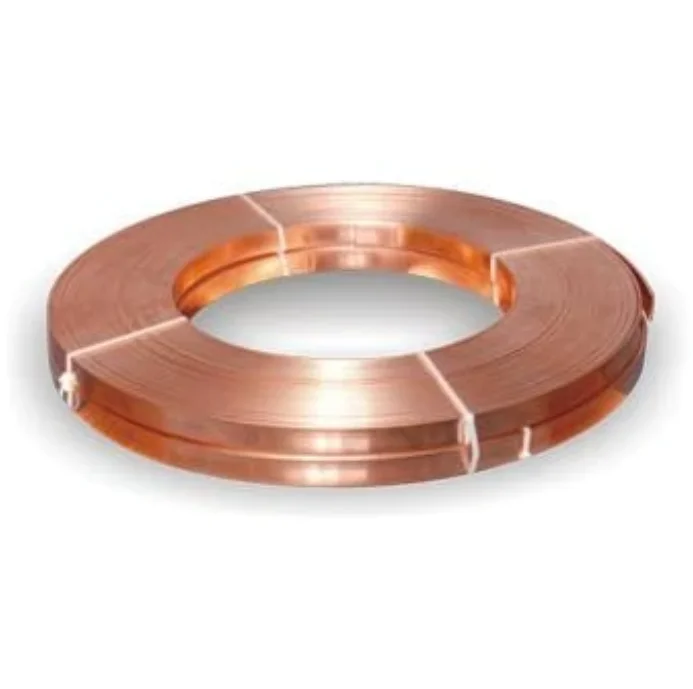

Copper strip / copper coil

Material

T1,T2,TP1,TP2,C10100,C10200,C10300,C10400,C10500,C10700,C10800, C10910,

Width

20mm-1250mm

Thickness

0.1mm-2mm

Length

According to customer requirements

Surface

mill,polished,bright,hair line,brush,sand blast,etc

Package

Standard export package,suit for all kinds of transport,or as required.

Application

Used in the production of electrical components, connectors, radiators,

Conductive base materials,automobile water tanks, heat sinks, cylinder fins, etc.

Alloy Grade

 Material Characteristics

Application

C11000
Cu≥99.90

It has good electrical conductivity, heat conduction, corrosion resistance and processing properties. It can be welded and brazed.
The impurities and trace amount of oxygen only have very few effect on electrical and thermal conductivity. But the trace oxygen
is easy to cause "hydrogen disease", so it can’t be processed and used in high temperature (such as > 370℃).

Widely used for electric, heat conduction, corrosion resistance equipment. Such as: wire, cable, conductive screw, blasting
detonator, chemical evaporator, storage device and a variety of pipes etc.

C10200
Cu≥99.97

C10300
Cu≥99.95

High purity, excellent electrical and thermal conductivity, barely no "hydrogen disease", good processing, welding, corrosion
resistance and cold resistance performance.

Mainly used for electrical vacuum instruments, all kinds of hardware products, lamps, pipe fittings, zippers, plaques, nails,
springs, sedimentation filters etc.

C12000,C12200
Cu≥99.90

Good welding and cold bending performance. It can be processed and used in reducing atmosphere, but not in oxidizing atmosphere.
C12000 has less residual phosphorus than C12200, so its thermal conductivity are higher than C12200.

Mainly used for pipe applications, such as gasoline or gas conveying pipe, drain pipe, condensate pipe, mine pipe, condenser,
evaporator, heat exchanger, train parts. It also can be processed to plate, strip, tape and rod.
