ESS9038Q2M USB DAC с DSD512 сетевой аудиоплеер DMP20 для домашнего кинотеатра управление через приложение Высокое разрешение музыкальный стример
- Категория: Home Theater Systems >>>
- Поставщик: Shenzhen,Eweat,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 276.54 $* | 290.9 $* |
| Aug-15-2025 | 274.9 $* | 288.73 $* |
| Jul-15-2025 | 230.42 $* | 242.28 $* |
| Jun-15-2025 | 269.51 $* | 282.97 $* |
| May-15-2025 | 234.89 $* | 246.37 $* |
| Apr-15-2025 | 264.8 $* | 277.80 $* |
| Mar-15-2025 | 262.86 $* | 275.63 $* |
| Feb-15-2025 | 260.46 $* | 273.57 $* |
| Jan-15-2025 | 258.18 $* | 271.1 $* |
Характеристики
Products Description
1. DMP20 used ESS9038Q2M VELVET SOUND DAC chip
2. Best in HiFi Audio output,Use XMOS XU-208, true 32bit audio processing
3. MMS customized system,Use the toroidal transformer better for audio quality
4.Easy APP control ,including Android and IOS system APPs, BTV4.2.The BT is fast, the signal is smooth and the range lasts 8-12 hours.
5. Digital Sampling Rates: 44.1kHz to 768 kHz,16bit to 32bit , DSD64 to DSD512
6. Playback Format Supply :.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3,.aac, .wma, .ogg, .asf
7. HDD: Support more than 16T SATA 3.0 Hard Disk
8. Network protocol : AIRPLAY,SAMBA, ROON，DLNA(You can push the multimedia on the mobile phone to the player for playback.)
9.Support DSD512 etc.
Native playback up to 32-bit / 768 kHz PCM.
10.Support PCM768 etc.
Native playback DSD up to 512.
11.A lossless Hi-Fi digital audio player with headphone amplifier output Built-in ESS9038Q2M chip. High SNR, low distortion, support native DSD.
12.Support Spotify,Tidal,Deezer and so on
2. Best in HiFi Audio output,Use XMOS XU-208, true 32bit audio processing
3. MMS customized system,Use the toroidal transformer better for audio quality
4.Easy APP control ,including Android and IOS system APPs, BTV4.2.The BT is fast, the signal is smooth and the range lasts 8-12 hours.
5. Digital Sampling Rates: 44.1kHz to 768 kHz,16bit to 32bit , DSD64 to DSD512
6. Playback Format Supply :.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3,.aac, .wma, .ogg, .asf
7. HDD: Support more than 16T SATA 3.0 Hard Disk
8. Network protocol : AIRPLAY,SAMBA, ROON，DLNA(You can push the multimedia on the mobile phone to the player for playback.)
9.Support DSD512 etc.
Native playback up to 32-bit / 768 kHz PCM.
10.Support PCM768 etc.
Native playback DSD up to 512.
11.A lossless Hi-Fi digital audio player with headphone amplifier output Built-in ESS9038Q2M chip. High SNR, low distortion, support native DSD.
12.Support Spotify,Tidal,Deezer and so on
HDM.I output enjoy the big screen music feast

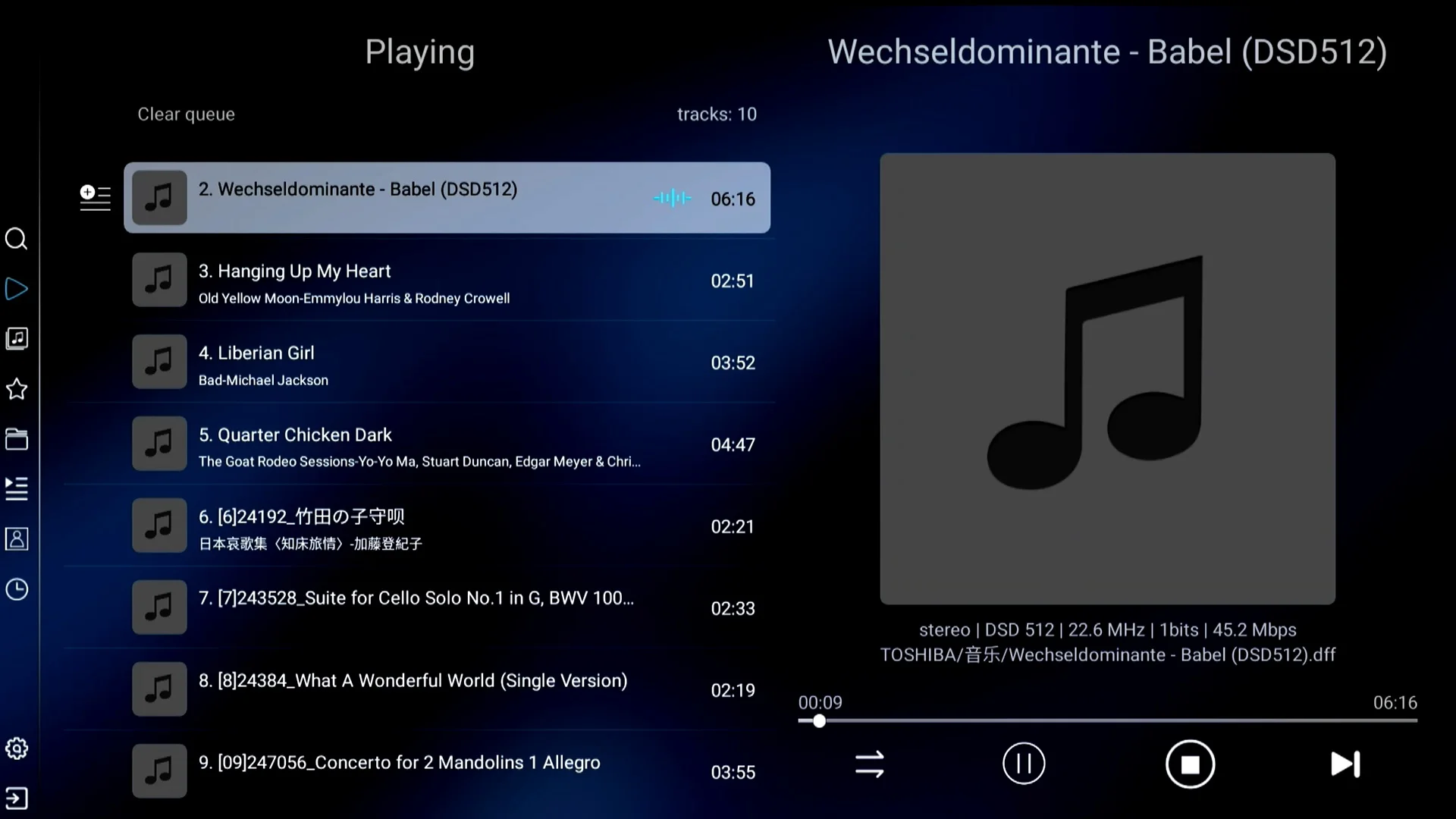

Convenient operation,the graphic interface of the system can be displayed through devices
such as television,monitors.etc.,which is convenient for intuitive operation
New music
library management system
The new music management system can automatically scan music files to produce albums,and supports self-built albums and self-built album classification.
Large-capacity
Hard drive + NAS +USB
Internal hard drive bay can be connected with hard drive. It supported 3.5 inch up to 16TB working. It has enough space to store your albums and audio files. Besides, several high-speed USB ports extend the storage. You can also use it as a NAS server.

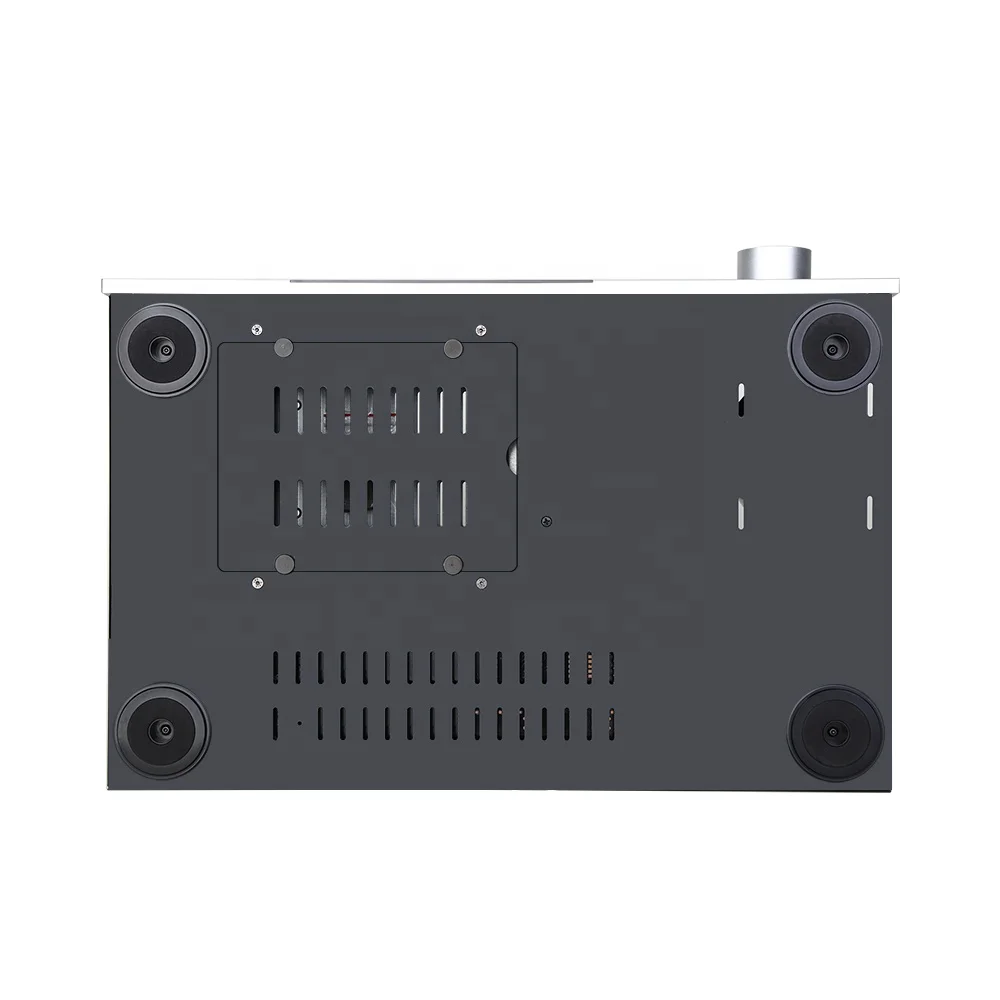

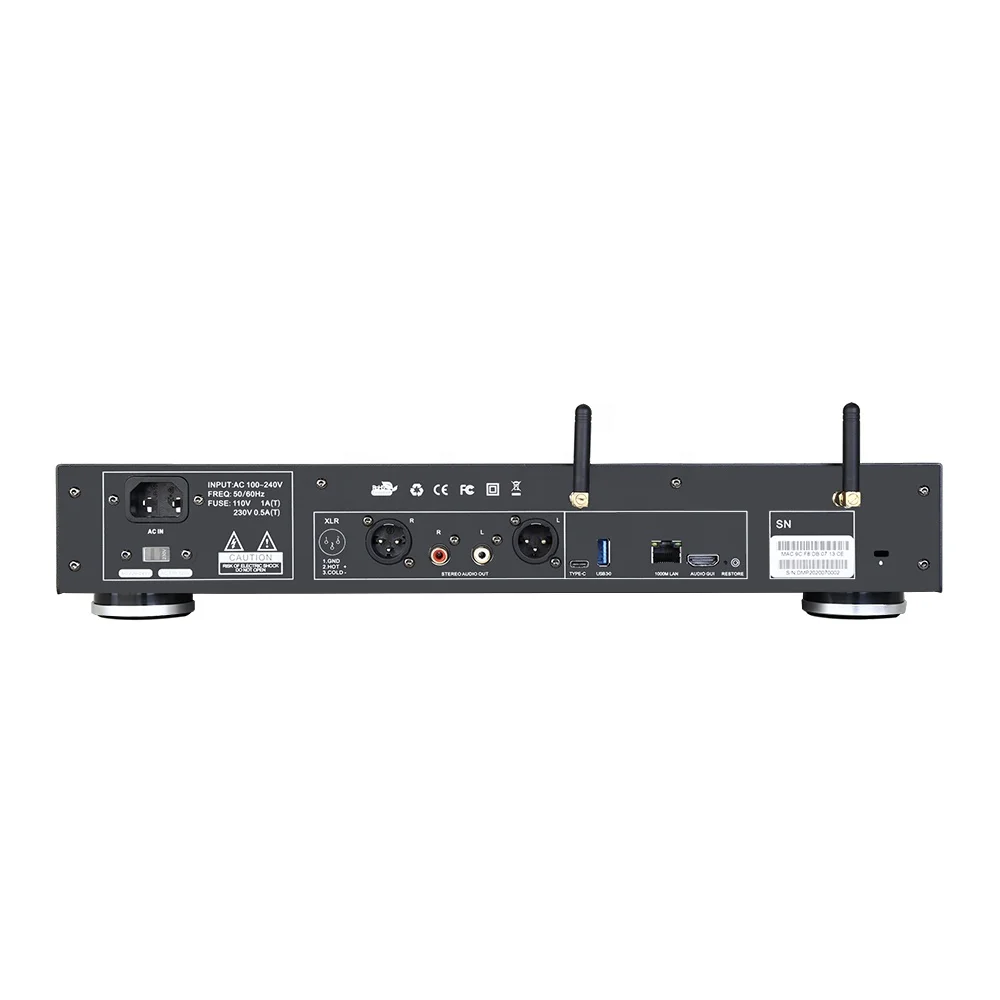

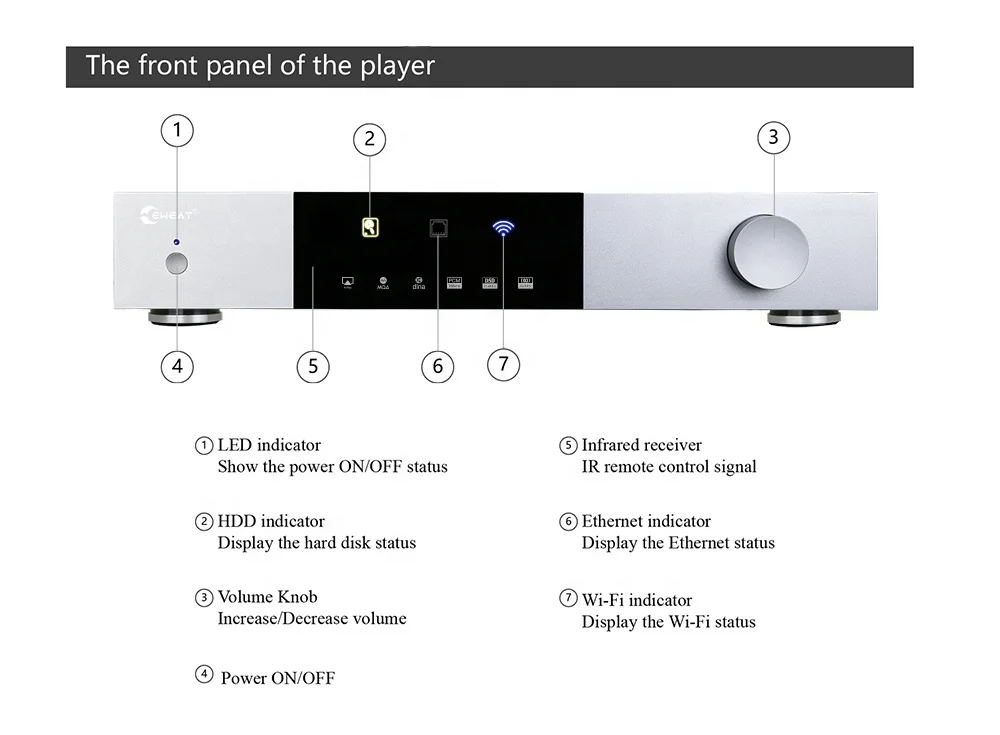

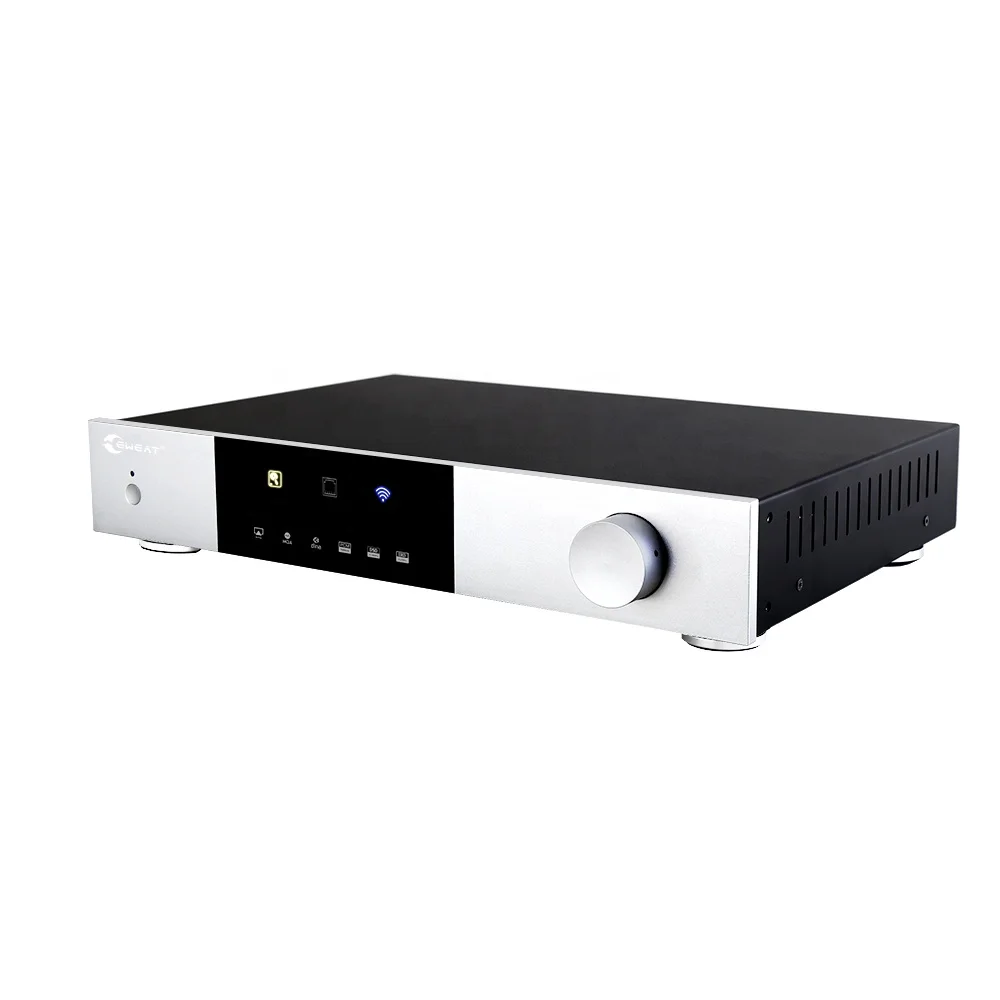

Details Images
Product parameter
Master Clock Jitter | Below measurable levels |
Digital Sampling Rates (Fs) | 44.1 kHz to 768 kHz |
Digital Filter | 32-Bit 8x Oversampling Digital Filter |
Digital/Analog Converters | 2 – 2 channel AK4493EQ for working on true balanced output |
BT | BT v 4.1with aptX® HD for 24 Bit / 48 kHz high definition audio decoder |
Analog Filter | 3rd Order Bessel |

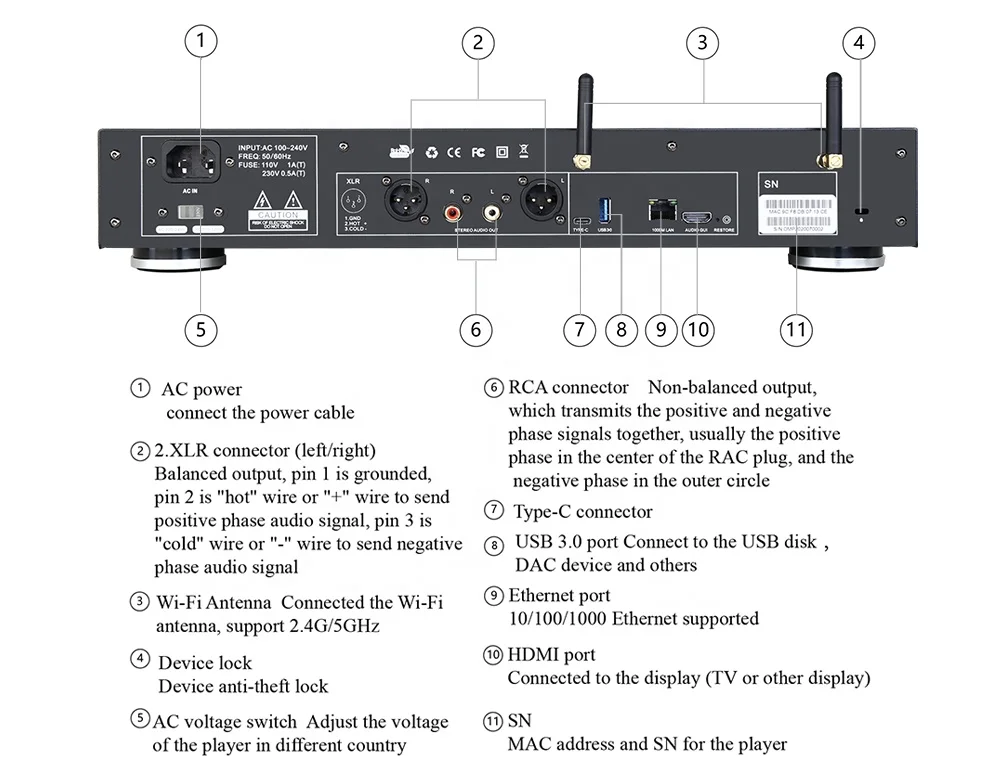

Analog Outputs | Balanced XLR, Non-Balanced RCA |
IR | IR control x1 |
Communication | Ethernet RJ45 full remote configuration interface 802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI |
Hard Disk Drive | Hard Disk Drive bays x1,up to 16T |
Other connectors | USB3.0 x1,TYPE-C x1 |
Power Input | Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz |
AC Power Requirements | 78 Watts |
Case | Black case with silver aluminum faceplate |
Weight | 6.5kg |
Dimensions | 42x28x6cm |
Package | Carton size: 48x34x19cm, one piece per carton, 7kg/CTN |
Frequency Range | 2 Hz – 22 kHz (44.1 kHz) |
Amplitude Linearity | 0.1 dB (20 Hz – 20 kHz) |
Phase Linearity | 3 degrees (20 Hz – 20 kHz) |
Dynamic Range | 125 dB (1 kHz) |
Signal-to-Noise Ratio | 113 dB (1 kHz) |
Channel Separation | 107 dB (1 kHz) |
Total Harmonic Distortion | 0.0004% (1 kHz) |
Audio Output Level | 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB |
Balanced XLR Output | +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB |
Playback Format Supply | .dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf |
Frequency Range | 2 Hz – 125 kHz |
Signal System | 16, 20, 24, & 32 bit PCM and 1 bit DSD |
Sampling Frequency | 44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD |
Dynamic Range | 125 dB |
Product packaging
Delivery
With good package and ship out by DHL,FEDEX EXPRESS,EMS ,TNT etc...
Payment method:
TT,Paypal,Mastercard, Paypal ,western union are welcome for samples,T/T,L/C are welcome for mass production
Our Company
Shenzhen EWEAT Tech Co.,LTD is a professioal Android tv box deveoper & manufactuerer in China.Products mainly include Android HD media player and smart tv box. also we have professional engnieer team to deal with OEM&ODM service.Welcome to contact us!
