Гибкий резиновый соединитель Hypalon втулка
- Категория: Pipe Fittings >>>
- Поставщик: Shanghai,Songjiang,Jiufu,Shock,Absorber,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5.84 $* | 5.21 $* |
| Aug-19-2025 | 5.71 $* | 5.86 $* |
| Jul-19-2025 | 4.15 $* | 4.6 $* |
| Jun-19-2025 | 5.81 $* | 5.38 $* |
| May-19-2025 | 4.33 $* | 4.10 $* |
| Apr-19-2025 | 5.66 $* | 5.29 $* |
| Mar-19-2025 | 5.99 $* | 5.95 $* |
| Feb-19-2025 | 4.42 $* | 4.22 $* |
| Jan-19-2025 | 4.61 $* | 4.76 $* |
Характеристики
Product Description

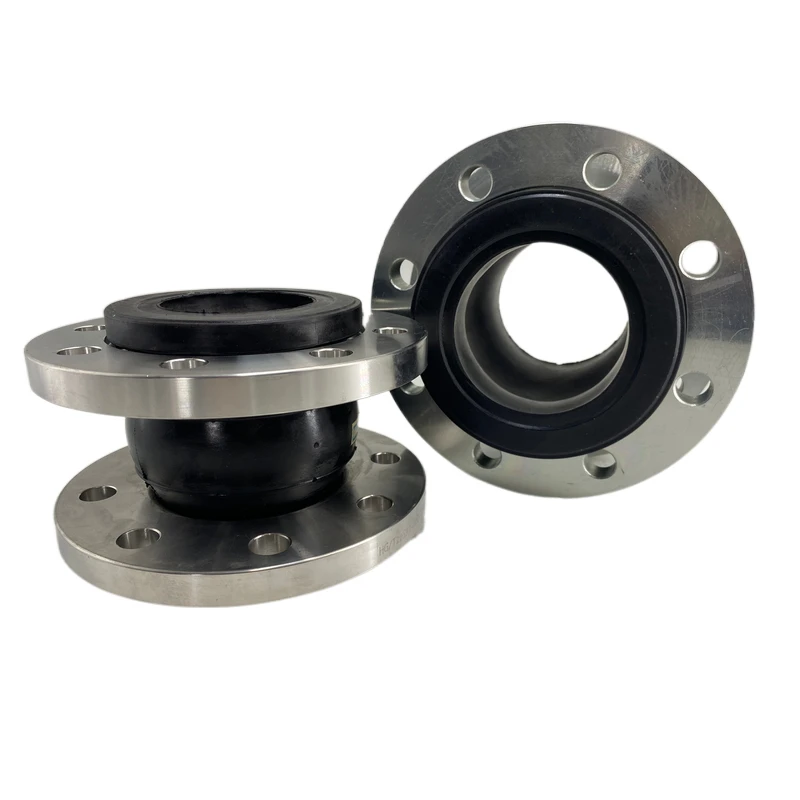

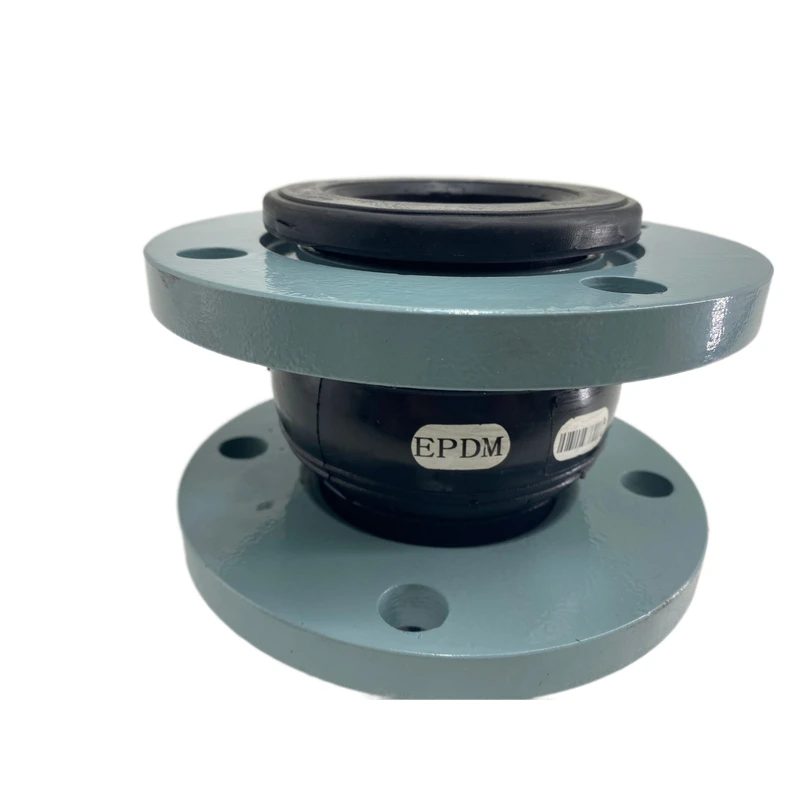

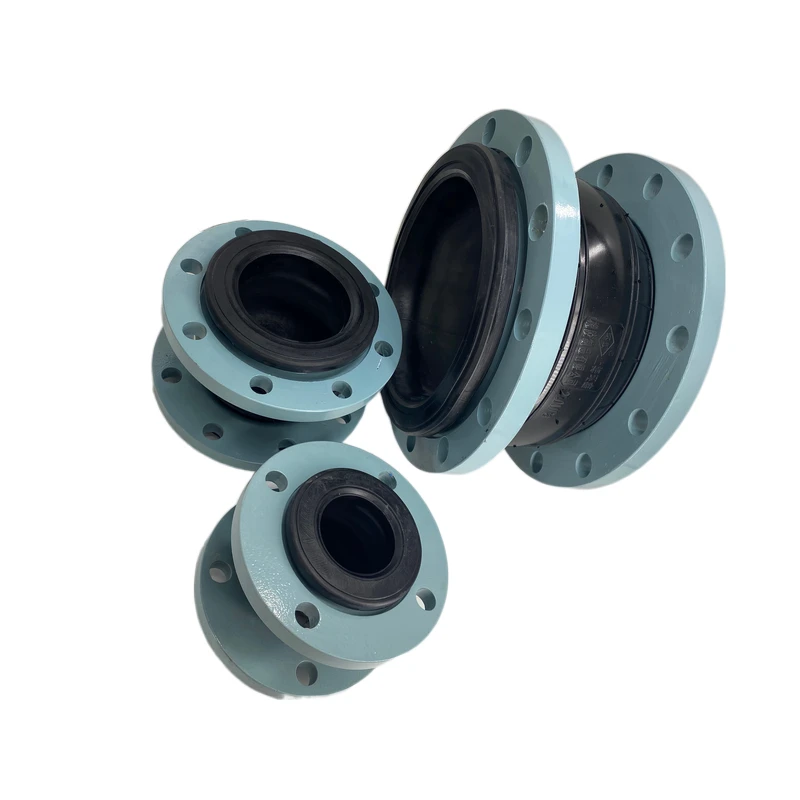

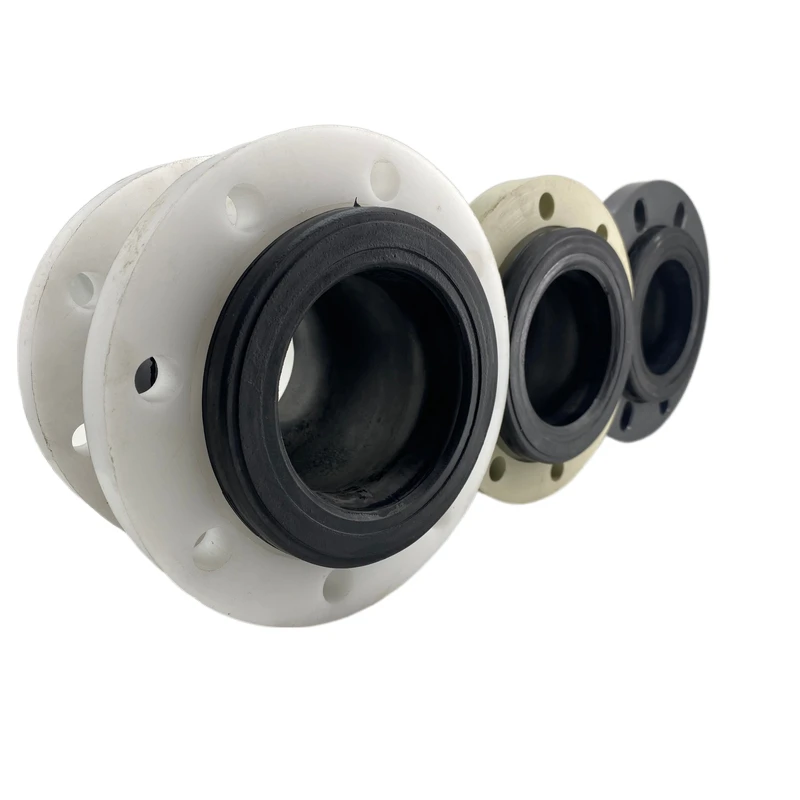

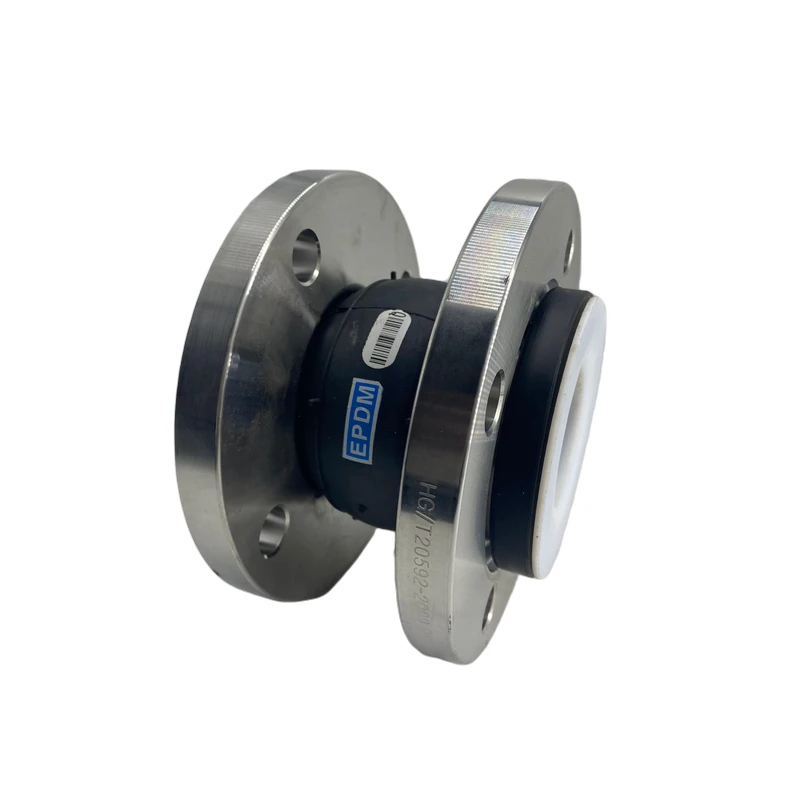

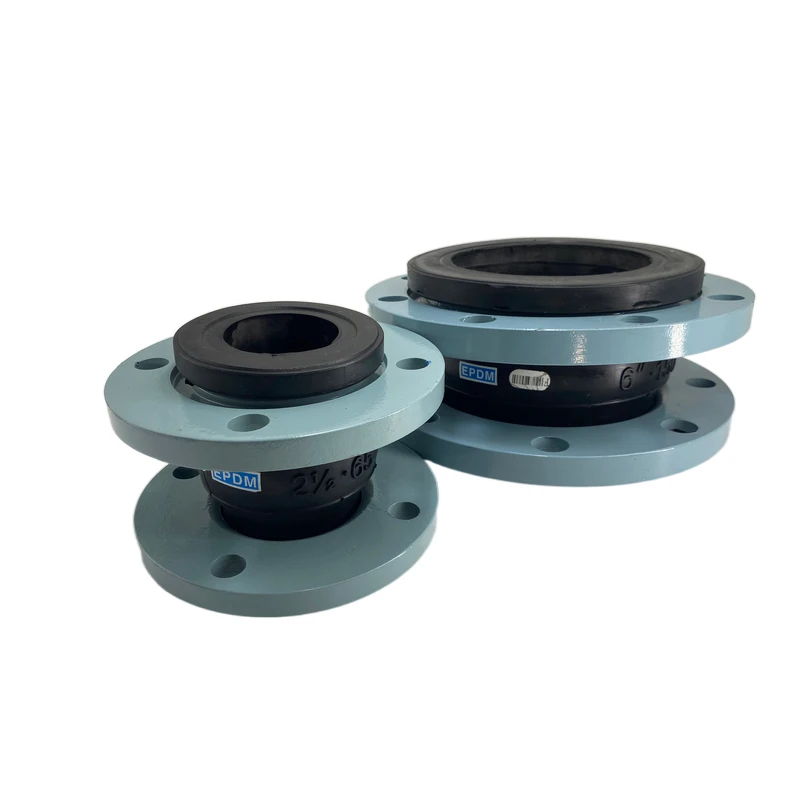

Description of Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint
Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint is composed of inner and outer rubber layer, nylon cord fabric and steel ring, which is vulcanized and then combined with metal flange or parallel joint loose sleeve.
Application of Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint
Due to favourable integrated performance, they can be widely used in chemical industry, construction, water supply, drainage, oil industry, light and heavy industry, refrigeration station, water heating system, fire fighting system, electric power system, etc.
Technical parameters
Technical parameters of afa flex flexible rubber expansion joint
Nominal diameter | Length（mm) | Axial displacement mm | Horizontal displacement | Angle of deflection | ||||
mm | Inch | extension | compress | a1+a2 | ||||
32 | 11/4 | 95 | 6 | 9 | 9 | 15° | ||
40 | 11/2 | 95 | 6 | 10 | 9 | 15° | ||
50 | 2 | 105 | 7 | 10 | 10 | 15° | ||
65 | 21/2 | 115 | 7 | 13 | 11 | 15° | ||
80 | 3 | 135 | 8 | 15 | 12 | 15° | ||
100 | 4 | 150 | 10 | 19 | 13 | 15° | ||
125 | 5 | 165 | 12 | 19 | 13 | 15° | ||
150 | 6 | 180 | 12 | 20 | 14 | 15° | ||
200 | 8 | 210 | 16 | 25 | 22 | 15° | ||
250 | 10 | 230 | 16 | 25 | 22 | 15° | ||
300 | 12 | 245 | 16 | 25 | 22 | 15° | ||
350 | 14 | 255 | 16 | 25 | 22 | 15° | ||
400 | 16 | 255 | 16 | 25 | 22 | 15° | ||
450 | 18 | 255 | 16 | 25 | 22 | 15° | ||
500 | 20 | 255 | 6 | 25 | 22 | 15° | ||
600 | 24 | 260 | 6 | 25 | 22 | 15° | ||
700 | 28 | 260 | 16 | 25 | 22 | 15° | ||
800 | 32 | 260 | 16 | 25 | 22 | 15° | ||
Production line
Production line of Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint
Packing&Shipping
Inner packing of Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint:
Plastic film
Outer packing of Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint:
Wooden case
Delivery of Hypalon Rubber Flexible Connector Bellow Flange Expansion Joint:
Within 5-7 days after received deposit
Company Introduction
Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. has provided products and services to
hundreds of construction projects and industrial enterprises at home and abroad, and has been widely praised. We will continue to uphold the business philosophy of "quality-oriented, honest and trustworthy, and comprehensive service" to provide new and old customers with high-quality rubber products, pipe fittings and other series of products.
hundreds of construction projects and industrial enterprises at home and abroad, and has been widely praised. We will continue to uphold the business philosophy of "quality-oriented, honest and trustworthy, and comprehensive service" to provide new and old customers with high-quality rubber products, pipe fittings and other series of products.
Factory
Final product
Certificate
Our service
1. 24 hours all day service, tel/whatsapp/wechat: 86 13761130991
3. check again before we send the goods
4. send the goods on time
5. The more you need, the cheaper the unit price is
2. Can be customized according to customer needs
3. check again before we send the goods
4. send the goods on time
5. The more you need, the cheaper the unit price is
