Широко используемый 1625 Осциллирующий нож режущий станок для
- Категория: Leather Production Machinery >>>
- Поставщик: Jinan,Yizhou,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.14 $* | 6248.87 $* |
| Aug-16-2025 | 5900.29 $* | 6195.44 $* |
| Jul-16-2025 | 4950.26 $* | 5198.90 $* |
| Jun-16-2025 | 5800.66 $* | 6090.73 $* |
| May-16-2025 | 5050.68 $* | 5303.81 $* |
| Apr-16-2025 | 5700.87 $* | 5985.52 $* |
| Mar-16-2025 | 5650.32 $* | 5933.82 $* |
| Feb-16-2025 | 5600.93 $* | 5880.14 $* |
| Jan-16-2025 | 5550.36 $* | 5828.32 $* |
Характеристики
Product Description
Features of car interior mat cutting machine:

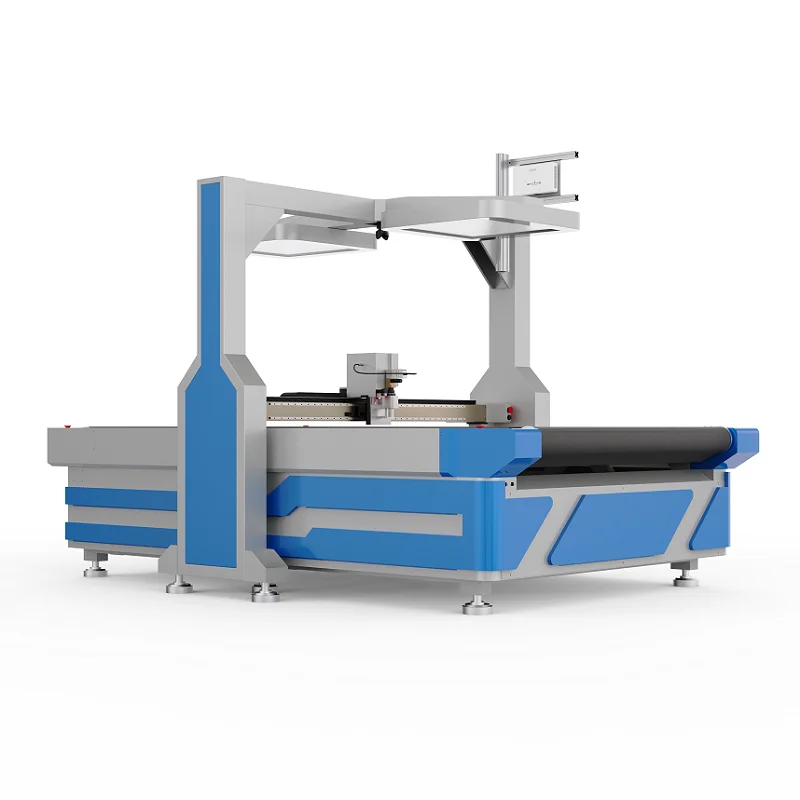

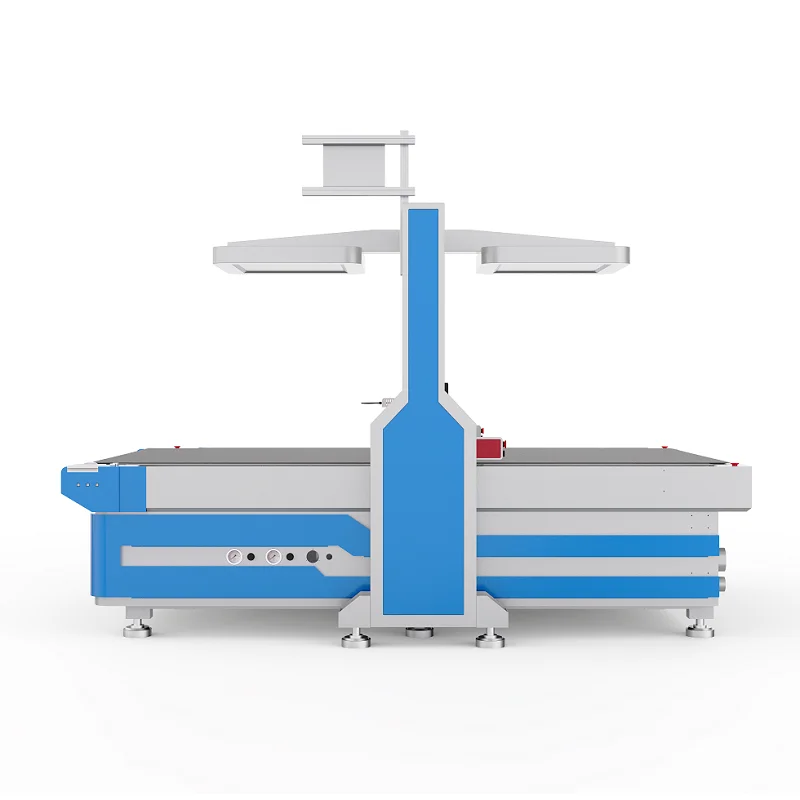

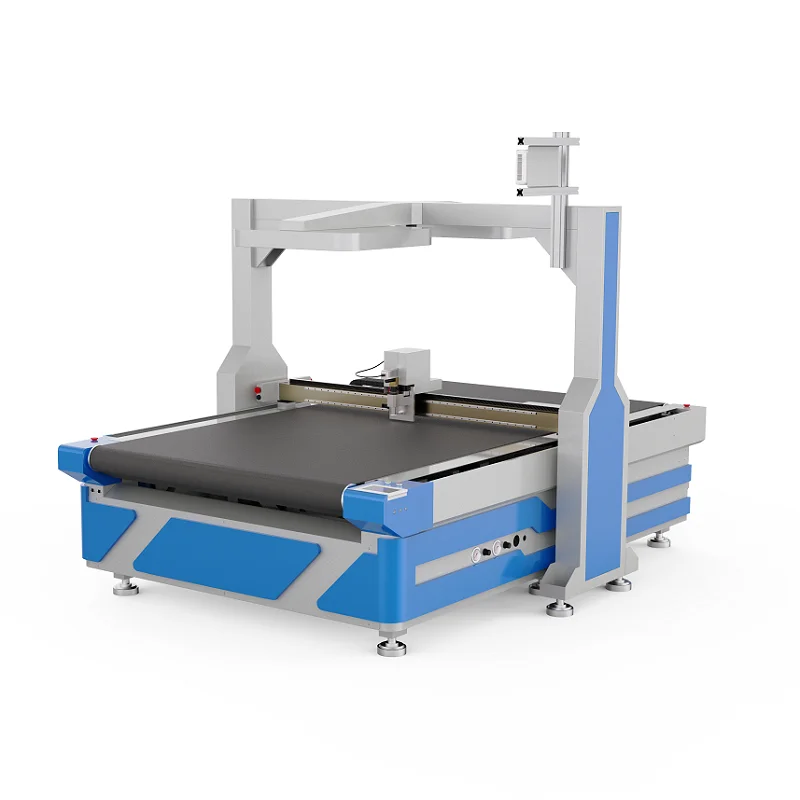

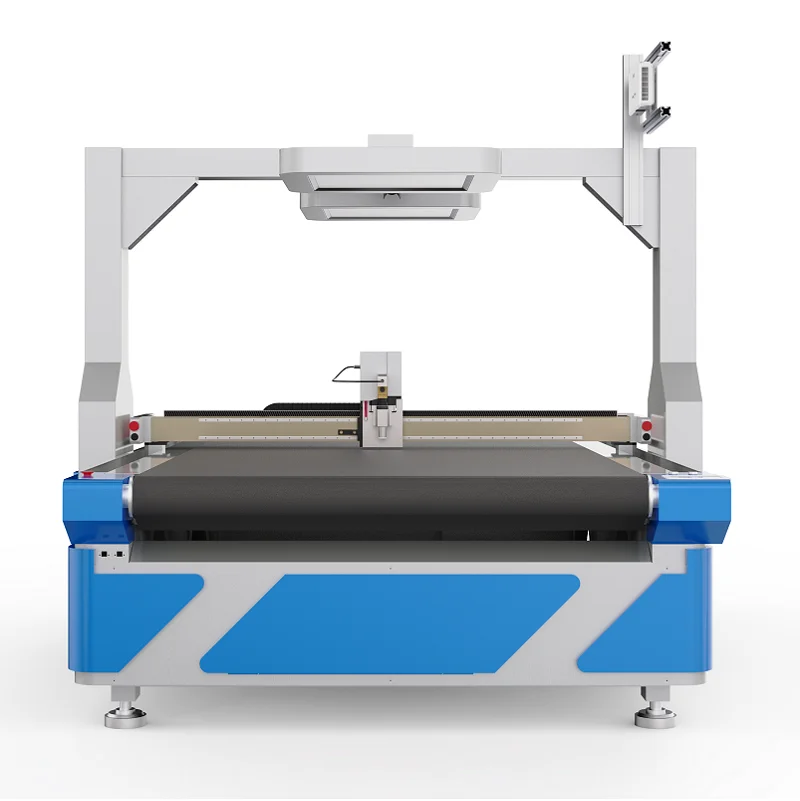

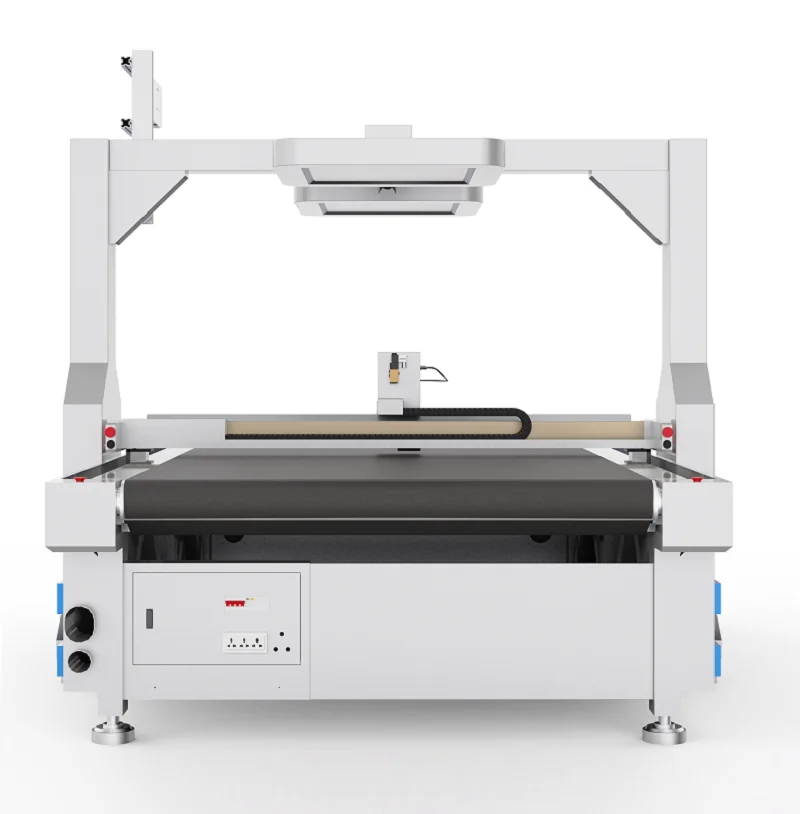

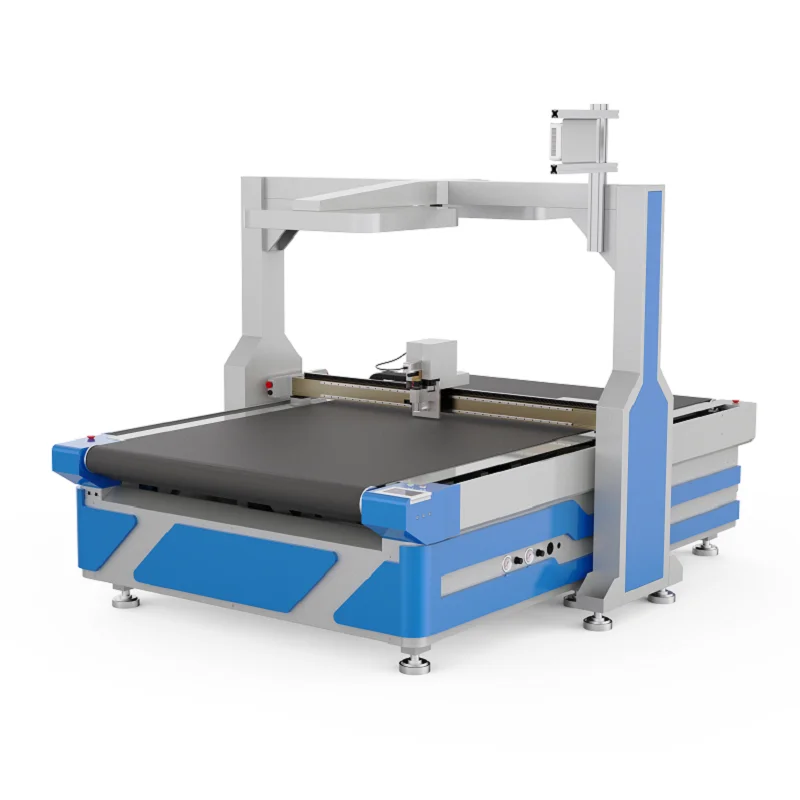

1. The Yizhou-cutter is a high-speed, conveyorized cutting system designed to cut materials, such as foam-backed
vinyls and carpeting, for automotive and other transportation interiors.
2. Quick, accurate set-up and self-adjusting cutting intelligence allow operators to start cutting faster and with greater efficiency.
Better productivity and workflow increase your output of cut parts and shorten lead times.
3. Workflow issues that were once difficult and time consuming to analyze are now captured with a single click, giving managers
access to critical data that helps them eliminate inefficiency in the cutting process.
Application materials: Car seat mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth etc.
Applicable Industry: Automotive interior, composite materials, seal gasket, sports goods, safa fabric etc.
1. The Yizhou-cutter is a high-speed, conveyorized cutting system designed to cut materials, such as foam-backed
vinyls and carpeting, for automotive and other transportation interiors.
2. Quick, accurate set-up and self-adjusting cutting intelligence allow operators to start cutting faster and with greater efficiency.
Better productivity and workflow increase your output of cut parts and shorten lead times.
3. Workflow issues that were once difficult and time consuming to analyze are now captured with a single click, giving managers
access to critical data that helps them eliminate inefficiency in the cutting process.
Application materials: Car seat mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth etc.
Applicable Industry: Automotive interior, composite materials, seal gasket, sports goods, safa fabric etc.
Specification
modle | Y1610CP、Y1625CP、Y1630CP |
working size | 1600*1000mm、1600*2500mm、1600*3000mm |
max.cutting thickness | 0-50mm |
cutting type | electrical oscillating cutting tool/drive rotary cutting tool/pneumatic oscillating cutting tool |
working table | section vacuum-cast aluminum vacuum flatbed table |
max.cutting speed | 0-1500mm/s |
motion system | digital servo motor & driver |
repeat location accuracy | 0.01mm |
voltage | ac220v/50hz ac380v/50hz 60hz |
media fixture method | section vacuum system |
pupm power | 5.5kw/7.5kw/9kw/11kw |
operating environment | temperature 0-40 humidity 20%-80%RH |
software | yizhou CAD |
format support | AI/DXF/DWG/JPG/BMP/PLT/DST |
interface | USB/LAN/Serial Port |
Machine Advantages
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Exhibition
our service
Our service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
FAQ
Q:Is It easy to install and use the machine?
A:Yes,besides the operate manual,cammech will offer online or door-to-door training service on how to install and use the
Q:What should I do if the machine has any problem in future?
A:You can always contact cammech whenever you have question,through email/phone/skype.And we will serve you online or door-to-door
Q:Can you design a machine for me depending on my requirements?
A:Please tell us the information of your product processing material,size,production capacity,budget.We will supply you a
solution.
Q:How can I choose the most suitable machine?
A:Please tell us below information,then we recommend the most suitable machine for you:
1. Please send us a picture of your sample product.
2. What is the size of the material you want to cut/engrave?In roll or in piece?
3. What is your budget?
A:Yes,besides the operate manual,cammech will offer online or door-to-door training service on how to install and use the
Q:What should I do if the machine has any problem in future?
A:You can always contact cammech whenever you have question,through email/phone/skype.And we will serve you online or door-to-door
Q:Can you design a machine for me depending on my requirements?
A:Please tell us the information of your product processing material,size,production capacity,budget.We will supply you a
solution.
Q:How can I choose the most suitable machine?
A:Please tell us below information,then we recommend the most suitable machine for you:
1. Please send us a picture of your sample product.
2. What is the size of the material you want to cut/engrave?In roll or in piece?
3. What is your budget?
