Складной литий-ионный аккумулятор для электровелосипеда 48 В 10 Ач 12

No.

Item

Characteristics

Remarks

1

Nominal Capacity

CCCV or Constant current charge to 67.2V @0.5C follow by a constant voltage holding at 64.2V until current drops below 0.24A.then discharge to 44.8V @ 0.2C.

2

Nominal Voltage

48.0V/36v

3

Charging Cut-off Voltage

54.6V

4

Discharge Cut-off Voltage

39V

5

Maximum Constant Charging Current

5A

6

Maximum Continuous Discharging Current

30A

7

Operating Temperature

Charge       0~45℃

Discharge  –20~60℃

8

Storage Temperature

-20~45℃ for 1Month

-20~35℃ for 6Months

9

Weight

3Kg

Approximate value

10

Storage Voltage

≥48V

11

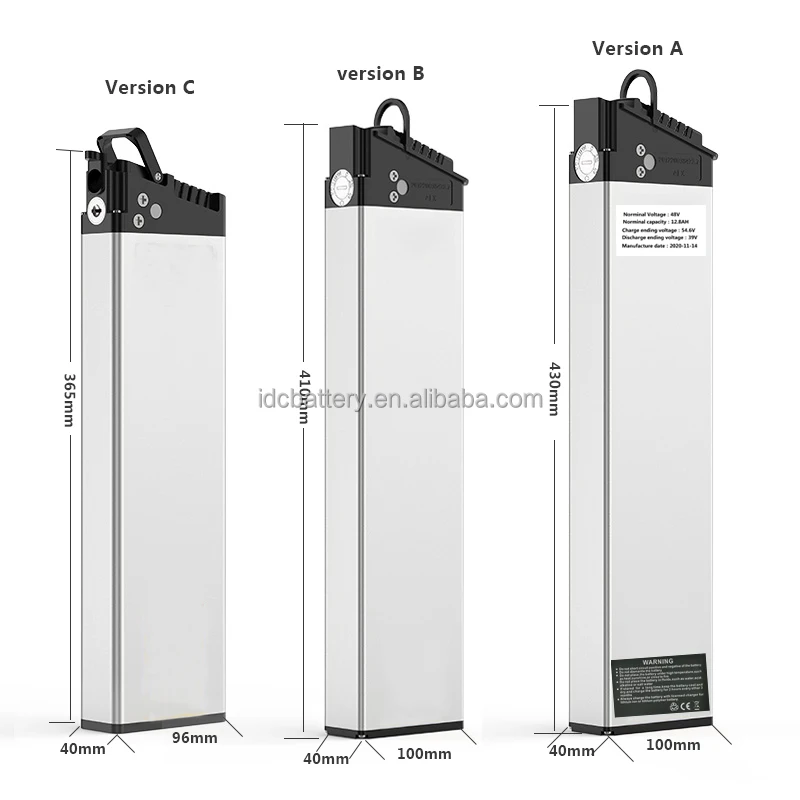

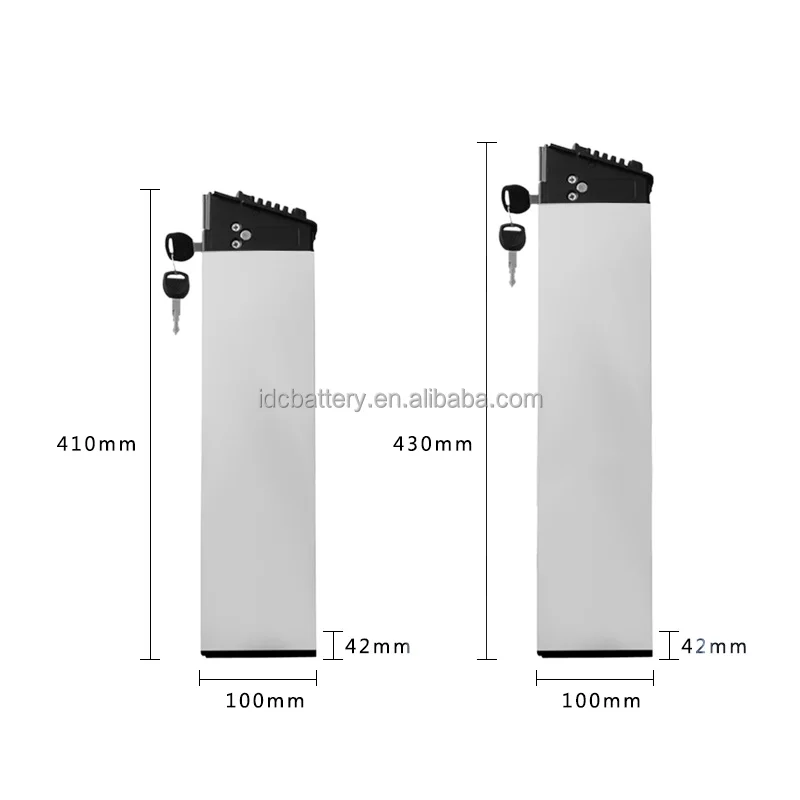

case size

430mmx100mmx40mm 52 18650 cell

410mmx100mmx40mm 40 18650 cell

365mmx96mmx40mm 40 18650 cell(have two model four pins or five pins)

If the materials of the product and packaging accord with RoHS standard,there will be a RoHS Id on the box.
