DASN B23 уникальный новая модульная конструкция 12 дюймовый сабвуфер RMS 800 Вт высокой мощности динамик профессиональная акустическая система
- Категория: Trade Show Equipment >>>
- Поставщик: Ningbo,Shengchuang,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 354.75 $* | 361.78 $* |
| Jul-15-2025 | 287.81 $* | 293.38 $* |
| Jun-15-2025 | 349.97 $* | 356.63 $* |
| May-15-2025 | 346.28 $* | 353.7 $* |
| Apr-15-2025 | 276.30 $* | 282.79 $* |
| Mar-15-2025 | 340.88 $* | 347.42 $* |
| Feb-15-2025 | 338.66 $* | 345.21 $* |
| Jan-15-2025 | 335.49 $* | 342.22 $* |
Характеристики
Specification
Art.No. | B23 |

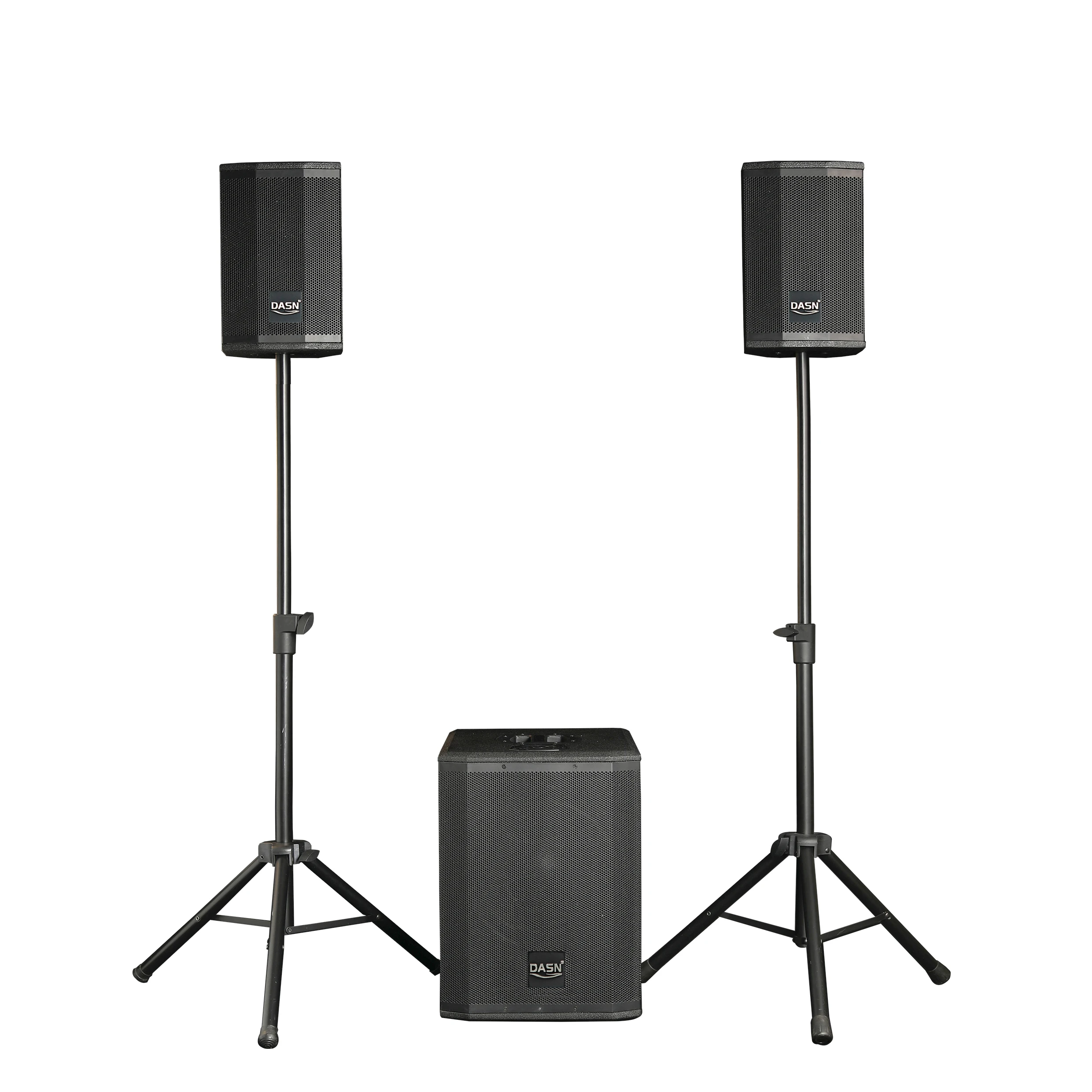

Type | Column PA System |
Subwoofer | 1 x 12" Bass reflex |
Full range | MF: Double 6.5"*1/HF:1"horn tweeter |
Amplification | Amplification |
Dispersion(H x V) | 120° x 40° |
Power output(RMS/peak) | 800 W/3200W |
Frequency range | 45Hz-20KHz |
Max SPL(peak) | 120 dB |
Protection | DSP multiband limiter plus short circuit, over-current and thermal protection |

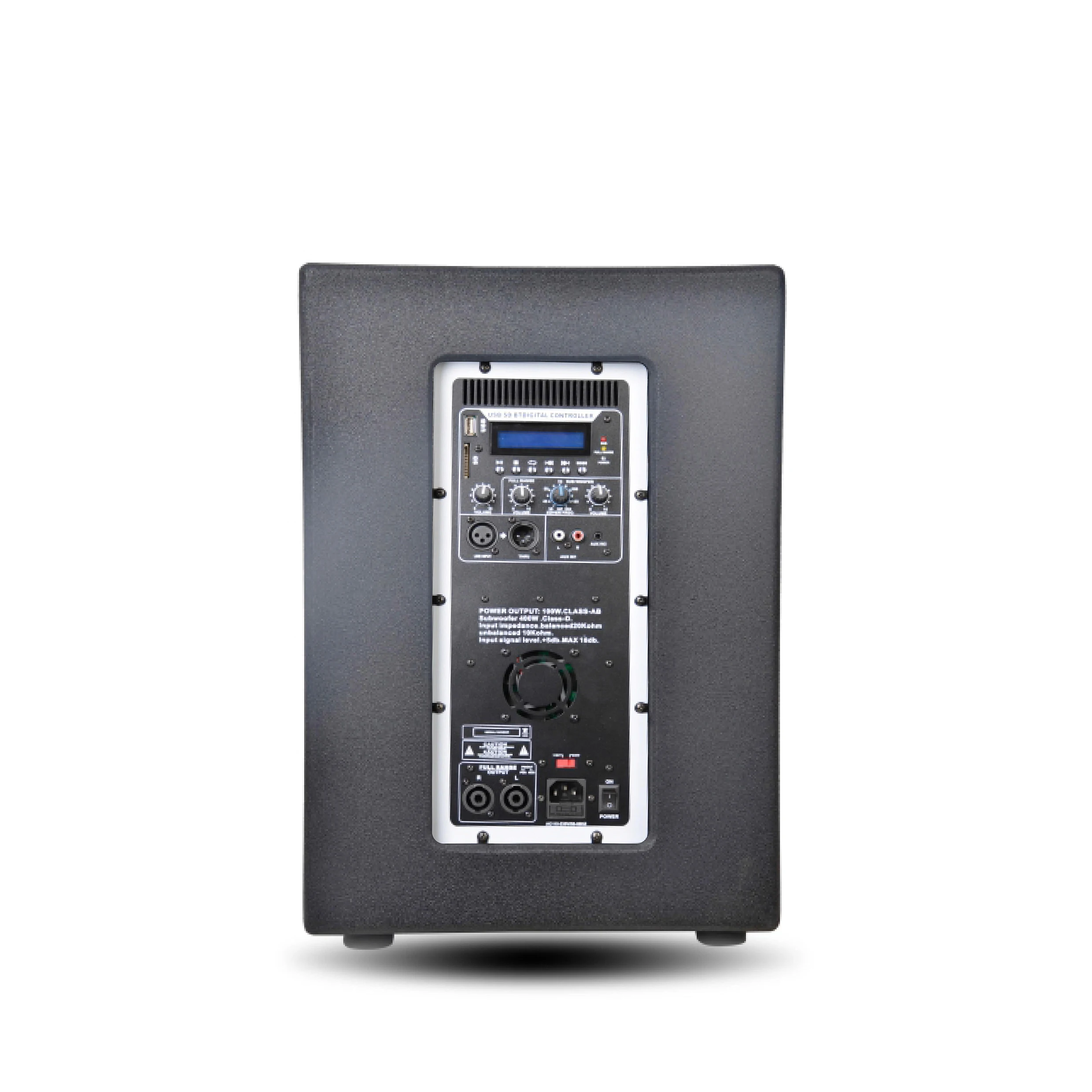

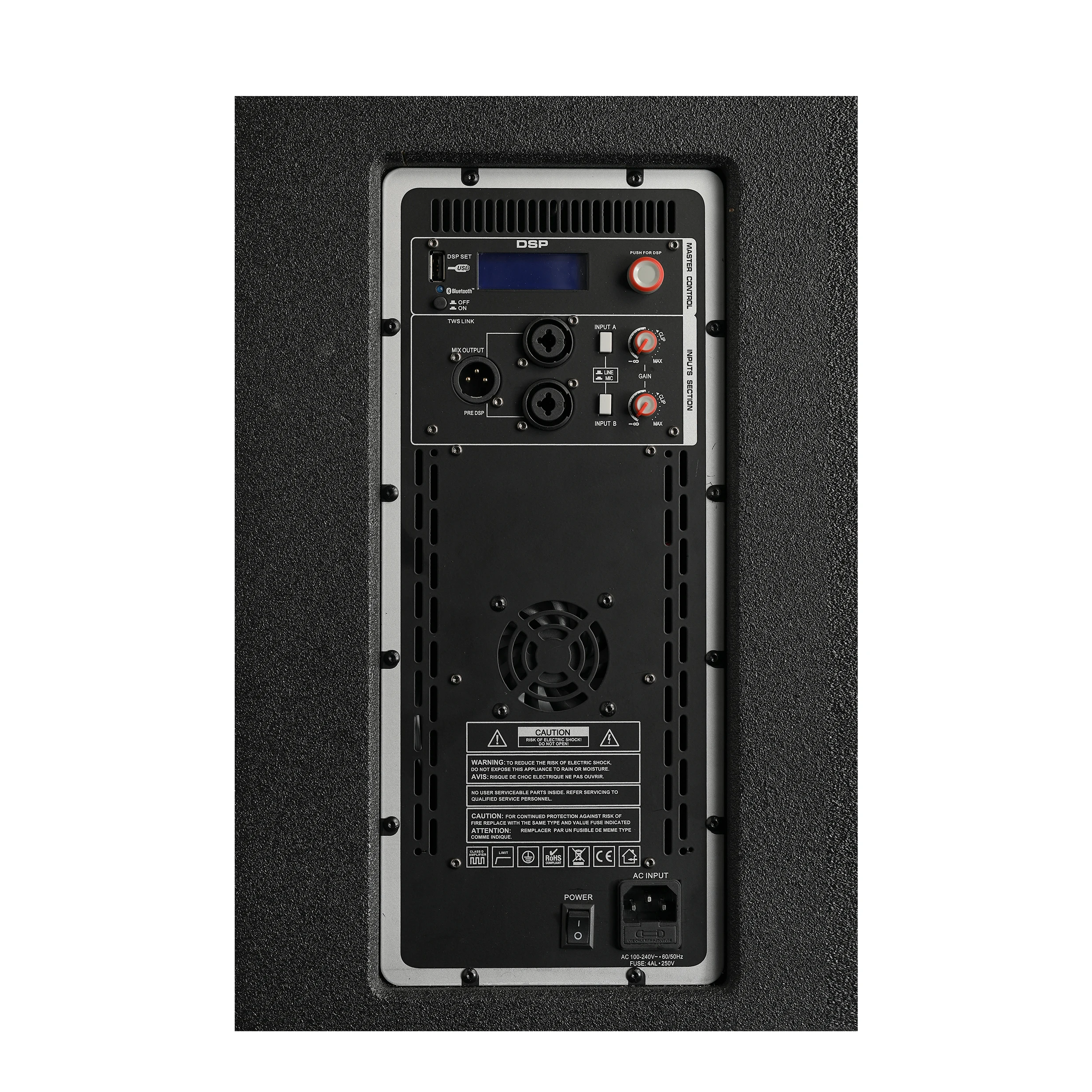

Controls | Main level,mic level, line level, Power on/off switch,DSP contral level |
Indicators | On, signal, limit, protect, signal, limit, protect (protection circuit engaged), signal, on, limit, Setup |
Subwoofer connectors | 2 x XLR/6.35 mm combo line inputs, XLR/6.35 mm combo mic input, XLR system out |
Line Input | 2 x XLR/6.3 mm Jack Combo |
Mic inpu | 2 x XLR/6.3 mm jack Combo |
Satellite | Custom made multi pin connector |
Cabinet material | Subwoofer: 15 mm plywood / Column: 15 mm plywood |
Dimensions(W x H x D) | Subwoofer: 400*515*525 mm / Column 2 pcs): 520*520*390mm |
Weight | Subwoofer: 23kg / Columns (2 pcs): 9.2 kg |

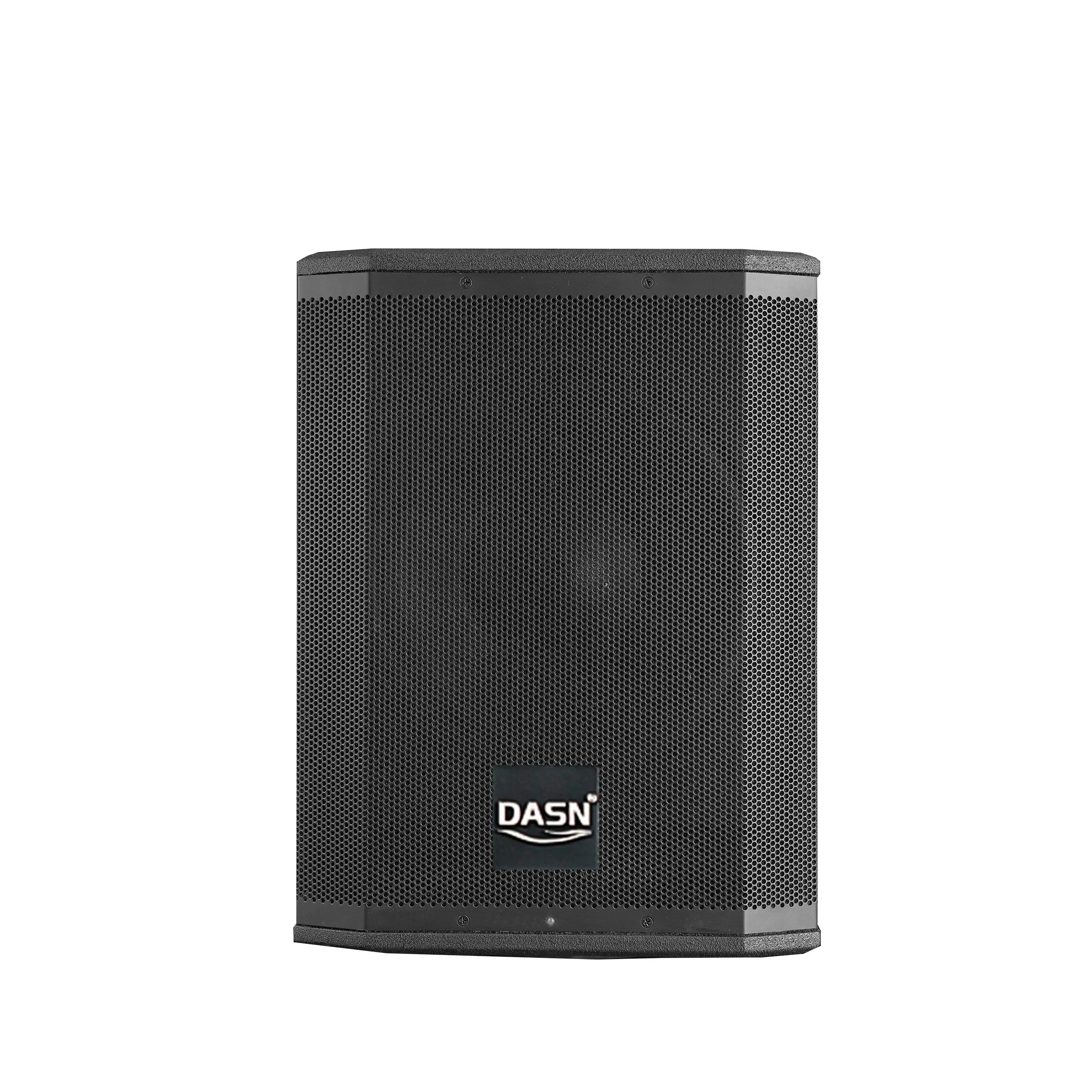

Ultra-portable 12” subwoofer
Designed for musicians, DJs, and general PA use,floor monitor, practice amplififier and primary music system
High-output sound from a small, convenient system that is ready to perform whenever and wherever you are
Lightweight, ultra-portable enclosure is designed to transport effortlessly using the convenient carry-handle Compact, lightweight
design
High-output sound from a small, convenient system that is ready to perform whenever and wherever you are
Lightweight, ultra-portable enclosure is designed to transport effortlessly using the convenient carry-handle Compact, lightweight
design
Features:
- 800 Watt RMS /3200Watt PEAK
- Amplifier Type: Class D
- Dsp Mode: DSP Control function
- Low frequency rated power: 400W (4ohms/100Hz@THD+N1%)
- Full-frequency rated power: 400W (4ohms/8khz@thd+n1%)
- Input sensitivity: Line, - 10dB; Microphone: - 35dB
- Bluetooth Version: 5.0
- Panel Size: 380*160mm
- 800 Watt RMS /3200Watt PEAK
- Amplifier Type: Class D
- Dsp Mode: DSP Control function
- Low frequency rated power: 400W (4ohms/100Hz@THD+N1%)
- Full-frequency rated power: 400W (4ohms/8khz@thd+n1%)
- Input sensitivity: Line, - 10dB; Microphone: - 35dB
- Bluetooth Version: 5.0
- Panel Size: 380*160mm
CONNECT ALMOST ANY AUDIO DEVICE
The ACM features two different inputs, which can be used
simultaneously. Two channel has a combo socket (XLR/jack) for dynamic microphones or line.
as a combo socket (XLR/jack) for mixers or keyboards..
The ACM features two different inputs, which can be used
simultaneously. Two channel has a combo socket (XLR/jack) for dynamic microphones or line.
as a combo socket (XLR/jack) for mixers or keyboards..
Aging test
Packing & Delivery
Packaging Details：Conventional Packing(1 Unit/Poly Bag,1 Poly Bag/Master Carton Box. With Foam Padding For Protection). As the Master Carton Box, You can Choose White Box or Color Box.PortNINGBO
Company Profile
Ningbo shengchuang Electronic Co.,Ltd , a reliable professional audio expert, we provide our customers with user-friendly audio equipment that combines unmatched reliability with advanced performance features.
Our diverse product mix includes Speakers,DJ equipments, Mixing Consoles and Cables & Stands with associated accessories sold under
Our diverse product mix includes Speakers,DJ equipments, Mixing Consoles and Cables & Stands with associated accessories sold under
Production Process
FAQ
Q1: What is our warranty for speaker drivers?
For our speaker driver, we have one-year warranty.
Q2:How can i get a sample ?
If you need some samples to test,we can make as per your request .
You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.
You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.
Q3:How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.
The freight depends on the weight and packing size and your area.
Q4:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q5:Can you produce according to customers' design?
yes.we mainly do the OEM/ODM service.
yes.we mainly do the OEM/ODM service.
Q6:What's the minimum order quantity(MOQ)?
MOQ is 50pcs-500pcs each model size.
MOQ is 50pcs-500pcs each model size.
Q7:How about the delivery time?
For sample: 10-15 days
For order: 30-45 days
For sample: 10-15 days
For order: 30-45 days
