Автоматическая блистерная упаковочная машина из алюминиевого


Поделиться:


Цена:4 000,00 $ - 10 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 4760.71 $* 4998.42 $*
Aug-15-2025 4720.67 $* 4956.55 $*
Jul-15-2025 3960.32 $* 4158.46 $*
Jun-15-2025 4640.51 $* 4872.61 $*
May-15-2025 4040.34 $* 4242.84 $*
Apr-15-2025 4560.98 $* 4788.48 $*
Mar-15-2025 4520.56 $* 4746.86 $*
Feb-15-2025 4480.42 $* 4704.5 $*
Jan-15-2025 4440.63 $* 4662.82 $*

Характеристики





Specification


Punch frequency
20 - 40 times/ min (For Alu-PVC)
Packing efficiency
2,400 - 5,400 blisters/h (For Alu-PVC)
Max. forming area and depth
150 x 110 x 20mm
Adjustable range of stroke
30 - 110mm
Air compressor
≥0.15m3/min
Power
5.7KW
Rated frequency
50Hz/60Hz
Dimensions
2300 x820 x 1850mm
Weight
800kg
surprise price

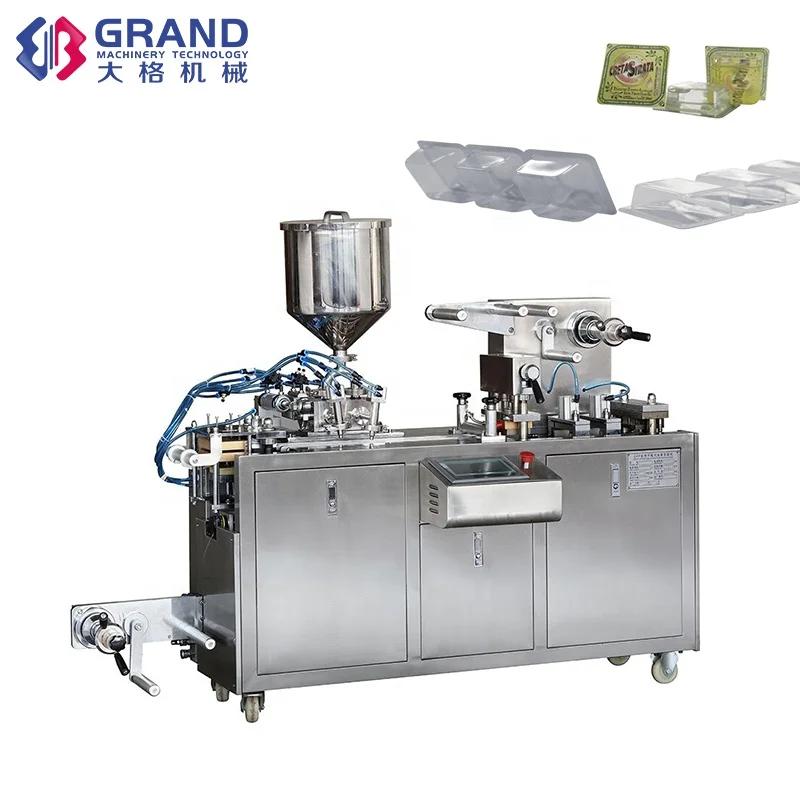

Machine Brief

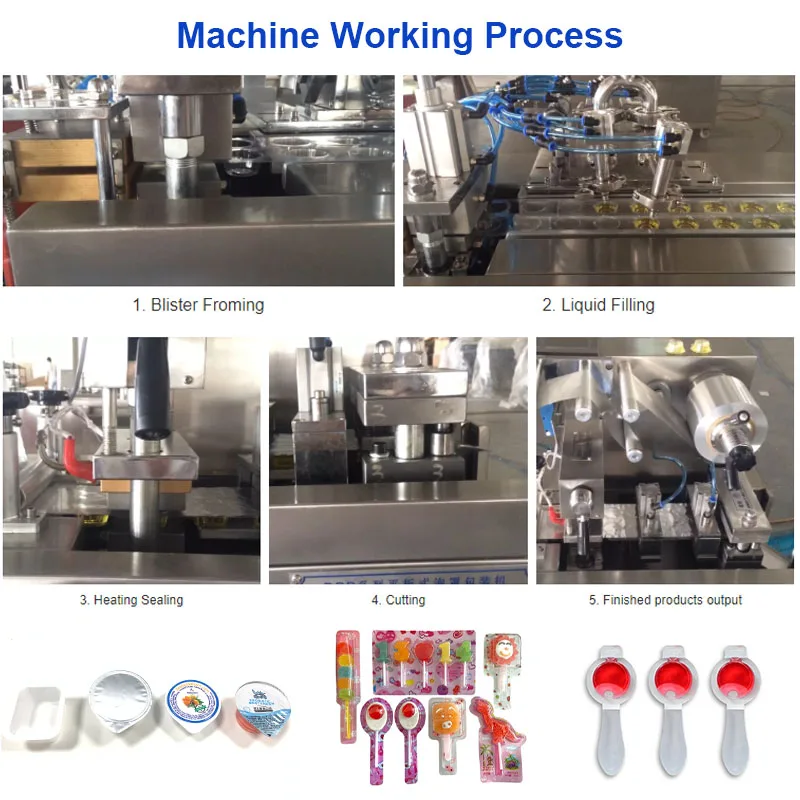

DPP-80 multifunctional automatic blister packing machine, the machine is the company comprehensive domestic and foreign aluminum plastic packaging machine has the advantages of innovative design, my company a number of innovative technology is used in the key parts, the contact part of the drug and the stainless steel and high-grade aluminum alloy material production, applicable to the pharmaceutical, food, health care products industry packing element piece, sugar coated tablets, capsules also packaging small food and metal parts, electronic components. The machine set coil uncoiling, aluminum (AL) feeding, blister forming, filling, waste recycling, heat sealing, print a batch number, reticulate indentation, edition piece rushed cut, display finished counting and ten functions in one, goods packaging sealing good, safe and sanitary.

Main Features
1. Newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided;
2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
3.Photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.



Product Description
















Certifications




Packing & Delivery




Company Profile






Wenzhou Grand Machinery Technology Co., Ltd. was established in 1999 by several experienced machinery experts, located in Wenzhou City, Zhejiang Province, China. Grand is specialized in R&D, manufacturing, exporting and providing related services of pharmaceutical equipment in solid preparation field. Main products includes grinder, granulator, dryer, mixer, capsule filling machine, tablet press, blister packing machine, bottle filling line, cartooning and encasing machine.
Grand has over 5,000 meters standard producing plant and modern office, with more than 85 staff consisting of efficient producing team, experienced R&D team, professional sales team and thoughtful after sale team.
Grand has passed the certification of ISO9001 and products have CE certification approved.
Grand provides reliable quality, stable performance and thoughtful after-sales service, which attracted large number of customers covering more than 160 countries, such as, China domestic, Asia, Europe, America, Mid East and Africa.
Our growth is inseparable from the trust and support of our customers. You are always welcome to our company for plant visitation, technology exchange and business cooperation.






Exhibition








FAQ


Q1: What is your capability?
Grand Machinery is a manufacturer of pharm and packing equipment. Qualified & high-level machines and packing solution & technology are our strengths over our competitors

Q2: How do you guarantee your quality and service?
We have serious QC team to control the details from the small parts to the assembled machine. And our service and technical team are glad to answer and solve all problems if you meet during using our products.

Q3: What is your WARRANTY?
One year warranty for the brand-new machine, and whole life after sale service, eg. spare parts, technical support etc.

Q4: How to pay? (Payment term)
T/T, L/C, PayPal, Western Union, Cash even credit Card are all accepted

Q5: How long could you finish the machine after placing the order? (Delivery time)
Normally: 15-30 days, if for stock products, it will be around 3 days.

Q6: Do you mind if we are agents?
End users and agents are both welcome. And now we are recruiting Global Agents/Wholesalers!!!
Join Grand Machinery & Discover More

Q7: More questions are appreciated
Pls contact us freely if you have any other question or need.



Why Choose Us


Service1: We will take the professional video for machine installation, operation and mould changing at our cost. This is unique service of us and ensures you the best machine running in the future.

Service2: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.

Service3: We make guarantee of the machine for 12 months. During this warranty period, the seller will provide free spare parts that caused by the machine's quality within 10 days by fast courier upon receipt of buy's notice. we will also provide one set of spare parts/wear & tear parts to customer along with the shipment of the machine.

Service4: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
