3 в 1 3000 Вт ручной аппарат для волоконно-лазерной сварки и лазерной очистки
- Категория: Laser Welders >>>
- Поставщик: Jinan,Dxtech,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 4760.62 $* | 4998.95 $* |
| Aug-17-2025 | 4720.56 $* | 4956.99 $* |
| Jul-17-2025 | 3960.86 $* | 4158.19 $* |
| Jun-17-2025 | 4640.43 $* | 4872.16 $* |
| May-17-2025 | 4040.47 $* | 4242.98 $* |
| Apr-17-2025 | 4560.50 $* | 4788.78 $* |
| Mar-17-2025 | 4520.17 $* | 4746.72 $* |
| Feb-17-2025 | 4480.92 $* | 4704.11 $* |
| Jan-17-2025 | 4440.29 $* | 4662.43 $* |
Характеристики

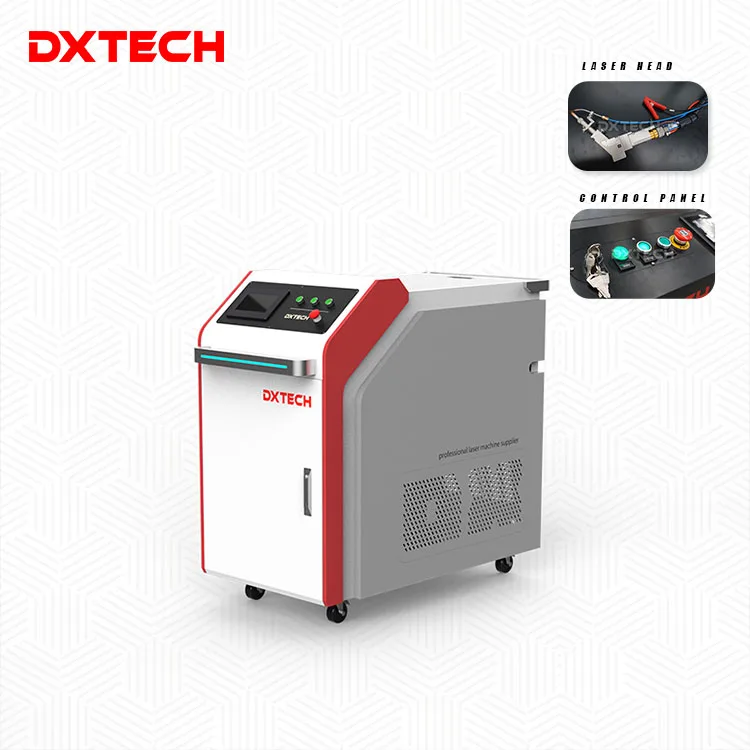

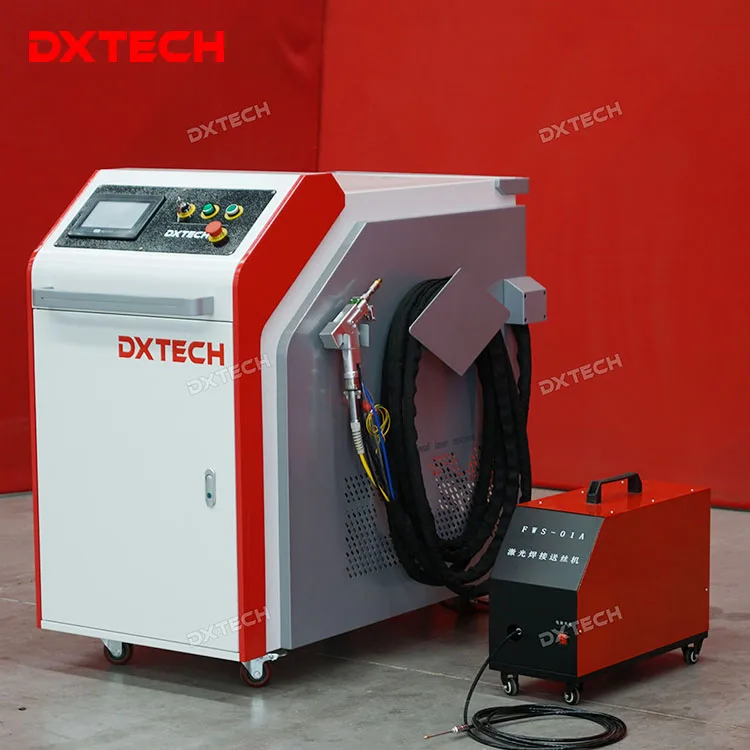

3 IN 1 Multifunction Metal Laser Rust Remover Handheld Fiber Laser Cleaning Welding Cutting Machine
Product Description
Product Introduction
——
One laser machine can do laser welding, laser cleaning and handheld metal cutting together. No need to buy several laser machines for these different laser process jobs. Our laser system is very suitable for stainless steel & aluminum alloy welding, also can do welding on carbon steel, titanium alloy and etc. Also it can be used for rusty removal and handheld metal cutting.
Features
——
1. Multifunction fiber laser machine, can weld, clean and cut metallic materials;
2. Handheld type with longer holder cable length;
3. Welding function conversion cleaning function, just replace the focusing lens and laser head;
4. Small machine body, can move easily. It is very convenient.
Machine Part

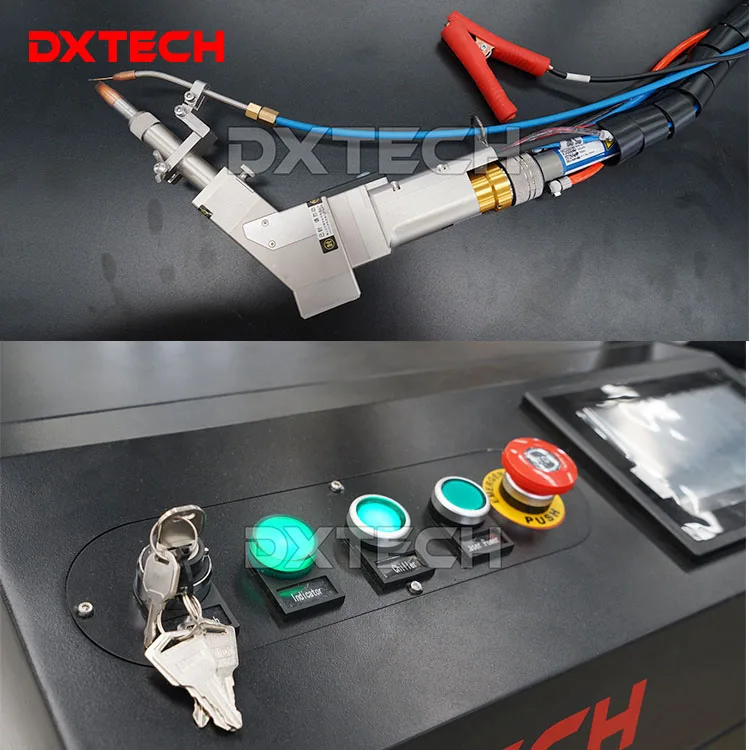

Laser head
——
The portable welding joint is light,flexible and easy to operate.it can be used for continuous welding of various angles and positions.
The portable welding joint is light,flexible and easy to operate.it can be used for continuous welding of various angles and positions.
——
The operation is simple and clear,and the system supports multiple languages.
Laser Source
——
Compared with similar products,the light laser has a higher photoelectric performance conversion ability ,a more stable beam,and a stronger anti-reflection ability.
Technical Parameters
Machine power | 1000w / 1500w / 2000w / 3000w |
laser type | continuous |
Laser source | Fiber laser |
Cleaning width | 10-80mm |
Laser wavelength | 1080±5nm |
Pulse Width | 0.05-0.6 |
Out power Stability | <2% |
Weld thickness | 2-2.5mm/2-2.5mm/3-4mm/5-6mm |
Power Consumption | 7KW |
Fiber optical length | 10m |
Model | Regular / mini |
Machine size | 700*1500*1300mm / 1500*750*850mm |
machine weight | 240KGS / 160KGS |
Sample Show
Product category
Company Profile
Our factory
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
Our Certificate and Exhibition
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.
copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
