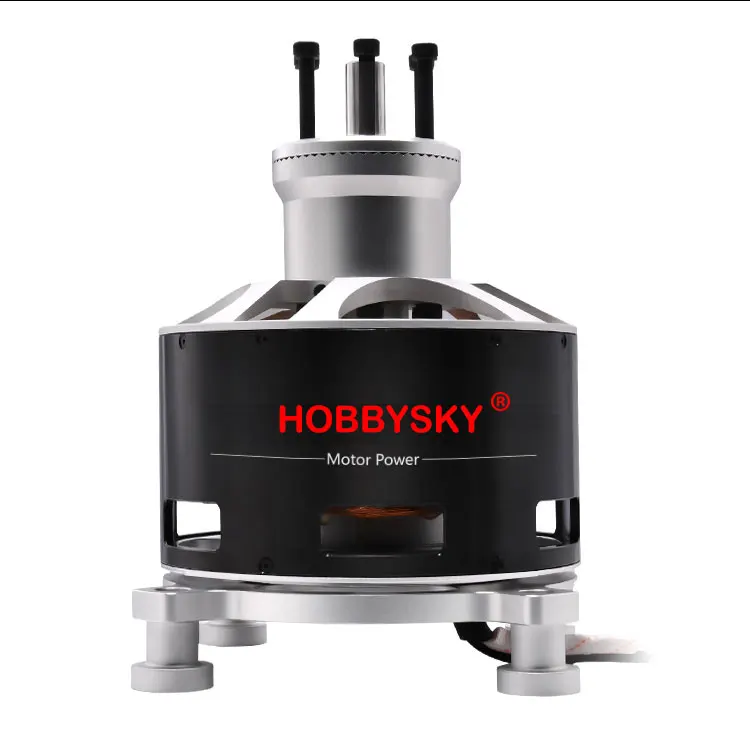

Бесщеточный двигатель HobbySKY 120100 80KV 25 кВт бесщеточный токоотводящий постоянного тока с внешним ротором
- Категория: Motors >>>
- Поставщик: Shenzhen,Two,Ant,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 357.72 $* | 375.32 $* |
| Aug-16-2025 | 354.10 $* | 372.7 $* |
| Jul-16-2025 | 297.28 $* | 312.33 $* |
| Jun-16-2025 | 348.10 $* | 365.56 $* |
| May-16-2025 | 303.76 $* | 318.21 $* |
| Apr-16-2025 | 342.82 $* | 359.13 $* |
| Mar-16-2025 | 339.78 $* | 356.90 $* |
| Feb-16-2025 | 336.9 $* | 353.80 $* |
| Jan-16-2025 | 333.17 $* | 350.55 $* |
Характеристики
Specifications
Specification
MotorMP12090KV80kvMax power15 wMax current300AESC250/300AMax voltage130kvNo load current(15V)7AResistance(Ohm)0.16Size120*110mm
Stator50mmWeight3.5kgShaft12mm
Testing:
Motor: MP12090 80kV 15kw
ESC: Flier 22S 320Amp running factory V3.0 firmware
Prop: 34" x 10" Beechwood Falcon Propeller
Batteries: HK Zippy Compact 8 x 5.8Ah 7S. 4 in parallel to make 2 banks, which are then in serial (4P2S). Total pack: 14S (~50V)
23Ah.
Note: Test flight was a half-pack (2P2S)
Result:
Falcon Propeller 34 x 10
Static-Thrust: 28kg
RPM: 4500
Amps: 122
Volts: 54.1
Watts: 6.6kW
KV: 83.2
MAGCAD 34.5 x 18 (3-blade)
Static-Thrust: 27.5kg
RPM: 4380
Amps: 140
Volts: 53.0
Watts: 7.4kW
KV: 82.6
AeroStar 33 x 12
Static-Thrust: 22kg
RPM: 4530
Amps: 107
Volts: 54.0
Watts: 5.8kW
KV: 83.9
MotorMP12090KV80kvMax power15 wMax current300AESC250/300AMax voltage130kvNo load current(15V)7AResistance(Ohm)0.16Size120*110mm
Stator50mmWeight3.5kgShaft12mm
Testing:
Motor: MP12090 80kV 15kw
ESC: Flier 22S 320Amp running factory V3.0 firmware
Prop: 34" x 10" Beechwood Falcon Propeller
Batteries: HK Zippy Compact 8 x 5.8Ah 7S. 4 in parallel to make 2 banks, which are then in serial (4P2S). Total pack: 14S (~50V)
23Ah.
Note: Test flight was a half-pack (2P2S)
Result:
Falcon Propeller 34 x 10
Static-Thrust: 28kg
RPM: 4500
Amps: 122
Volts: 54.1
Watts: 6.6kW
KV: 83.2
MAGCAD 34.5 x 18 (3-blade)
Static-Thrust: 27.5kg
RPM: 4380
Amps: 140
Volts: 53.0
Watts: 7.4kW
KV: 82.6
AeroStar 33 x 12
Static-Thrust: 22kg
RPM: 4530
Amps: 107
Volts: 54.0
Watts: 5.8kW
KV: 83.9
Products Description
Company Profile
FAQ
1.Are you a manufacturer?
Yes, as the original factory supplier in mainland China, we are mainly engaged in the research and development and production of brushless motors, covering aeromodelling brushless motors, electric remote control scooter brushless motors, surfboard brushless motors, and logistics sorting equipment brushless motors. A company specializing in the production and processing of outer-rotating brushless motors, inner-rotating brushless motors, and peripheral accessories and hardware accessories.
2.How to order？
Step 1.please tell us product items and quantity you need.
Step 2.we will make a PI with shipping cost for your reference.
Step 3.payment can be arranged after we confirm everything in details.
Step 4.we will deliver the goods within stipulated time.
Step 2.we will make a PI with shipping cost for your reference.
Step 3.payment can be arranged after we confirm everything in details.
Step 4.we will deliver the goods within stipulated time.
3.What are the payment methods?
PayPal, T/T, Western Union, Moneygram, Escrow, etc. Beside, we accept Alibaba Trade Assurance, which can protect your payment if you will not get the goods, so you can just place order in Alibaba without any wories.
4.Do you provide OEM/ODM services?
Yes! Welcome to send us inquiries about OEM&ODM custom design.
