Product Description

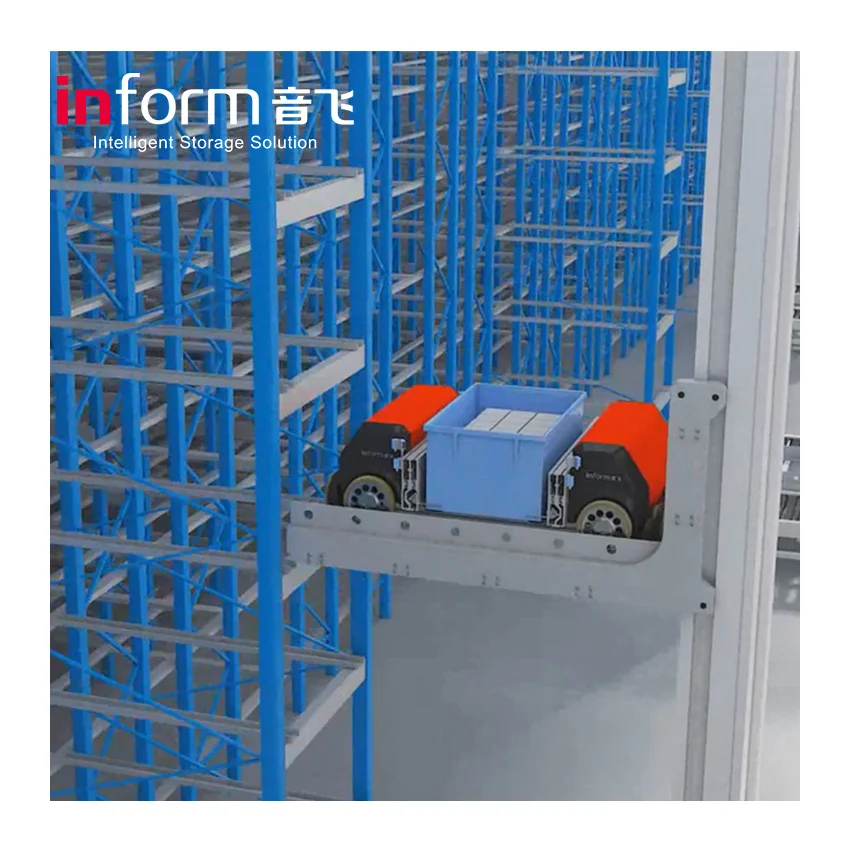

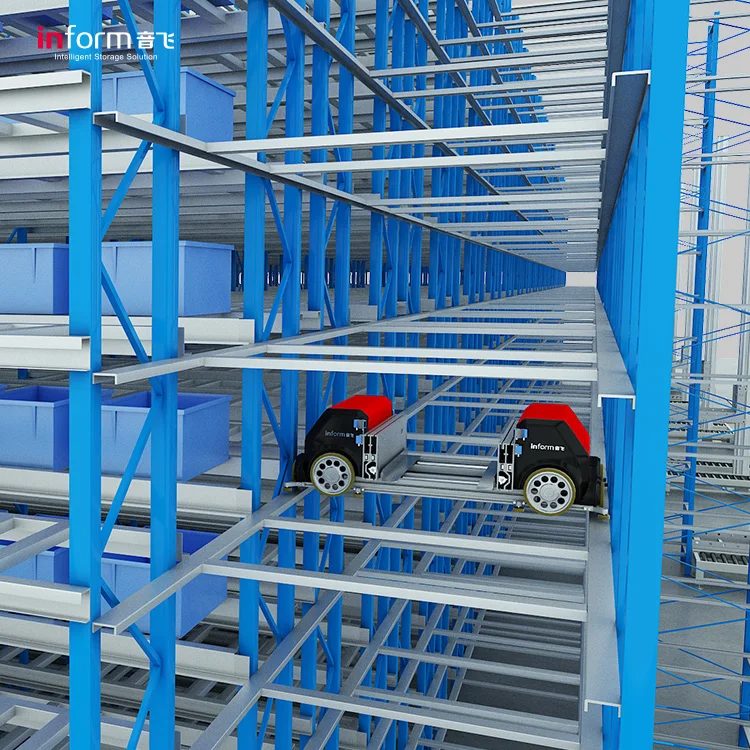

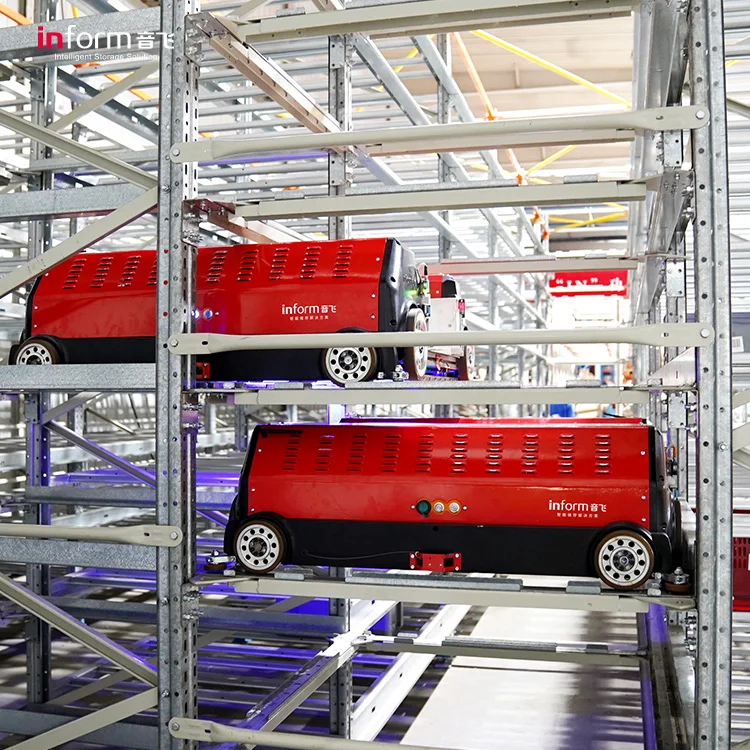

Four-way Multi Shuttle
Four-way Multi Shuttle is an intelligent handling equipment that is used for storing bins or cartons.This automatic storage solution performs well on bins and cartons storage. It is an efficient system that enables fast and accurate sorting and picking-up work,saving space and in flexibility.
Four-way Multi Shuttle automatic storage system especially suitable for E-commerce industry and Automobile industry.

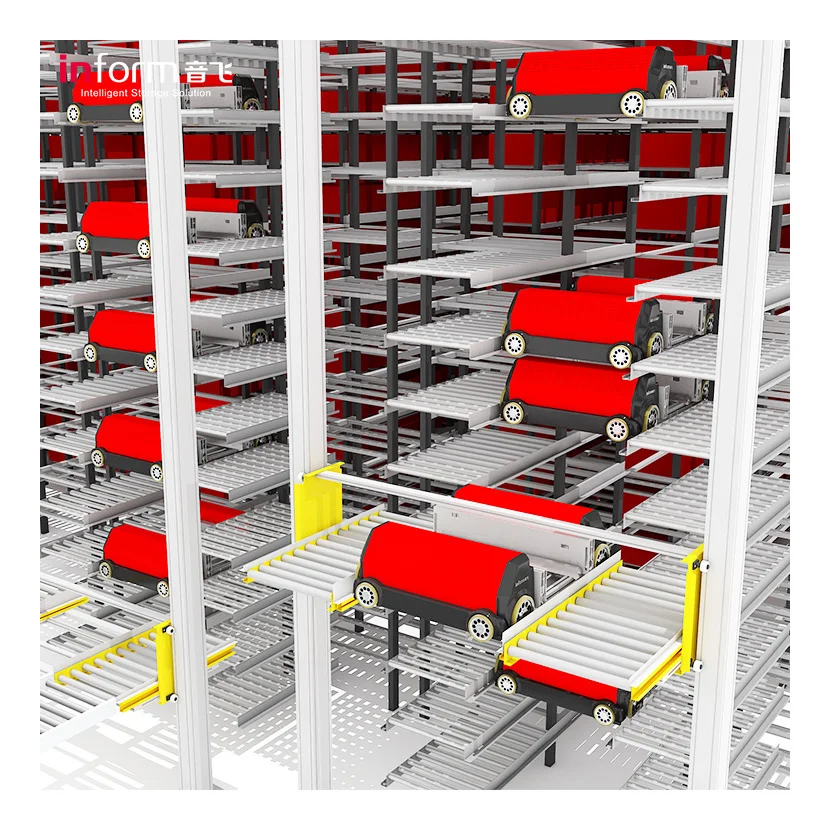

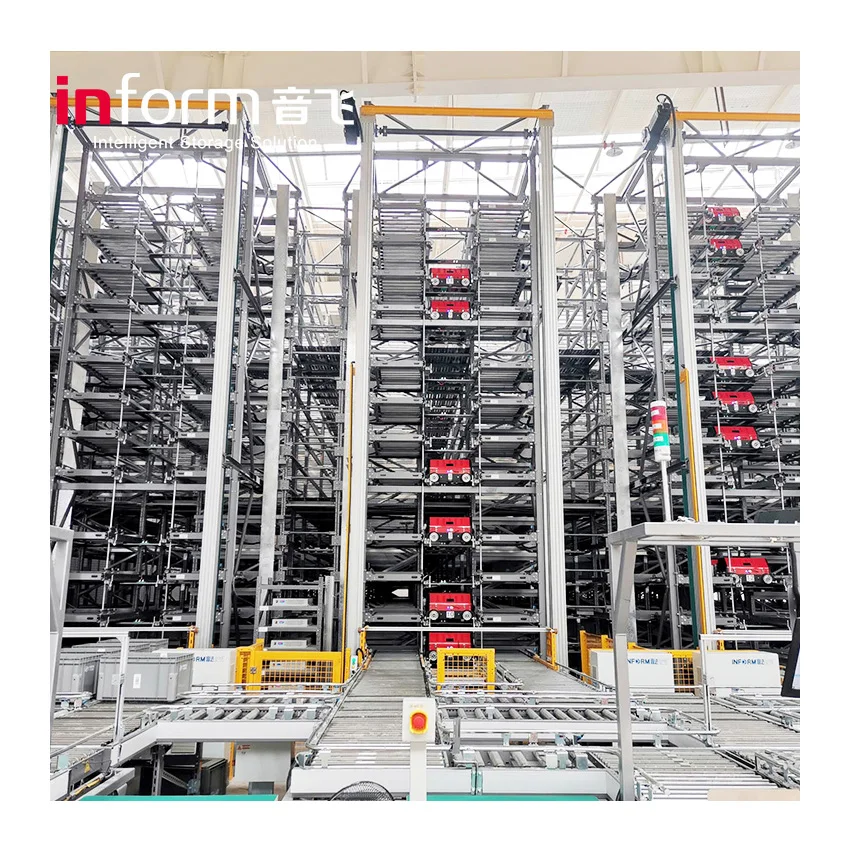

Inform four-way shuttle system consists of Multi-tier racking, Four-way Multi Shuttle, front Cache Conveyor, Lifter, Picking Station and Software System.




Features

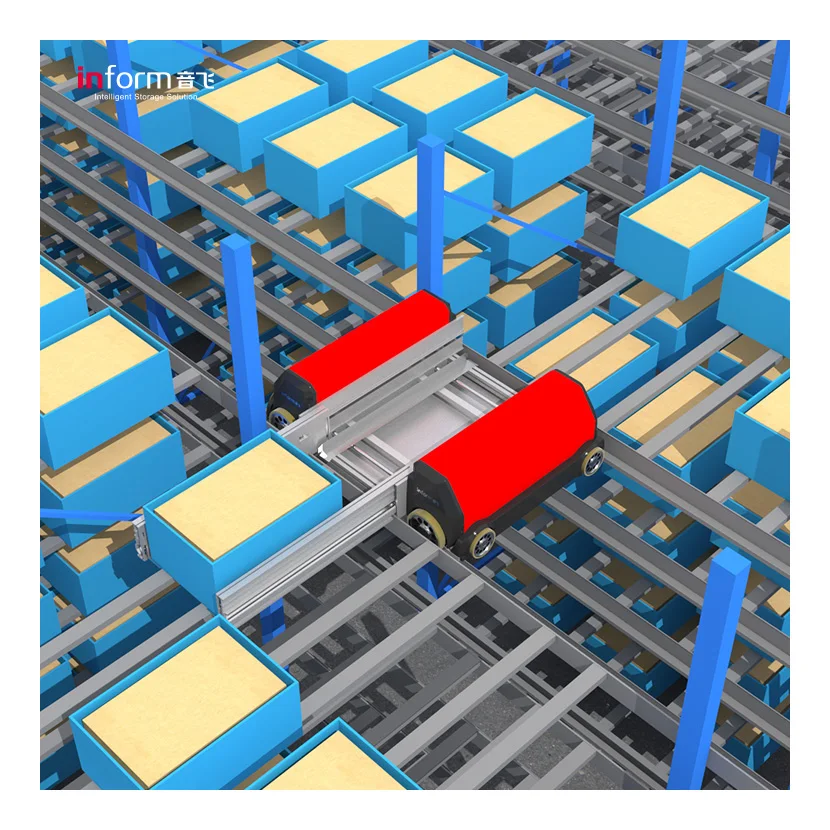

1.Four-way running.
2.Processing capacity 3-4 times than AS/RS.
3.Very suitable for small bins,cartons,tote storage,picking,replenishment work.
4.It is possible to flexibly add more shuttles at any stage and improve system throughput according to business needs.
5.An efficient solution for temporary storage and support operation on the side of production line.




Functions:


1
Automatic single inbound
Accepting instruction from host computer, automatically conveys box on inbound buffer area to specified position.
2
Automatic single outbound
Accepting instruction from host computer, conveys box on specified position to outbound end.
3
Automatic shifting
Accepting instruction from host computer, conveys box from one specified position to another.
4
Charging online
Multi-level power threshold control, self-judging and self-charging on line.
5
Self-learning function
Automatically measure, identify data of racking and pallet, and enter parameters independently.
6
Task management
Accept task instructions to resolve task path.
7
Remote function
It is capable of updating and downloading program remotely (In Wi-Fi Network).
8
System monitoring
Monitors system data in real time and alarm raised in sound and light in abnormal status.
9
Heartbeat check
Communicate to host computer control system in real time by heartbeat check, monitoring online status
10
Emergency Stop
Emergency signal sent remotely when emergency, and shuttle stops instantly until emergency lifted.
It is capable of guaranteeing device or goods stop safely in maximal deceleration when it executes this instruction.




What’s kind of goods suitable for Four-way Multi Shuttle Storage System ?


Goods package type:
Bins,cartons,tote etc.
Goods dimension(mm):
Width 200-600mm,Depth 200-800mm,Height 100-400mm
Good weight:
<=35kg
Operation height:
<=15m


TECHNICAL DATA
DATA
SINGLE DEEP FORK
DOUBLE DEEP FORK
IDENTIFICATION
Model
LFS.A-4630-S-S-S-SC-N
LFS.A-6830-S-S-S-SC-N
LFS.A-4630-D-S-S-SC-N
Pallet Dimensions
(F= forking side / D=depth)
mm
400 (F) x 600 (D)
x (200~400)(H)
600 (F) x 800 (D)
x (200~400)(H)
400 (F) x 600 (D)
x (200~400)(H)
Multiple Shuttles on the Same Floor
Option
Maximum Fork Range
mm
800
980
1400
Fork Positioning Accuracy
mm
±3
Power Supply
Super capacity
Command Mode
Wi-Fi / TCP-IP
Load Capability
kg
30
Temperature Range
℃
From -5 to +40
Humidity
≤90% （no condensation)
DIMENSIONS
Machine Length
mm
740
900
1140
Machine Width
mm
1256
1456
1256
Machine Hight
mm
357
Hoisting Stroke
mm
20
KG
Machine Weight
kg
145
168
184
SPEED
Max Unload Speed
m/min
240
Max Accerleration (Unload)
m/s²
2
Max Full-load Speed
m/min
240
Max Accerleration (Full-load)
m/s²
2
SENSOR
Electric Control
Singlechip Computer
Positioning Method
Photoelectricity and Encoder
Positioning Accuracy
mm
±3




Design,Test &Warranty
Design
Free design could be provided with the following information.
Warehouse storage area Length____mm x Width____mm x Clear height___mm.
Warehouse’s door position for loading and unloading goods.
Bins/cartons Length____mm x Width____mm x Height___mm x Weight_____kg.
Warehouse Temperature_____Degrees Celsius
Inbound and outbound efficiency: Quantity of bins/cartons per hour_____.
Test
Four-way Multi Shuttle will be tested before delivery. Engineer will test the whole system on-site or online.
Warranty
Warranty is one year. Fast response within 24 hours for overseas customer. Firstly test online and adjust ,if couldn’t repair online , engineer will go and solve the problems on site. Free spare parts will be supplied during the warranty time.






Why Choose Us




Company Profile










Exhibition






FAQ




Q1: What’s your trading terms?
1) Payment terms: As general, T/T 30% deposit after order confirmed, 70%
balance paid against BL. L/C also available.
2) Shipping port: Shanghai / Nanjing port China.
3) Discounts: we will offer the biggest discount for large quantity.
Q2: Are you a factory or trading company?
A:We are factory and have 5 factories.We’ve been in the market of logistic
storage solutionssince 1997.We design,manufacture racking and assemble
shuttle, four-way shuttle etc by ourselves.
Q3: Do you have OEM products to sell?
A:Yes.Both OEM and ODM are available .
Q4:Do you have the minimum order requirements?
A:Any quantity and customized design is acceptable.
Q5:Are samples available?
A:Yes. Short sections of samples can be provided for free, but the international
transportation will be at the customers’ expense.
Q6:What’s the delivery time?
A:It depends on the order quantity and racking types. Generally speaking, for
the standard pallet racking, it will be within 20days.
