Гибкий двойной рубашкой подводных роботов rov специальный кабель экспорт РВВ 10 Sqmm проволока 3 1.5Mm2 гибкий с ПВХ
- Категория: Power Cables >>>
- Поставщик: Guangzhou,Chengjia,Wire&Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.95 $* | 5.79 $* |
| Aug-18-2025 | 5.31 $* | 5.47 $* |
| Jul-18-2025 | 4.54 $* | 4.73 $* |
| Jun-18-2025 | 5.5 $* | 5.46 $* |
| May-18-2025 | 4.99 $* | 4.16 $* |
| Apr-18-2025 | 5.72 $* | 5.45 $* |
| Mar-18-2025 | 5.91 $* | 5.24 $* |
| Feb-18-2025 | 4.1 $* | 4.33 $* |
| Jan-18-2025 | 4.85 $* | 4.6 $* |
Характеристики
YY1007 4X4 (12AWG)Industrial Series Flexible Cable Flexible Tray Cables and Wires PVC Insulated Flexible Control Torsion Cable
Products Description
Applicable to various non-standard intelligent equipment such as machine tools, industrial wood machinery, mask machines, manipulators, non-standard automation, laser equipment, stamping lines, robots, dispensers, etc.
Withstand long-term acceleration, deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.
Withstand long-term acceleration, deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.
Product Feature
Technical Parameter
Conductor stranding | Stranding of multiple ultra-fine copper wires meets the standard of VDE0295, category 6, column 4 | ||||||
Insulation resistance | minimum 20 M Ohm x Km | ||||||
Insulation material | Modified PVC | ||||||
Temperature range: | Mobile installation -5°C to +70°c Fixed installation -15°C to +80°c | ||||||
Core recognition | Color core | ||||||
Outer sheath | Modified PVC mate | ||||||
Color | black (other colors can be customized) | ||||||
Bending radius | Mobile installation 6×cable diameter Fixed installation 4x cable diameter | ||||||
Nominal voltage | Uo/U 300/500 V | ||||||
Test voltage | 2000 V | ||||||
Application: | It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields. | ||||||

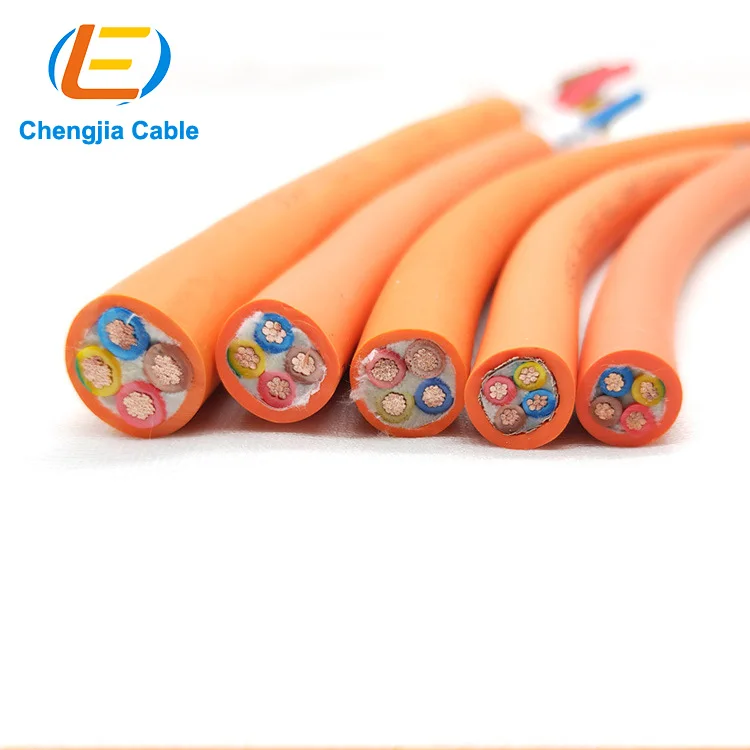

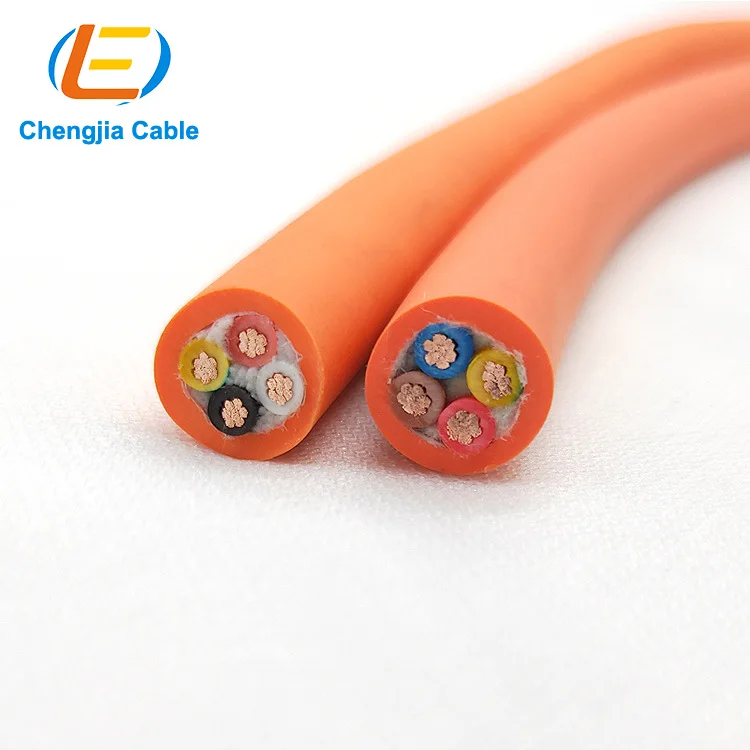

Cable Structure

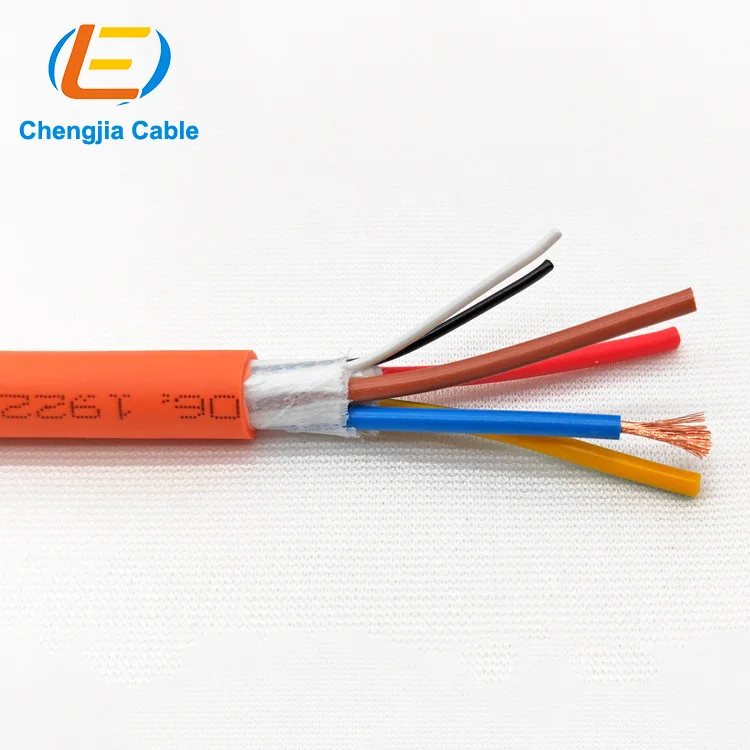

Power Cable Structure
1. Bare copper conductor, ultra-fine copper wire
Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core is stranded in layers with the best pitch
5. With yellow and green grounding wire (3 cores and above)
6. Special PVC outer sheath
7. Orange (RAL 2003) matte
Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core is stranded in layers with the best pitch
5. With yellow and green grounding wire (3 cores and above)
6. Special PVC outer sheath
7. Orange (RAL 2003) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km | |||||
1 | YY1007.02.0050 | 2x0.5 | 6 | Orange | 39 | |||||
2 | YY1007.04.0050 | 4G0.5 | 7 | Orange | 39 | |||||
3 | YY1007.04.0075 | 4G0.75 | 7.8 | Orange | 26 | |||||
4 | YY1007.04.0100 | 4G1.0 | 8.5 | Orange | 19.5 | |||||
5 | YY1007.04.0150 | 4G1.5 | 9.6 | Orange | 13.3 | |||||
6 | YY1007.04.0250 | 4G2.5 | 11.6 | Orange | 7.98 | |||||
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters | ||||||||||
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
