IPX201 наружное использование IP65 Водонепроницаемый 30 Вт гигабитный удлинитель
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Hi-Net,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 42.74 $* | 43.84 $* |
| Jul-18-2025 | 34.50 $* | 35.50 $* |
| Jun-18-2025 | 41.71 $* | 42.91 $* |
| May-18-2025 | 41.69 $* | 42.40 $* |
| Apr-18-2025 | 33.36 $* | 34.72 $* |
| Mar-18-2025 | 40.3 $* | 41.32 $* |
| Feb-18-2025 | 40.95 $* | 41.94 $* |
| Jan-18-2025 | 40.22 $* | 41.92 $* |
Характеристики
Recommend Products
Detailed Image
Product Description
IPX201 outdoor use IP65 waterproof 30W gigabit PoE extender
Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.

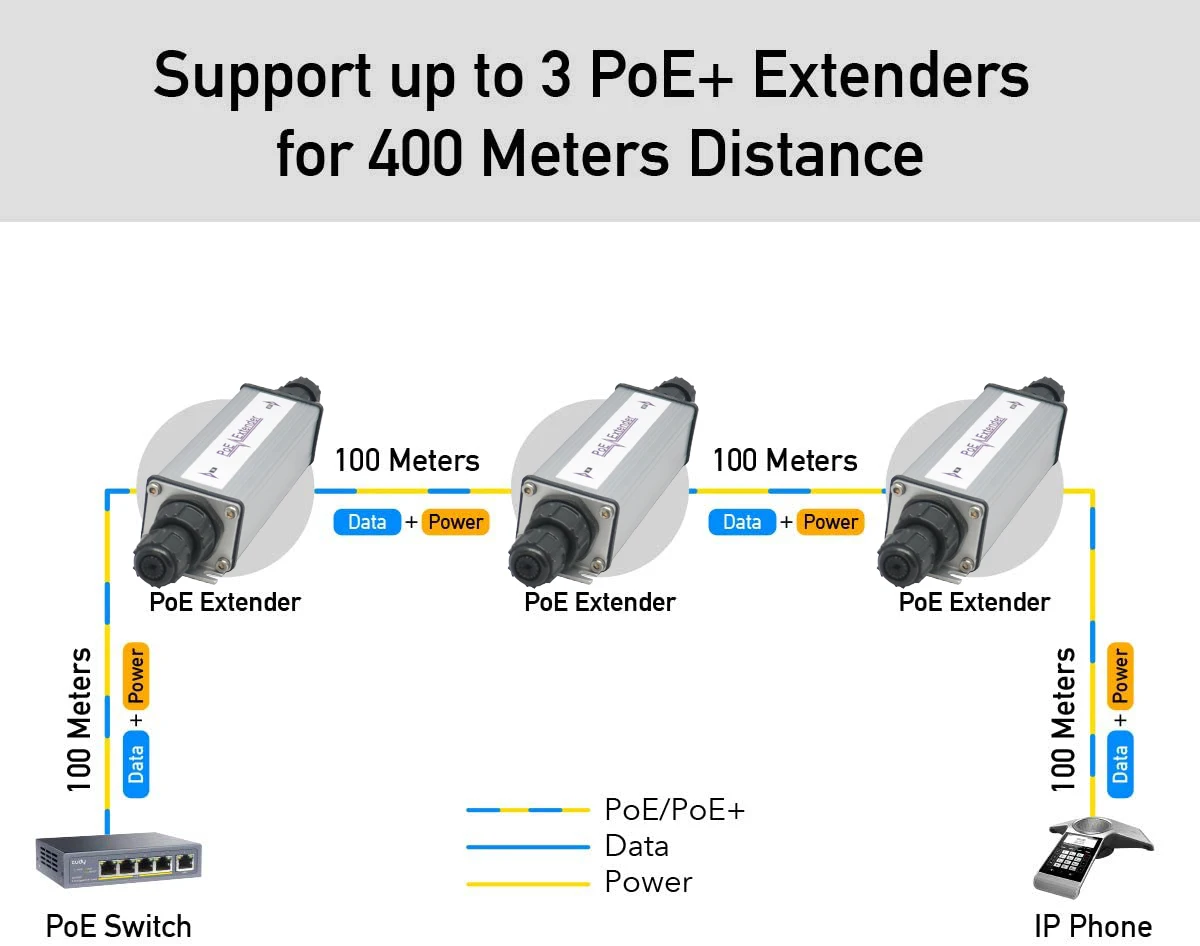

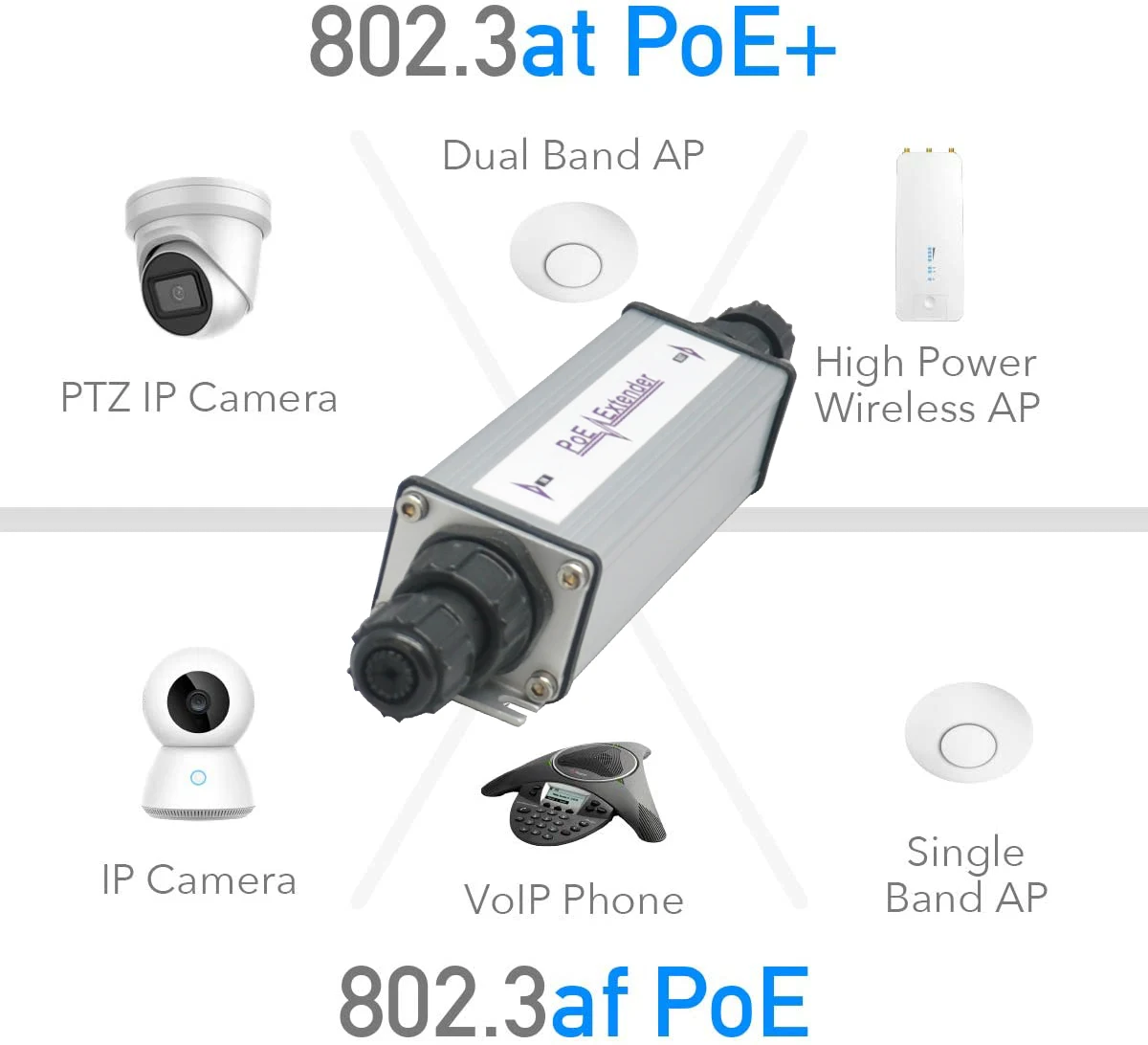

With PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater distances, depending on PDs power required and power source.
PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which simplifies installation. PoE Extender offers two Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained.
Product Features:
• Compatible with IEEE802.3af and IEEE802.3at

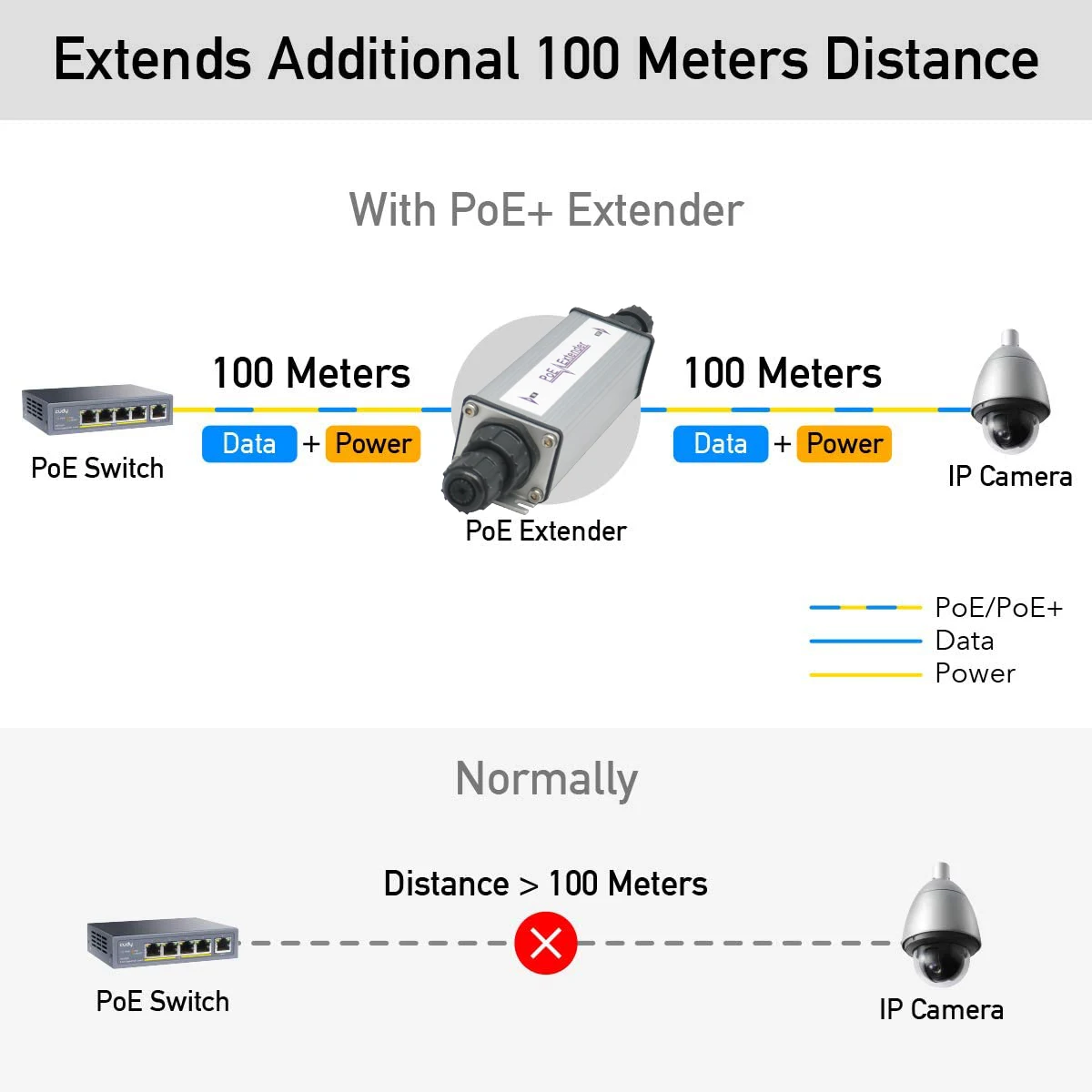

• Extends the range of PoE and Ethernet an additional 100 meters
• No additional power supply is required
• Automatically detects and protects PoE equipments from being damaged by incorrect installation
• Full-rate network throughout the whole extended distance
• Compact size, Wall-Mountable design
• Easy plug-and-play installation
• IP65 aluminum case
• Operating Ambient Temperature:-40 to 75℃
Product Specifications:
Item | Description |
No. of channels | 1 |
Pass Through Data Rates | 10/100/1000 Mbps half/full duplex |
Power over Ethernet input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
Power over Ethernet Output | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W |
Connectors | Shielded RJ-45, EIA 568A and 568B |
Network cables | Shielded category 5 (or higher) |
Dimensions | 140mm x 40mm x 30mm |
Mounting | Wall of shelf |
Environment | Outdoor IP65 |
Environmental Conditions | Operating Ambient Temperature:-40 to 75℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-40 to 75℃ Storage Humidity: Maximum 95%, Non-condensing |
Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC |
Electromagnetic | FCC Part15, Class B |
Gigabit Speed
The PoE Extender features one 10/100/1000Mbps PoE+ input port and one 10/100/1000Mbps PoE+ output port.
Wall Mount Design
The wall-mounted design is convenient for network deployment, allowing the expander to be installed in any position, and ensuring stability and avoiding damage

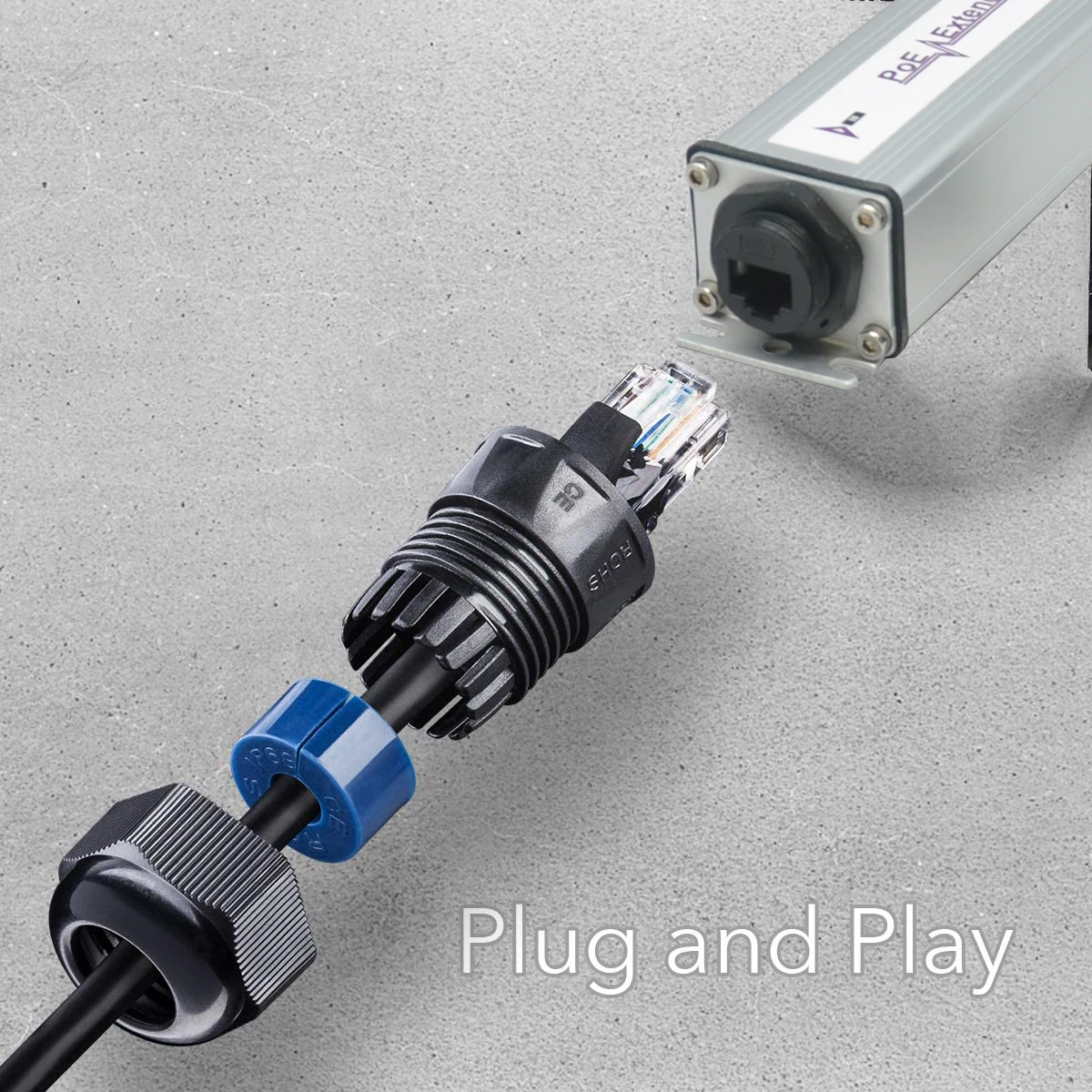

Plug and Play
Plug and Play, no other settings required. No external power required. Pin Assignment and Polarity Input:both 1/2(-), 3/6(+) and 4/5(+), 7/8(-), Output: 1/2 (+), 3/6 (-).
Our Company
Certifications
Packing & Delivery
Q1 : Are you a Factory or trading company?
Answer : We are a factory which have been this area for more than 10years.
Q2 : Do you offer the samples for testing?
Answer : Yes, sure.
Q3 : What's your MOQ?
Answer : No MOQ requirements.
Q4 : OEM and ODM are available?
Answer : Yes, definitelly, we have an engineers team which is more than 10people.
Q5 : What is our warranty service?
Answer: 2Years.
Q6 : What's your lead time?
Answer: Normal order takes about 30-35days, OEM depends.
Q7 : What's your payment item?
Answer : Usually TT in advance, other payment terms is also acceptable depends on quantity of customers' orders.
