Dongfeng очистки илососная машина 11m3 пыли вакуумный сточных вод сосать
- Категория: Sewage Suction Trucks >>>
- Поставщик: Shenzhen,Aowu,Trading,Co,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.9 $* |
| Aug-19-2025 | 0.14 $* | 0.62 $* |
| Jul-19-2025 | 0.91 $* | 0.68 $* |
| Jun-19-2025 | 0.67 $* | 0.88 $* |
| May-19-2025 | 0.90 $* | 0.45 $* |
| Apr-19-2025 | 0.82 $* | 0.15 $* |
| Mar-19-2025 | 0.92 $* | 0.90 $* |
| Feb-19-2025 | 0.63 $* | 0.74 $* |
| Jan-19-2025 | 0.45 $* | 0.46 $* |
Характеристики

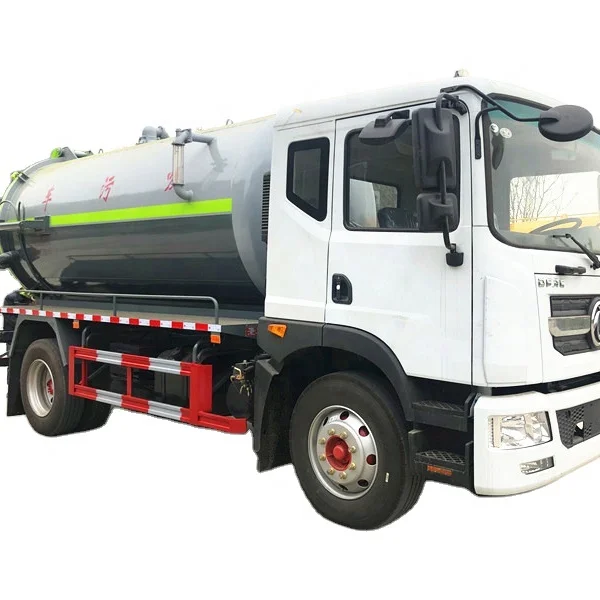

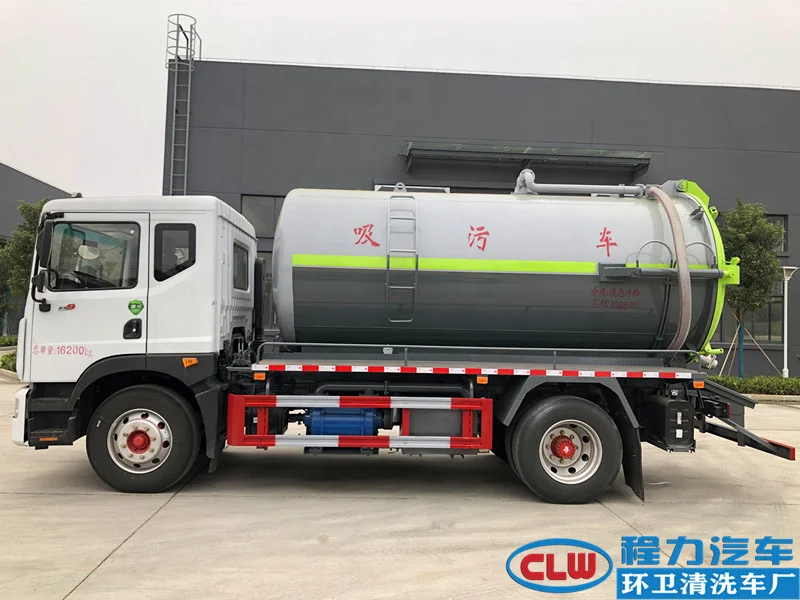

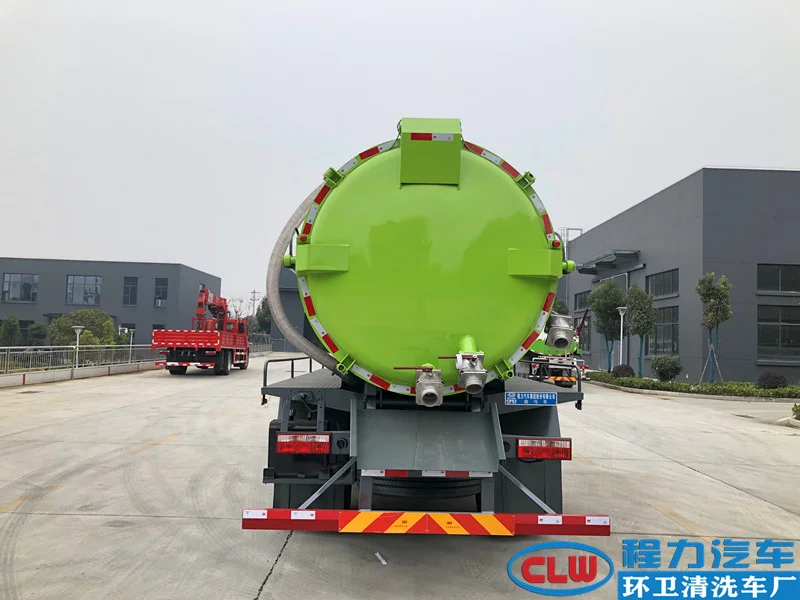

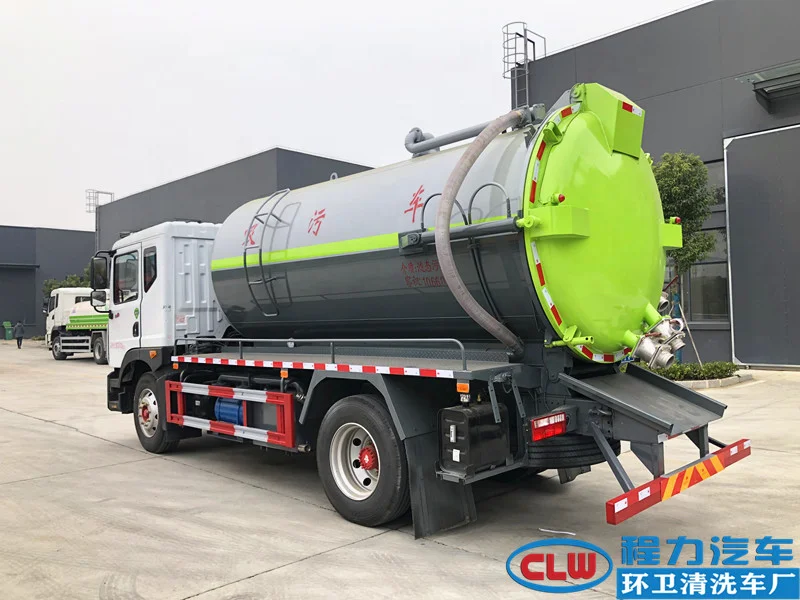

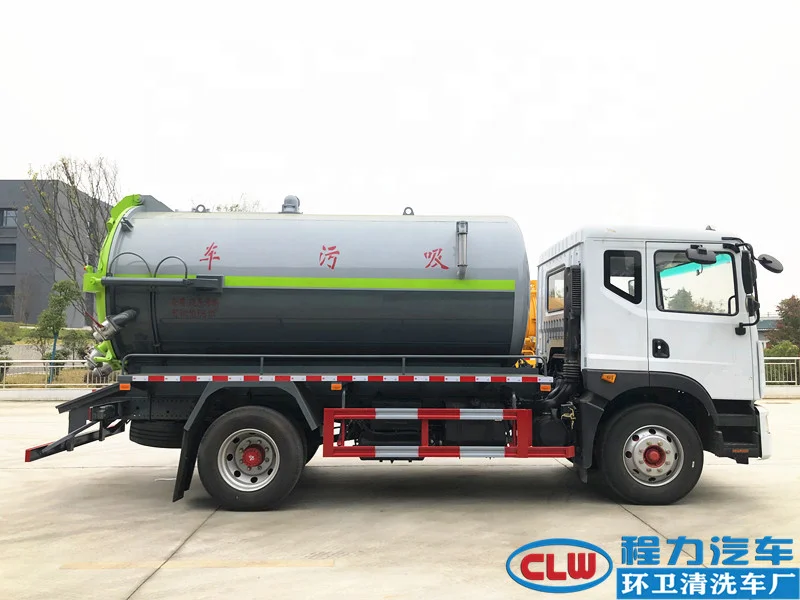

Dongfeng Dolica 11.5 square cleaning sewage suction truck
Vehicle performance characteristics：
Upper configuration：
1.The volume of the sewage tank is about 11.58 cubic meters. It is made of high-quality steel plate of WISCO, with a wall thickness of 6mm. The middle of the tank body is reasonably designed with anti wave plates, and the front and rear are high-strength arc heads.
2. Install Shandong Zibo Haosai sk-15 water circulating pump (there is no drip at both ends of the pump head) and double stainless steel filter screen at the pump inlet.
3. The vacuum pipe is equipped with stainless steel filter screen (to prevent impurities from entering the pump)
4. The suction four way valve position is equipped with an earthquake resistant pressure gauge with a diameter of 100mm, which can resist the vibration of working environment and reduce the pulsating effect of medium pressure.
5, A 100mm diameter sewage suction port, a 100mm diameter sewage discharge port and a 100mm diameter clean water valve.
6. The tank body is equipped with lifting and self unloading function, and the rear door of the tail can be opened hydraulically with locking device.
Upper configuration：
1.The volume of the sewage tank is about 11.58 cubic meters. It is made of high-quality steel plate of WISCO, with a wall thickness of 6mm. The middle of the tank body is reasonably designed with anti wave plates, and the front and rear are high-strength arc heads.
2. Install Shandong Zibo Haosai sk-15 water circulating pump (there is no drip at both ends of the pump head) and double stainless steel filter screen at the pump inlet.
3. The vacuum pipe is equipped with stainless steel filter screen (to prevent impurities from entering the pump)
4. The suction four way valve position is equipped with an earthquake resistant pressure gauge with a diameter of 100mm, which can resist the vibration of working environment and reduce the pulsating effect of medium pressure.
5, A 100mm diameter sewage suction port, a 100mm diameter sewage discharge port and a 100mm diameter clean water valve.
6. The tank body is equipped with lifting and self unloading function, and the rear door of the tail can be opened hydraulically with locking device.
Vehicle Model | CL5160GXW6HQ Sewage suction truck | Brand | CLW | ||
Weight(Kg) | 16200 | Tank volume (m3) | 11.5 | ||
Rated load mass (Kg) | 8125,8190 | Overall size(mm) | 7480×2500×3450 | ||
Curb weight (Kg) | 7880 | Cargo size(mm) | ×× | ||
Number of axes | 2 | Wheelbase (mm) | 3950,4500,4700,5000,5300,5600 | ||
Chassis Model | EQ1165LJ9CDE | Chassis name | Truck chassis (Class II) | ||
Oveall size(mm) | 7020,7880,8080,8380,8857,9707×2380,2425,2490×2845,3225 | Number of Tyre | 6 | ||
Fuel Type | diesel oil | Tire specification | 9.00R20 16PR,10.00R20 18PR,295/80R22.5 18PR,275/80R22.5 18PR | ||
Emission standard | GB3847-2005,GB17691-2018 National III standards | ||||
Engine Modle | Engine manufacturer | Output volume(ml) | Power(Kw) | ||
YCS04200-68 B6.2NS6B230 | Guangxi Yuchai Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd | 4156 6200 | 147 169 | ||
