Регулируемый генератор сигналов 0-10 В 0-5 напряжения Высокоточный

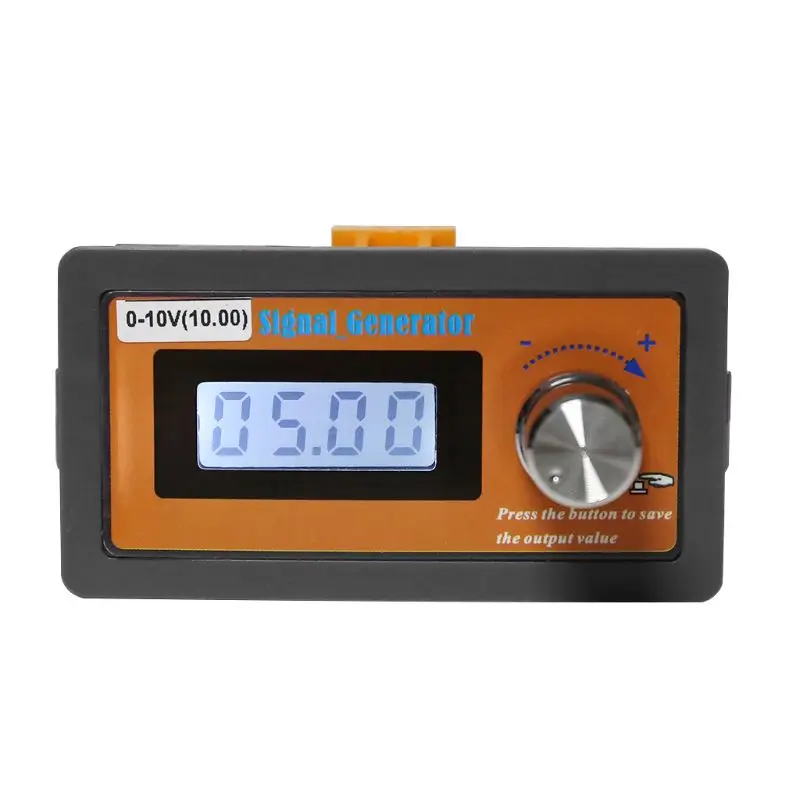

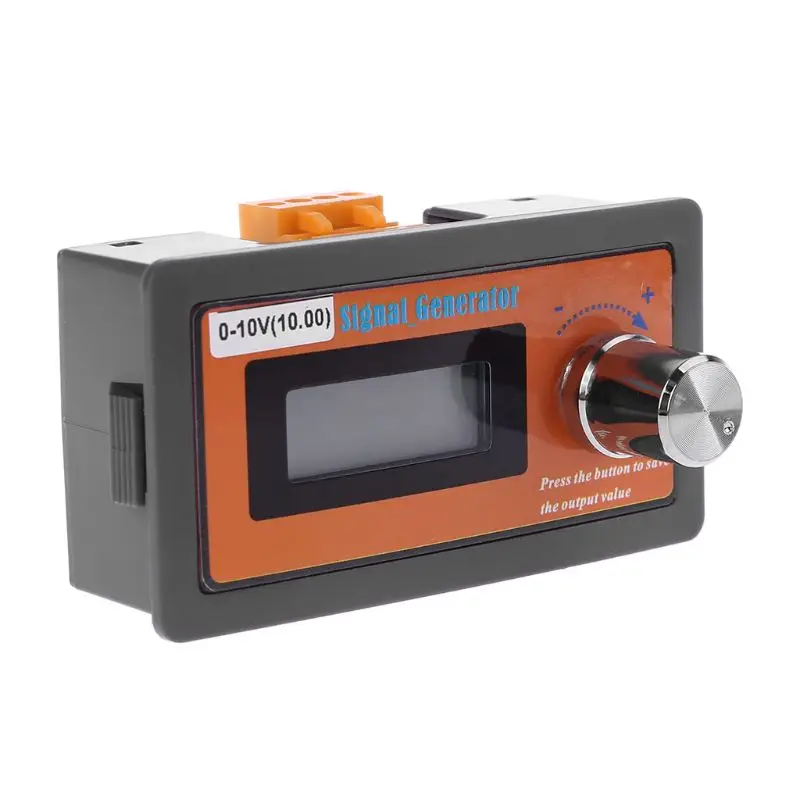

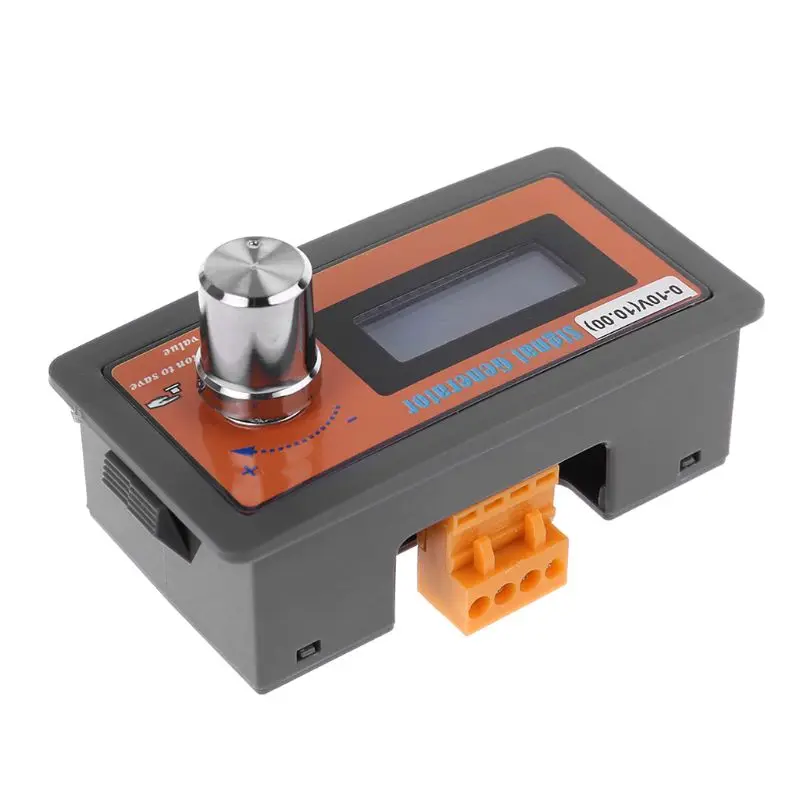

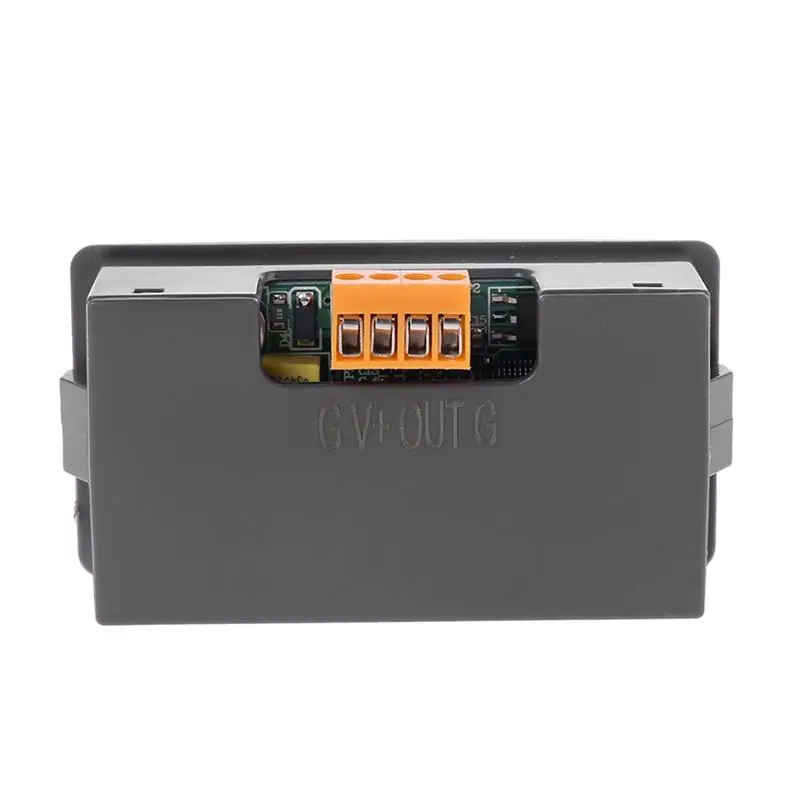

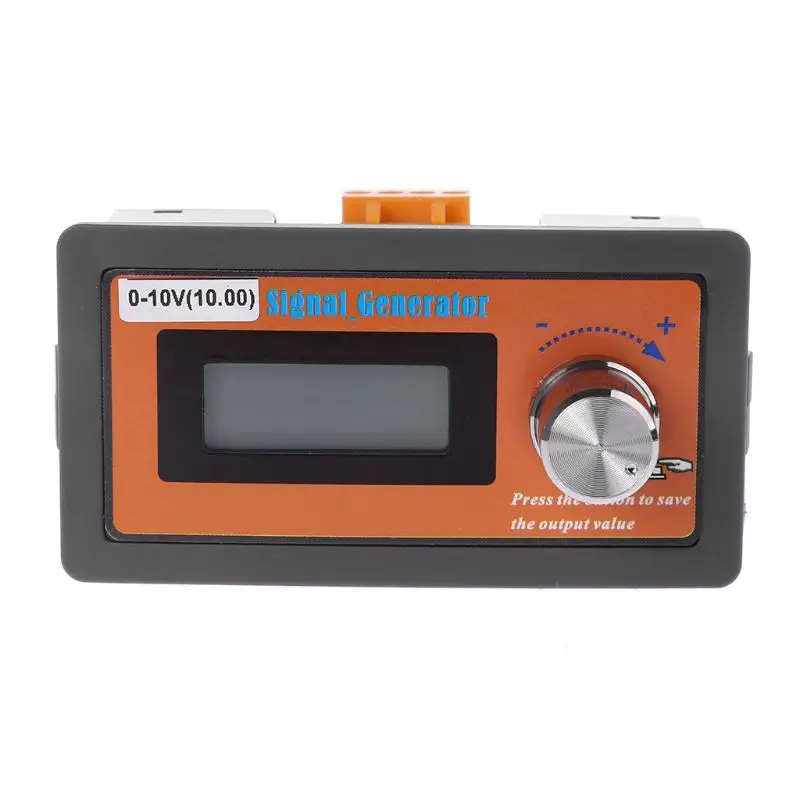

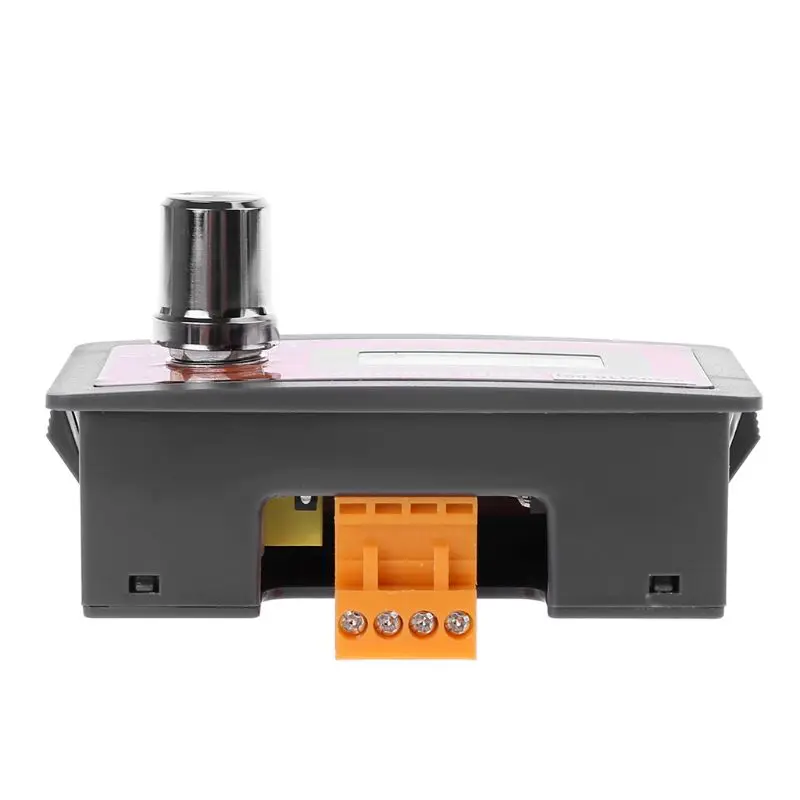

0-10V 0-5V Adjustable Signal Generator Voltage Generator High Precision LCD Display

Features
- Adjustable analog 0-10V adjustable output
- Voltage value display
- Display accuracy (Adjustment): 0.1 (Fine adjustment) or 1.0 (Rough adjustment).
- Have power supply reverse polarity and output short-circuit protection.
- Encoder adjustment, can be manual adjustment or automatic programmable output: dynamic output continuous curve.
-The power supply has reverse connection protection and the output is short-circuit protected;
-4-digit, liquid crystal display (with backlight);

Technical indicators
Mounting panel / chassis opening size: 77 * 40mm;
Power supply: DC 7V-28V (power supply must be 2V larger than the output, for example, 0-10V output, more than 12V power supply);
Display adjustment accuracy: according to the displayed value, the lowest 1 ‰ (5V accuracy 0.005V);
The actual accuracy is ±0.02V (compared to the multimeter error);
Output maximum current 200mA;

Note:Provide a detailed PDF version of the English manual. Please contact us if you need.

Package include:
1pc Digital 0-10V Signal Generator
