Straw Making Machines
Машина для производства пластикового экструдера соломенной

Машина для производства пластикового экструдера соломенной

Категория: Straw Making Machines >>>
Поставщик: Suzhou,Deedo,Machinery,Co.,Ltd.

Цена:10 900,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	12971.66 $*	13620.65 $*
Aug-16-2025	12862.8 $*	13505.46 $*
Jul-16-2025	10791.19 $*	11331.55 $*
Jun-16-2025	12644.55 $*	13276.29 $*
May-16-2025	11009.14 $*	11559.21 $*
Apr-16-2025	12426.94 $*	13047.84 $*
Mar-16-2025	12317.36 $*	12933.96 $*
Feb-16-2025	12208.35 $*	12818.44 $*
Jan-16-2025	12099.1 $*	12704.8 $*

Характеристики

Products Description

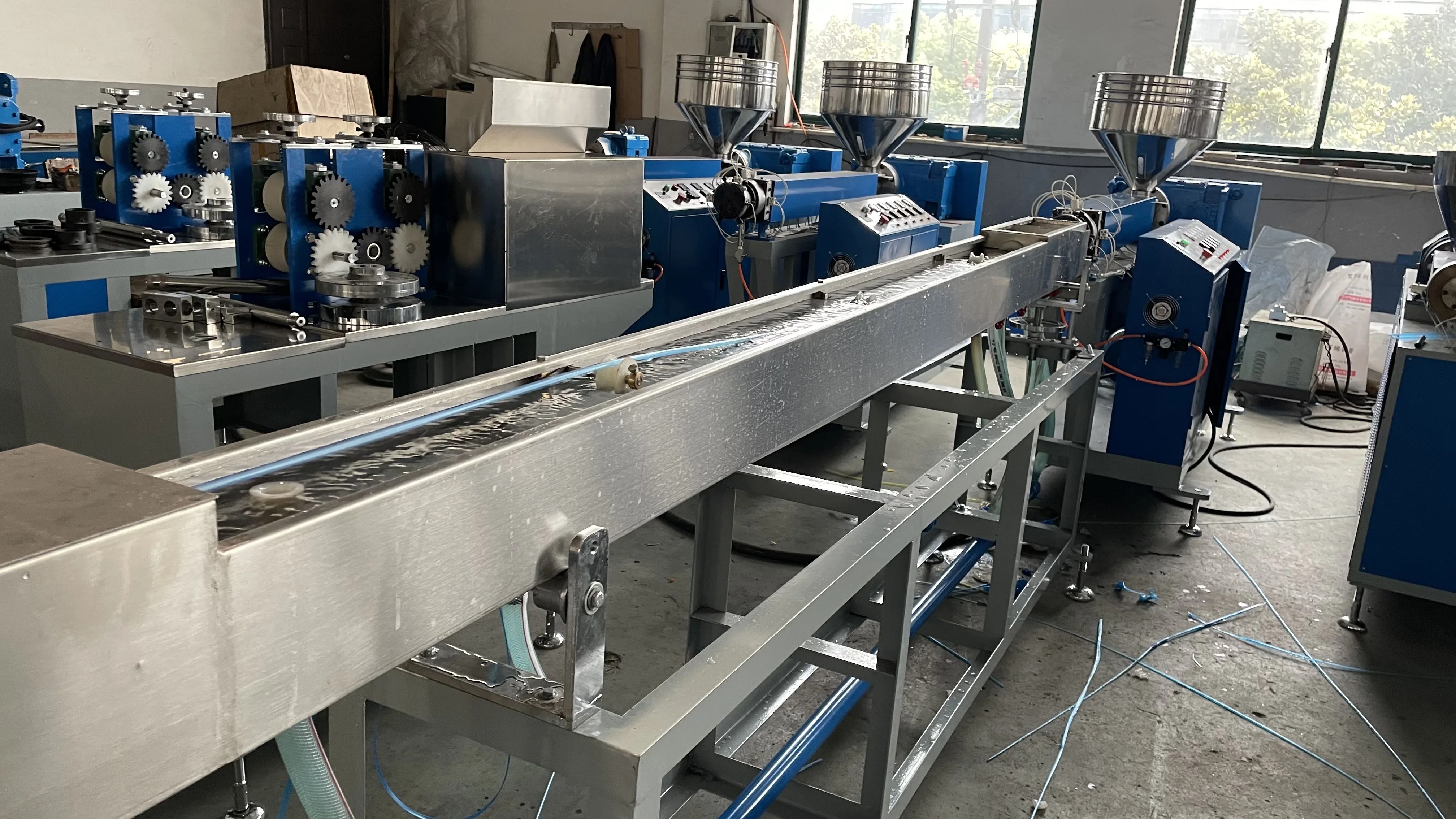

Lollipop straw Stick extrusion line/making machine /production line
1、Deedo brand series machine is composed of extruder, 2 sets of standard mould,cooling unit ,hauling and rotary cutting device(double frequency conversion speed regulator)

2、Specification of screw of extruder : Diameter is 50 MM(important parts such as screw and cylinder adopts superior alloy steel with nitrogen treatment).
3、 Material : 38CrMoAIA (nitrogen treatment ,depth 0.2-0.7 meters)
4、 Diameter of Sub-screw ： 25MM ,Aspect ratio:20:1

Details Images

Main extruder

Die mould

Die mould and heating ring

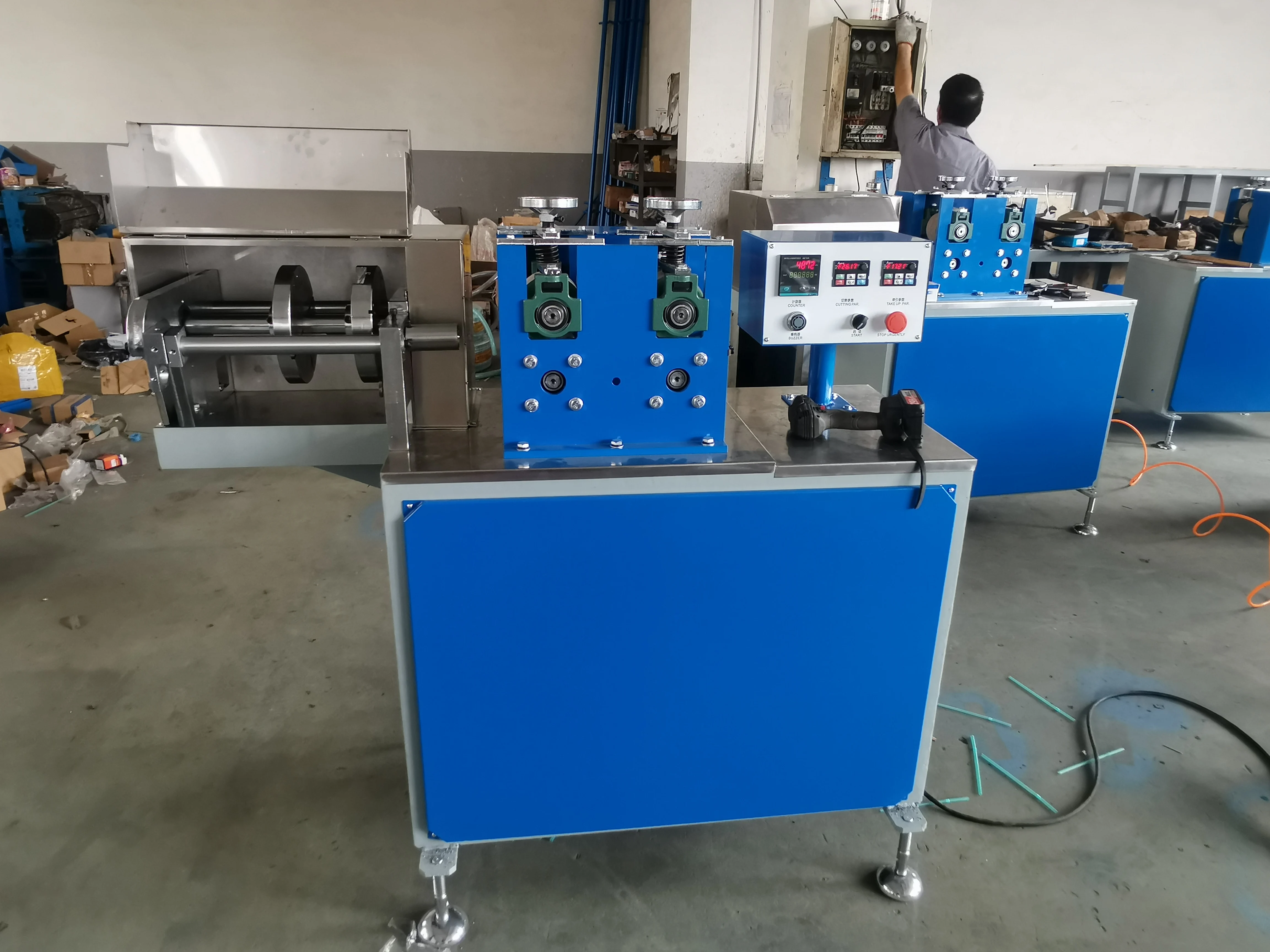

Haul-off and cutter machine

Water cooling tank

Cutter and blades

Gear box

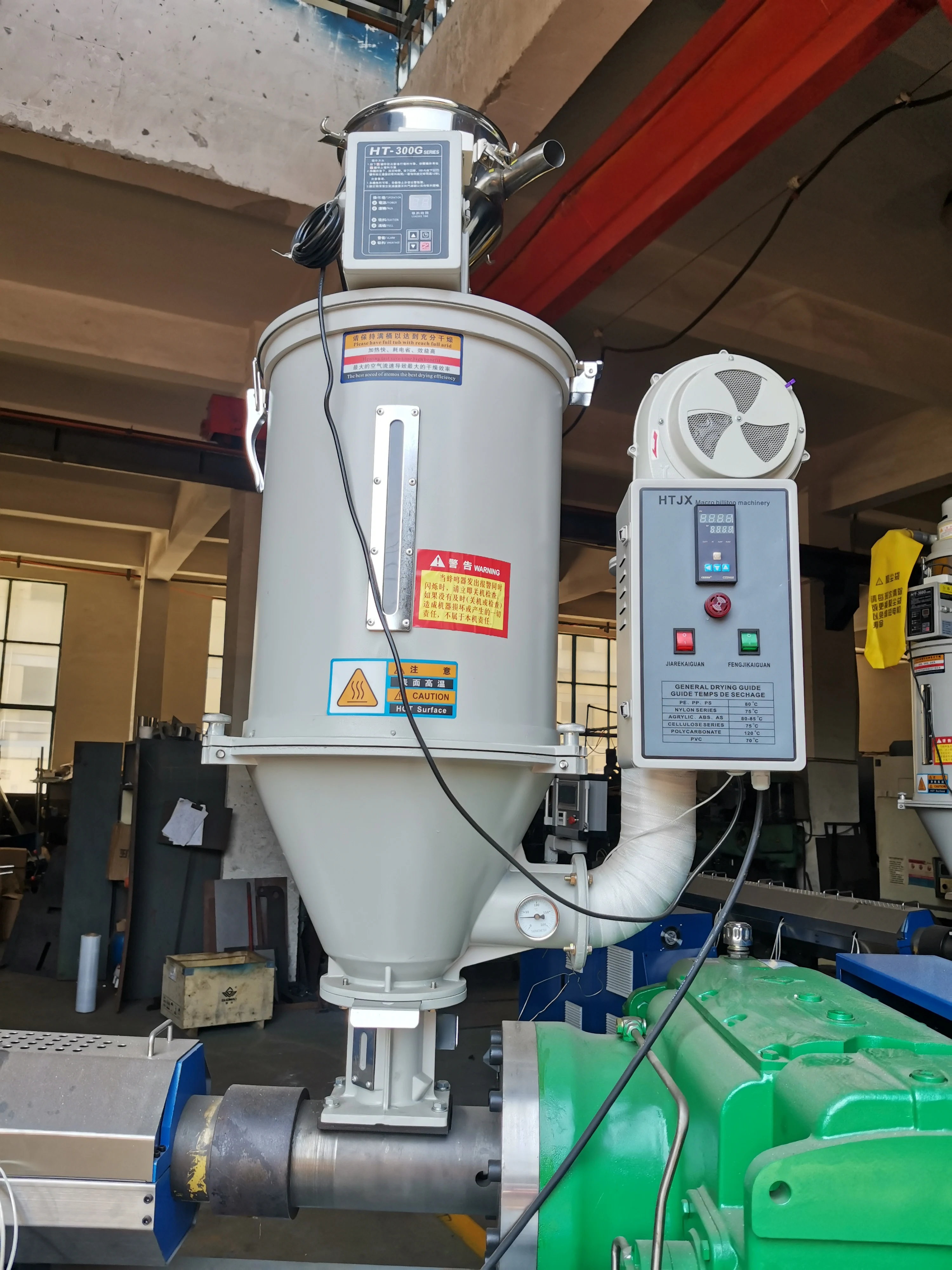

Feeding hopper

Main Features

Plastic Stick extrusion machine
Name	SJ50 Plastic Stick extrusion machine
Model		SJ50	SJ50/25	SJ50/25/25
Description	1. Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor, hauling cutting system, single color, bicolor or tricolor pipes can be realized.
		2. Main screw diameter: 50mm, important parts such as screw and cylinder adopts superior alloy steel with nitrogen treatment, 38CrMoAlA (nitrogen treatment, depth 0.2~0.7mm)
		3. Aspect ratio: 28:1
		4. Diameter of sub-screw:25mm, Aspect ratio: 20:1
		5. Extruding power: 11kw (frequency conversion control)
		6. The die undergoes nitride hardening treatment for a long service time
		7. The water tank and the surface of cutting machine are made of 304 stainless steel
		8. The main extruder’s screw designed to suit plastic material specified. Tube dies head assembly manufactured in tool steel.
		9. All the electrical parts use SCHNEIDER or SIEMENS or Delta
Power Supply	Main screw	380v ,3phase,50hz,7.5kw(VFD)
		Sub-screw	/	0.75kw	0.75×2kw
		Heating	7kw	9.56kw	12kw
		Hauling motor	0.75kw(VFD)
		Cutting motor	0.75kw(VFD)
		Total power	16.5kw	20kw	22.5kw
Temperature Controller			5 sets	8 sets	11 sets
Electric control cabinet			1 set	1 set	1 set
Automatic Counting Device			1 set	1 set	1 set
Way of Hauling			By rubber roller
Way of cutting			Rotatory cutting length range 50-300mm
Cooling water tank	Usually 4.4m, can be adjusted up&down, right &left, forward&backward. Made of superior stainless teel
Option	Vacuum pump (0.75kw)			Air compressor (2kw)
Sticks Sepc	Material	PLA PP PE etc
		Stick Diameter	2mm~13mm can be custiomized for special requirement
		Stick Length	Customizable
		Speed	600~1000pcs/min (product rate : 20kg/h-30kg/h
		Color	Single	Two colors	Three colors
		Straight or spiral	√	√	√
		Cutting End	90°/90°,90°/45°,90°/60°,45°/45°,60°/60
Dimension	LWH	8m1m1.7m	8m1.5m1.7m	8m2m1.7m
Weight			1500kg	1700kg	2000kg

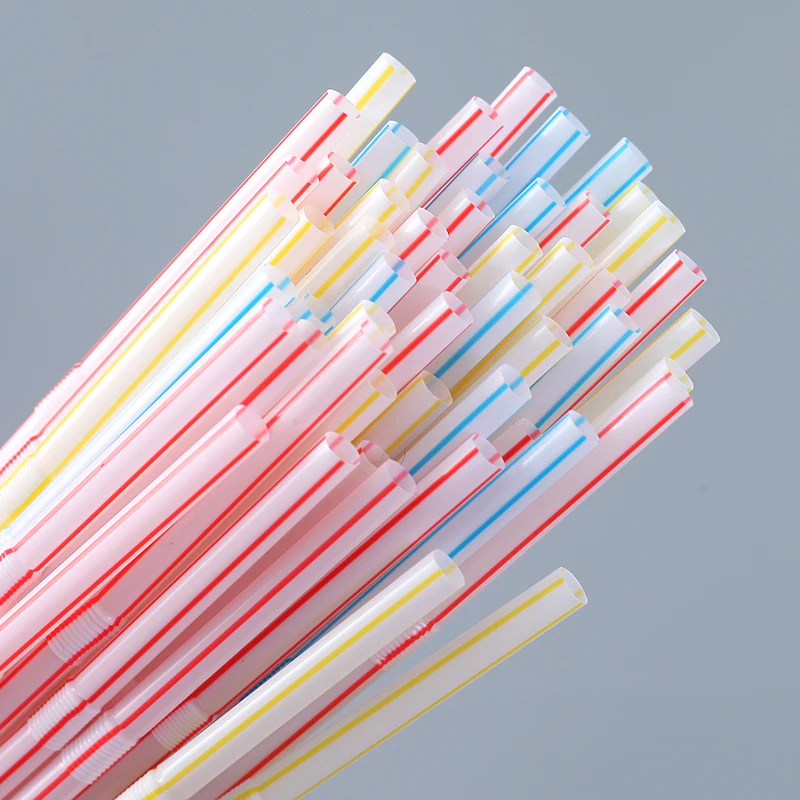

Final Product

Certifications

Software patent certificate

patent certificate

Company Profile

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine

4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
