Открытое море HDPE плавающая клетка культура лосось рыба
- Категория: Aquaculture Equipment >>>
- Поставщик: Henan,Hesu,Group,Co.,Ltd.Henan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 31.46 $* | 33.42 $* |
| Aug-19-2025 | 31.30 $* | 33.59 $* |
| Jul-19-2025 | 26.11 $* | 27.64 $* |
| Jun-19-2025 | 30.44 $* | 32.38 $* |
| May-19-2025 | 26.64 $* | 27.98 $* |
| Apr-19-2025 | 30.33 $* | 32.36 $* |
| Mar-19-2025 | 29.98 $* | 30.86 $* |
| Feb-19-2025 | 29.12 $* | 30.88 $* |
| Jan-19-2025 | 29.2 $* | 30.6 $* |
Характеристики
Welcome to HESU HOME
Professional HDPE pipe/ PVC pipe manufacture
we are sincerely recruit agents from all over the world.

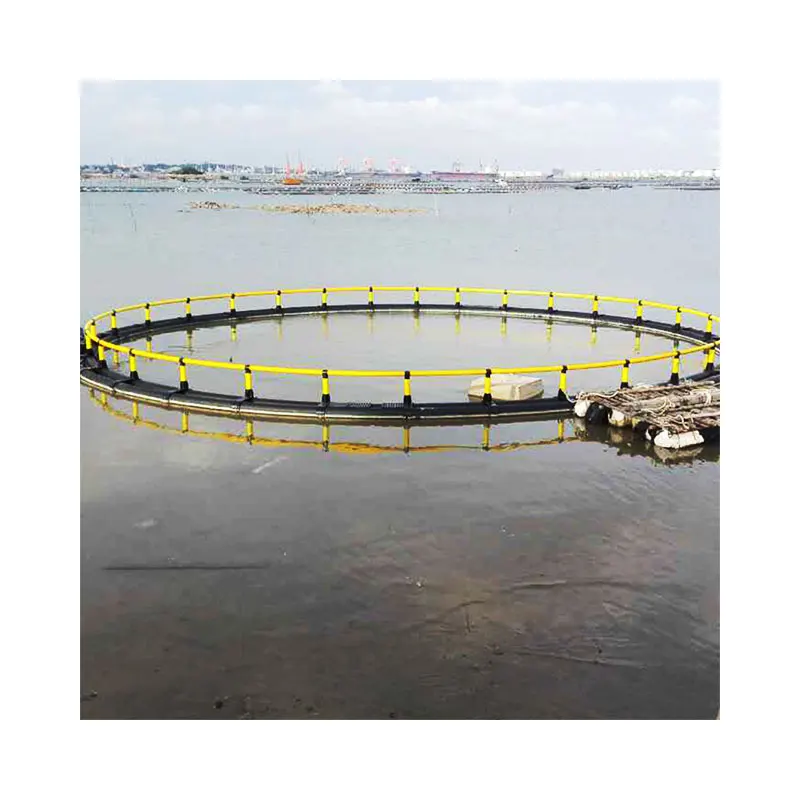

Open Sea HDPE Floating Cage Culture Salmon Fish Farm
Product Description
Product Name | HDPE fishing cage |
Material | HDPE |
Fish cage Perimeter: | 30-160m |
Shape | Circular / Square / Rectangle |
Use | Fish |
Application | Fish Cage System |
Anti-windstrom | Max Grade 12 |
Ability of anti-wave | Max Wave High |
Anti-flow capability | 1.5m/s |
Fish Cage Net | knot / knotless |
HDPE Aquaculturecage has a strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,making the cage have a long life. The cage capacity is large and makes a high survival rate.
1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave
resistance to 7m,strong ability of current resistance to 1.5m/s.
3.Aquaculture capacity,the living space and growing space are large.
4.The cage has a long life, the cage frame can be used over 15 years.
1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave
resistance to 7m,strong ability of current resistance to 1.5m/s.
3.Aquaculture capacity,the living space and growing space are large.
4.The cage has a long life, the cage frame can be used over 15 years.
Product Paramenters
We can make size as your request:
Round cage specification:
Cage Models | 200 | 250 | 315 | 350/400 | 450/500/600 |
Cage Circumference | 30-60 | 40-80 | 60-120 | 120-160 | 160-260 |
(m) | |||||
Farming Area | 70-286 | 127-509 | 286-1146 | 1146-2037 | 2037-5379 |
(m2) | |||||
Be placed in Water Depth(m) | -5 to | -5 to | -5 to | -5 to | -5 to |
-60 | -60 | -60 | -60 | -60 | |
Floating Pipe Diameter(mm) | 200 | 250 | 315 | 350/400 | 450/500/600 |
Handrail Pipe Dia (mm) | 90 | 110 | 125 | 125 | 140/160 |
Handrail Upright Dia (mm) | 110 | 125 | 125/Bracket | Bracket | Bracket |
Bracket Type | Split | Split | Split/ One-piece with Handrail Upright | One-piece with Handrail Upright | One-piece with Handrail Upright |
Distance between Brackets(m) | 2 | 2 | 2 | 2.5 | 2.5 |
Materials Used | PE100 | PE100 | PE100 | PE100 | PE100 |
Foam Added | Only Floating Pipe | Only Floating Pipe | Only Floating Pipe | Only Floating Pipe | Only Floating Pipe |
Available with Sinker Pipe | Yes | Yes | Yes | Yes | Yes |
Available with Walkway Decking: | Yes | Yes | Yes | Yes | Yes |
Available with Net | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ |
Performance parameters of Circular Cage:
1)Anti-Windstorm capacity:Maximum grade 11
2) Ability of anti-wave:Maximum wave high of 5 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.5m
1)Anti-Windstorm capacity:Maximum grade 11
2) Ability of anti-wave:Maximum wave high of 5 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.5m
Regular Square Floating Cage frame specifications:
Length*Width(m) | Floating pipe Dia(mm) | Handrail pipe Dia(mm) | Stand pipe Dia(mm) | Bracket Dia(mm) | Distance of the brackets(m) |
2*2 | 200 | 90 | 110 | 200 | 2 |
3*3 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
4*4 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
5*5 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
6*6 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
7*7 | 200/250 | 110 | 125 | 200/250 | 2 |
8*8 | 315/350 | 110 | 125 | 315/350 | 2 |
9*9 | 315/350 | 110/125 | 125/Bracket | 315/350 | 2/2.5 |
10*10 | 315/350 | 110/125 | 125/Bracket | 315/350 | 2/2.5 |
12*12 | 315/350 | 110/125 | 125/Bracket | 315/350 | 2/2.5 |
15*15 | 350/400 | 125 | 125/Bracket | 350/400 | 2.5 |
20*20 | 450/500 | 140/160 | 125/Bracket | 450/500 | 2.5/3 |
30*30 | 500/600 | 160 | 125/Bracket | 500/600 | 3/3.5 |
Performance parameters of Square Cage:
1)Anti-Windstorm capacity:Maximum grade 8
2) Ability of anti-wave:Maximum wave high of 3 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.0m/s
1)Anti-Windstorm capacity:Maximum grade 8
2) Ability of anti-wave:Maximum wave high of 3 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.0m/s
Details Images
Packing & Delivery
Customer Photos
Related suggestion:
Company Profile
Our Service:
1, The fish cage farm design and install
we can go to your place to help you design and install the fish cage farm project from beginning to end
1, The fish cage farm design and install
we can go to your place to help you design and install the fish cage farm project from beginning to end
2, The aquaculture skills
During the growing of fish , if you meet some questions , please tell us and we can give you some advice .
During the growing of fish , if you meet some questions , please tell us and we can give you some advice .
