22 мм мотоциклетные переключатели мотоцикл с роговыми пуговицами поворотов Электрический противотуманной фары свет запуска руль

Description:

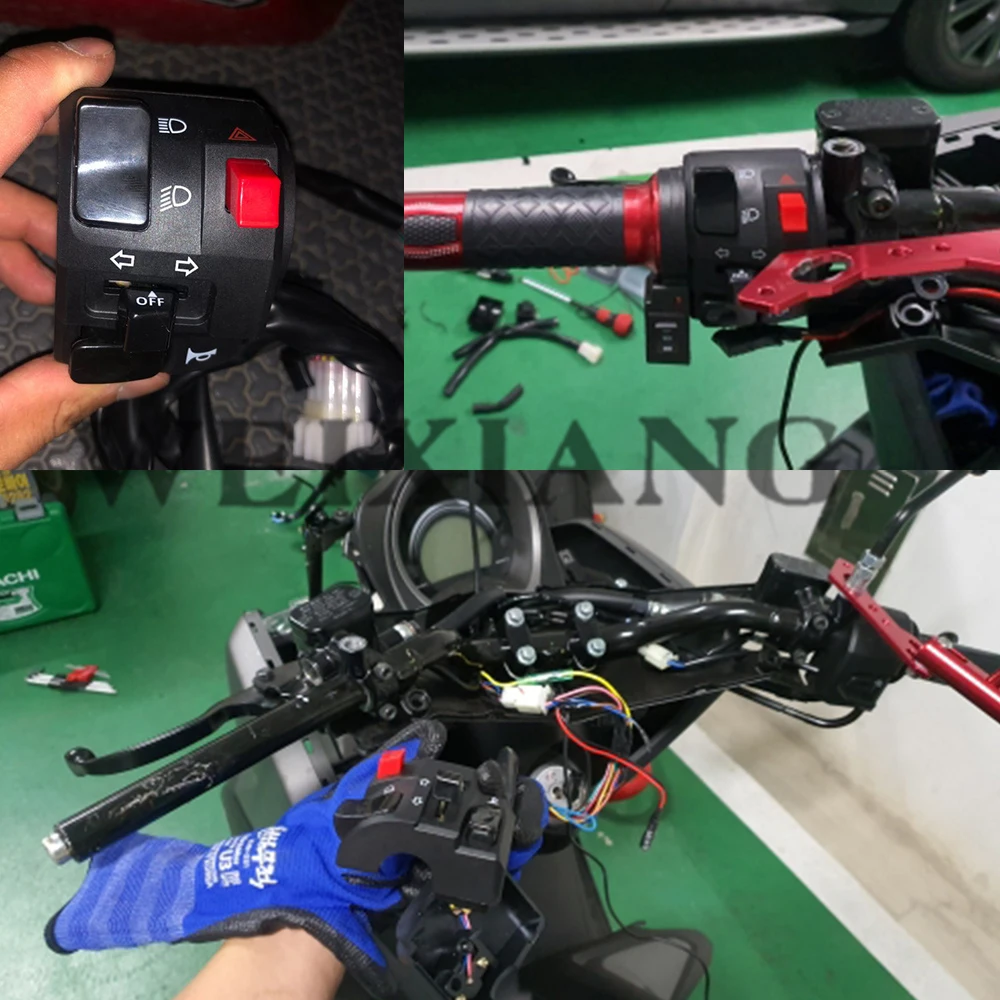

There is a metal knob inside for fixing well on the handlebar, most of motorbike have this hole on the handlebar. If your handlebar do not have the hole, please cut the knob or make a hole on the handlebar by yourself. It is easy to install.
Function: Low/High Beam Switch, Horn switch, Turn Signal switch, Electric start switch, Headlight on/off switch, Warning Light Switch,Flameout switch
Waterproof, Suitable for any rainy weather. Can be used on Motorcross Motorbike ATV Sport Dirt Street Bike Interrupteur Moto off road
Universal 7/8" handlebar design, can be fit on most of motorcycles


Specifications:
Material: Plastic
Color: Black
Handlebar Hole Diameter:7/8" (22mm)

Cable Length:70cm
Work on any 12v DC electrical system.
Size:Please check the detail in the photo.
Functions:
Horn Button /Turn Signal/Fog Lamp Light Switch

Wire Connection:

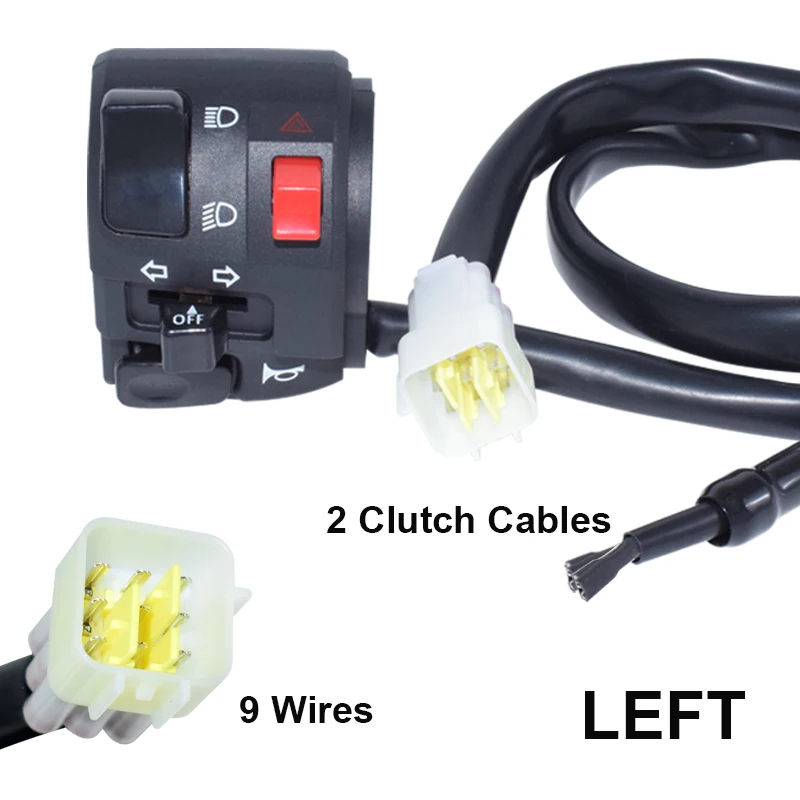

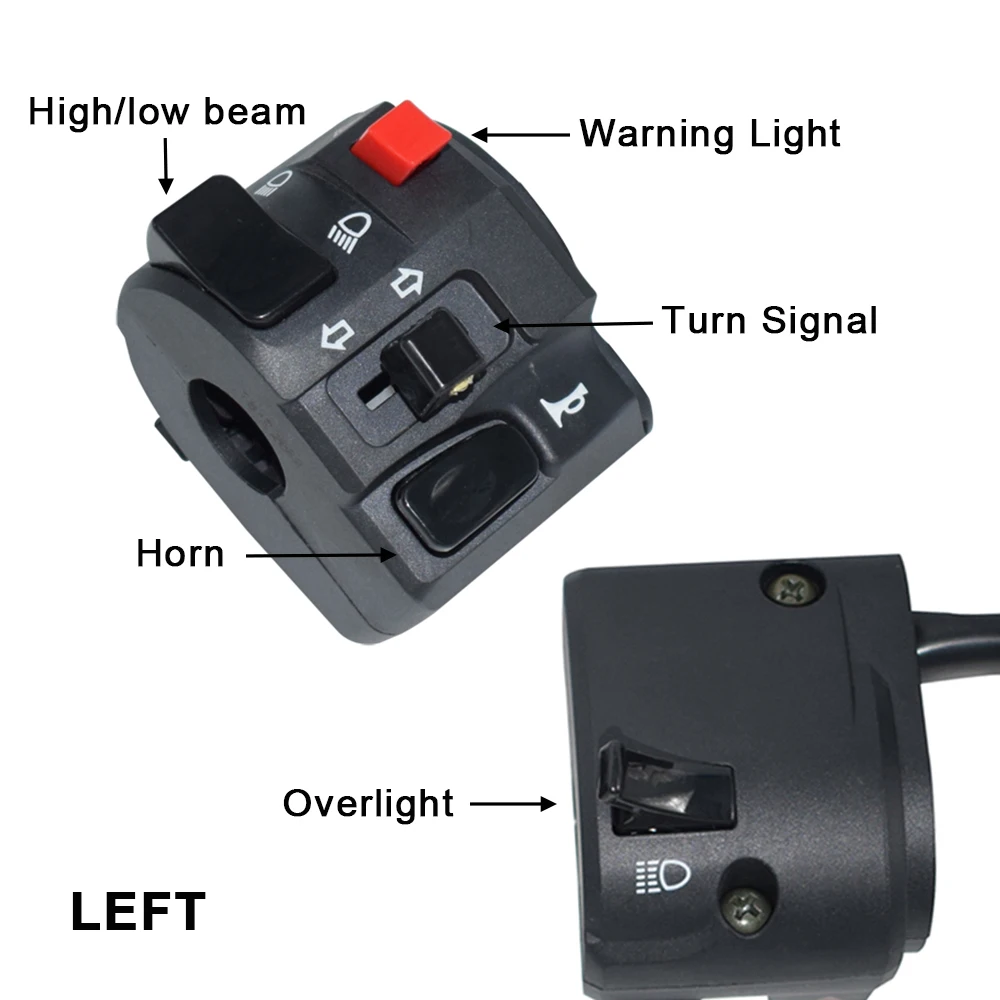

Left:
High/Low Beam Light:Dark blue/ Red yellow/ Light blue
Turn:Green and white/ Orange/ Green and black
Horn:Brown/ Red and white
Overtaking Lighe:Dark blue/ Red and white
Warning Light:Green and white/ Orange/ Green and black

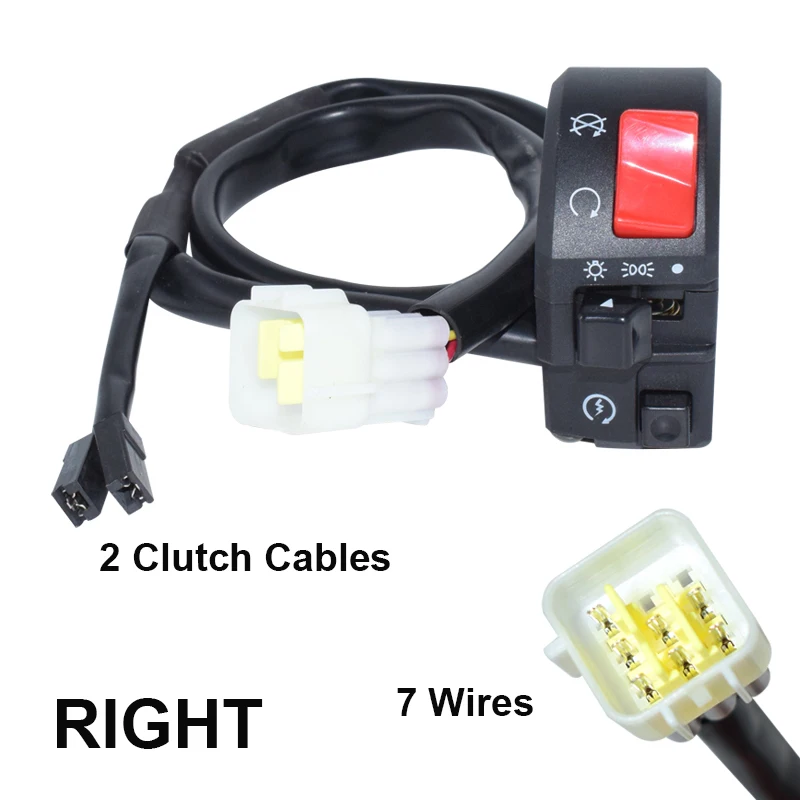

Right:
Kill:Red/Brown yellow
Light: Red and white/Yellow/Yellow and red
Start:Green and yellow /Purle

Package Included:
1 Set Motorcycle Switch

Note:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow 1-2cm measuring deviation due to manual measurement. Thank you!
