Роскошные стеклянные занавески на заказ алюминиевые панели
- Категория: >>>
- Поставщик: Weifang,Miyuan,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 119.54 $* | 125.11 $* |
| Aug-16-2025 | 118.48 $* | 124.44 $* |
| Jul-16-2025 | 99.32 $* | 104.98 $* |
| Jun-16-2025 | 116.44 $* | 122.61 $* |
| May-16-2025 | 101.84 $* | 106.4 $* |
| Apr-16-2025 | 114.52 $* | 120.65 $* |
| Mar-16-2025 | 113.66 $* | 119.17 $* |
| Feb-16-2025 | 112.83 $* | 118.59 $* |
| Jan-16-2025 | 111.87 $* | 117.61 $* |
Характеристики
Product Description
professional manufacturer exterior wall cladding curtain wall price
Product Advantages:
1.Light weight:the weight of glass curtain wall is generally 60kg/m², which is lighter than the curtain wall made of concrete, ceramic tile and stone slab. The glass curtain wall can be used to replace traditional concrete, brick and other materials, which can reduce the external wall weight of the building by about 5 times. On the one hand, the height of the building can be raised under the same foundation condition, on the other hand, it can reduce the transportation quantity and transportation cost of the materials in the process of building , and solve the engineering cost of the building.
2.Improving the anti-seismic performance of buildings:the glass curtain wall is lighter than concrete and brick, at the same time it makes the performance of building peripheral protection system very superior to resist earthquake because of the suspension structure, floating node and better adaptability of interlaminart displacement.Curtain wall can improve the performance of the safety and disaster prevention of buildings.
Product name | aluminum exterior glass curtain wall | ||||||
Aluminum profile | 1,6063-T5/T6 grade of thermal break aluminum profile | ||||||
2, 6063-T5/T6 grade of non thermal break aluminum profile | |||||||
Glass Type | 1,Tempered Glass:5mm-12mm tempered glass with clear or tinted | ||||||
2,Double glass: 5mm+6A/9A/12A+5MM,6MM+6A/9A/12A+6MM ect. | |||||||
3,Laminated glass: 5mm+0.38/0.76/1.14pvb+5mm,6mm+0.38/0.76/1.14pvb+6mm ect. | |||||||
4,Elements: low-e,tinted,reflective & obscure/frosted to meet different U value and SHGC | |||||||
Glass Color | Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue, ocean blue, bron | ||||||
Application | Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements. | ||||||
Accessories | Glass Silicone, Glazing Rubber ,Stainless steel accessories. | ||||||
PRODUCT FEATURES
System performance
1.Sound resistance Rw to 48 dB
2.Wind and watertightness to 1000 Pa (depending on design)
3.Anti-burglary
4.High thermal insulation (depending on design)
5.Unique glazing sizes from 6 through 50mm
6.High glass weights to 300KG
7.View width 60mm
8.Different cover caps on the outside
9.Inside and outside color as desired
2.Wind and watertightness to 1000 Pa (depending on design)
3.Anti-burglary
4.High thermal insulation (depending on design)
5.Unique glazing sizes from 6 through 50mm
6.High glass weights to 300KG
7.View width 60mm
8.Different cover caps on the outside
9.Inside and outside color as desired
System characteristics
Curtain walls have the primary purpose of keeping air and water out of the building, essentially acting as both a buffer and an insulator. Unlike is continuous windows, which are smaller units and can rely to a high degree on sill flashings to capture frame corner leakage, curtain walls cover large expanses of wall without sill flashings at each glazed opening. REXI specially patented curtain wall system water penetration resistance high to 1000 Pa.
Our advantage
our company has strong design team which can make the thorough calculation and precise fabrication, which offer a wide variety of aesthetic variations allowing architects to use any combination of finishes, infills, external feature caps and glazing specification.
INTRODUCTION OF DIFFERENT TYPES OF CURTAIN WALL

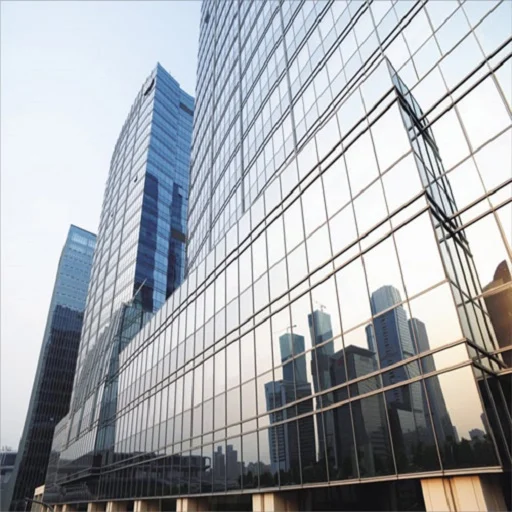

Invisible aluminium frame glass curtain wall
Glass is directly connected with the skeleton and there is no exposed frame or window frame on the outside, making the glass curtain wall more novel and beautiful in appearance.

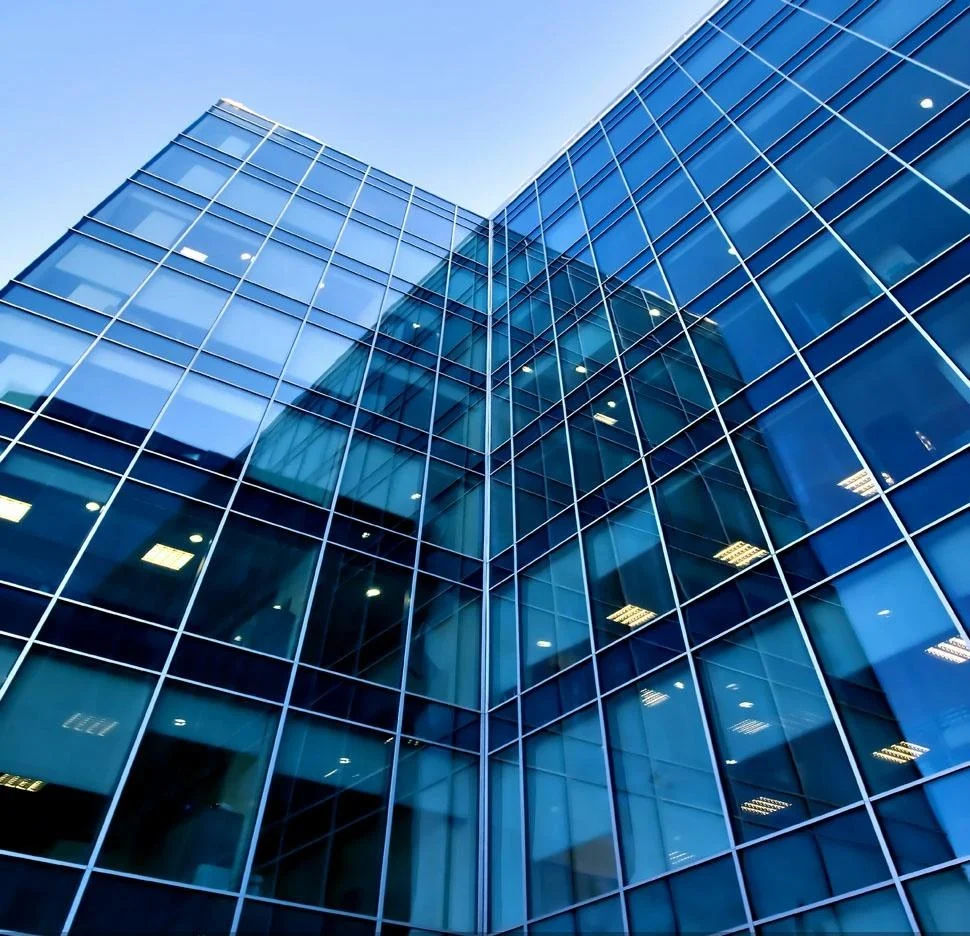

Visible aIminium frame glass curtain wall
The glass of the open-frame glass curtain wall is inlaid in an aluminum frame to form a curtain wall member with an aluminum frame on four sides. The curtain wall member is inlaid on the beam and the column to form the exposed beam column.
The glass of the open-frame glass curtain wall is inlaid in an aluminum frame to form a curtain wall member with an aluminum frame on four sides. The curtain wall member is inlaid on the beam and the column to form the exposed beam column.
ACP /Aluminum panel curtain wall
The aluminum panel curtain wall has rich color and various appearance shapes. And can be perfectly combined with glass curtain wall materials.It is perfect appearance and excellent quality make it popular with owners. Low maintenance costs. At present, most of the curtain wall aluminum plates used in China are composite aluminum plates and aluminum alloy plates.

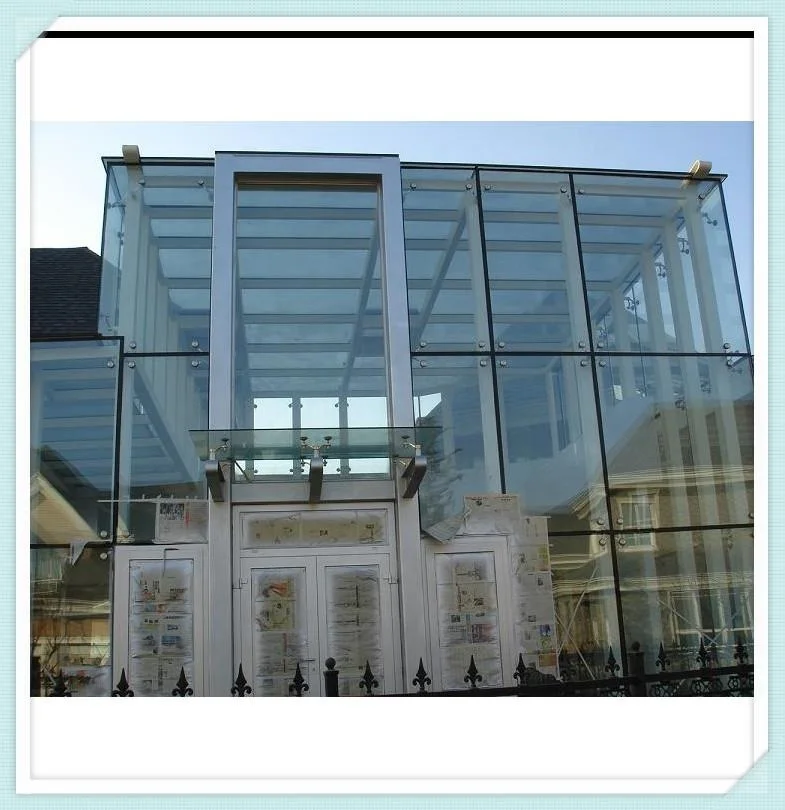

Spider System glass curtain
The point-supported glass curtain wall is composed of decorative surface glass and the supporting structure of the connection module. According to the supporting structure, it is divided into glass rib point-supported glass curtain wall, steel structure point-supported glass curtain wall, steel rod point-supported glass curtain wall and steel cable point-supported glass curtain wall.
The point-supported glass curtain wall is composed of decorative surface glass and the supporting structure of the connection module. According to the supporting structure, it is divided into glass rib point-supported glass curtain wall, steel structure point-supported glass curtain wall, steel rod point-supported glass curtain wall and steel cable point-supported glass curtain wall.
Detailed Images
Related Products
Packing&Shipping
1. plastic paper between two sheets.
2. Seaworthy wooden crates.
3. Iron/Plastic belt for consolidation.
2. Seaworthy wooden crates.
3. Iron/Plastic belt for consolidation.
Certifications
Company Introduction
Our company mainly produces kinds of aluminum alloy/UPVC doors and windows, glass curtain walls, aluminum panel curtain walls,glass railings and other metal products. Our products appearance novel fashion, strong and durable, good quality, are widely used in hotels, banks, airports, hospitals, factories and other public buildings. Products are exported to the United States, England,Saudi Arabia and other countries in Southeast Asia.
Our Services & Strength
We have high-quality design and development personnel, advanced production and processing equipment, adhering to the quality first, integrity cooperation business philosophy, focus on providing quality products and high-end services to customers around the world.
Why choose us?
1.We are a manufacturer with over 20 years experiences in construction products and a high-quality supplier for many global companies.
2.We are one of the leading manufacturer in China with 20,000 square meters factory and our products can meet all the requirements of quality.
3.We have the best price,quality and service.
4.100% QC inspection before shipment.
5.We are providing over 5000 million dollars construction products per year to the companies throughout the globe.
1.We are a manufacturer with over 20 years experiences in construction products and a high-quality supplier for many global companies.
2.We are one of the leading manufacturer in China with 20,000 square meters factory and our products can meet all the requirements of quality.
3.We have the best price,quality and service.
4.100% QC inspection before shipment.
5.We are providing over 5000 million dollars construction products per year to the companies throughout the globe.
Applications
FAQ
Q:Are you manufacturer or trading company?
A:We are manufacturer.
Q: Can you accept customized design?
A:Yes. We can customized design according to your request. We have professional design team.
Q:What are your main products?
A: The main products we produced is glass curtain wall,metal board curtain wall,stone curtain wall,composite curtain wall,exposed frame curtain wall,semi-hidden frame curtain wall.we can customize as per customers’ request.
Q: How to get a quotation?
A: We need some information, such as size, thickness, glass drawing, printing color,quantity, edge,The more detailed, the better.
Q: Can we use our own design?
A: Yes, we will according to your local climate and give you our suggestion. Then you can get best details and reasonable price you want. After we confirm everything, we will design curtain wall or design windows for your needs.More importantly, We are excellent designers,can provide free design.
A:We are manufacturer.
Q: Can you accept customized design?
A:Yes. We can customized design according to your request. We have professional design team.
Q:What are your main products?
A: The main products we produced is glass curtain wall,metal board curtain wall,stone curtain wall,composite curtain wall,exposed frame curtain wall,semi-hidden frame curtain wall.we can customize as per customers’ request.
Q: How to get a quotation?
A: We need some information, such as size, thickness, glass drawing, printing color,quantity, edge,The more detailed, the better.
Q: Can we use our own design?
A: Yes, we will according to your local climate and give you our suggestion. Then you can get best details and reasonable price you want. After we confirm everything, we will design curtain wall or design windows for your needs.More importantly, We are excellent designers,can provide free design.
