Новый оригинальный сварочный аппарат FTTH с 6 моторами comway A33 для
- Категория: Telecommunications >>>
- Поставщик: Microlink,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.67 $* | 0.97 $* |
| Aug-15-2025 | 0.74 $* | 0.29 $* |
| Jul-15-2025 | 0.32 $* | 0.14 $* |
| Jun-15-2025 | 0.85 $* | 0.83 $* |
| May-15-2025 | 0.58 $* | 0.65 $* |
| Apr-15-2025 | 0.70 $* | 0.31 $* |
| Mar-15-2025 | 0.63 $* | 0.64 $* |
| Feb-15-2025 | 0.81 $* | 0.91 $* |
| Jan-15-2025 | 0.68 $* | 0.30 $* |
Характеристики

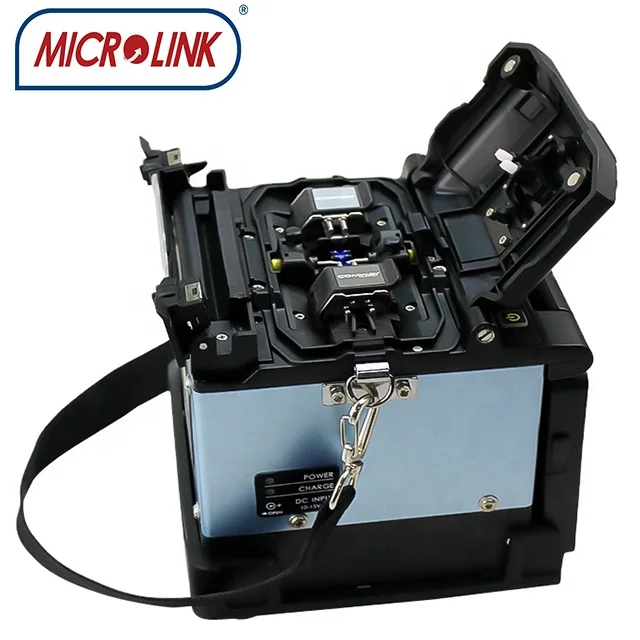

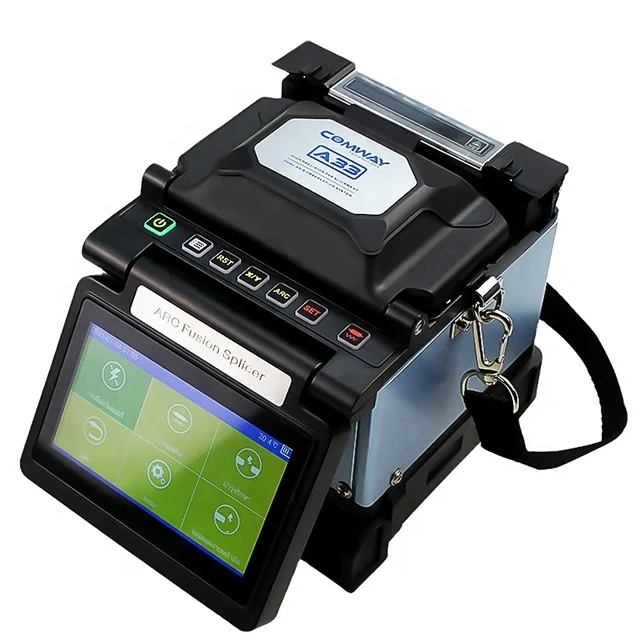

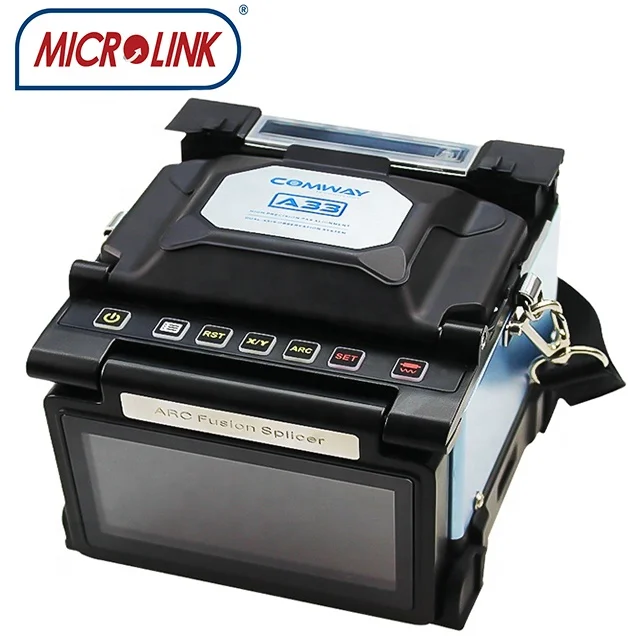

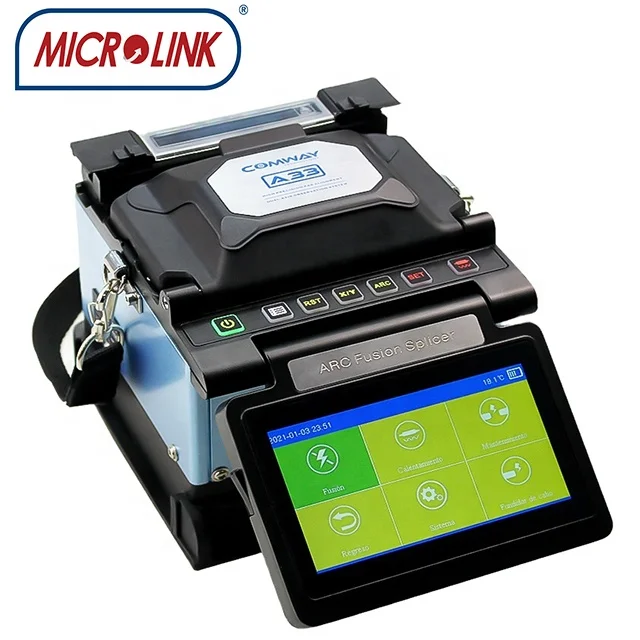

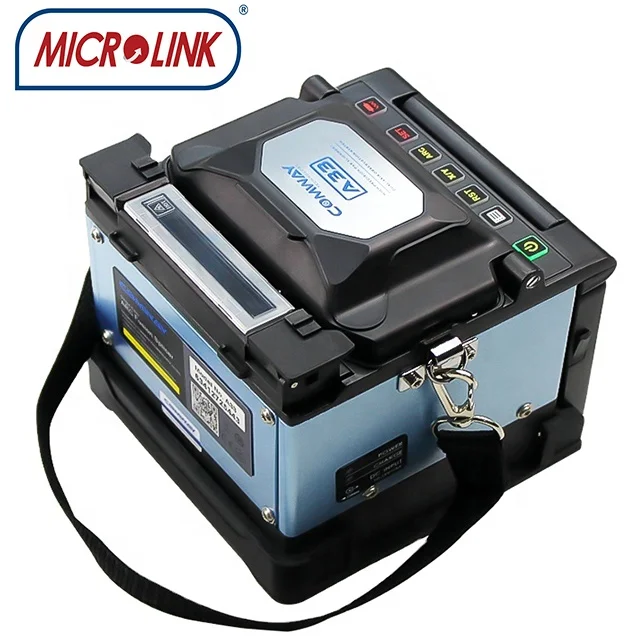

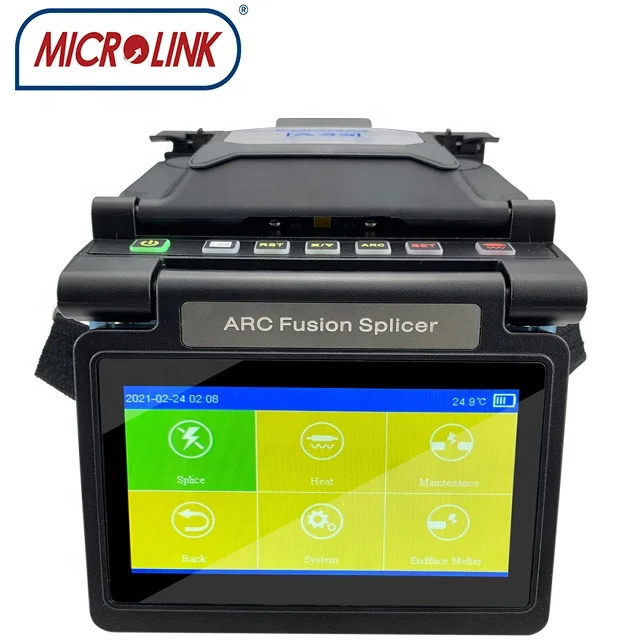

New Genuine FTTH 6 motors comway A33 Splicer fiber optic fusion welder splicing machine
Product Description
Feature
Precision PAS alignment system
500 times optical fiber amplification
Builted with lighting for easy work
Compact & Lightweight with only 1.50kg weight
Full-featured fiber clamp for various fiber cable, release fiber autoatically adjustable, stront suction,accurate locking.
7 second stitching, scale on the lid for convenient work.
7 second stitching, scale on the lid for convenient work.
Ultra fast splicing (6 sec.)
Ultra fast heating (15 sec.)
Dust-free, water resistant and shock-proof
Ultra fast heating (15 sec.)
Dust-free, water resistant and shock-proof
Anti-fall,anti-impact, plastic bottom protection, effectively extend service life
4.3-inch high brightness Touch screen
4.3-inch high brightness Touch screen
Application
Fiber Splice Tool Kits
DATESHEET
ITEM | ARC fusion splicing machine comway A33 optical fusion splicer | ||||||
Fiber Alignment | High precision PAS alignment | ||||||
Compatible Fiber Type | SM[ITU-T G.652)、MM (ITU-T G.651) 、DS(ITU-T G.653)、NZ/ NZDS (G.655)、BI(ITU-T G657) | ||||||
Cleaved Length | Coating less than 250um: 8-16mm Coating less than 100-3000um:16mm | ||||||
Cladding/ Sheath Diameter | Cladding Diameter: 80-150um; Coating Diameter: 100-1000um | ||||||
Return loss | Better than 60dB | ||||||
Control technology | Real-time control and calibration of fusion ARC | ||||||
Typical Splice Loss | 0.02dB (SM)、0.01dB (MM)、 0.04dB (DS/NZDS)、0.02dB(BI) | ||||||
Cleave Length | 250um clading dimateter 8~16mm, over 250um clading diameter 16mm | ||||||
Splicing Time | 6 sec | ||||||
Heating Time | typical 15 sec (adjusable) | ||||||
Heating Program | Max 30 groups | ||||||
Splicing Program | Max 100 sets (support customized modes and parameters) | ||||||
Splice Capture Image | Max 300 sets ( support automatic cycle storage) | ||||||
Splice Data storage | Max 20000 | ||||||
Loss Estimation | Provided (high precision loss estimation) | ||||||
Display | 4.3 inch TFT high brightness color touch screem display | ||||||
Fiber View & Magnification | Dual-channel high-presion camera 200 times microscopic magnification,500 times focus magnification | ||||||
Fiber holders | full-featured fiber holder, SM. MM, bare fiber, pigtail, rubber-insulated, multi fiber cable | ||||||
Tension | 2N | ||||||
Interface | high speed USB for firmware upgrade and splicing records export | ||||||
Electrodes Life | 5000 arc discharges | ||||||
Battery | 4000 mA high-capacity lithium battery, continuous splicing and heating about 240 times, standard charging time 3 hours( 2hours for 80% power) | ||||||
Operating condition | Temperature -10~ +50 C,Working altitude:0 ~ 5000m, Resist max. wind speed:≤15m/s | ||||||
Shrinkable tube | 10~60mm | ||||||
Power Supply | AC100~240V, 50/60Hz | ||||||
Dimension | 136W*141D*136H mm (excluding rubber bumper) | ||||||
Weight | 1.5kg(1.8kgs with battery) | ||||||
Detailed Images
Packing & Delivery
Related Products
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 2000USD, 100% in advance. Paymen more than 2000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
