Дорожный барьер регулируемый для парковки с скоростью 24 В постоянного тока бесщеточный мотор радиочастотный
- Категория: Traffic Cones(Old) >>>
- Поставщик: Hangzhou,Changye,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.60 $* | 0.70 $* |
| Aug-19-2025 | 0.51 $* | 0.44 $* |
| Jul-19-2025 | 0.42 $* | 0.47 $* |
| Jun-19-2025 | 0.45 $* | 0.24 $* |
| May-19-2025 | 0.85 $* | 0.60 $* |
| Apr-19-2025 | 0.39 $* | 0.44 $* |
| Mar-19-2025 | 0.21 $* | 0.33 $* |
| Feb-19-2025 | 0.85 $* | 0.32 $* |
| Jan-19-2025 | 0.56 $* | 0.56 $* |
Характеристики
ZE BARRIER | DZ 10 | DZ 20 |
Lane width max. | 2500mm，Φ75mm | 3000mm，Φ75mm |
Opening / closing time | 0.6 sec | 0.9 sec |
Supply voltage | 100~240VAC,50/60Hz | 100~240VAC,50/60Hz |
Power consumption max. | max.150W | 100W |
Housing design | Powder-coated aluminium | Powder-coated aluminium |

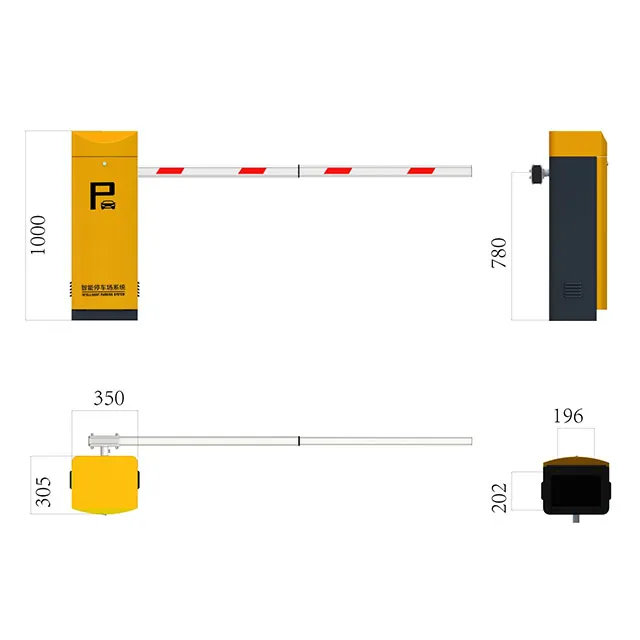

Housing dimensions (WxDxH) | 300 × 350 × 1010mm | 300 × 350 × 1010mm |
Base frame | Powder-coated stainless steel | Powder-coated stainless steel |
Weight (without boom) | 43kg | 43kg |
Temperature range | -40~+75 ℃ | -40~+75 ℃ |
MOTOR | DC SERVO MOTOR | DC SERVO MOTOR |
Protection class | 55 | 55 |
ZE DZ CONTROL UNIT | ||
Supply voltage | 100-240 volt | 100-240 volt |
Frequency Hz | 50-60 | 50-60 |
Power consumption max. | 8W | 8W |
FUSE | F5AH | F5AH |
CONTROL VOLTAGE | 24V DC/max.300mA | 24V DC/max.300mA |
Number of digital inputs | 8 | 8 |
Number of relay / digital outputs | 3/2 | 3/2 |
Temperature range | -40~+60 ℃ | -40~+60 ℃ |
Protection class | 20 | 20 |
gram | 330gram | 330gram |
SIZE | mm(L-W-H) | 155×110×60 |
Specified number of cycles | 10 Mio | 10 Mio |
Warranty | 2 years | 2 years |
