Машина для резки вибрирующего ножа обработки автомобильной кожаной обивки проволочной петли ковровой ткани текстиля
- Категория: Leather Production Machinery >>>
- Поставщик: Jinan,Truster,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.3 $* | 0.43 $* |
| Aug-15-2025 | 0.73 $* | 0.99 $* |
| Jul-15-2025 | 0.50 $* | 0.4 $* |
| Jun-15-2025 | 0.38 $* | 0.58 $* |
| May-15-2025 | 0.1 $* | 0.44 $* |
| Apr-15-2025 | 0.73 $* | 0.17 $* |
| Mar-15-2025 | 0.79 $* | 0.81 $* |
| Feb-15-2025 | 0.13 $* | 0.53 $* |
| Jan-15-2025 | 0.94 $* | 0.39 $* |
Характеристики
Product Description

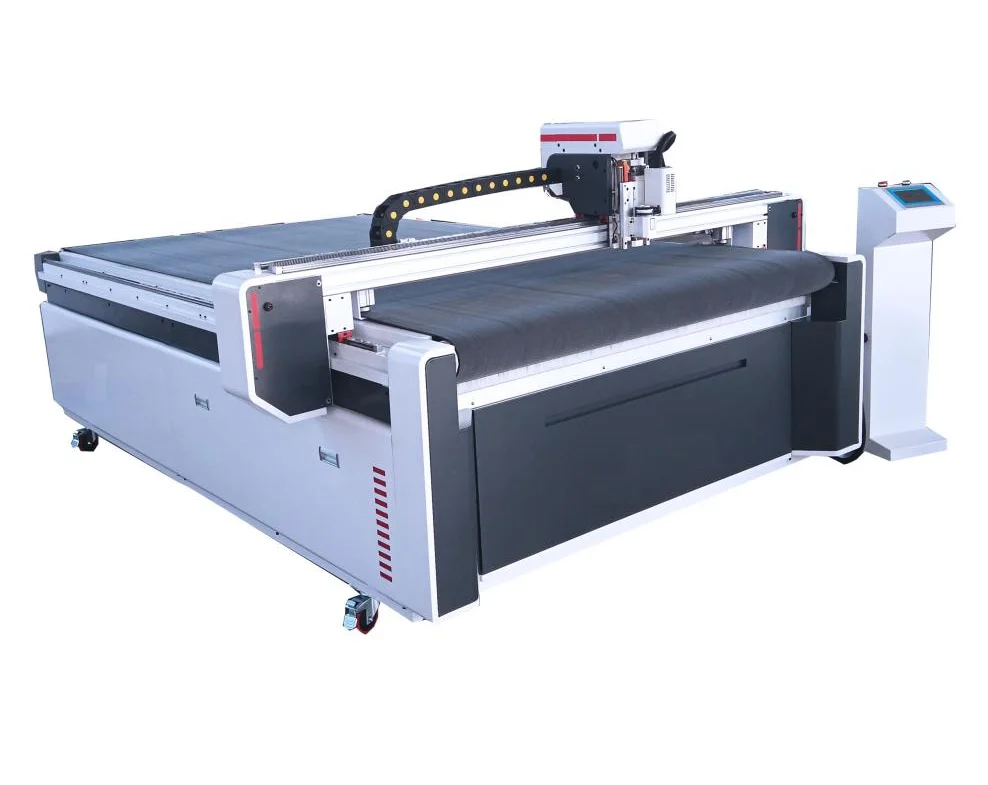

Machine description
The aoyoo cnc auto loading oscillating vibrating automatic garment cutting machine digital leather/cloth/fabric/textile knife cutter used for cutting sunscreen fabrics and other fabrics for blinds.
Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no flufy and no color
fading off.
The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of
the fabric.
Simple selection of tooling via push button, or by remote control
With electricity and roller feeding system
The aoyoo cnc auto loading oscillating vibrating automatic garment cutting machine digital leather/cloth/fabric/textile knife cutter used for cutting sunscreen fabrics and other fabrics for blinds.
Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no flufy and no color
fading off.
The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of
the fabric.
Simple selection of tooling via push button, or by remote control
With electricity and roller feeding system
Technical Parameters
Technical parameters /model | TO-1625 |
Effective working area | 1600x2500mm |
Multi-function tool | Vibrating knife full cut,semi-cutting cut,indentation,drawing mark,cursor positioning,camera positioning edge cutting,high power active round knife |
safety devices | Safety devices use infrared sensing, safe and reliable |
Cutting speed | 200-2000mm/s |
Cutting thickness | ≤50mm Other thicknesses can be customized according to the material |
Applicable materials | Glass fiber ,glass fiber cotton,perpreg, carbon fiber,carbon felt, boron fiber, aramid fiber ,ceramic fiber ,soft glass, PVC, leather leather,silicone,rubber material etc composite soft material |
Material fixing method | Vacuum partition adsorption |
Transmission port | Network port |
Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw |
rated power | 11kw |
Rated voltage | 380V±10%/220V±10% Optional |
Control System | Chinese and English LCD touch screen |
Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH |
Support file format | AI,PLT,DXF,CDRetc |
Overall size | 2300*3560* 1221mm |

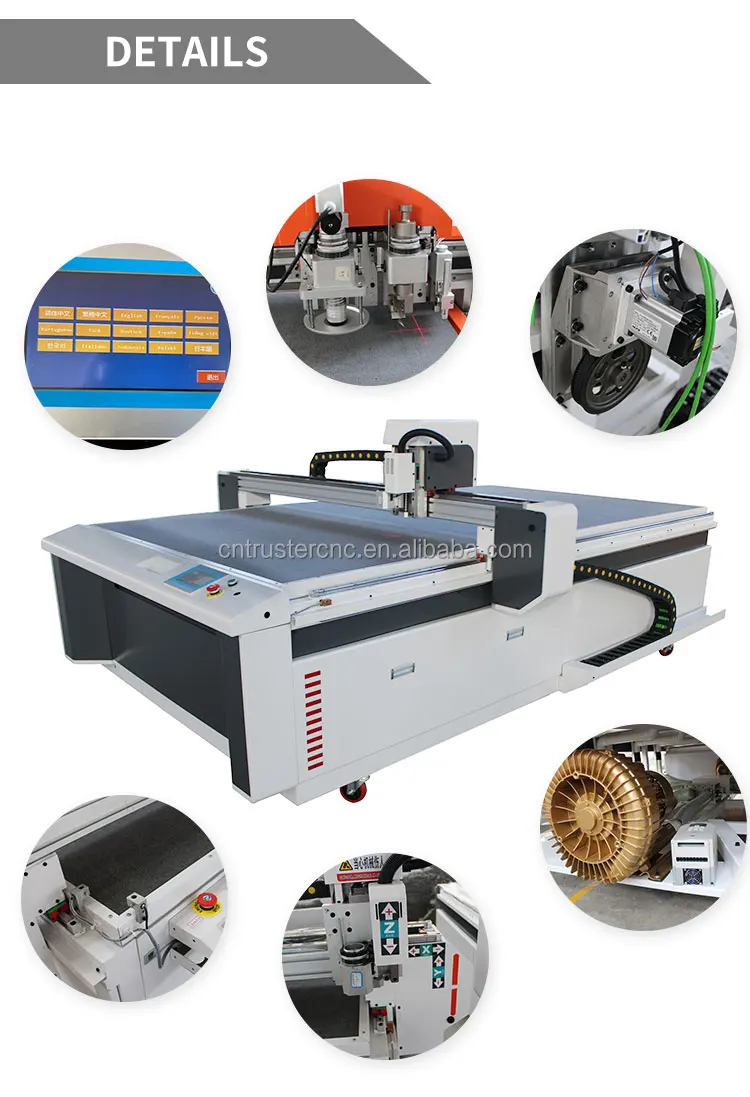

Details image

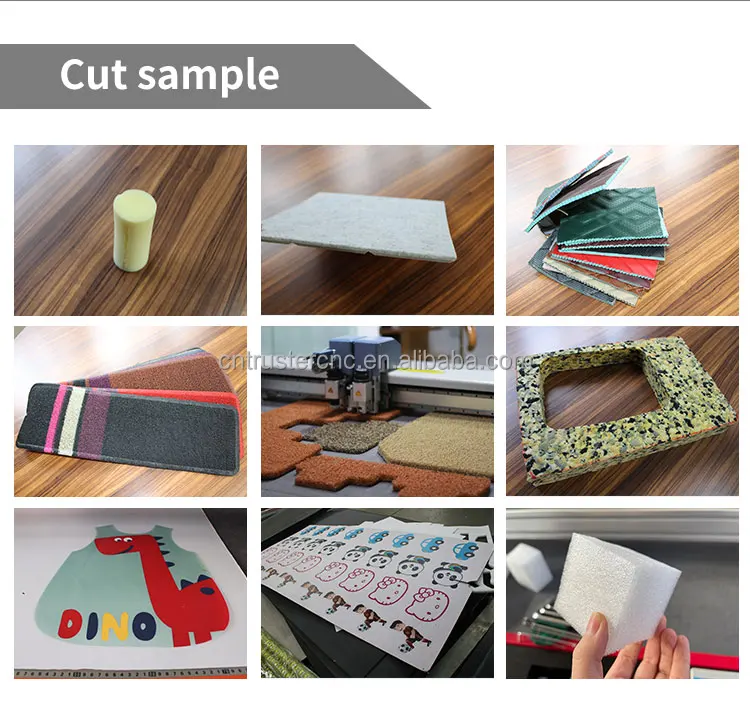

Sample show
Customer feedback
Packaging & Shipping

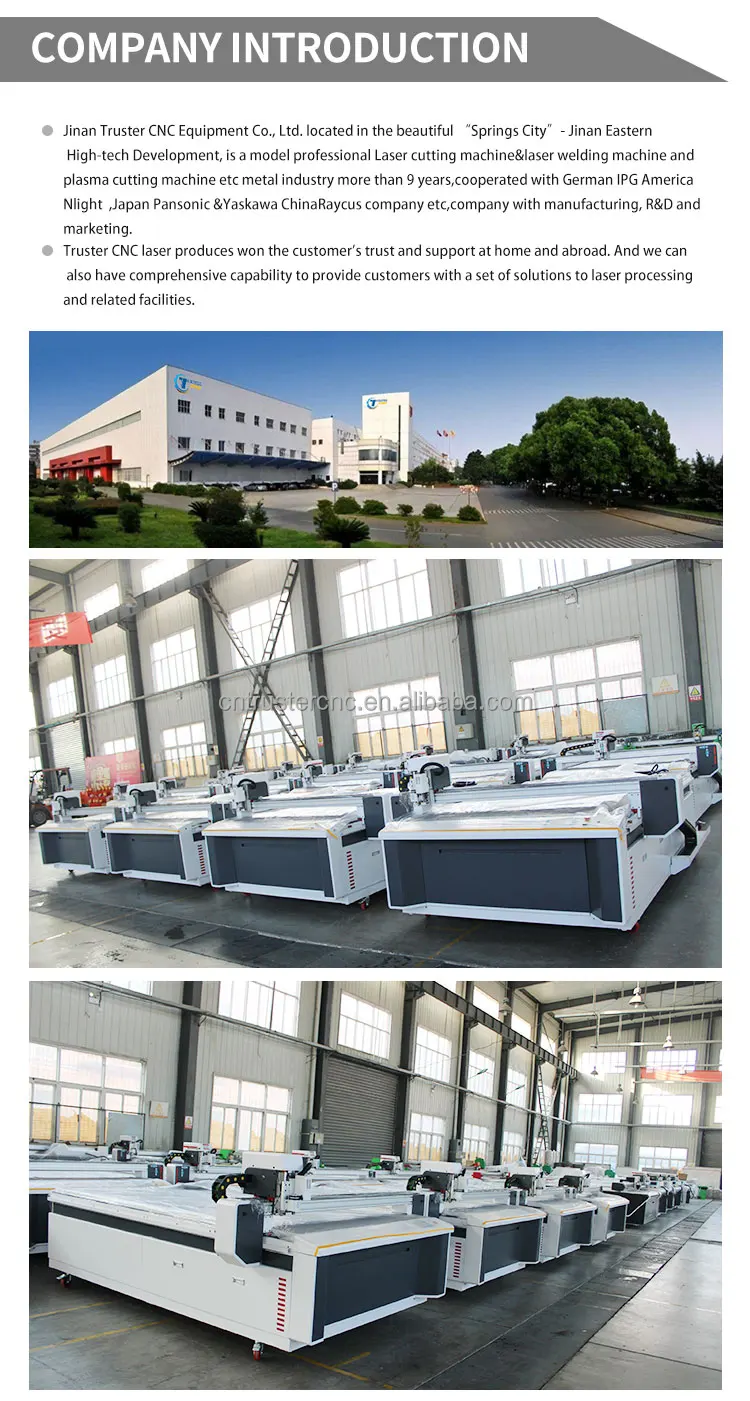

Factory Details
