Автоматическая машина для производства мягкой пенополиуретановой пены подушки с эффектом
- Категория: Plastic & Rubber Processing Machinery >>>
- Поставщик: Guangdong,Fuleite,Electromechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 23800.73 $* | 24990.37 $* |
| Aug-16-2025 | 23600.61 $* | 24780.19 $* |
| Jul-16-2025 | 19800.34 $* | 20790.60 $* |
| Jun-16-2025 | 23200.44 $* | 24360.43 $* |
| May-16-2025 | 20200.56 $* | 21210.60 $* |
| Apr-16-2025 | 22800.29 $* | 23940.76 $* |
| Mar-16-2025 | 22600.25 $* | 23730.93 $* |
| Feb-16-2025 | 22400.3 $* | 23520.52 $* |
| Jan-16-2025 | 22200.79 $* | 23310.99 $* |
Характеристики
Products Description
Polyurethane equipment overall scheme series
Use

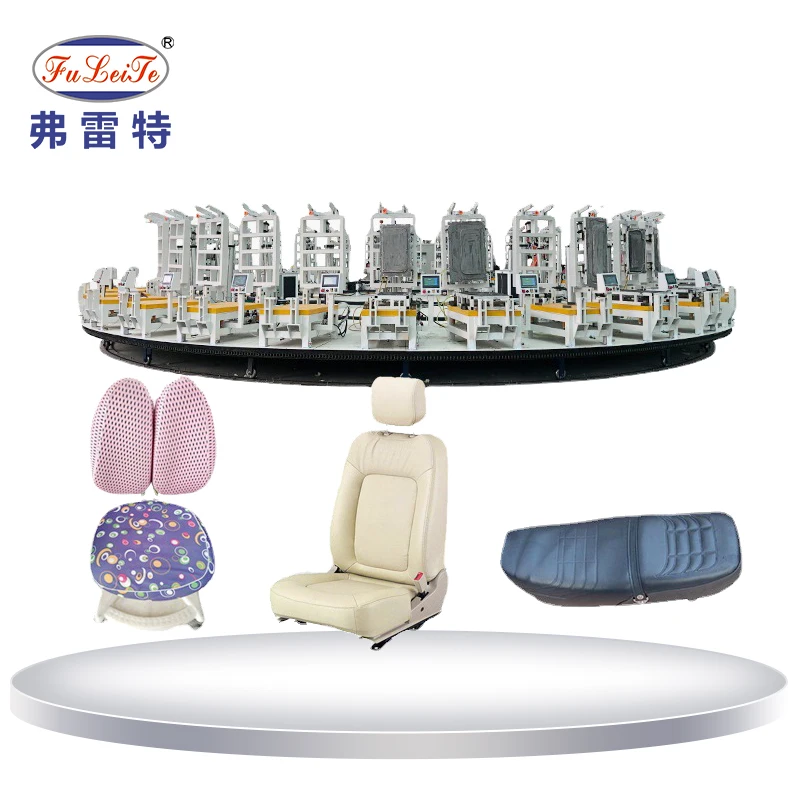

Used in the production of car seat cushions, PU memory pillows, memory foam, slow rebound/high rebound foam, bicycle saddles, motorcycle saddles, electric bicycle saddles, home cushions, office chairs, sofas, auditorium chairs, etc. Bubble products.
1. High degree of automation: the production line can be completed by only two people, with high output and fast speed. The production line is mainly equipped with: host computer, scanning code reading system, automatic mold base, robot, variable ratio foaming machine, pre-mixing station, vacuum foam breaking machine, etc., with automatic correction, alarm and other functions;
Automatic compensation of raw materials: FLT-12M pre-mixing station is used with the foaming machine. When the material level of the foaming machine is low, the pre-mixing station will automatically replenish materials, so as to ensure that the foaming machine works continuously for 24 hours and improve work efficiency. .
Main parameters：
High pressure foaming machine | |||||||||
model | (g/s)Perfusion | (L)Tank volume | The mixing ratio | Perfusion accuracy | Total power(KW) | ||||
FLT.H-06 | 80~160g/s | 300 | 1:3~3:1 | 500g±0.3% | 18 | ||||
FLT.R-12 | 150-550g/s | 300 | 1:3~3:1 | 1000g±0.5% | 23 | ||||
FLT.M-28 | 350-1300g/s | 300 | 1:3~3:1 | 1000g±0.5% | 32 | ||||
FLT.B-55 | 1000-2300g/s | 300 | 1:3~3:1 | 1000g±0.5% | 52 | ||||

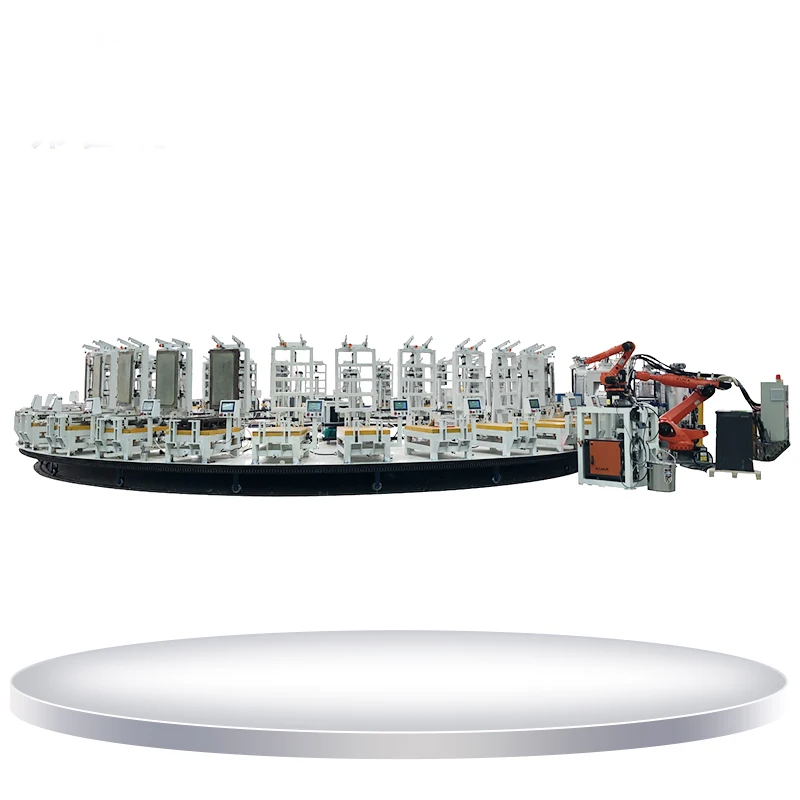

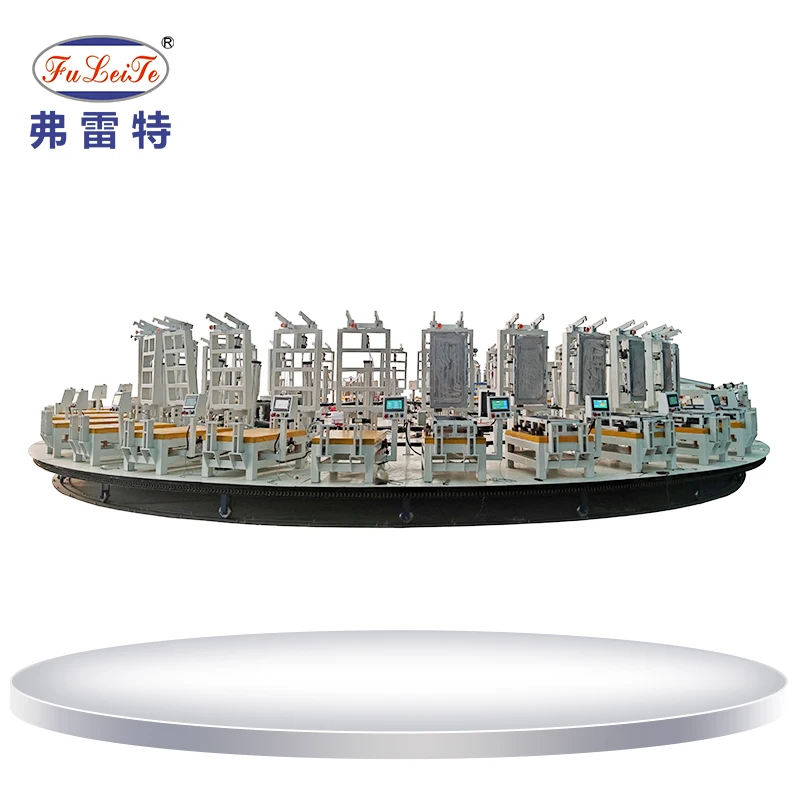

Turntable production line | ||||||||
model | Diameter size(M) | Formwork station | Installation size(M) | Total power（KW) | ||||
FLT.L-07 | 7 | 26 | 7*7*0.40 | 21 | ||||
FLT.L-08 | 8 | 30 | 8*8*0.40 | 21 | ||||
FLT.L-09 | 9 | 35 | 9*9*0.40 | 22 | ||||
FLT.L-10 | 10 | 40 | 10*10*0.40 | 22 | ||||

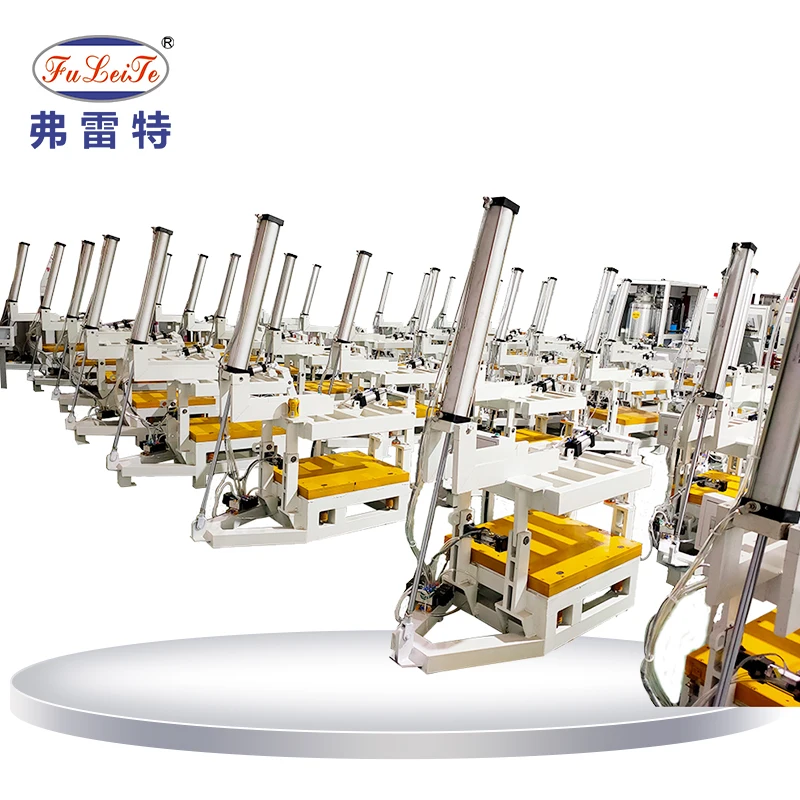

Foam mold | |||||||||
type | Bearing plate area(M) | After the air bag is inflated, the surface of the pressure-bearing plate to the height of the upper mold(M) | Airbag rising height(M) | The height of the bearing plate surface to the center of rotation (deflated state)(M) | Mould limit size(M) | ||||
Two-piece mold | 2*1 | 0.3 | 0.02 | 0.45 | 2.4*1.2 | ||||
Three-piece mold | 2.4*1.2 | 0.6 | 0.02 | 0.45 | 2.8*1.6 | ||||
Epoxy mold | 1*1 | 0.3 | 0.02 | 0.45 | 1.2*1.2 | ||||
Aluminum alloy mold | 1*1 | 0.3米 | 0.02 | 0.45 | 1.2*1.2 | ||||
Why Choose Us
Values: Scientific Development, Integrity Pragmatism, Win-win Cooperation, Rendering Service to Society
Development Concept: Technology as the First, Quality & Efficiency as the Most Important, Human Talents as the Foundation,
Services as the Highest
Services as the Highest
Corporate Vision: To become a scientific and technological enterprise which guides the intelligent integration of China's polyurethane
Enterprise Mission: to enhance the intelligence of polyurethane equipment integration as their responsibility, to provide intelligent solutions!
China Guangdong Fuleite specializes in the research and development of intelligent polyurethane foaming machine, cyclopentane foaming machine, automatic foaming production line (suspension line/ground rail line/turntable line, etc.), automatic foaming mold mold base, robotic arm and other pu complete sets Foaming equipment, plant area of 5000m², serving tens of thousands of enterprises, exported to more than 80 overseas regions, realizing global one-click remote after-sales, efficient service, and winning the trust of domestic and foreign customers!
We have senior electrical engineers and mechanical engineers who have 20 years of experience in polyurethane research and development. We have absorbed the technical characteristics of Italian Conlon and German Hennecke, and have strong strength; the company has a technical research and development department, a test center and other supporting teams, and has successfully obtained a number of national patents and export certification qualifications to build the core competitiveness of Fuleite; The foaming equipment of the company is mainly equipped with Siemens/Schneider and other brands with high cost performance. It is widely used in polyurethane foaming fields such as household appliances insulation, wood imitation decoration, foam seats, cyclopentane refrigerators, etc. We provide 24-hour online technical support and one-stop overall service.
Fuleite foaming machines have been exported to Vietnam, Russia, France, Malaysia, Saudi Arabia, Egypt, Algeria, Pakistan and other foreign markets. . . We always adhere to the strategic development route of product diversification, high-end equipment, brand internationalization, and service systematization, so that the world can understand "Fuleite" and "Made in China"!
Just what you need, Fuleite is just professional, choose us for sure!
We have senior electrical engineers and mechanical engineers who have 20 years of experience in polyurethane research and development. We have absorbed the technical characteristics of Italian Conlon and German Hennecke, and have strong strength; the company has a technical research and development department, a test center and other supporting teams, and has successfully obtained a number of national patents and export certification qualifications to build the core competitiveness of Fuleite; The foaming equipment of the company is mainly equipped with Siemens/Schneider and other brands with high cost performance. It is widely used in polyurethane foaming fields such as household appliances insulation, wood imitation decoration, foam seats, cyclopentane refrigerators, etc. We provide 24-hour online technical support and one-stop overall service.
Fuleite foaming machines have been exported to Vietnam, Russia, France, Malaysia, Saudi Arabia, Egypt, Algeria, Pakistan and other foreign markets. . . We always adhere to the strategic development route of product diversification, high-end equipment, brand internationalization, and service systematization, so that the world can understand "Fuleite" and "Made in China"!
Just what you need, Fuleite is just professional, choose us for sure!
2) 20 years of industry experience: We have been engaged in the polyurethane machinery industry for 20 years, ranking the top three in the domestic PU machinery industry;
3) Common choice by 10,000+ enterprises: The equipment is configured in Germany, with high cost performance and quality certification, and has successfully opened overseas markets.
4) Perfect service system: one-stop overall solution, lifetime maintenance, 24-hour technical online support, one-click global after-sales, professional foreign trade service team;
Exhibition
Certificate
Cooperative Customers
Packaging & Logistics
FAQ
A) Are you a foam machine manufacturer?
Yes, we have 25 years of experience,serving 10,000+ PU projects,Top 3 in the domestic PU foam machinery
industry, customizing a complete set of polyurethane foaming equipment in one stop,independent technology
research and development, and choosing a large enterprise is more secure!
B) What are the advantages of high pressure foaming machine compared to low pressure foaming machine?
The high-pressure foaming machine does not produce excess material, and the foaming quality is good, which will save about 5% to 10% of raw materials.
C) How do I get PU samples?
Before we receive the first order, the samples are free, you only need to bear the courier fee, we will refund the courier fee to you within your first order.
D) How about the shipping cost?
Sea freight is the best solution for bulk shipments. The exact shipping fee can only be confirmed after we know the details of quantity, weight and method.
E) What is the average delivery time?
For samples, the delivery time is about 7 days. For foaming equipment production, the delivery time is 20-30 days after receiving the deposit.
F) What payment methods do you accept?
You can pay to our bank account, TT or DP: 30% deposit in advance, 70% balance with copy of bill of lading.
G) How can we ensure that we receive quality pu foam equipment?
First of all, PU machine parts are purchased from Siemens, Schneider, Chint and other brand manufacturers.
After the foam machine is assembled, we will use DOP to test the characteristics of the pu equipment, and only after debugging can it pass the factory and issue a certificate of conformity.
H) How is your warranty?
Our one-year warranty period and lifetime maintenance! At the same time, we have engineers with more than 10 years of
experience in overseas after-sales service to ensure your smooth production.All machine parts can be ordered from us, we will provide perfect service according to your situation.
Yes, we have 25 years of experience,serving 10,000+ PU projects,Top 3 in the domestic PU foam machinery
industry, customizing a complete set of polyurethane foaming equipment in one stop,independent technology
research and development, and choosing a large enterprise is more secure!
B) What are the advantages of high pressure foaming machine compared to low pressure foaming machine?
The high-pressure foaming machine does not produce excess material, and the foaming quality is good, which will save about 5% to 10% of raw materials.
C) How do I get PU samples?
Before we receive the first order, the samples are free, you only need to bear the courier fee, we will refund the courier fee to you within your first order.
D) How about the shipping cost?
Sea freight is the best solution for bulk shipments. The exact shipping fee can only be confirmed after we know the details of quantity, weight and method.
E) What is the average delivery time?
For samples, the delivery time is about 7 days. For foaming equipment production, the delivery time is 20-30 days after receiving the deposit.
F) What payment methods do you accept?
You can pay to our bank account, TT or DP: 30% deposit in advance, 70% balance with copy of bill of lading.
G) How can we ensure that we receive quality pu foam equipment?
First of all, PU machine parts are purchased from Siemens, Schneider, Chint and other brand manufacturers.
After the foam machine is assembled, we will use DOP to test the characteristics of the pu equipment, and only after debugging can it pass the factory and issue a certificate of conformity.
H) How is your warranty?
Our one-year warranty period and lifetime maintenance! At the same time, we have engineers with more than 10 years of
experience in overseas after-sales service to ensure your smooth production.All machine parts can be ordered from us, we will provide perfect service according to your situation.
