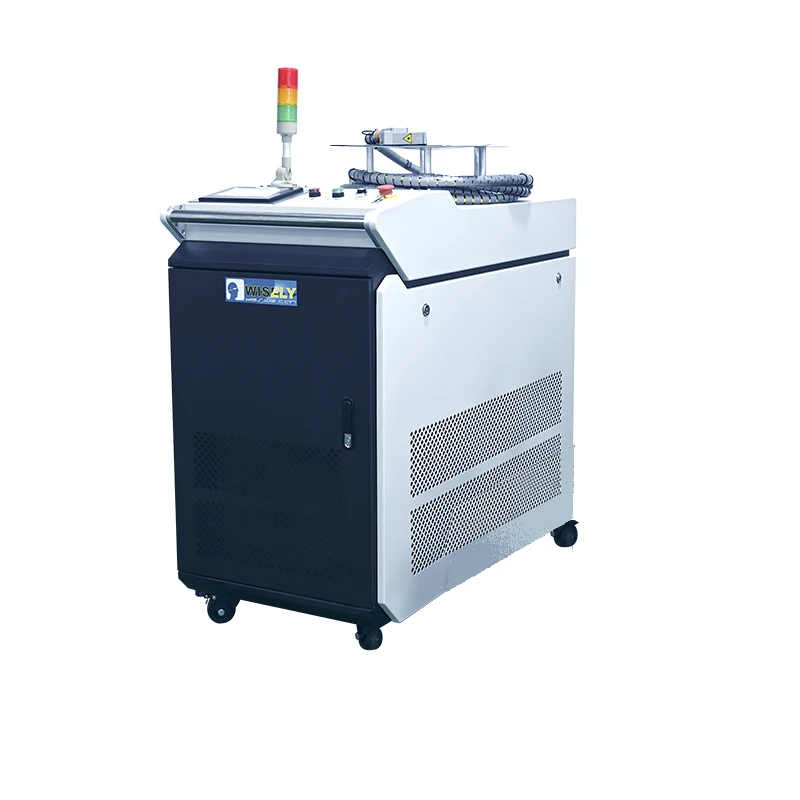

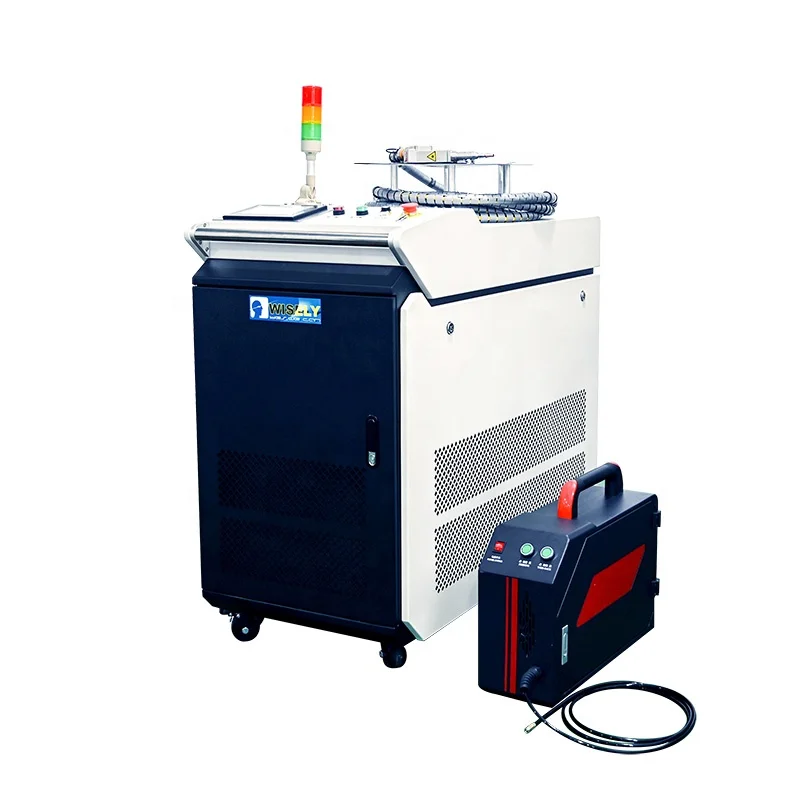

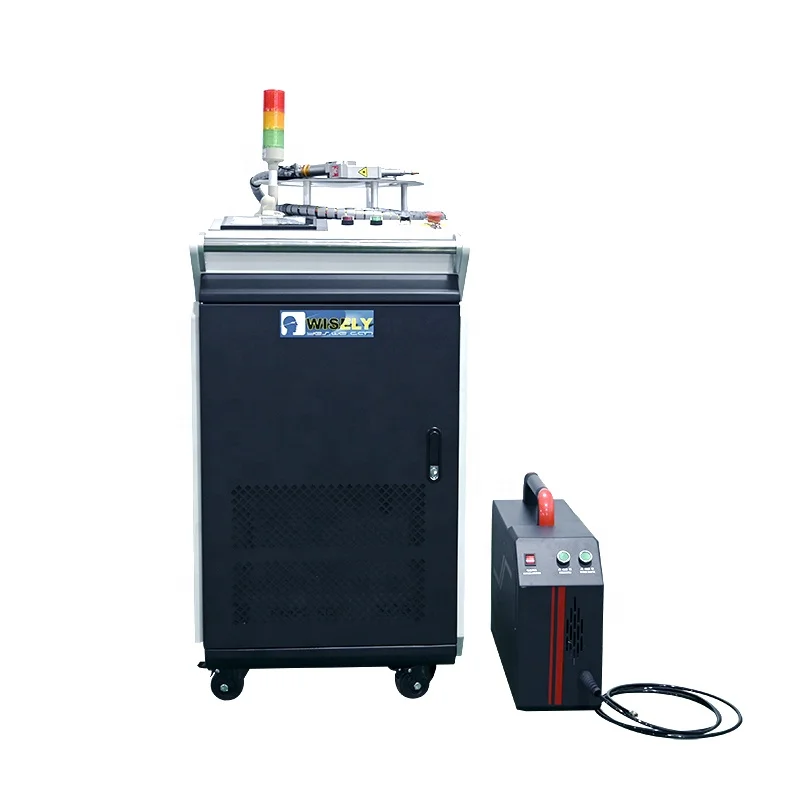

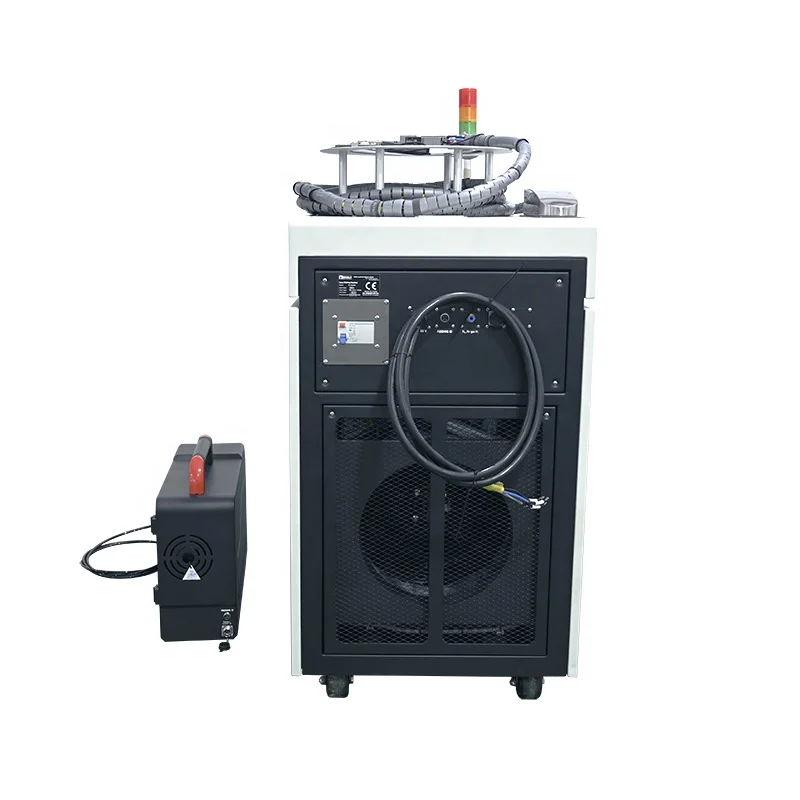

1500w 2000w 1000w Handheld Fiber Laser Welding Machine Weld Laser Welding
Technical Parameters | ||||||
Model | MY-W1000H | MY-W1500H | MY-W2000H | |||
Power | 1000W | 1500W | 2000W | |||
Fiber Laser Source | CHINA JPT | |||||
Laser Wavelength | 1070±5nm | |||||
Working Mode | Continuous / Modulatable | |||||
Thickness of material for welding | 4mm | |||||
Fiber Length | 10M (15m optional) | |||||
Lifespan of Fiber Laser Source | Max. 100 000H | |||||
Output Power of Laser | 5-95% Adjustable | |||||
Scanning Speed | 8000mm | |||||
Welding Speed | 1-120mm/s | |||||
Auxiliary Gas | Nitrogen (purity 99.999%) | |||||
Power Stability (8h) | 2% | |||||
System Operation Environment | 15~35 ℃ (TEMPERATURE) / 10-70% (HUMIDITY) | |||||
Cooling Mode | Water Cooling (BUILT-IN) | |||||
Power Input | AC220V/50Hz/1P or AC110V/60Hz/1P | AC380V/50Hz/3P | ||||
Power Comsuption | ~10KW | ~12KW | ~13KW | |||
Dimension (L*W*H) | 62*125*140cm (Welder) 70*20*45cm (Wire Feeder) | 62*125*140cm (Welder) 70*20*45cm (Wire Feeder) | 62*125*140cm (Welder) 70*20*45cm (Wire Feeder) | |||
Net Weight | 270KG | 280KG | 300KG | |||
Gross Weight | 360KG | 370KG | 390KG |
Process Comparison | ||||||
Compare Items | Traditional Welding | Laser Welding | ||||
Heat on workpiece | Very high | Low | ||||
Deformation of workpiece, undercut | Big | Small | ||||
Bonding Strength with base material | General | Very good | ||||
Follow-up Process | Sanding | No sanding or little sanding required | ||||
Welding Speed | General | 3 times more than argon arc welding | ||||
Applicable Materials | Stainless steel, carbon steel, galvanized sheet | Stainless steel, carbon steel, galvanized sheet, aluminum alloy, copper | ||||
Operating | Complex | Easy | ||||
Operator safety | Unsafe | Safe | ||||
Environmental Impact | Not friendly | Environmental protection | ||||
Welding Fault Tolerance | Good | Good | ||||
Sewing Welding | No | Yes | ||||
Spot width Adjustable | No | Yes | ||||
Welding Scar | Clear | Unclear | ||||
Power Consumption | High | Low | ||||
Cost of Consumables | High | Low | ||||
Welding quality | General | Very Good |
Q1. About the quality?
With latest laser source lifespan over 100 000 hours.
Many customers said they are happy with our laser machines when we do client review after 1~2 years.
As the vendor of SIEMENS, DOOSAN, SGD Pharma, we are keeping superior quality with reliable after service all the time.
Q2. What is a fiber laser marking machine for?
Fiber laser marking machine is mainly used for marking and engraving metal materials, such as stainless steel, aluminum, brass, copper, titanium etc. Of course, it can also mark some plastics.
Q3. About consumables and operation cost?
Our fiber laser machines have no consumables and operation cost. You can use it for years without maintenance.
Before send the machine to you, we will test it well. Marking software come with the CD, 2 boxes testing cards for free.
Q4. What watts of fiber laser should I choose?
It depends on if you do depth engraving. If your main works do not need depth or just need a little depth, such as 0.01-0.1mm, then 20w is good enough, quick and easy. If you do depth engraving a lot or you will do the depth engraving a lot in future, then you can consider 30w, for same depth engraving, of course 30w will be quicker than 20w. There are also 50w, 70w etc. For most customers, 20w and 30w are good enough.
Q5. About training and service?
Most new users can learn to operate the machine about 30 minutes with the user manual and operation video.
We also provide online training via TeamViewer, Skype, WhatsApp etc. If you need, I'll teach you operate it step by step online.
Q6. About payment and the shipping?
Shipment: Standard Machine leadtime 3~5 working days after received payment.
Payment: 100% to be prepaid before production.
Or 30% to be prepaid before production, 70% before shipment.
Shenzhen Wisely Laser Machinery Co., Limited, established in 2010, has been engaged in research and manufacturing of lasers in the fields of advertising, light processing and other fields. The company integrates research and development, production, sales and maintenance services, and specializes in manufacturing a full range of fiber laser marking machines, UV laser marking machines, green laser internal engraving machines, CO2 laser marking machines, CO2 laser greeting card cutting machines, CO2 Laser cutting machine, CO2 laser engraving machine, laser welding machine and other products.
