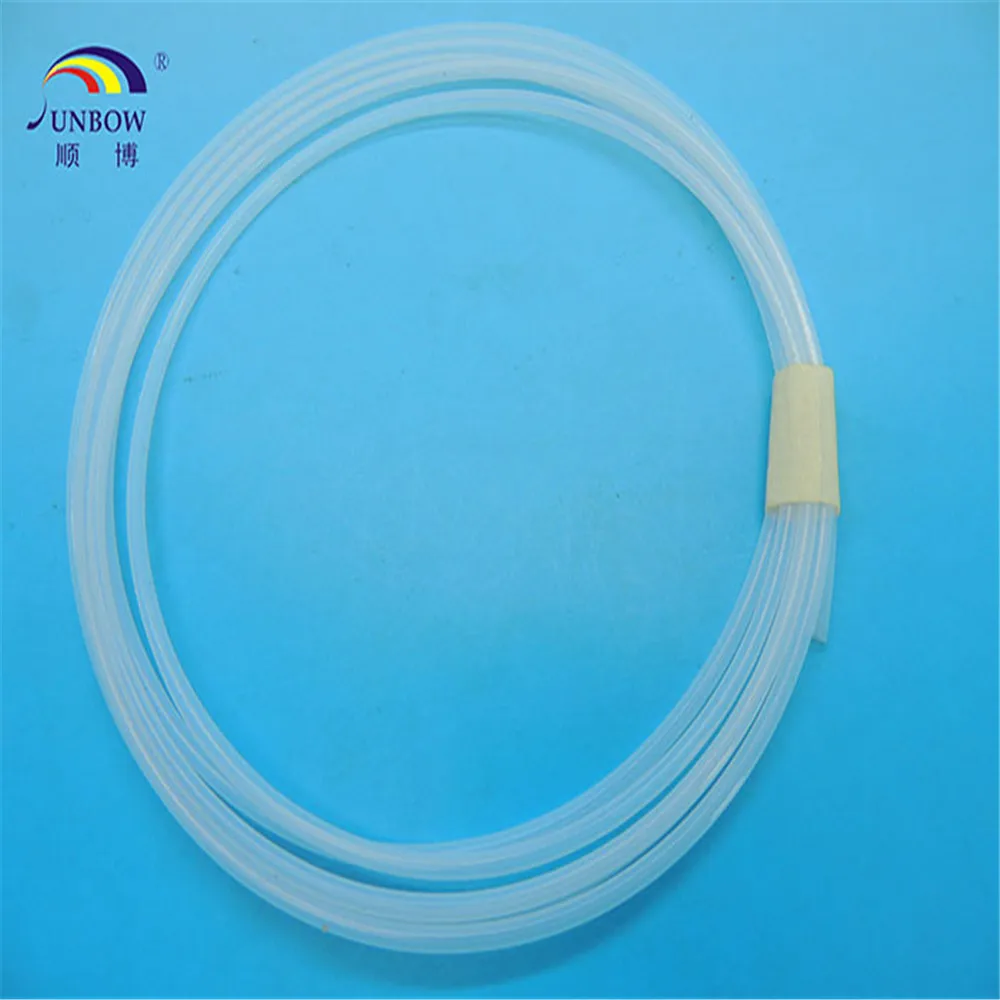

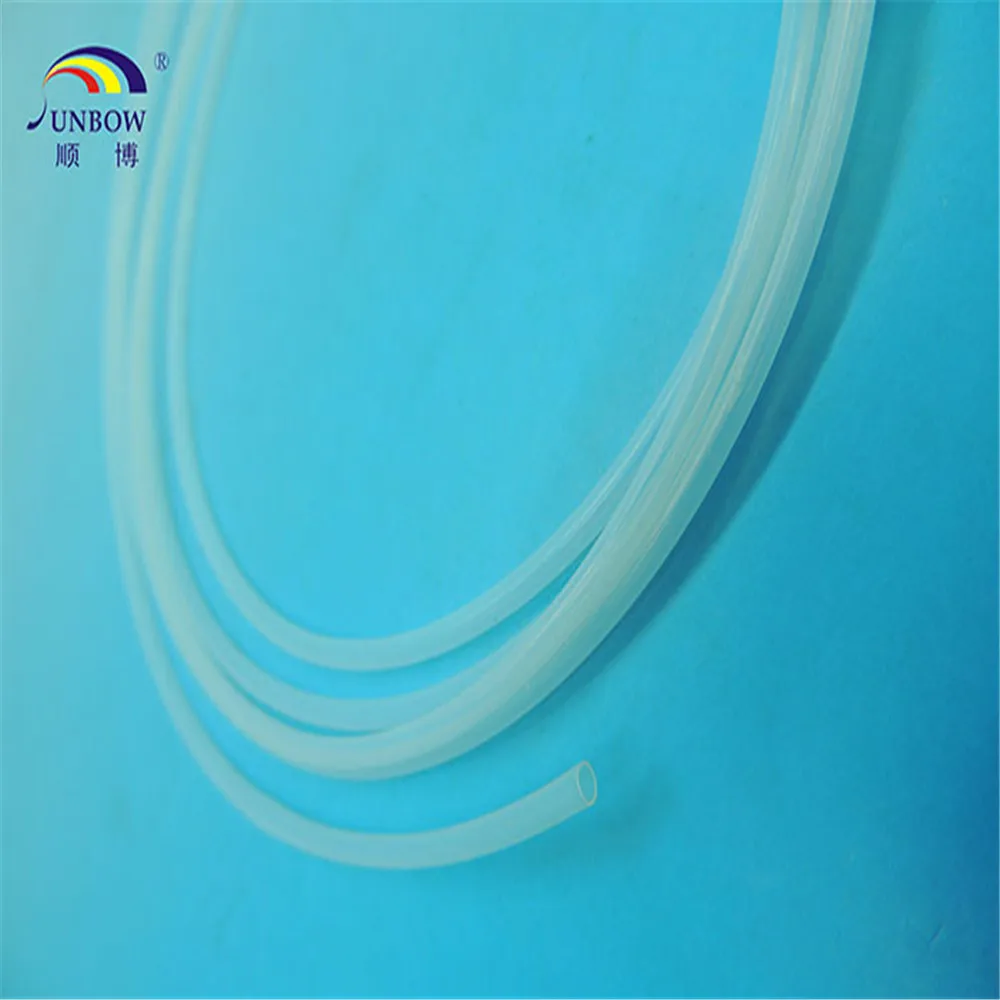

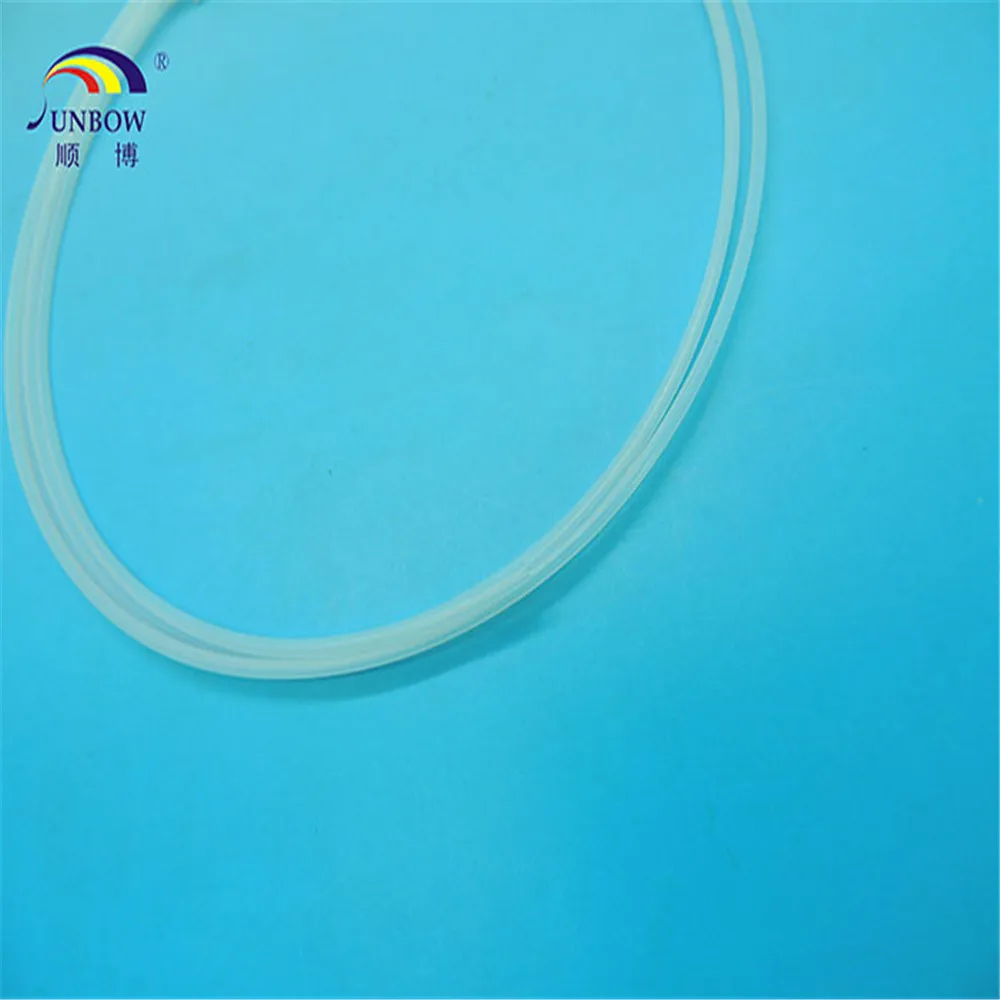

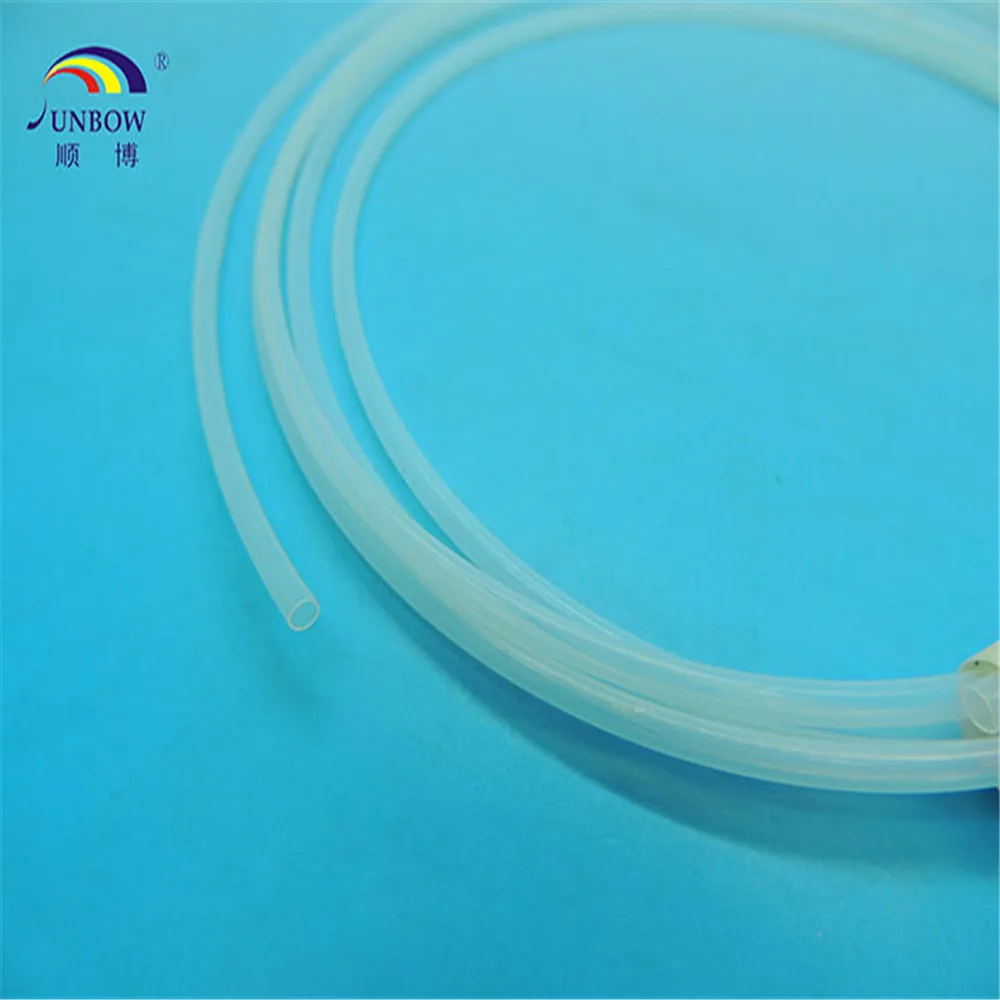

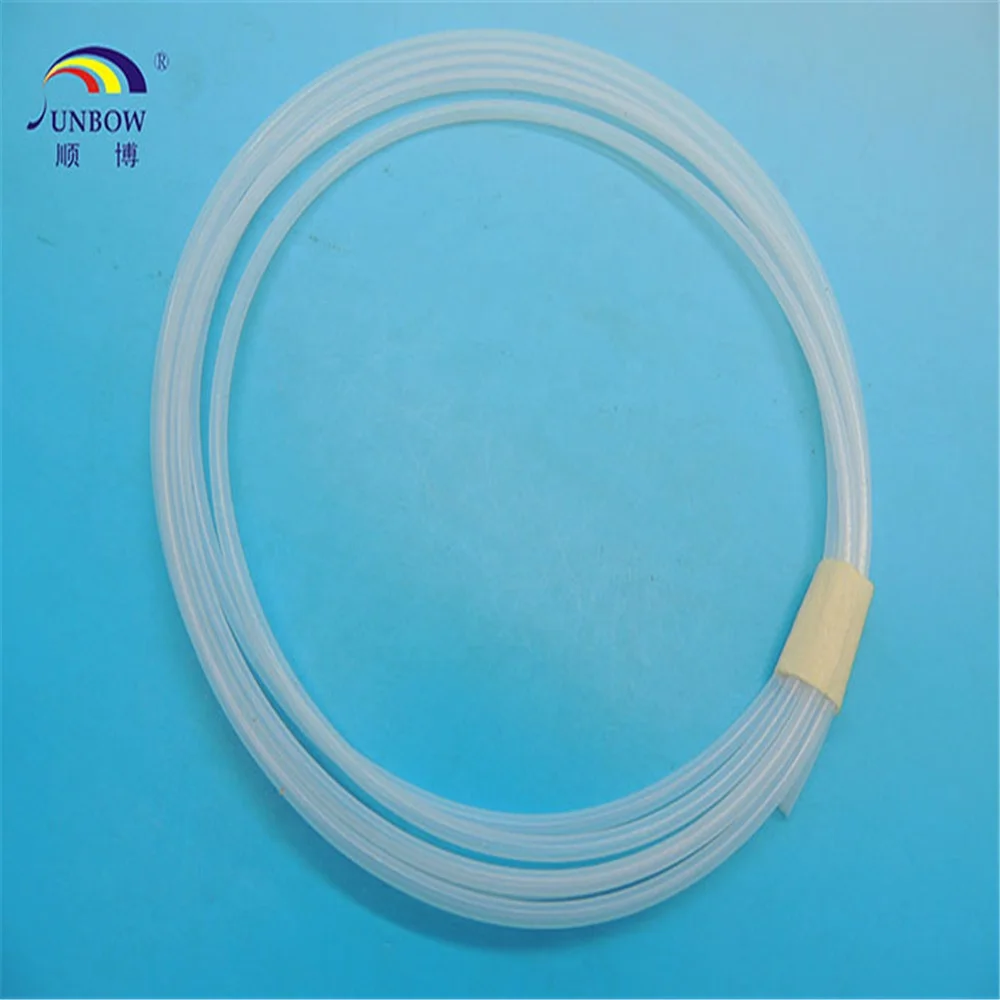

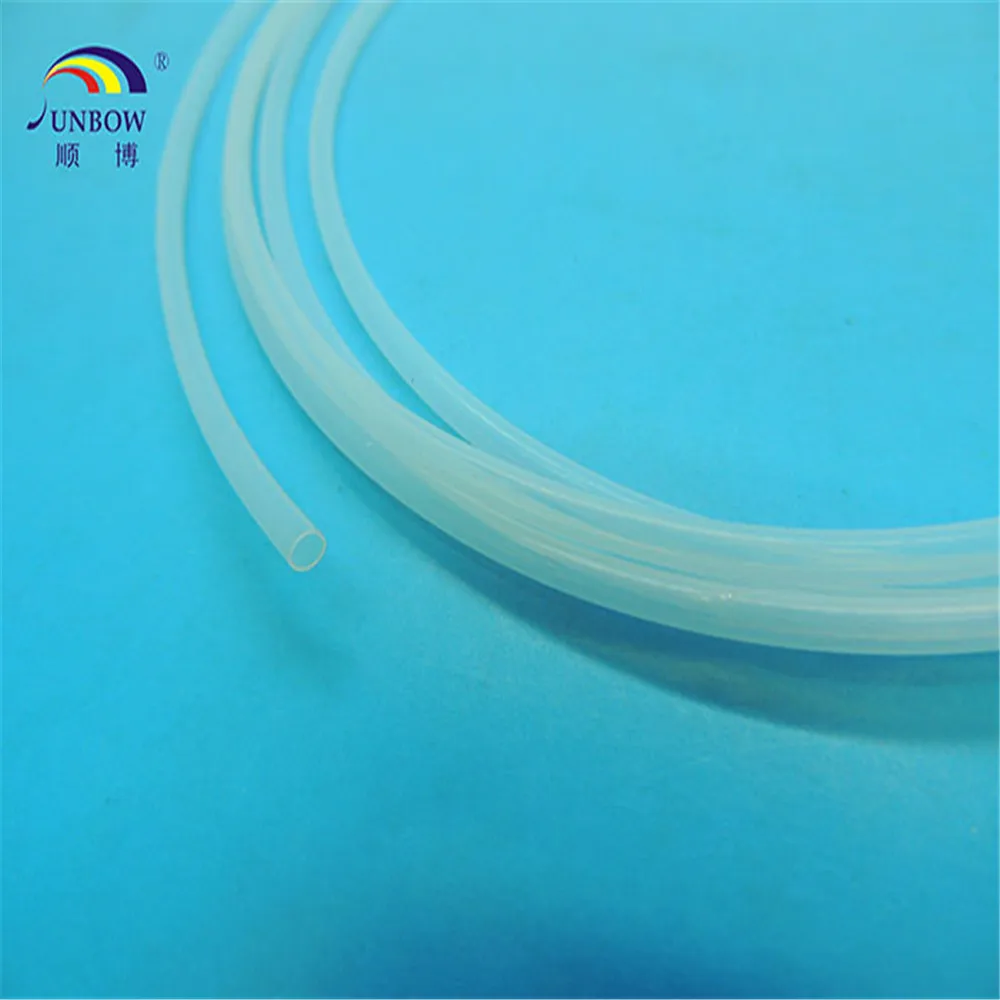

PTFE tube/pipe/rods/Black PTFE products good quality



STRUCTURE & USAGE

It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.



Characteristics:

1.Operating Temperature: -800C~2600C;

2. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);

3. High voltage resistance (45kv/mm)



SPECIFICATION

Item	Standard	Item	Standard
Relative Density	2.14~2.20	Melting Point (0C)	327
Tensile Strength (MPa)	≥25	Operating Temperature (0C)	-80~260
Stretch Yield Strength (MPa)	≥11	Oxygen index(%)	>90
Elongation (%)	≥300	Water Absorption (%)	<0.01
Arc Resistance	>300	Linear ExpansionCoefficient(×105/0C)21~1000C	10
Shore Hardness (D)	59~63	breakdown strength (kv/mm)	≥45
		volume resistance (Ω.cm)	1×1016



I.D.(mm)	O.D.(mm)(s)	O.D.(mm)(T)	O.D.(mm)(L)	Standard Package
				(meter/roll)
0.30±0.10	0.80±0.10	0.70±0.10	0.64±0.10	305
0.38±0.10	0.88±0.10	0.78±0.10	0.72±0.10	305
0.46±0.10	0.96±0.10	0.86±0.10	0.80±0.10	305
0.56±0.10	1.16±0.10	1.06±0.10	0.90±0.10	305
0.66±0.10	1.26±0.10	1.16±0.10	1.00±0.10	305
0.71±0.10	1.31±0.10	1.21±0.10	1.05±0.10	305
0.81±0.10	1.41±0.10	1.31±0.10	1.15±0.10	305
0.86±0.10	1.66±0.10	1.46±0.10	1.20±0.10	305
0.96±0.20	1.76±0.20	1.56±0.20	1.30±0.20	200
1.07±0.20	1.87±0.20	1.67±0.20	1.41±0.20	200



COLOR :The standard color is clear luctte.



 80% of the products of SUNBOW Insulating Sleeve have been synchronized with international first-line brands. This is a fact and not a advertised one. Recently, an Egyptian customer needed a certain type of fire hose, and SUNBOW made all the required promises. As a result, even the samples did not need to be tested and compared, and the direct order was 15,857 US dollars, and the round-trip mail did not exceed 10.

Many domestic colleagues say that they can replace a certain line brand, so customers can easily find a suitable replacement product in China. In fact, this is not the case. Many customers find a few or even dozens of suppliers and find that they can only meet the requirements in a certain aspect, such as the insulation performance can be achieved, but the physical performance cannot be met, and they cannot find a replacement for the international first-line brand. Insulating bushings, and SUNBOW's insulating bushings are synchronized with the top international brands in comprehensive performance.

Egyptian customers found us on the official website and asked if they could provide products with fire protection pipes ranging from ID20.0 to ID100.0. We said yes. The customer said, don't rush to promise, this fireproof pipe needs to withstand a breakdown voltage of 10-15KV, and it must meet both flexibility and reliability. Customer feedback has tested several domestic brands, and even some suppliers say they can benchmark, but they don’t even know the product.

We understand our customers that the insulation and stability of this fire hose are indeed excellent. Last year, we focused on research on high breakdown voltage, and through improvement, the fire hose that is now launched can be compared with the products of a certain international brand. In fact, we have encountered a lot of these kinds of problems. The products provided by many suppliers have no problem with the insulation, but the difficulty lies in the overall performance, such as flexibility and flexibility. With strong flexibility, it is easier and faster for customers to operate the tube. We recommend this fireproof pipe according to customer's application requirements.

At first, if the customer wants to test it by himself, our company is willing to provide samples to the customer. But the customer has wasted too much time before, and it took a long time to send the samples to Egypt. I asked if we can directly provide the test report. In addition, we also asked us to promise that this fire hose will absolutely meet the needs of customers. SUNBOW has always pursued high quality, all products must be tested, and the actual test report shall prevail, and there is no worry about making promises to customers. After the customer read the test report and the letter of commitment, he immediately placed an order of US$15,857 and paid a 40% deposit the next day.

SUNBOW is one of the few manufacturers in the industry that all adopt full-automatic high-speed spinning machines, high-speed braiding machines, and complete sets of full-automatic pipe-passing machines. Compared with the manual operation of peers, human error is largely eliminated and guaranteed The consistency of the product.

SUNBOW's insulating sleeves have not only been supplied to car companies such as Weilai and Mercedes-Benz New Energy in bulk, but also to industry giants such as Huawei and Panasonic.

SUNBOW synchronizes with the first-tier international brands and is gradually surpassing the first-tier brands.
